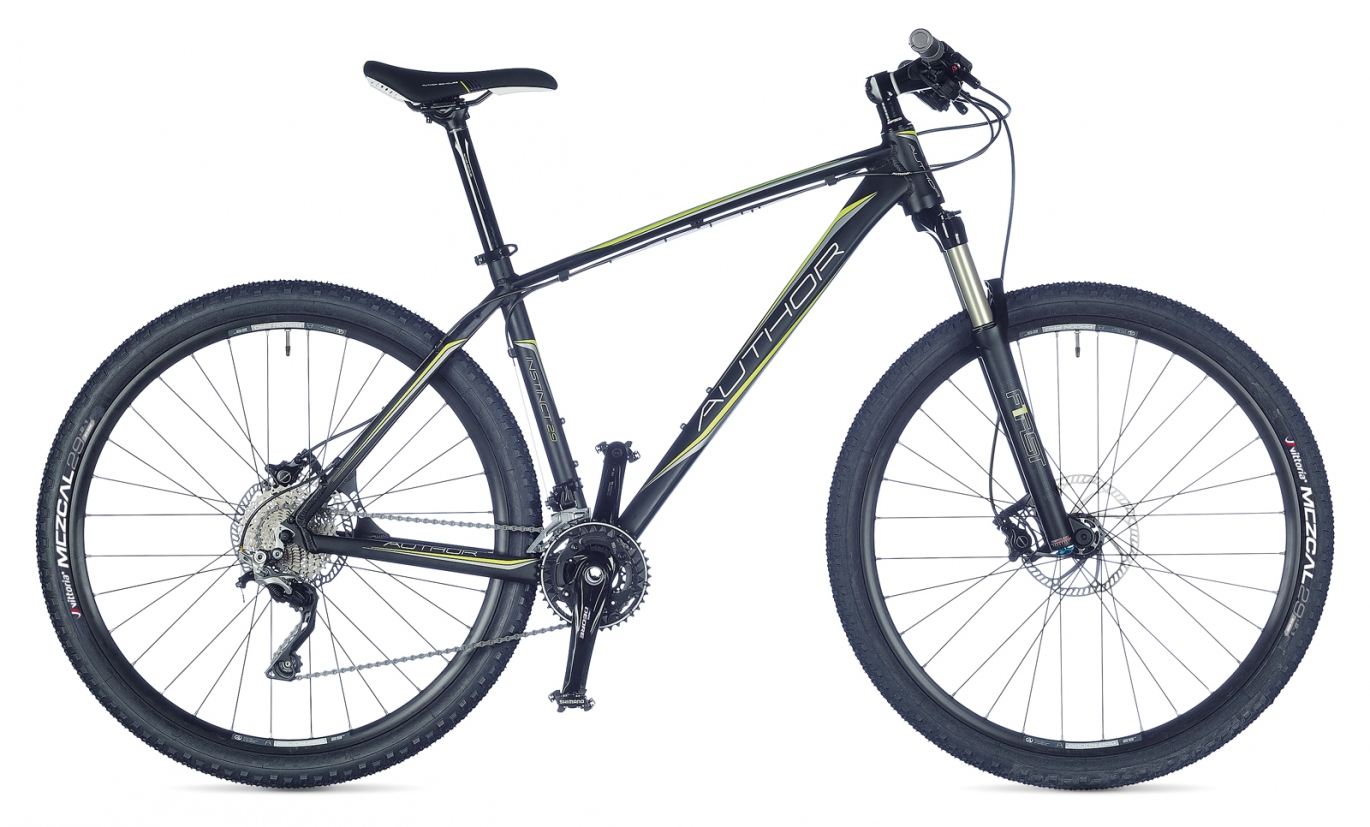

AUTHOR Instinct 29 2015Archivní model 2015

Double butted alloy frame with hydroroformed shapingAir lock out fork RST F1RSTDisc hydraulic TEKTRO brakes

SOLD OUT

Mountain bike Author INSTINCT 29 with double butted hydroformed alloy frame and air, RST F1RST fork with lock out unit.

other models

Interested in other model`s year?

Technical specification

Size	17", 19", 21"
Frame	double butted dural 6061 29" - hydroforming
Front fork	RST F1RST 29 15 air, lock out (100 mm)
Head parts	FSA Integrated 1.5" tapered
Chain Wheel	SHIMANO Deore 40-30-22 teeth 170 / 175 mm cranks
BBParts	SHIMANO Deore BB unit
Front derailleur	SHIMANO Deore (34.9)
Rear derailleur	SHIMANO XT
Shifters	SHIMANO Deore (30)
Free wheel	SHIMANO HG50-10 11-36 (10)
Chain	SHIMANO HG54
Hubs	AUTHOR Helium / Xenon Disc 15 mm thru front axle 12 mm thru rear axle 32 holes
Brakes	TEKTRO Orion disc hydraulic (7" rotors)
Brakes levers	TEKTRO Orion

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
