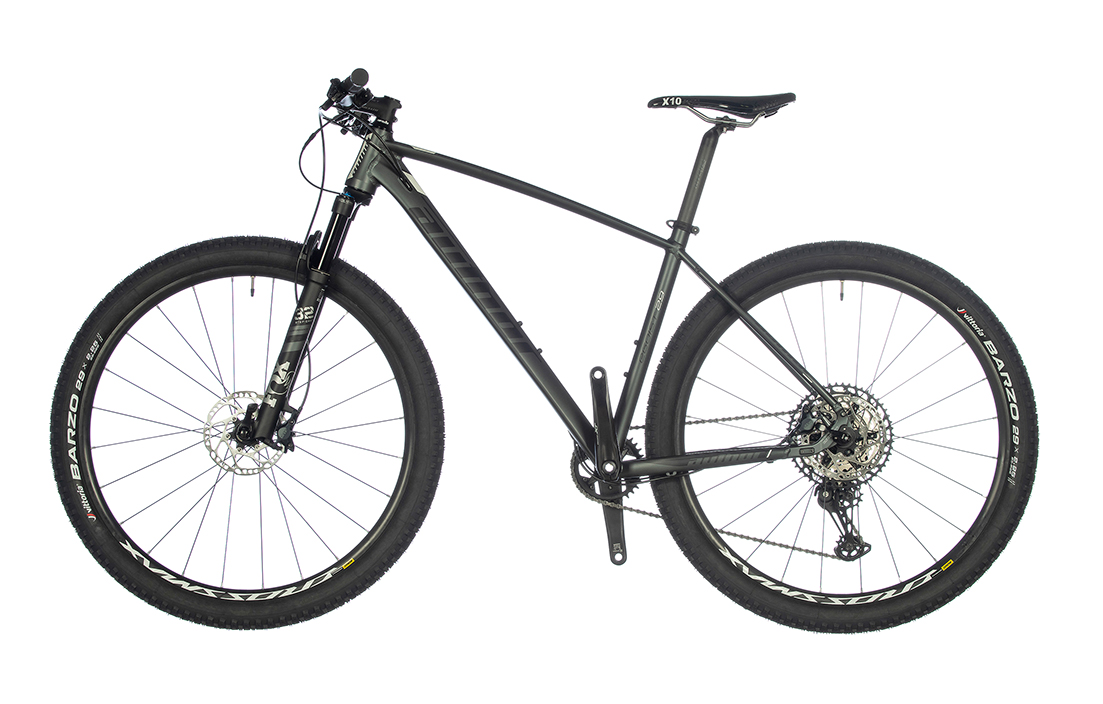

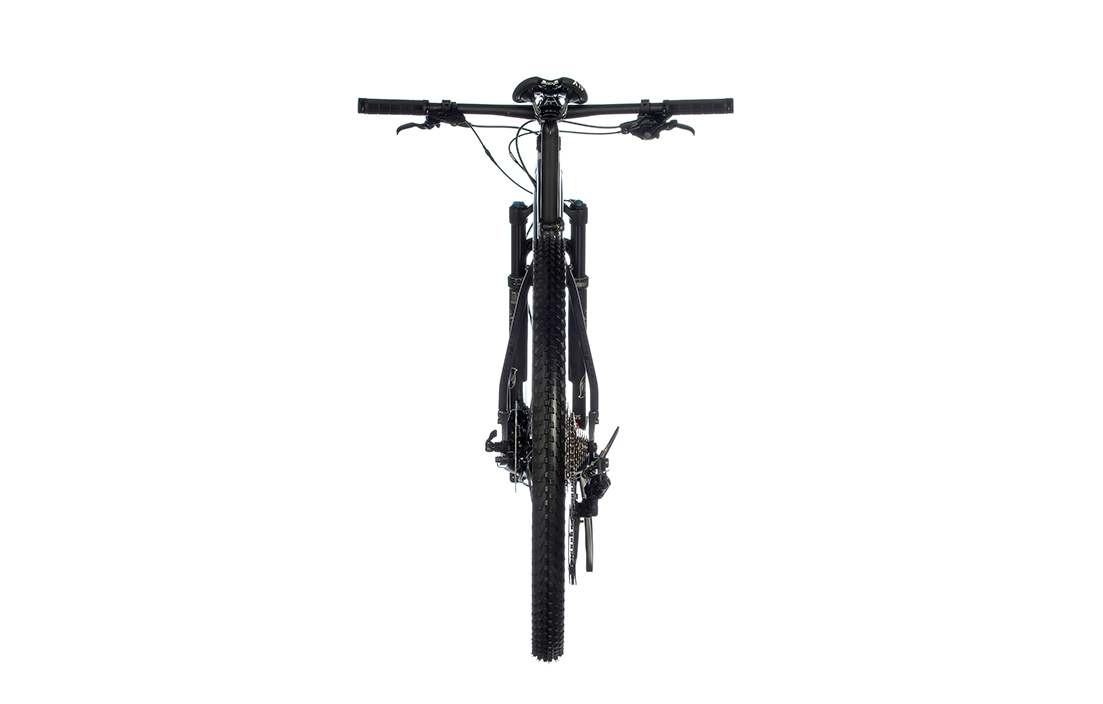

AUTHOR Egoist 29 2021-22

Technical specification

Size	17", 19", 21"
Frame	triple butted hydroformed alloy 6061 29"
Front fork	FOX 32 Float SC 29 100 Remote air, remote lock out 15 mm thru axle, 1.5" tapered steerer (100 mm)
Head parts	FSA Orbit 1.5B 1.5" tapered
Chain Wheel	SHIMANO XT 34 teeth 170 / 175 mm cranks
BBParts	SHIMANO BB-MT800 BB unit
Rear derailleur	SHIMANO XT
Shifters	SHIMANO XT (12)
Free wheel	SHIMANO CS-M7100 10-51 (12)
Chain	SHIMANO M7100
Hubs	MAVIC Crossmax 29 wheel set 24 holes 15 × 110 mm thru front axle 12 × 148 mm thru rear axle
Brakes	SHIMANO SLX disc hydraulic (6" rotors)
Brakes levers	SHIMANO SLX

Rims	MAVIC Crossmax 29 wheel set 24 holes
Spokes	MAVIC
Tires	VITTORIA Barzo foldable 29" × 2.25"
Handlebar	RITCHEY MTN WCS 2x9 9° 700 / 720 mm
Grips	AUTHOR Pro Lock
Stem	RITCHEY WCS C220
Seat post	RITCHEY Comp Carbon (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	PROLOGO Nago Evo X10
Speed	12
Weight	10,9 kg / 19"

Geometry and sizes

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
