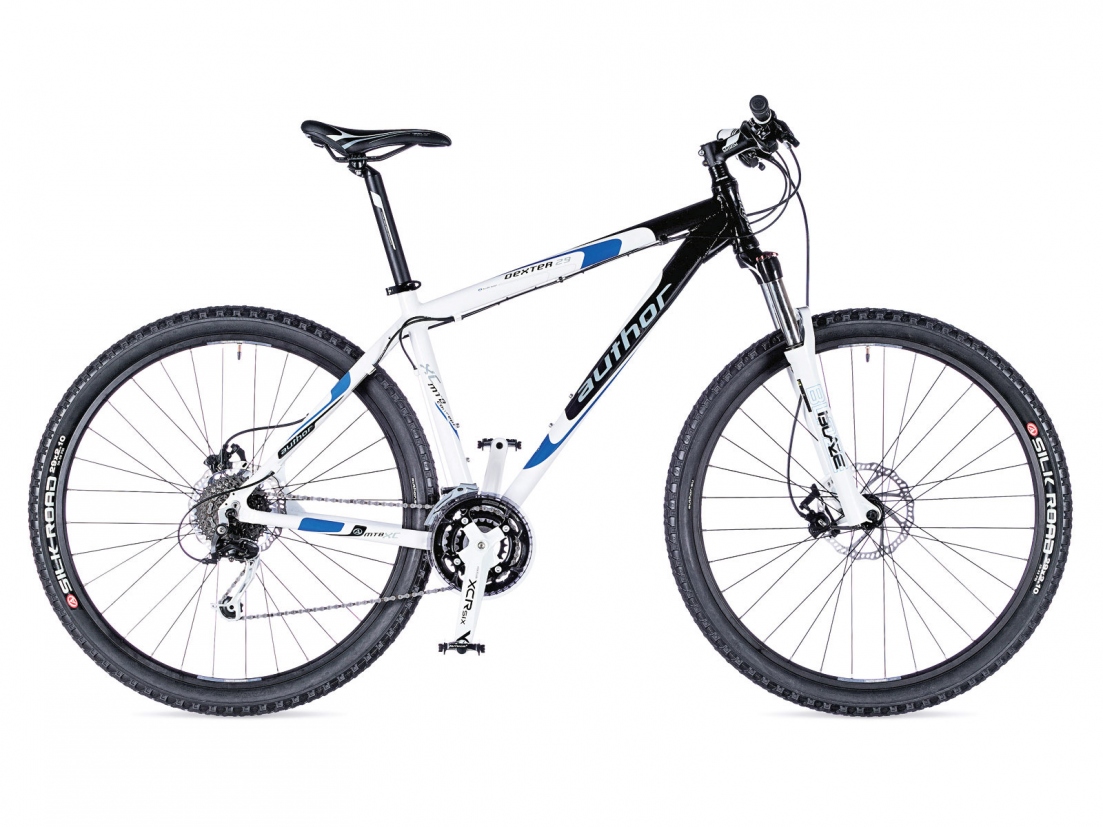

AUTHOR Bicycle Dexter 29 2014
Interested in other model`s year?

Technical specification

Size17", 19", 21"
Framealloy 6061 29"
Front forkRST Blaze 29 TnL oil, lock out (100 mm)
Head partsFSA Integrated 1-1/8"
Chain WheelSUNTOUR XCR-T414 44-32-22 teeth 170 / 175 mm cranks
BBPartsSUNTOUR XCM cartridge
Front derailleurSHIMANO Acera (34.9)
Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Alivio (27)
Free wheelSHIMANO HG-30-9 11-32 (9)
ChainSHIMANO HG-53
HubsQUANDO Disc disc 32 holes
BrakesTEKTRO HDC 300 disc hydraulic (7" rotors)
Brakes leversTEKTRO HDC 300
RimsAUTHOR Sphere 29 black 32 holes
Spokesblack steel
TiresAUTHOR Silk Road 29" x 2.10"
PedalsAUTHOR alloy
HandlebarAUTHOR Flatbar 0 mm 660 / 680 / 700 mm
GripsAUTHOR high density foam
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Summit
Speed27
Weight14,9 / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 168 178 188
Max. figure [cm] 179 189 202
S/T c-t [mm] 432 483 535
S/T c-c [mm] 0 0 0
T/T h [mm] 606 631 651
T/T a [mm] 585 605 623
H/T [mm] 115 120 125
C/S [mm] 445 445 445
W/B [mm] 1117 1137 1151
S/T ang. [°] 73 73 72.5
H/T ang. [°] 70 70.5 70.5
F/L [mm] 510 510 510
B/B drop [mm] 58 58 58
B/B width [mm] 0 0 0
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 51 51 51
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
