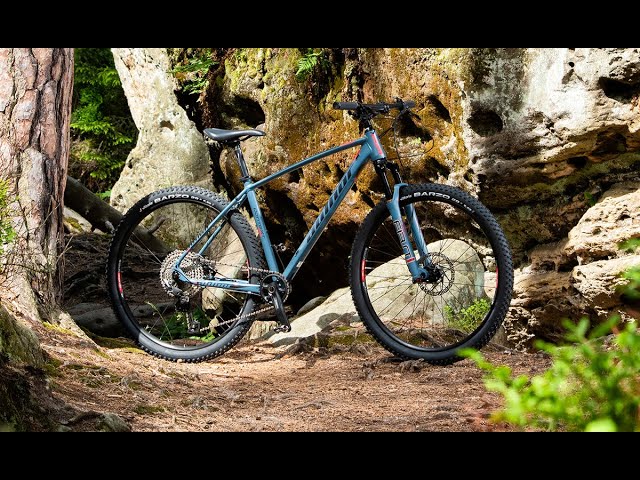

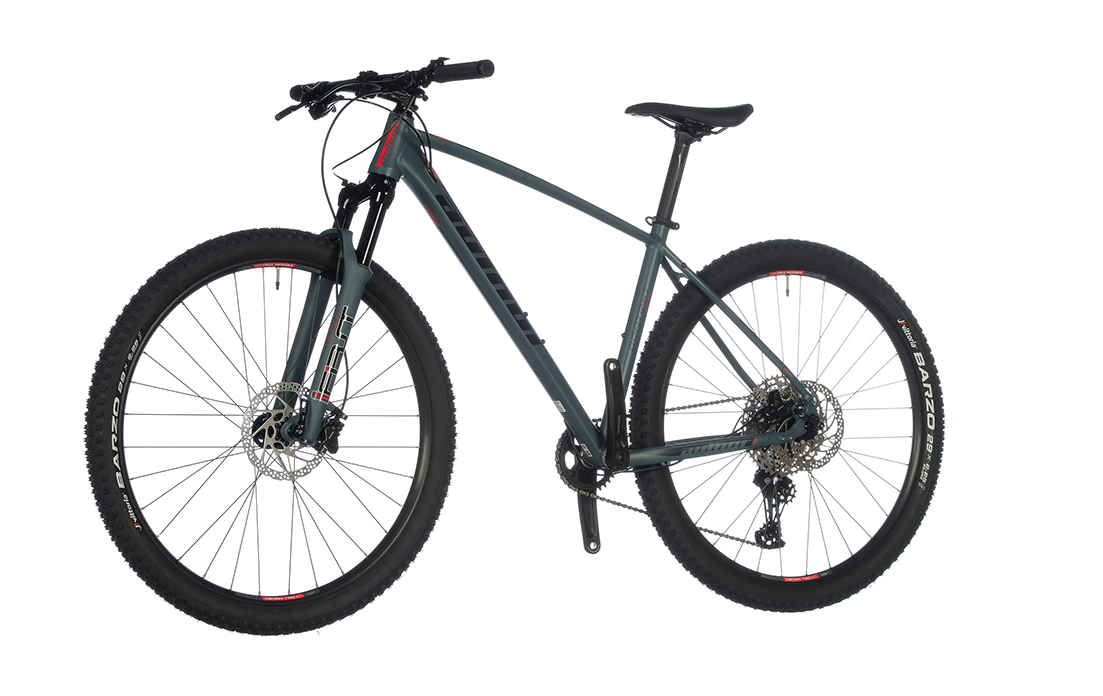

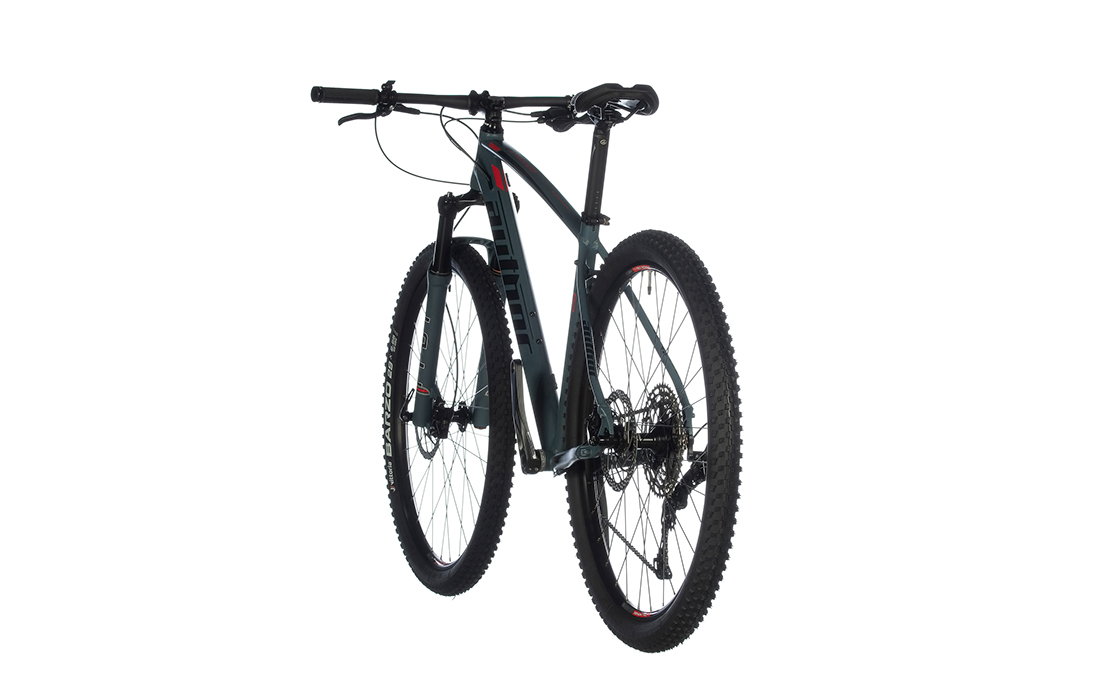

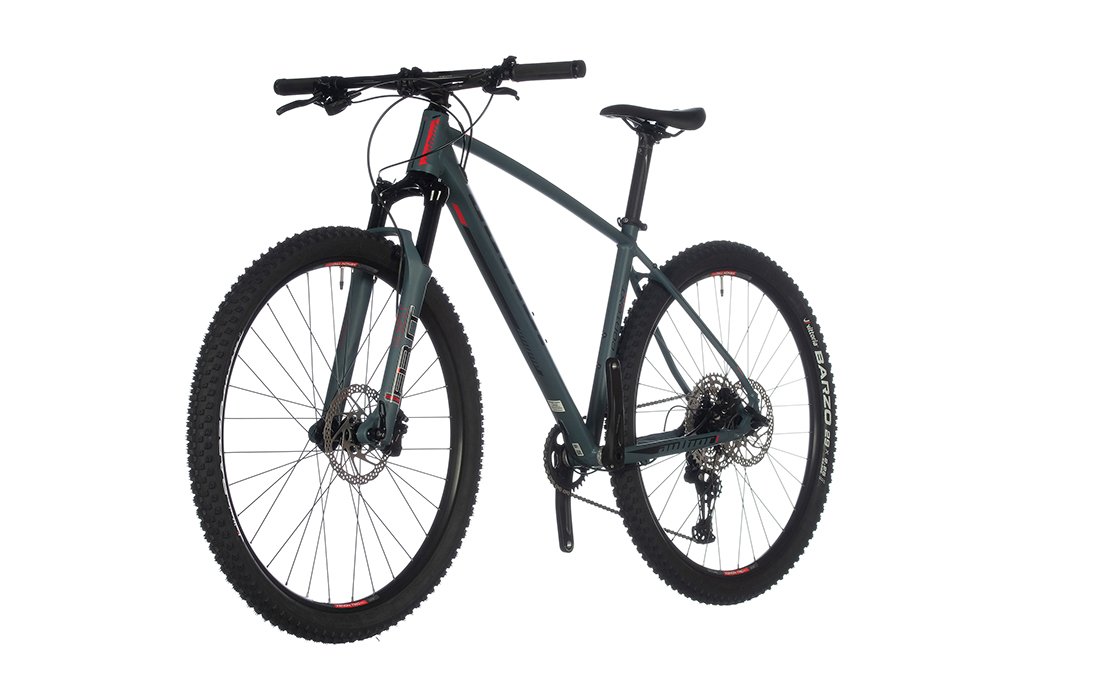

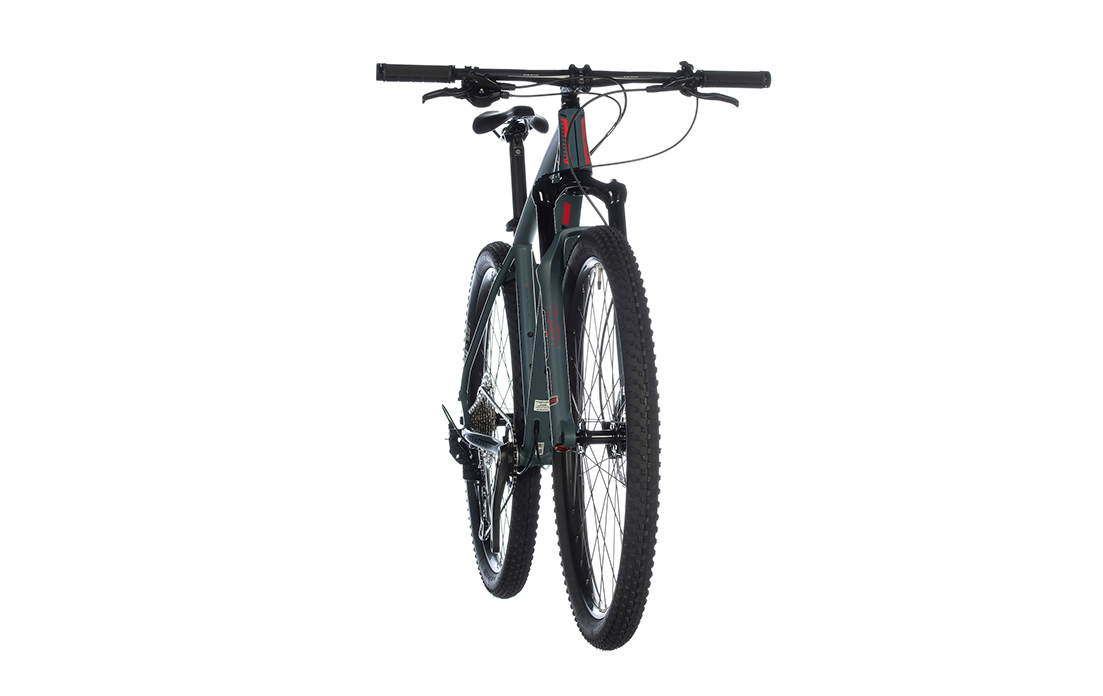

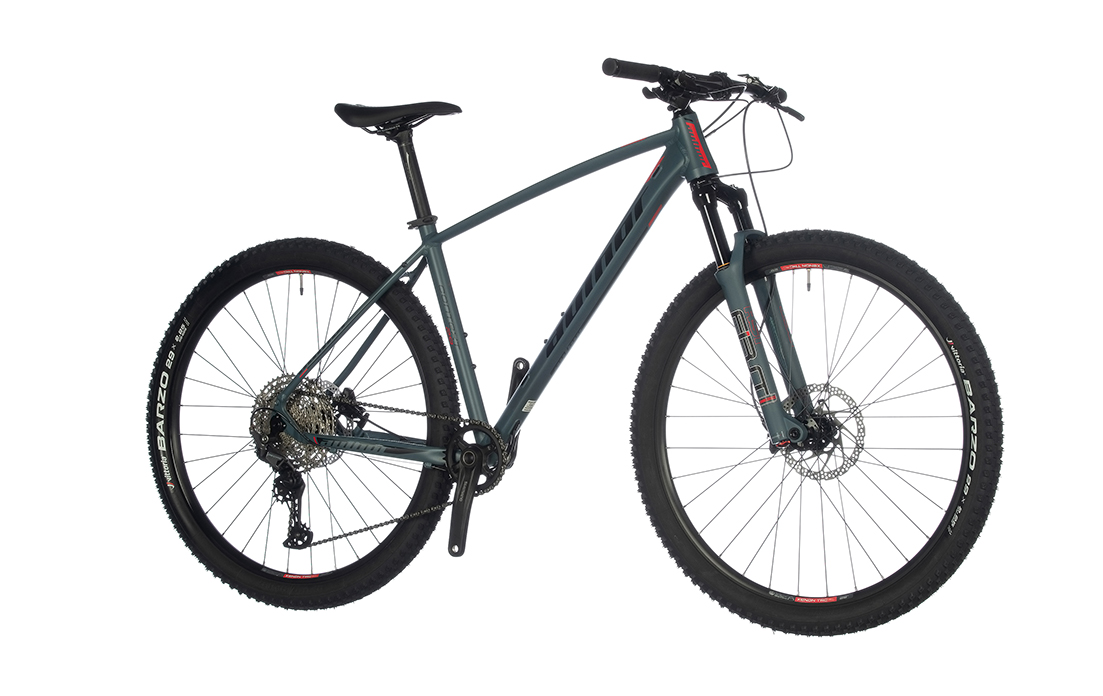

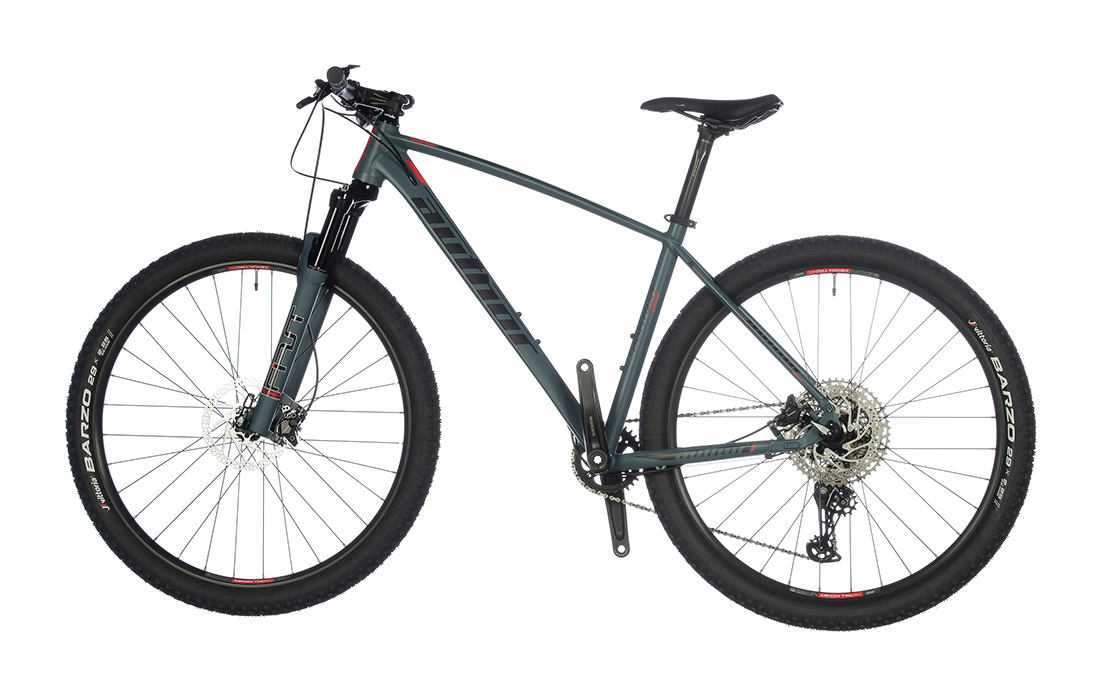

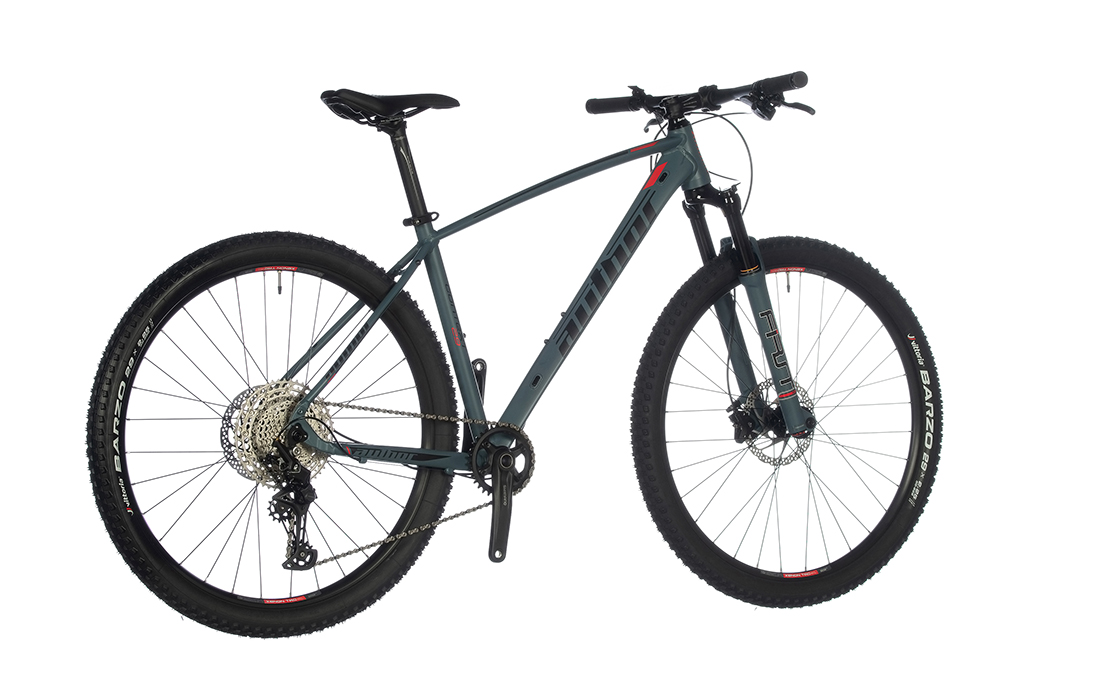

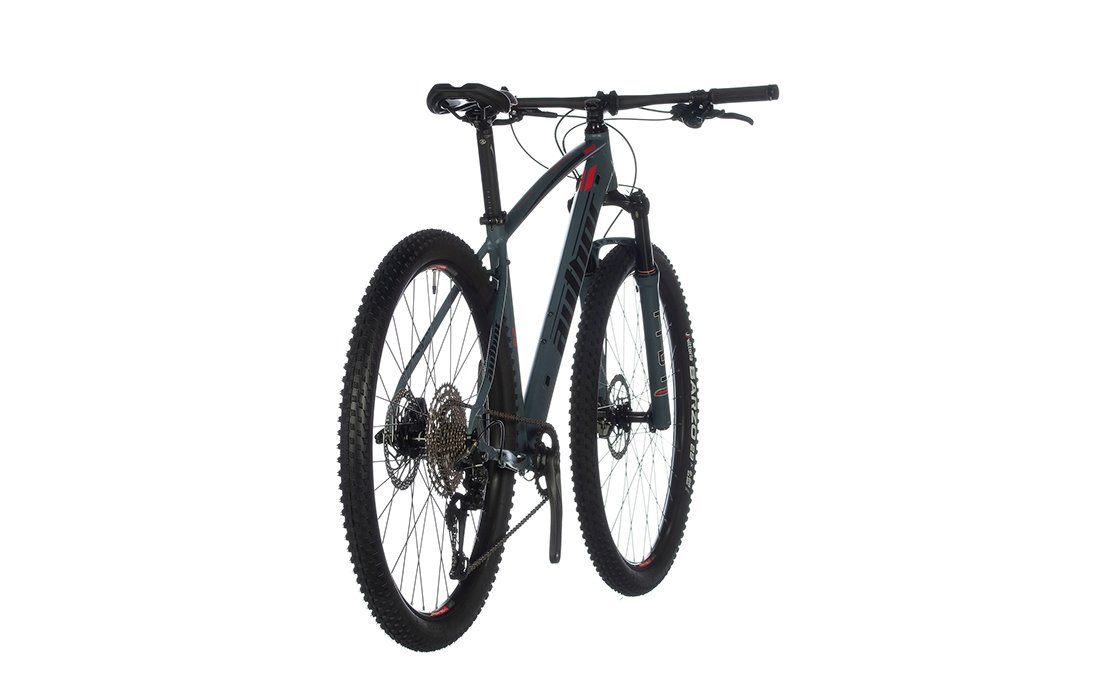

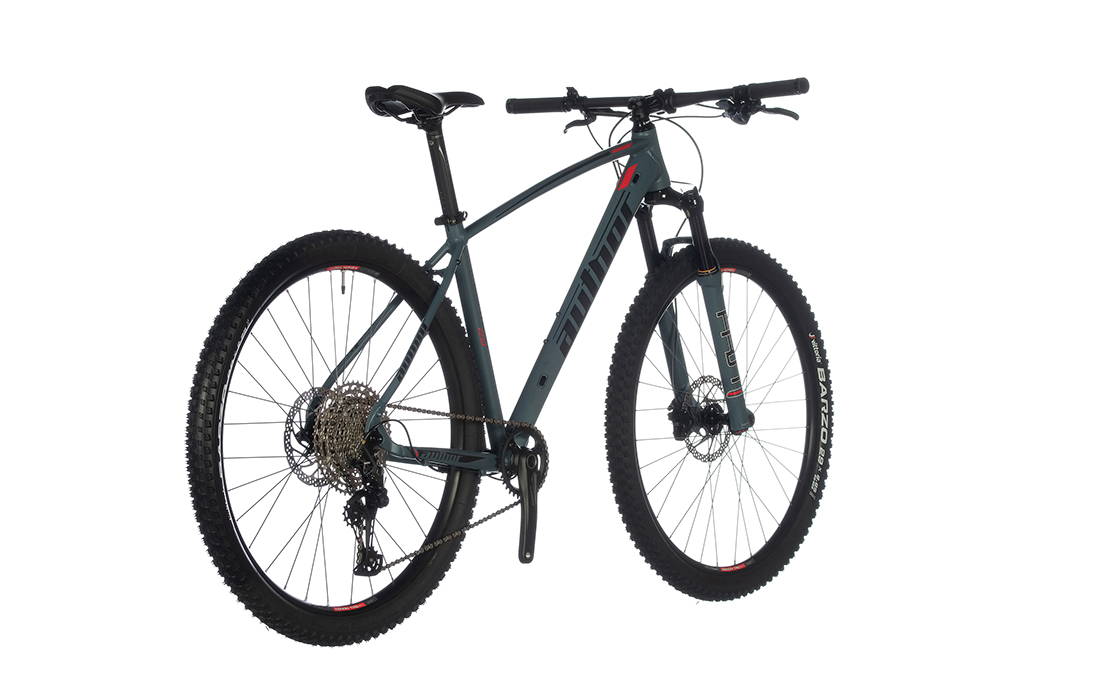

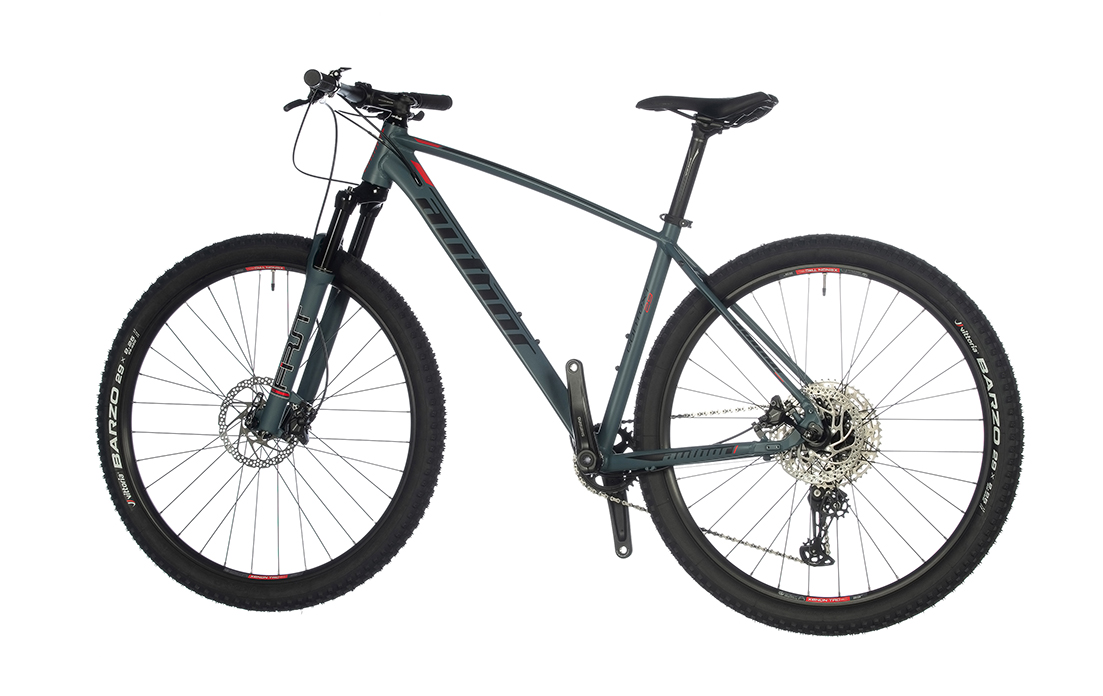

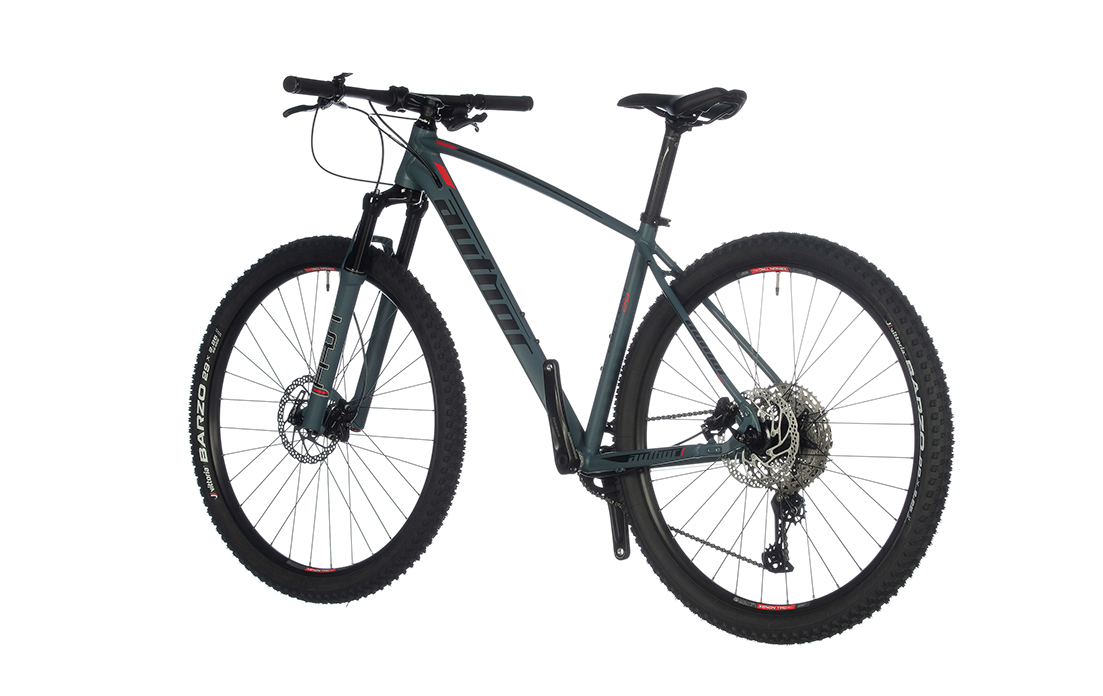

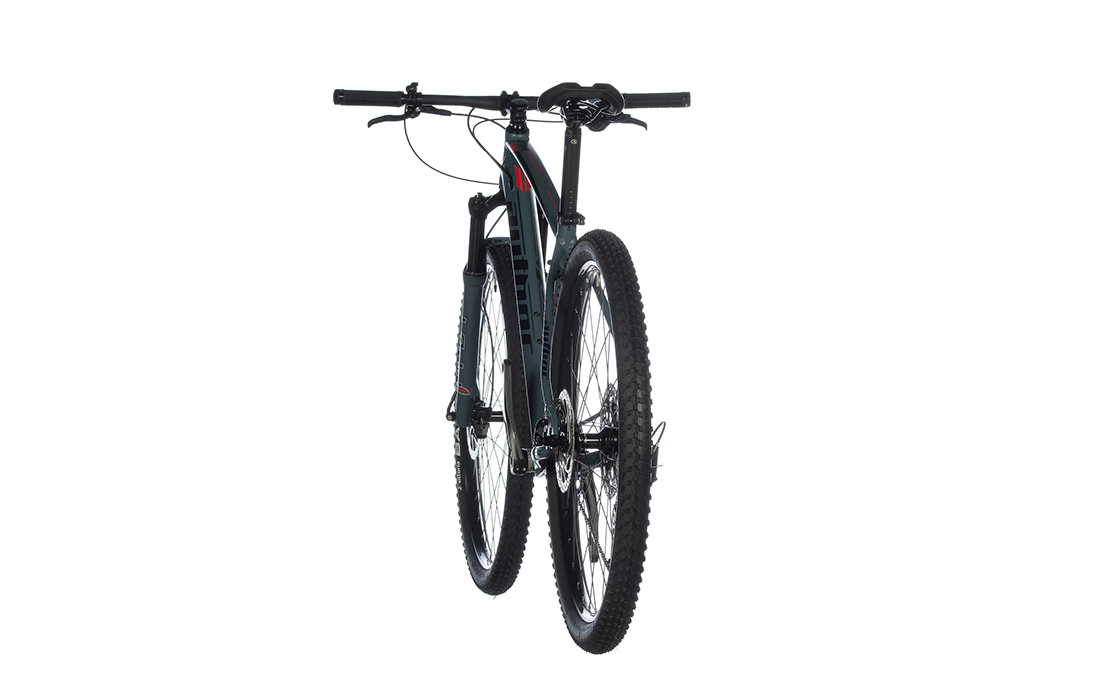

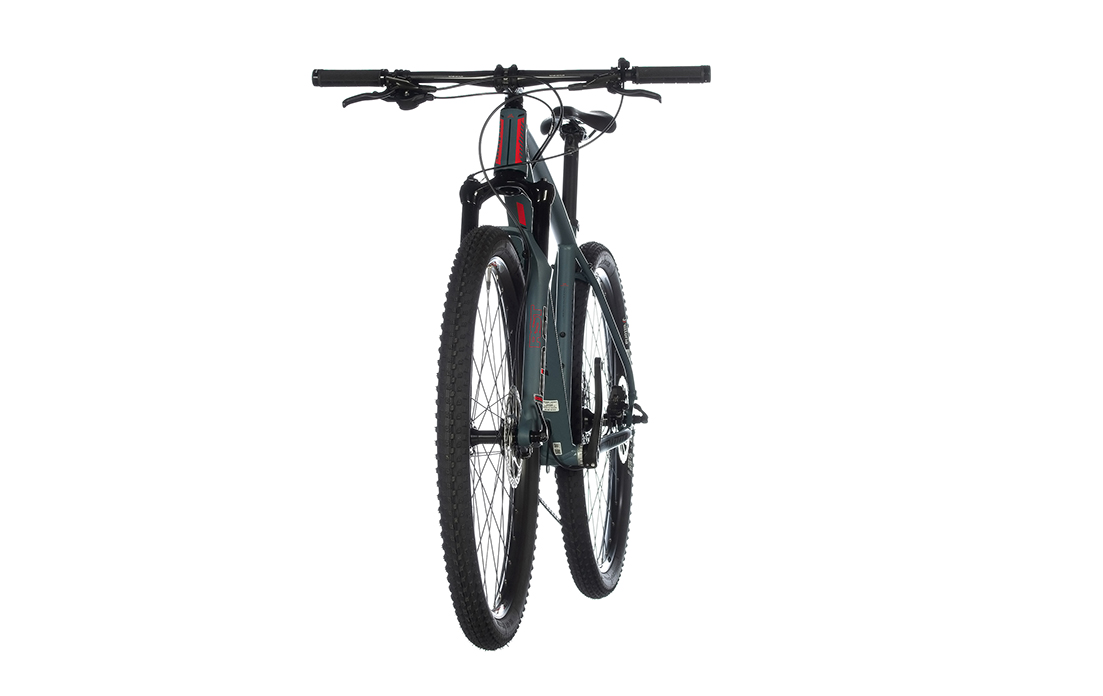

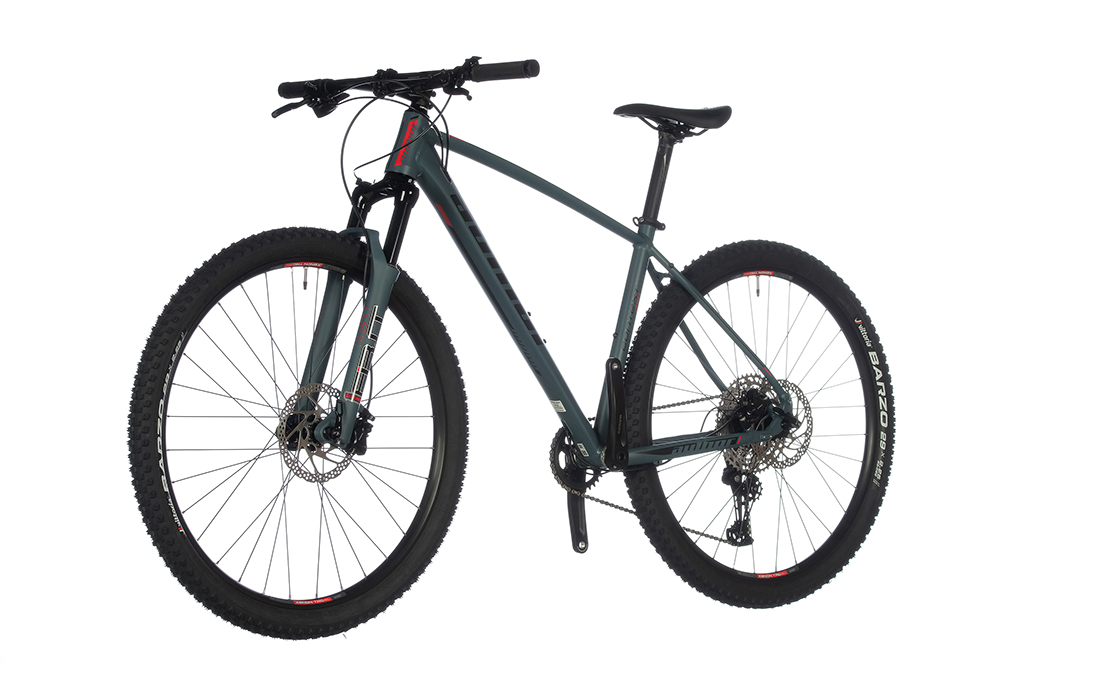

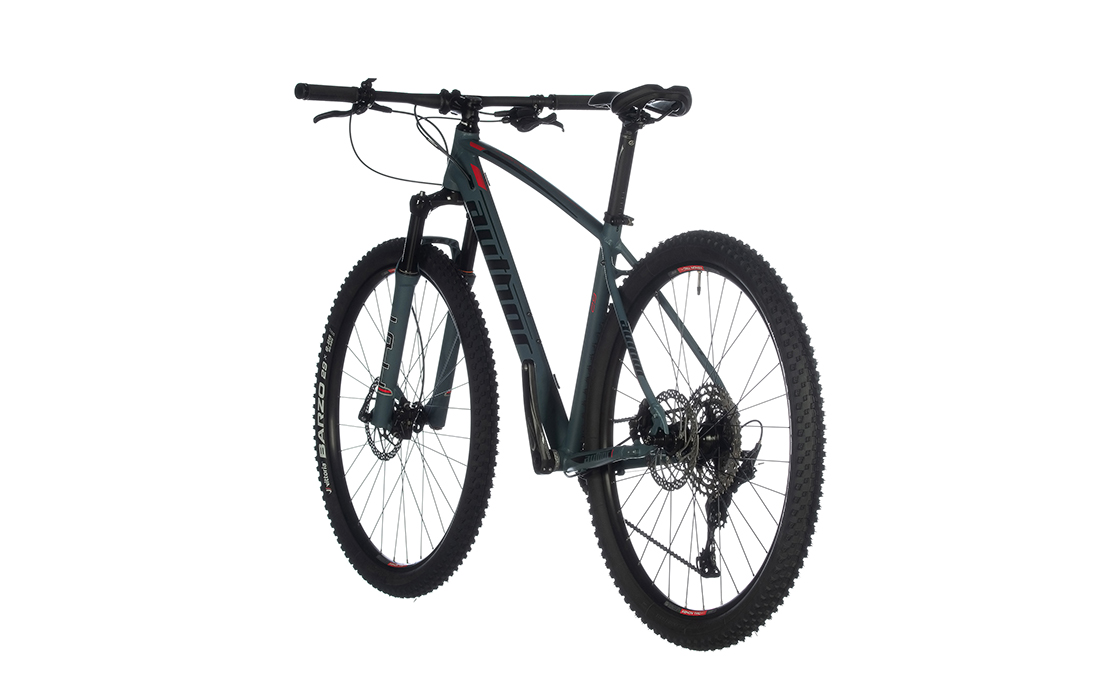

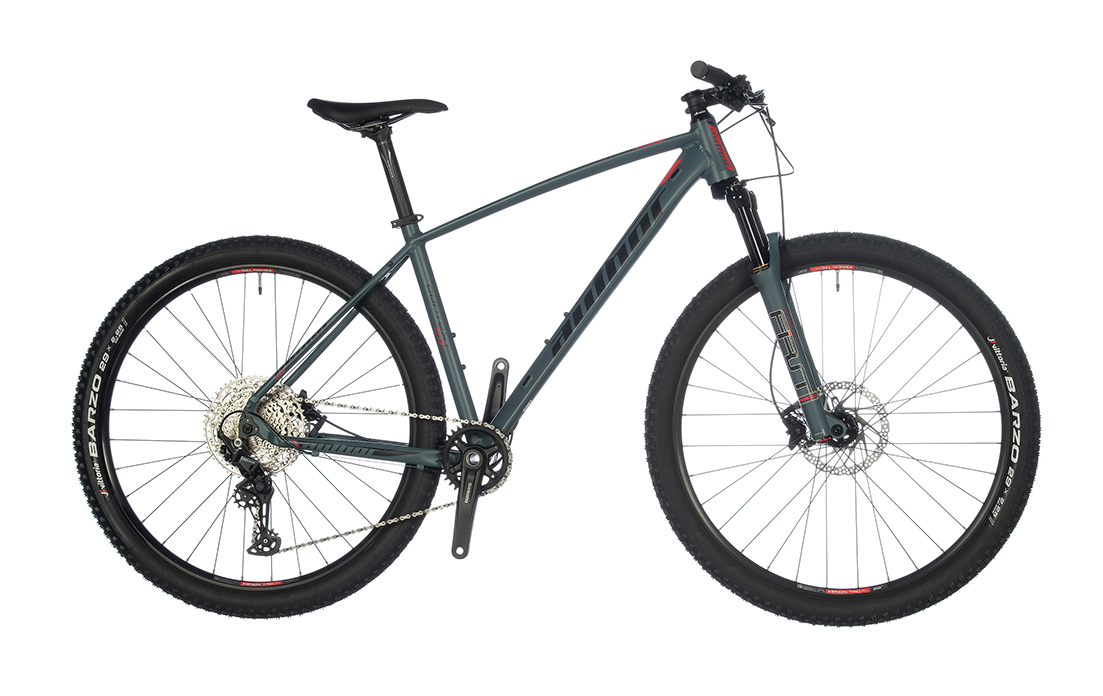

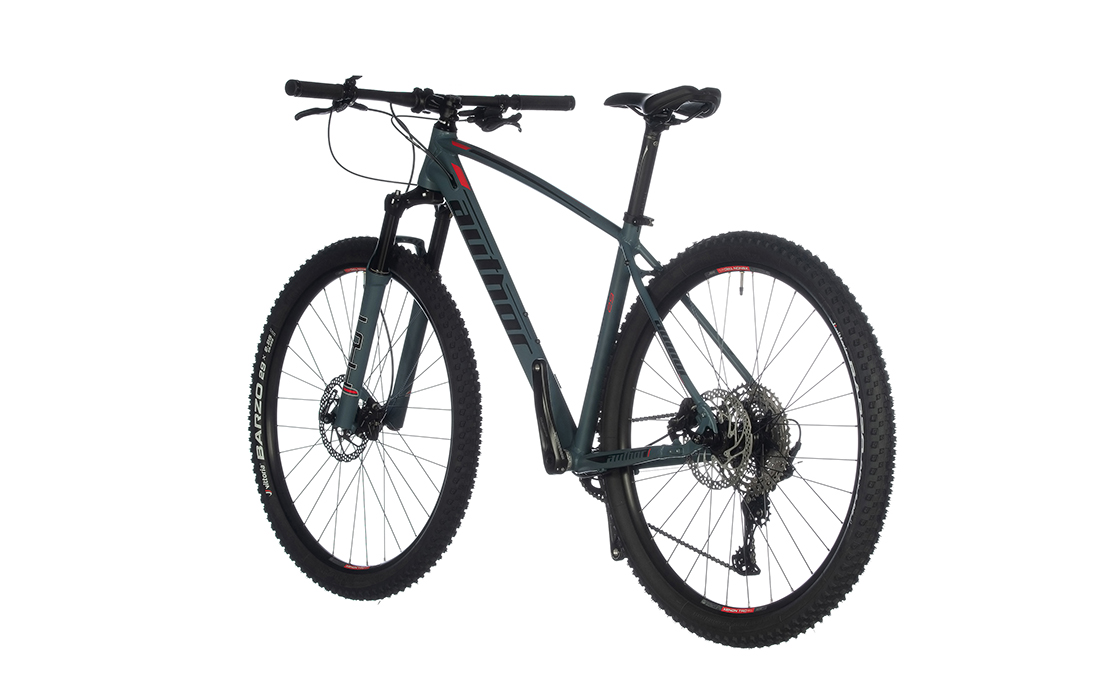

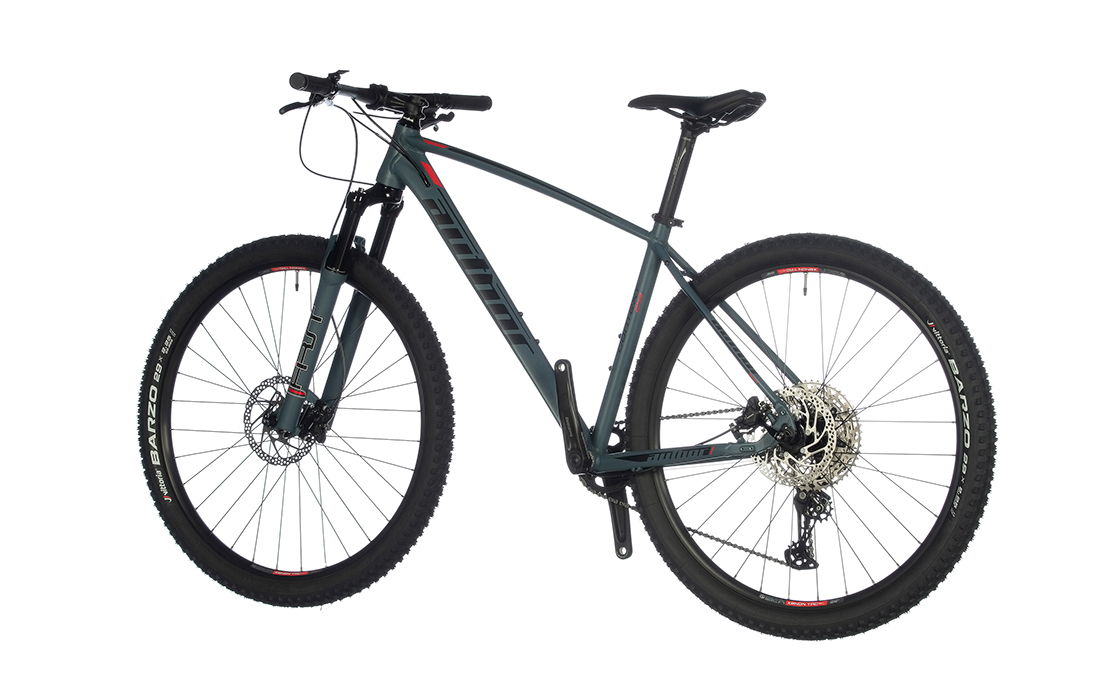

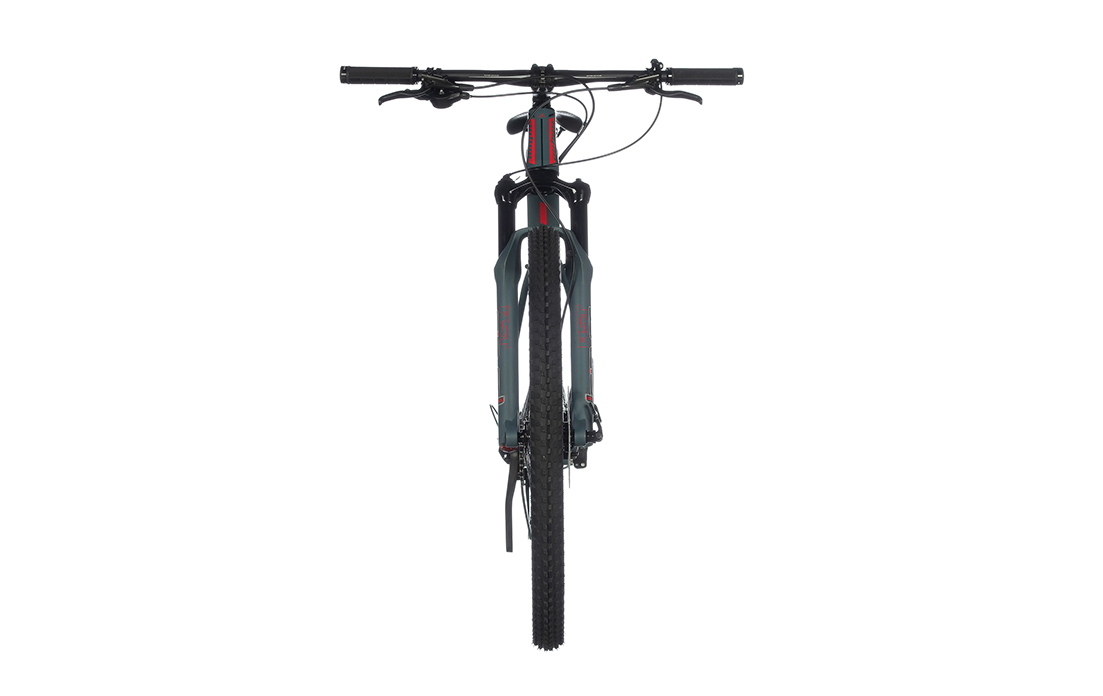

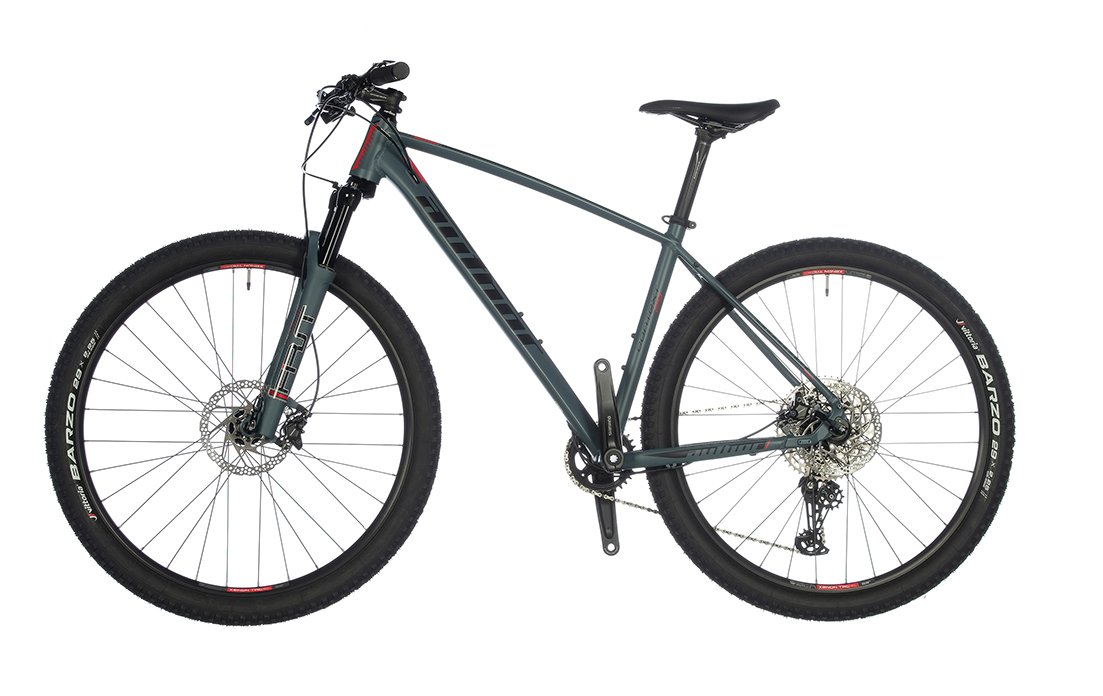

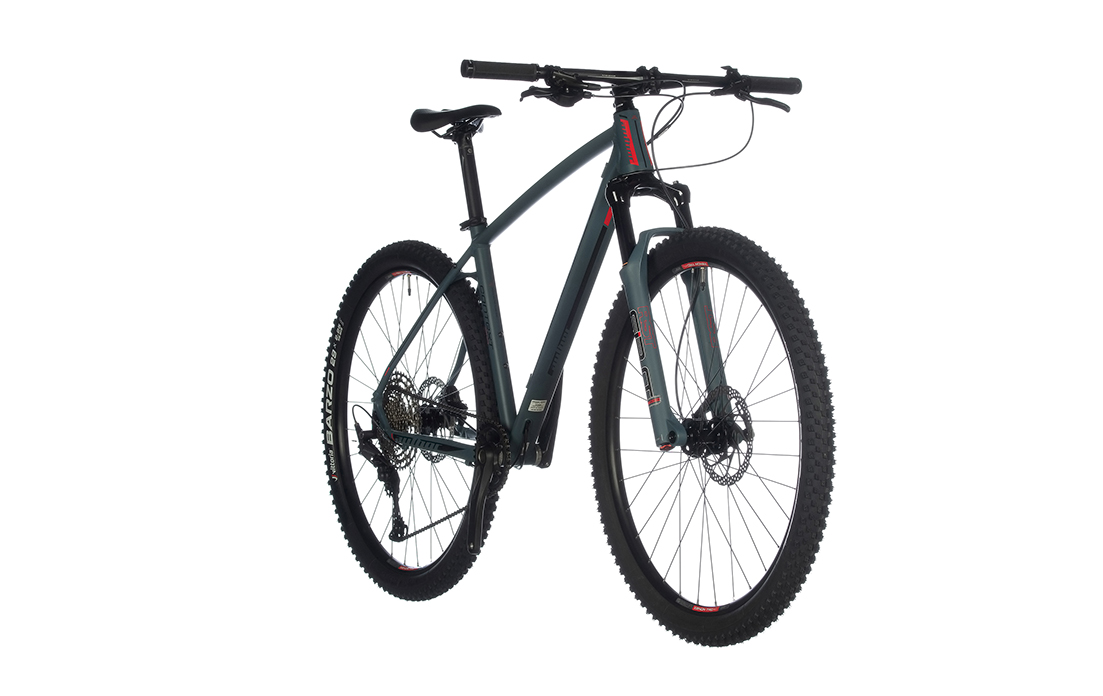

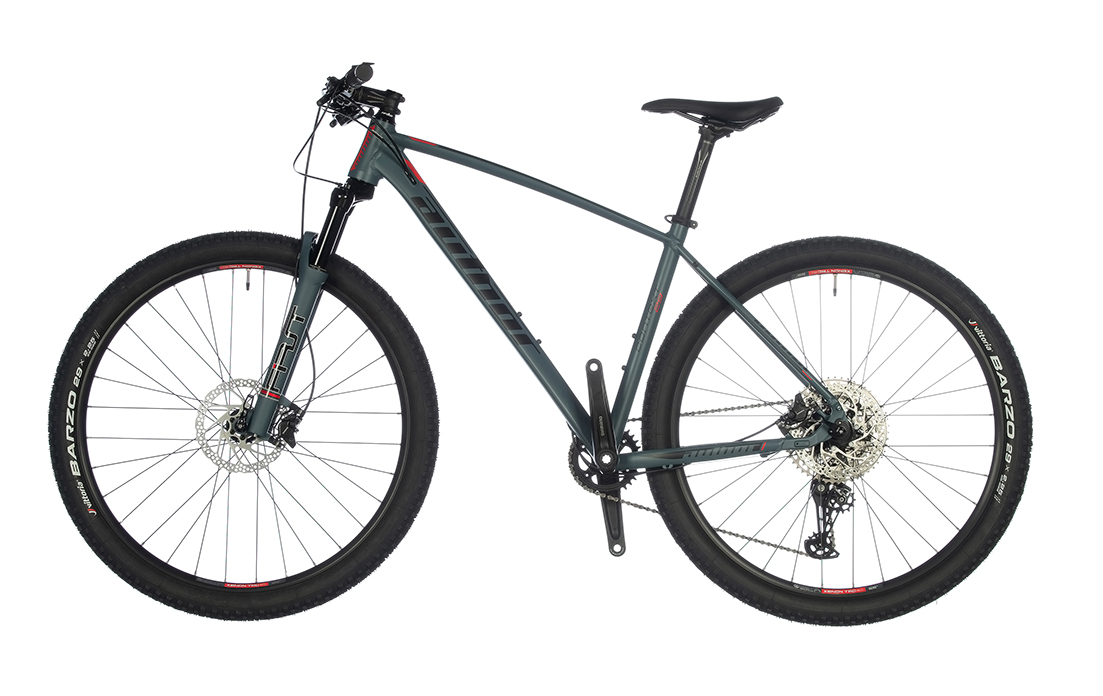

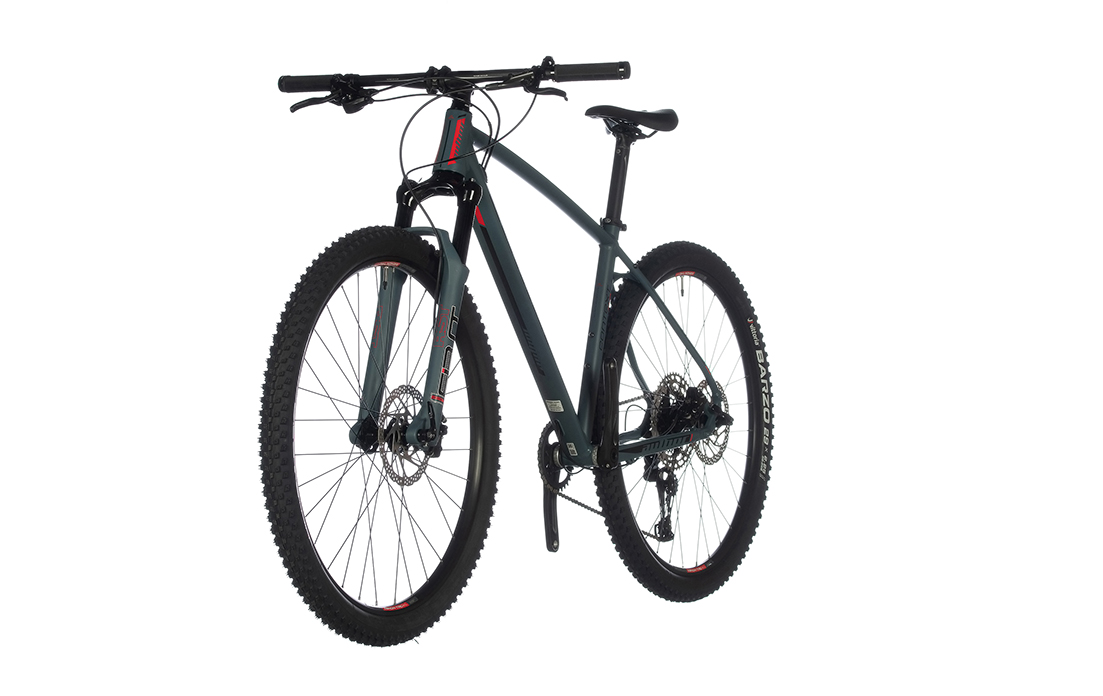

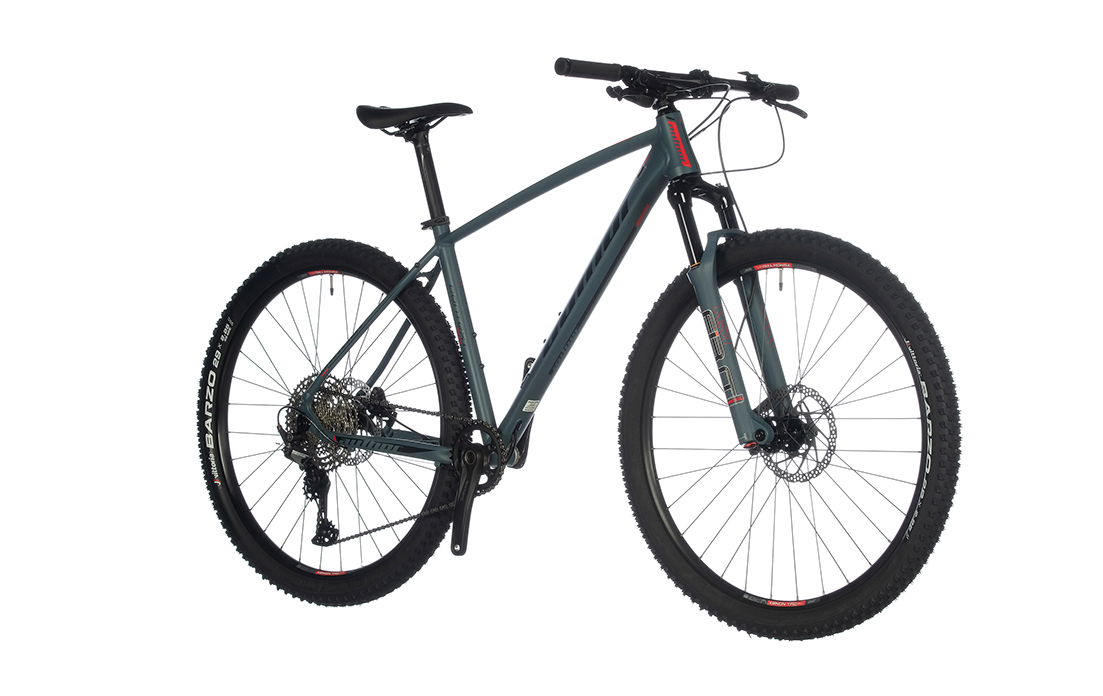

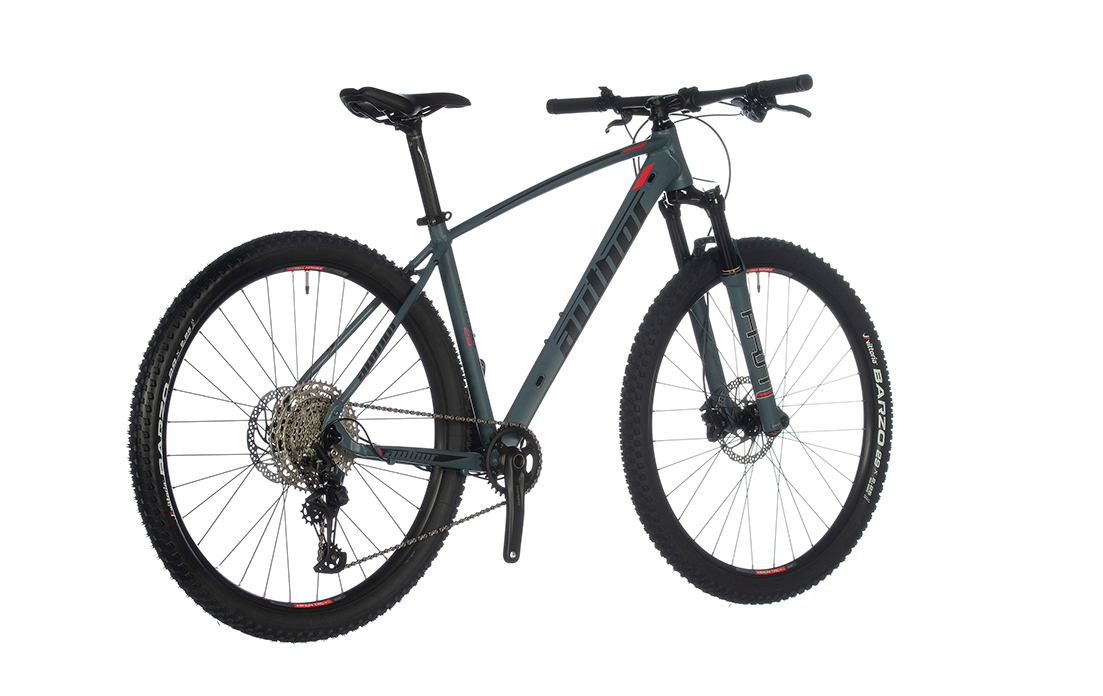

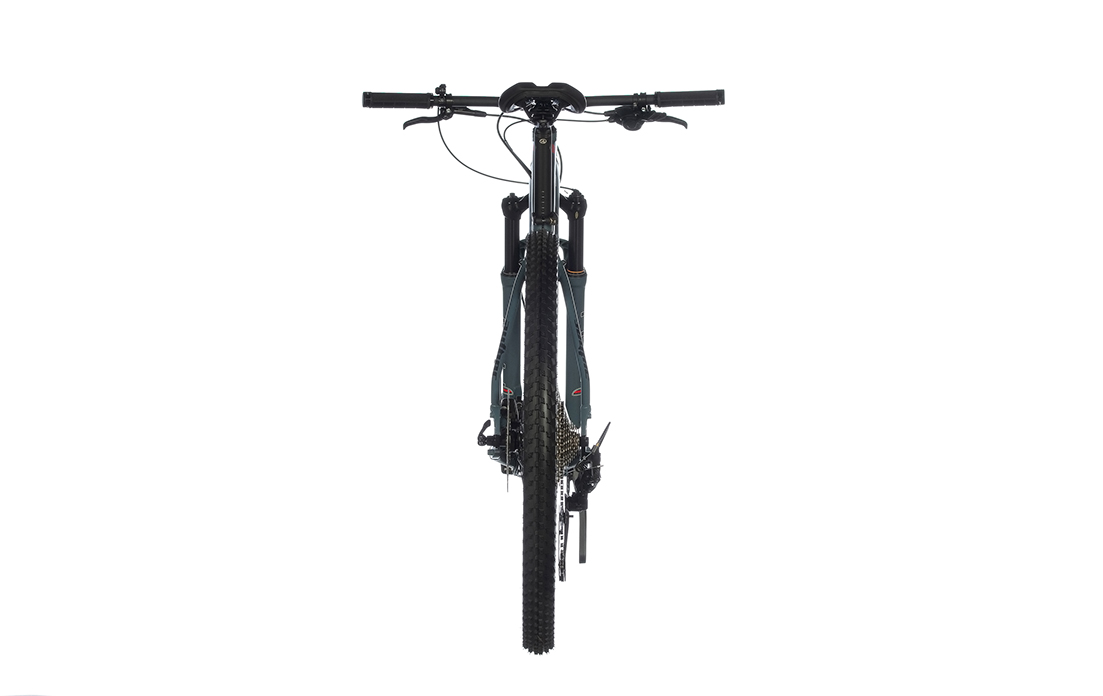

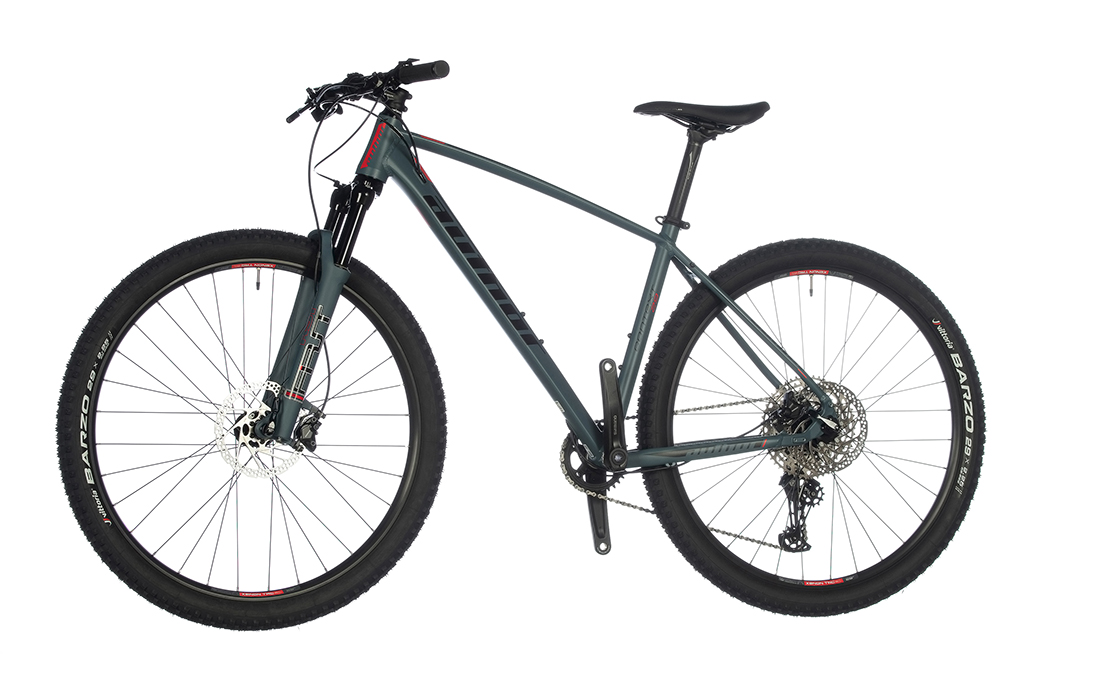

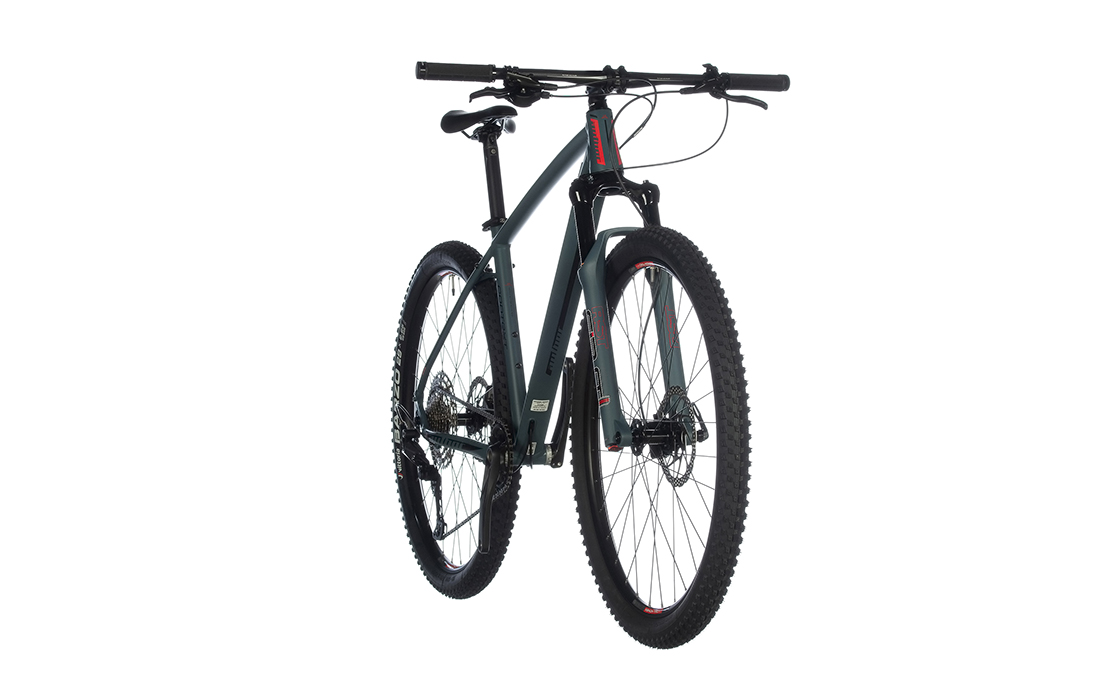

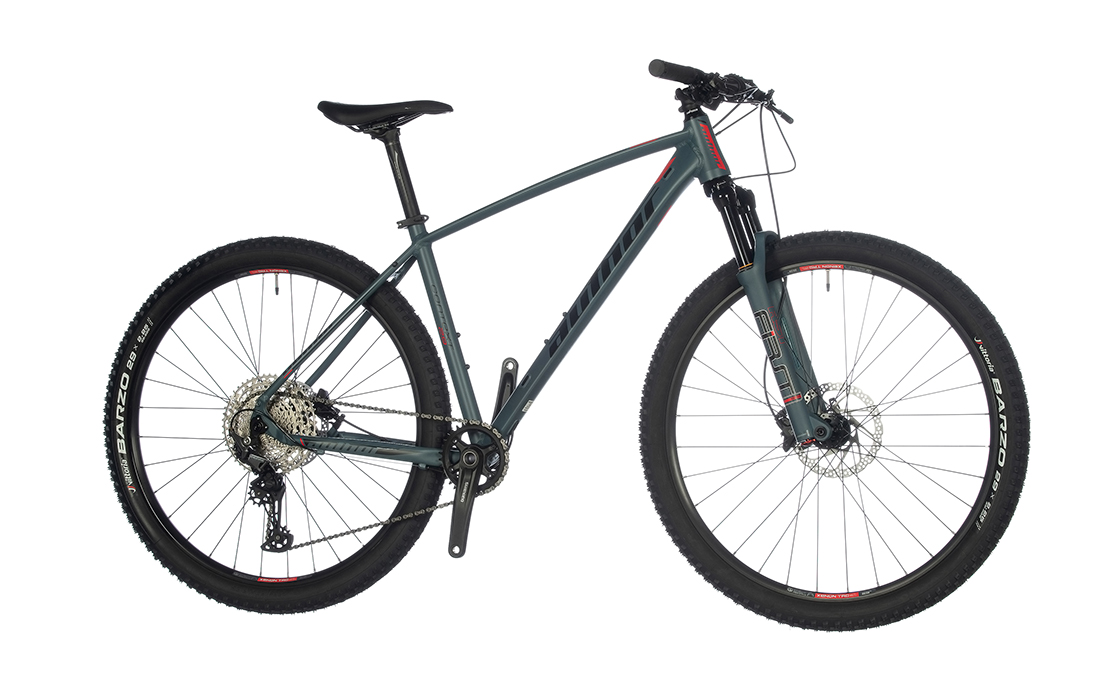

AUTHOR Context 29 2021-22

Technical specification

Size	17", 19", 21"
Frame	triple butted hydroformed alloy 6061 29"
Front fork	RST F1RST 29 15 TRL air, remote lock out (100 mm)
Head parts	FSA Integrated 1.5" tapered
Chain Wheel	SHIMANO M510-1 34 teeth 170 / 175 mm cranks
BBParts	SHIMANO BB-52 BB unit
Rear derailleur	SHIMANO Deore
Shifters	SHIMANO Deore (12)
Free wheel	SHIMANO CS-M6100 10-51 (12)
Chain	KMC X12
Hubs	AUTHOR Helium 15 / SHIMANO 15 × 100 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Brakes	SHIMANO BR-MT400 disc hydraulic (7" rotors)
Brakes levers	SHIMANO BL MT400

Rims	AUTHOR Xenon TRC 29 32 holes
Spokes	black stainless steel 2.0 mm
Tires	VITTORIA Barzo foldable 29" × 2.25"
Handlebar	AUTHOR Flatbar 9° 700 / 720 mm
Grips	AUTHOR Pro Lock
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR Navigator
Speed	12
Weight	12,3 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	432	483	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	605	625	645
T/T a ~~[mm]~~	584	600	619
H/T ~~[mm]~~	110	120	130
C/S ~~[mm]~~	443	443	443
W/B ~~[mm]~~	1113	1133	1154
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	70	70	70
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	61	61	61
B/B width ~~[mm]~~	73	73	73
Reach ~~[mm]~~	413	430	447
Stack ~~[mm]~~	629	638	648
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~202 cm~~

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
