AUTHOR Compact 2023-24
AUTHOR Compact 2023-24
compact foto1 viewde
compact foto2 viewde
compact foto3 viewde
AUTHOR Compact 2023-24AUTHOR Compact 2023-24compact foto1 viewdecompact foto2 viewdecompact foto3 viewde
  » Bicycles » cross » cross 700c

Compact 2023-24Archivní model 2025

Colour variants
Alloy frameSuspension fork RST Neon TComponents SHIMANO TourneyComfort grip AUTHOR(reinforced foam)Tires AUTHOR Cross 700 × 38cBrake V-TEKTROComfort saddle AUTHOR Sphere
Buy nowspecial price 6 990 Kč
original price  12 990 Kč
Add to compareadditional accessories
other models
Vertigo15 990Vertigo ASL15 990Horizon ASL14 590Linea14 590Thema13 590
Interested in other model`s year?

Technical specification

Size18", 20", 22"
Framealloy 6061
Front forkRST Neon T (60 mm)
Head partsVP COMP 1-1/8"
Chain WheelPROWHEEL, 48-38-28 teeth, 170 mm cranks
BBPartsVP COMP, cartridge
Front derailleurSHIMANO TY510 (31.8)
Rear derailleurSHIMANO TY500
ShiftersSHIMANO (21)
Free wheelSHIMANO MF-TZ510-7, 14-28 (7)
ChainKMC Z7
HubsQUANDO, 36 holes
BrakesTEKTRO V
Brakes leversSHIMANO
Rimsalloy, 36 holes
Spokessteel

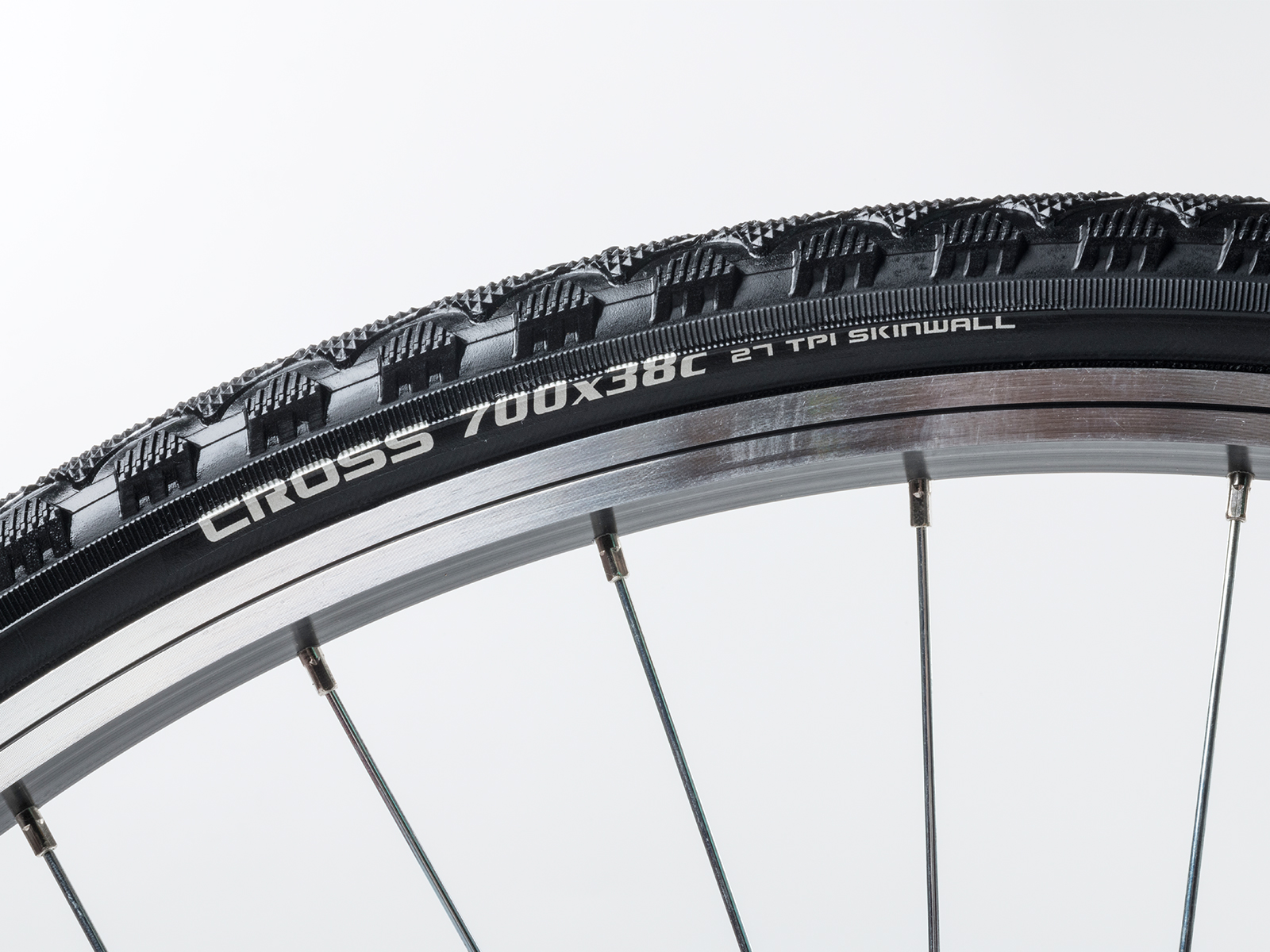

TiresAUTHOR Cross 700 × 38c
Pedalsplastic
Handlebarsteel, 20 mm, 660 mm
GripsAUTHOR high density foam
StemZOOM alloy
Seat postZOOM alloy (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Sphere
Speed21
Weight13,5 kg / 20"

Geometry and sizes

Size 18" 20" 22"
Min. figure [cm] 165 175 185
Max. figure [cm] 178 188 200
S/T c-t [mm] 457 508 559
S/T c-c [mm] 0 0 0
T/T h [mm] 580 600 620
T/T a [mm] 559 577 595
H/T [mm] 120 140 160
C/S [mm] 440 440 440
W/B [mm] 1084 1100 1108
S/T ang. [°] 73.5 73.5 73.5
H/T ang. [°] 70.5 71 71
F/L [mm] 470 470 470
B/B drop [mm] 60 60 60
B/B width [mm] 68 68 68
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 51 51 51
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Compact 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
18"2 stores4294770225
 ▪   CykloCentrum České Budějovice in stockbuy nowČeské Budějovice725 121 449, budejovice@cyklocentrum.czmap
 ▪   Cyklo sport Stratílekin stockbuy nowHradec Králové601 379 902, cyklohk@stratilek.czmap
⟲  In other storesin 2 daysdealers
20"3 stores4294770325
 ▪   CykloCentrum České Budějovice in stockbuy nowČeské Budějovice725 121 449, budejovice@cyklocentrum.czmap
 ▪   CykloCentrum Praha Holešovicein stockbuy nowPraha 7725 085 309, holesovice@cyklocentrum.czmap
 ▪   Jízdní kola Rezek - Rezkováin stockbuy nowRakovník313 517 417, jizdnikola.rezek@tiscali.czmap
⟲  In other storesin 2 daysdealers
18"5 stores4294771225
 ▪   CykloCentrum České Budějovice in stockbuy nowČeské Budějovice725 121 449, budejovice@cyklocentrum.czmap
 ▪   Cyklo sport Stratílekin stockbuy nowHradec Králové601 379 902, cyklohk@stratilek.czmap
 ▪   Cyklo sport Stratílekin stockbuy nowLitomyšl606 613 399, cyklo@stratilek.czmap
 ▪   KOLA ŠILHAVÝ s.r.o.in stockbuy nowPlzeň602 495 439, silhavy@silhavy-ramala.czmap
 ▪   CykloCentrum Praha Holešovicein stockbuy nowPraha 7725 085 309, holesovice@cyklocentrum.czmap
⟲  In other storesin 2 daysdealers
20"5 stores4294771325
 ▪   CykloCentrum České Budějovice in stockbuy nowČeské Budějovice725 121 449, budejovice@cyklocentrum.czmap
 ▪   AXIT bike sportin stockbuy nowNáchod491 426 020, axit@axit.czmap
 ▪   KOLA ŠILHAVÝ s.r.o.in stockbuy nowPlzeň602 495 439, silhavy@silhavy-ramala.czmap
 ▪   CykloCentrum Praha Holešovicein stockbuy nowPraha 7725 085 309, holesovice@cyklocentrum.czmap
 ▪   ZAF Velo Sportin stockbuy nowVelké Pavlovice776 820 690, velo@zaf.czmap
⟲  In other storesin 2 daysdealers
22"1 shop4294771425
 ▪   TRI-ATLET SHOPin stockbuy nowŠternberk603 892 690, triatletshop@seznam.czmap
⟲  In other storesin 2 daysdealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

blue / black / white18" = UA#4294770225   20" = UA#4294770325
silver-matt / green18" = UA#4294771225   20" = UA#4294771325   22" = UA#4294771425
