AUTHOR Compact 2016Archivní model 2016

Colour variants
New alloy frameRST Neon forkComponent set SHIMANO, 21 speed
other models

Technical specification

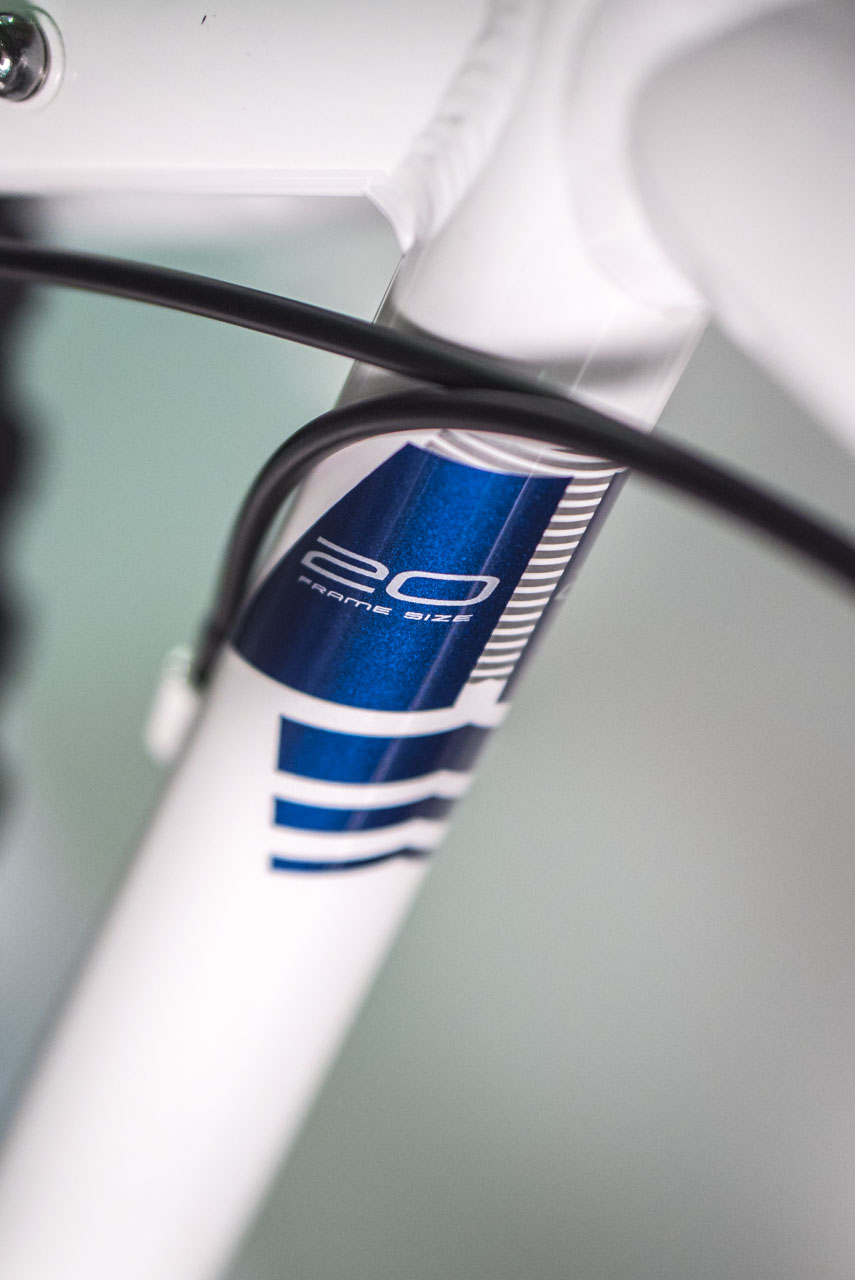

Size18", 20", 22"

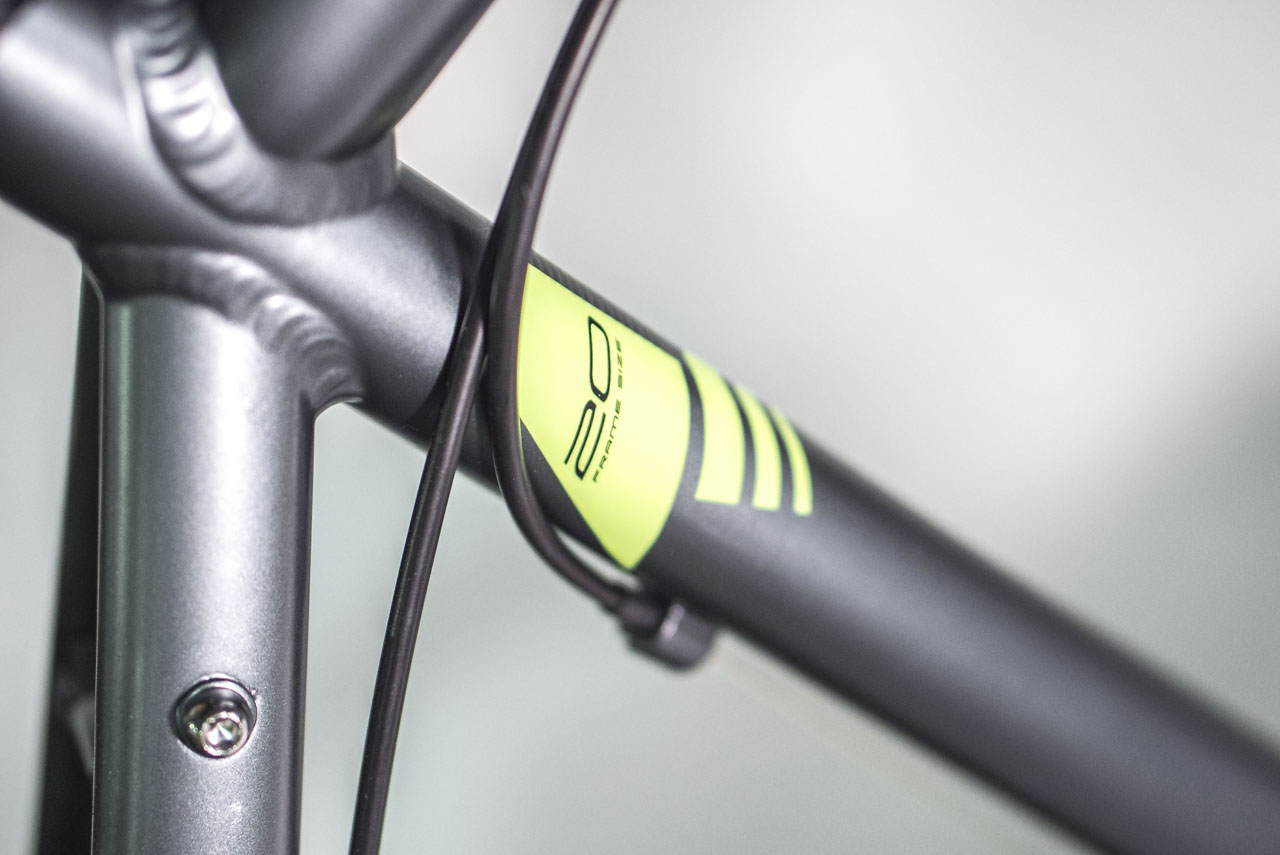

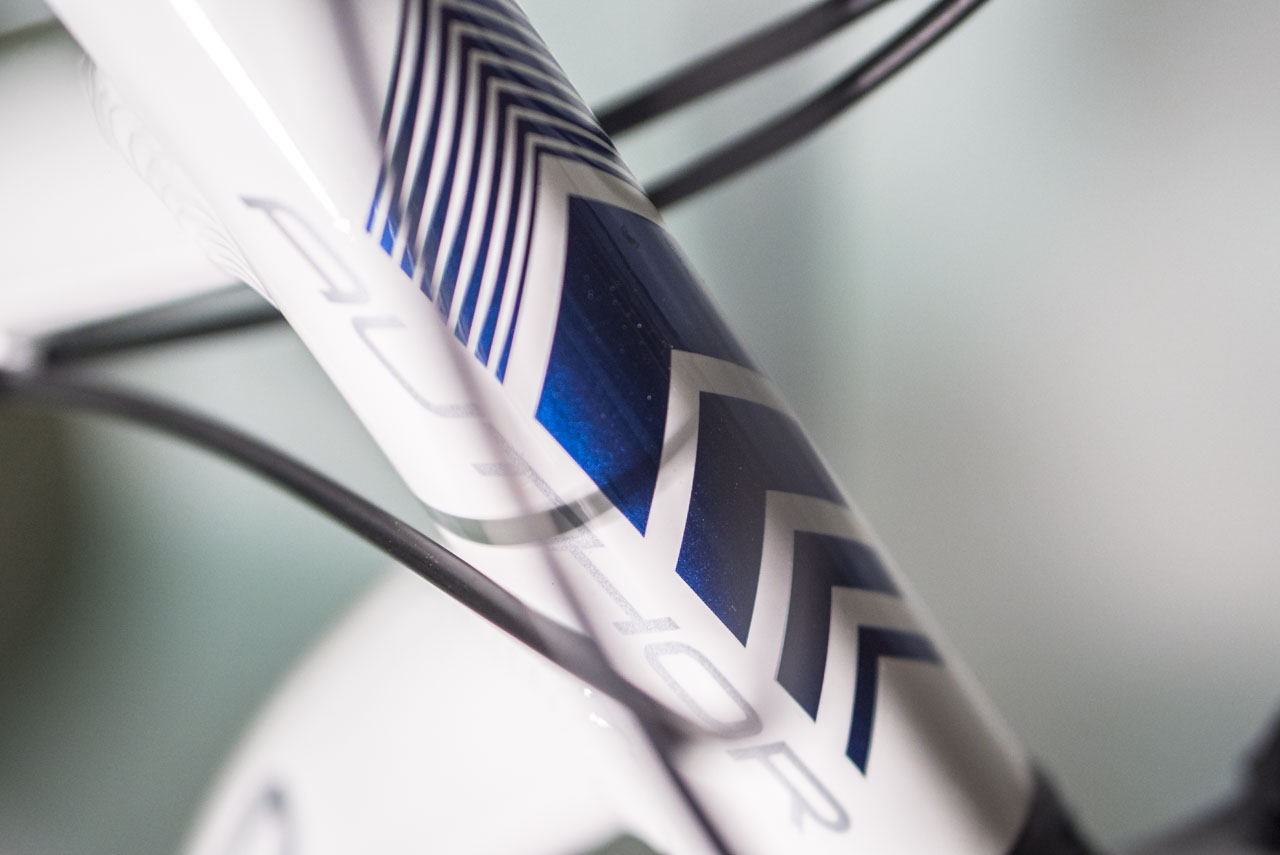

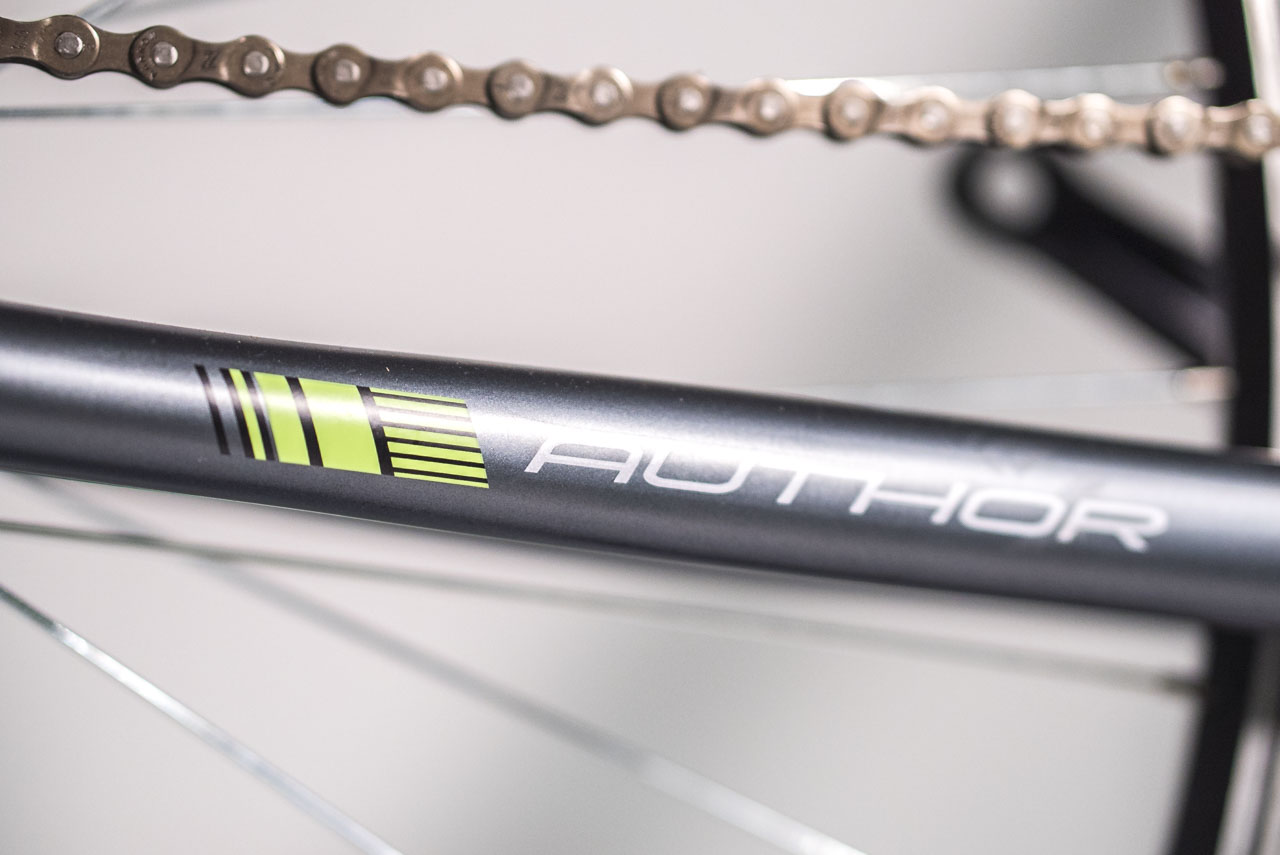

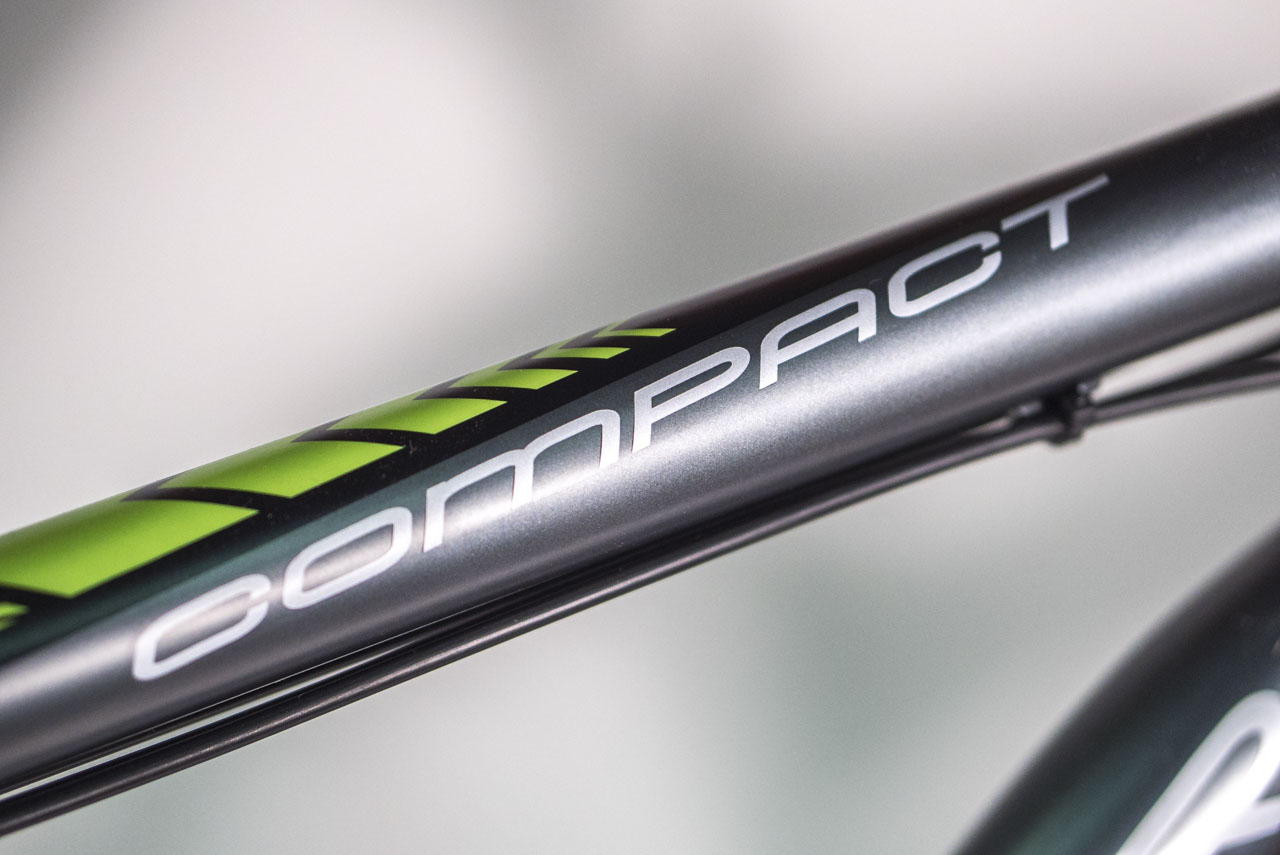

Framealloy 6061 700c

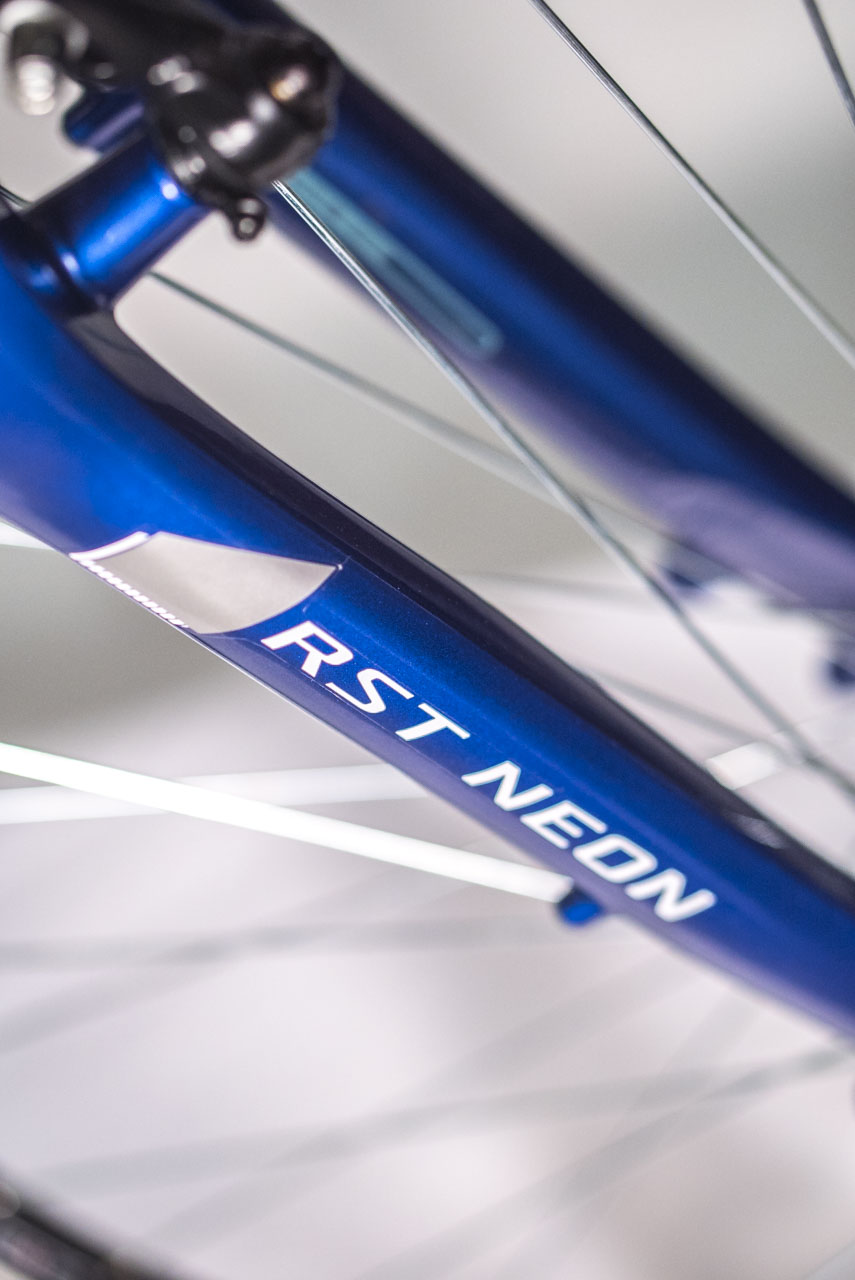

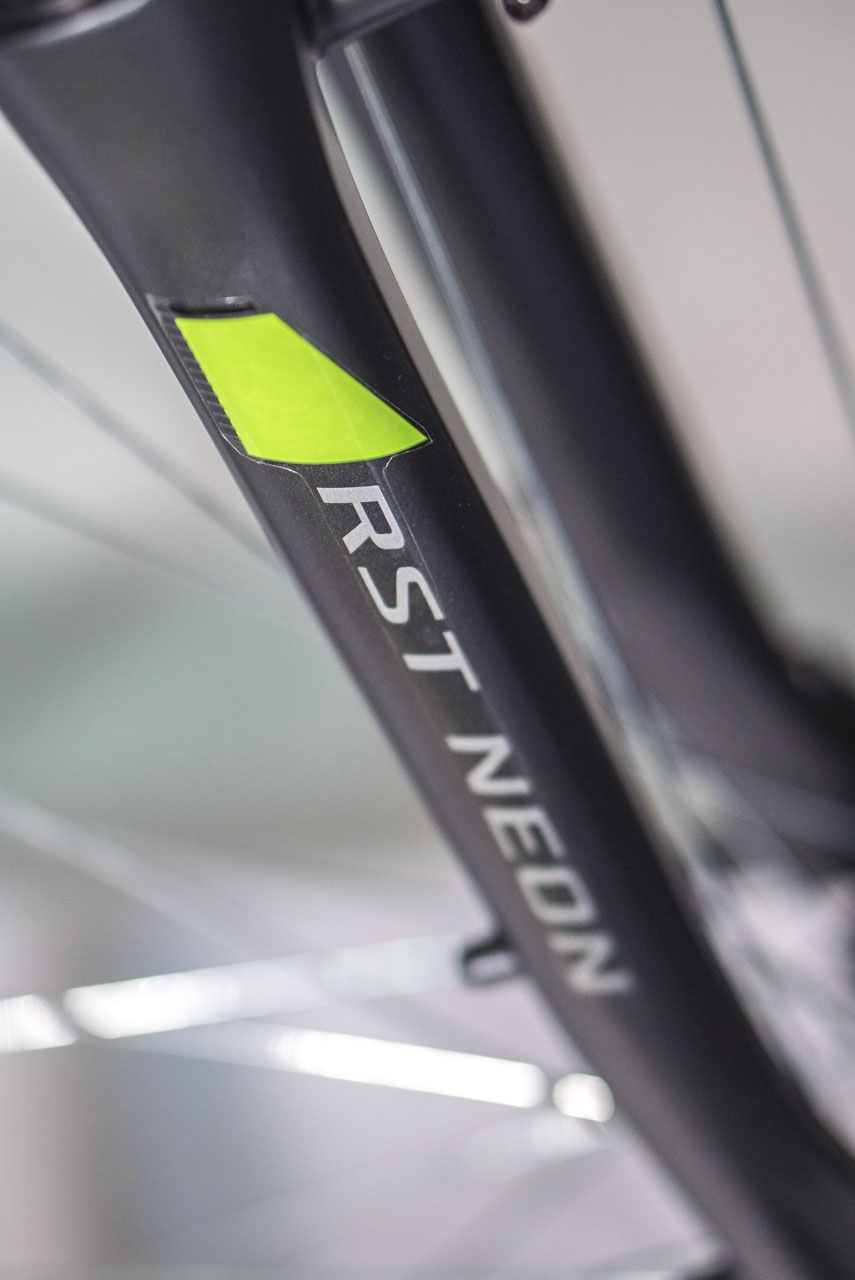

Front forkRST Neon T (60 mm)
Head partsVP COMP 1-1/8"
Chain WheelPROWHEEL 48-38-28 teeth 170 mm cranks
BBPartsVP COMP cartridge

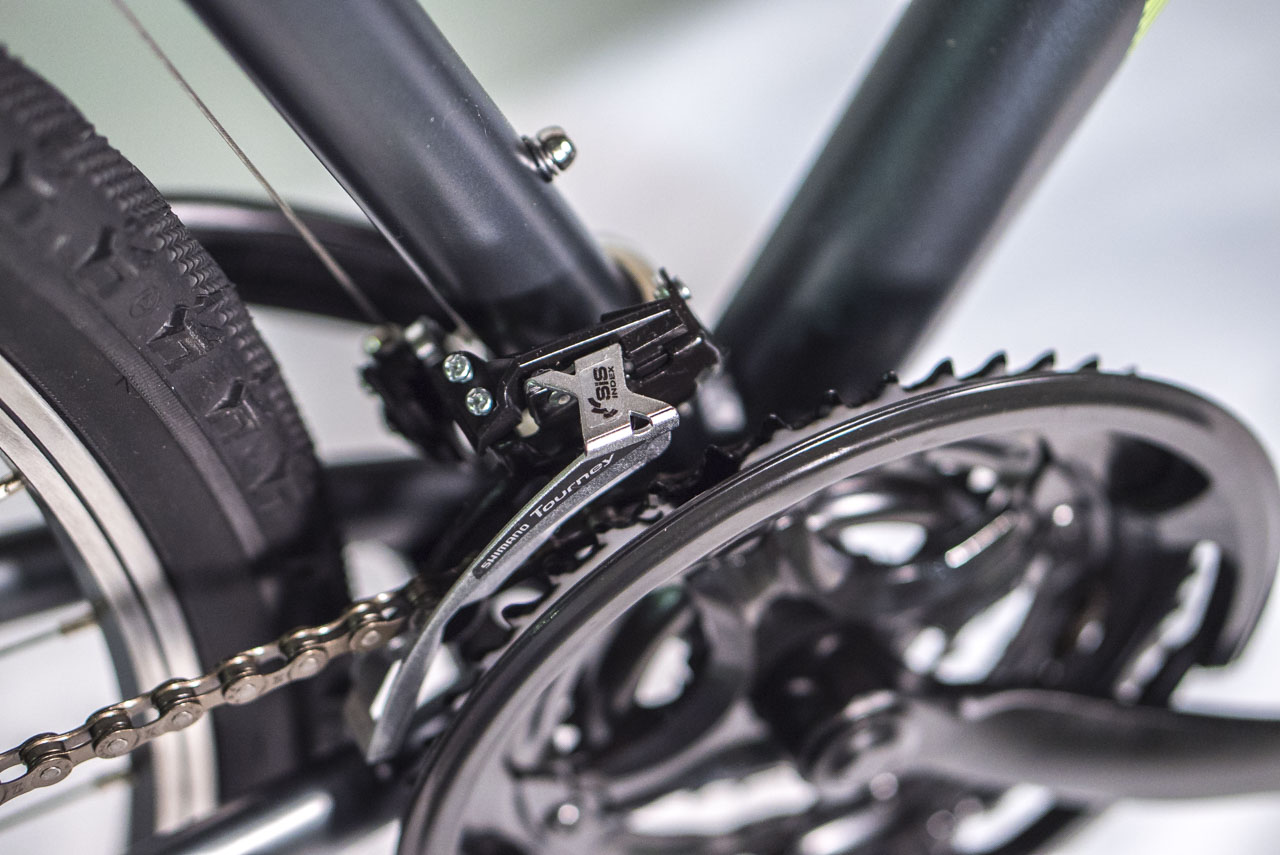

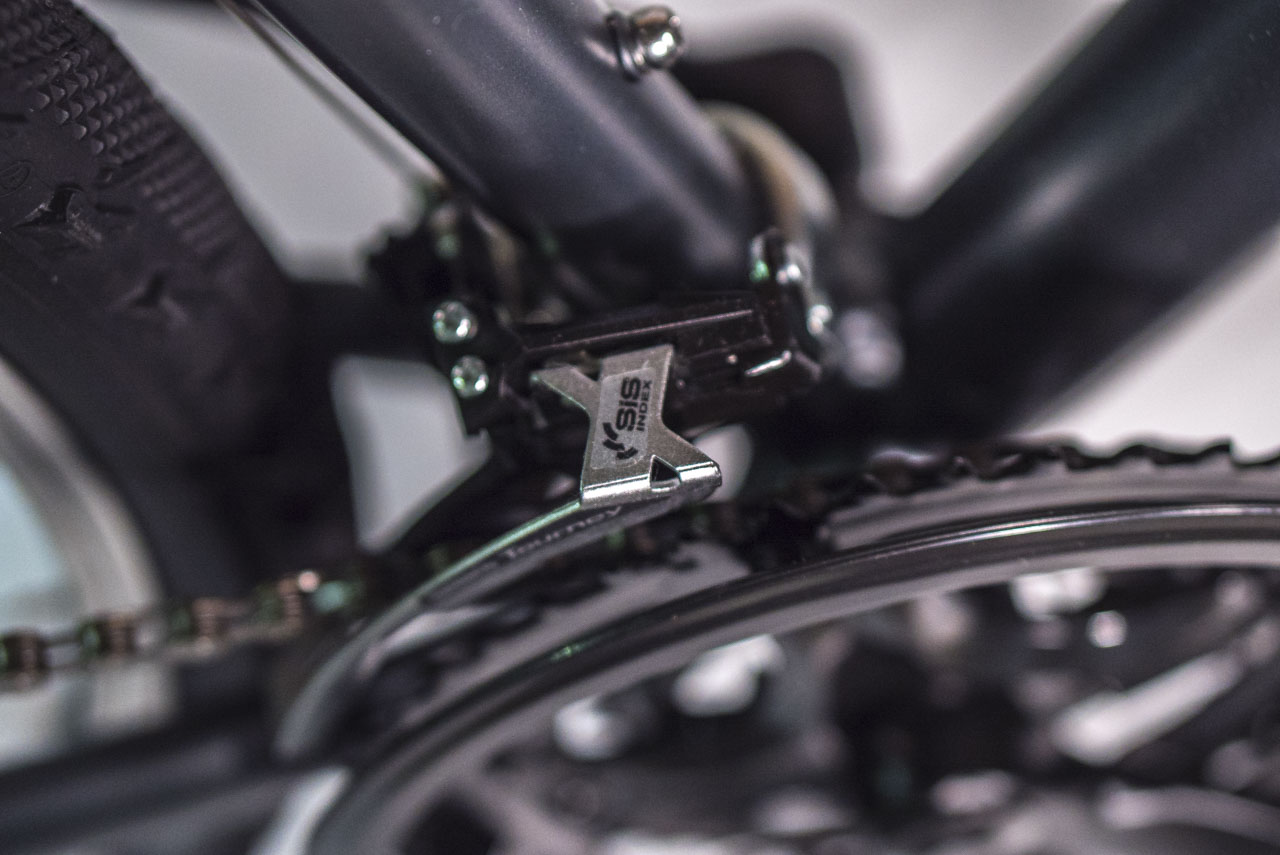

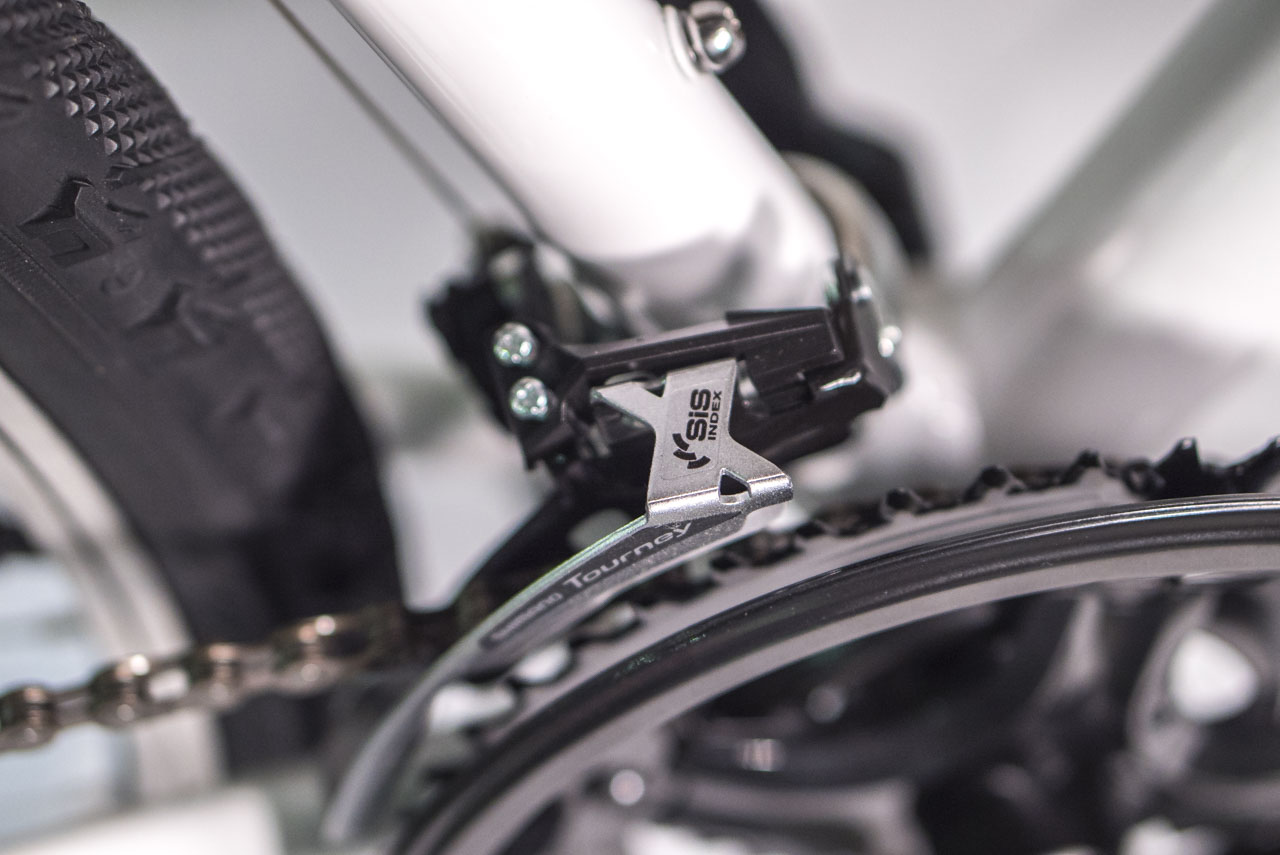

Front derailleurSHIMANO TX51 (31.8)

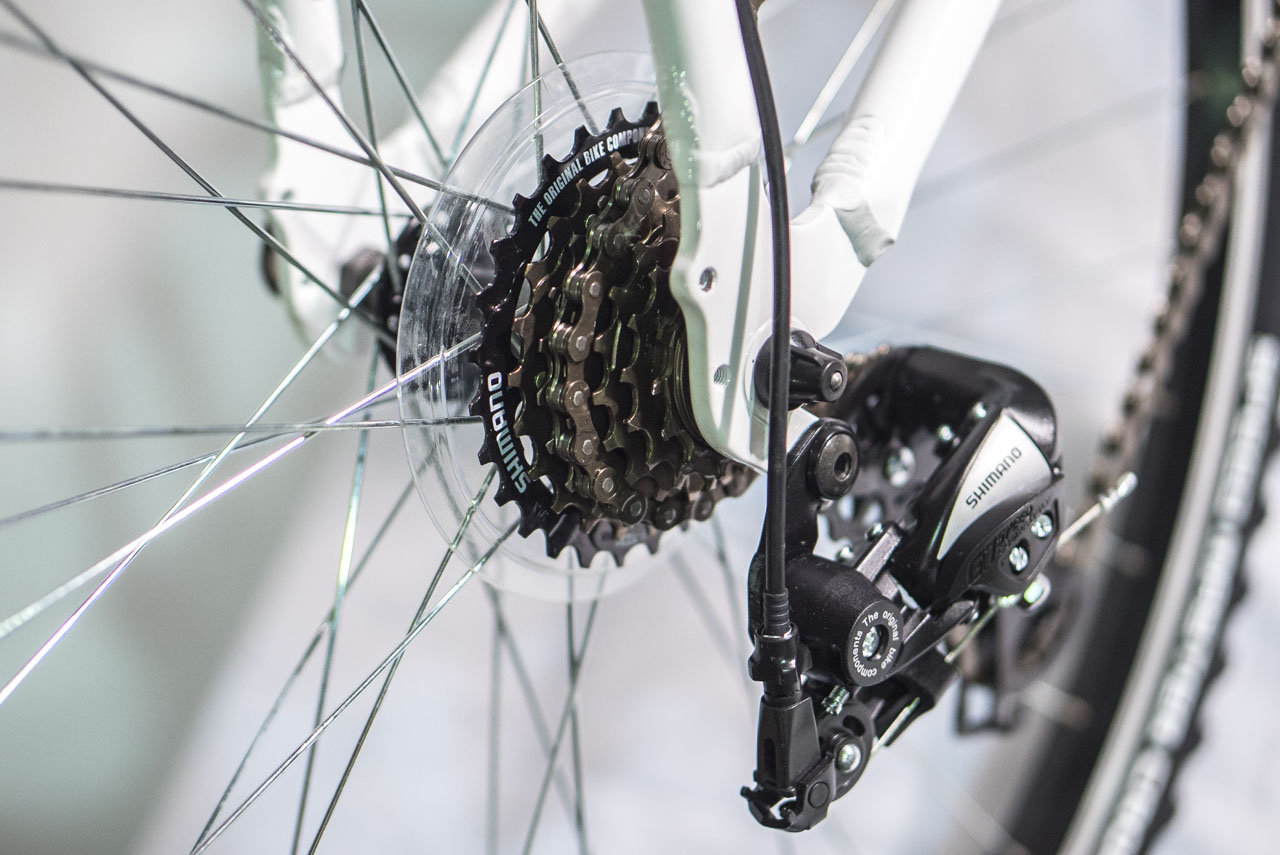

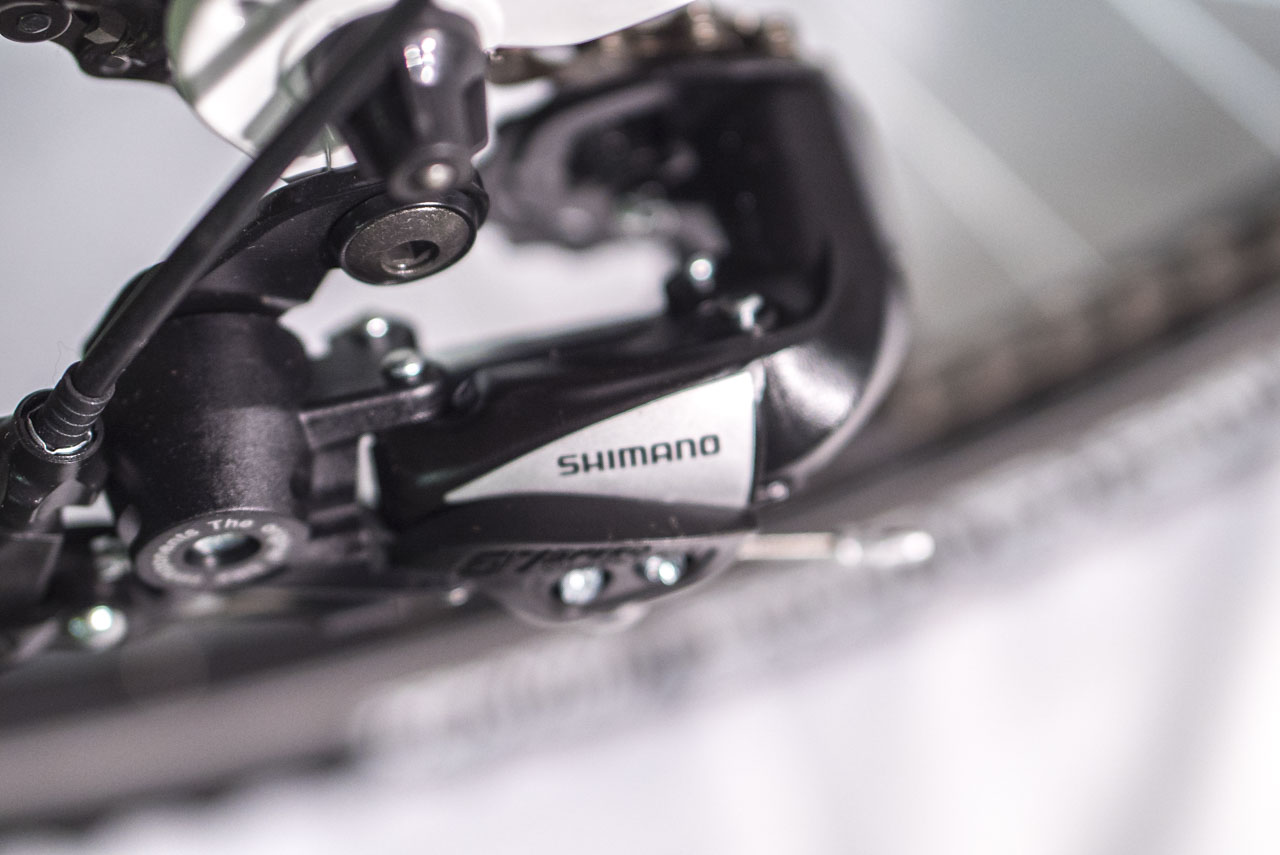

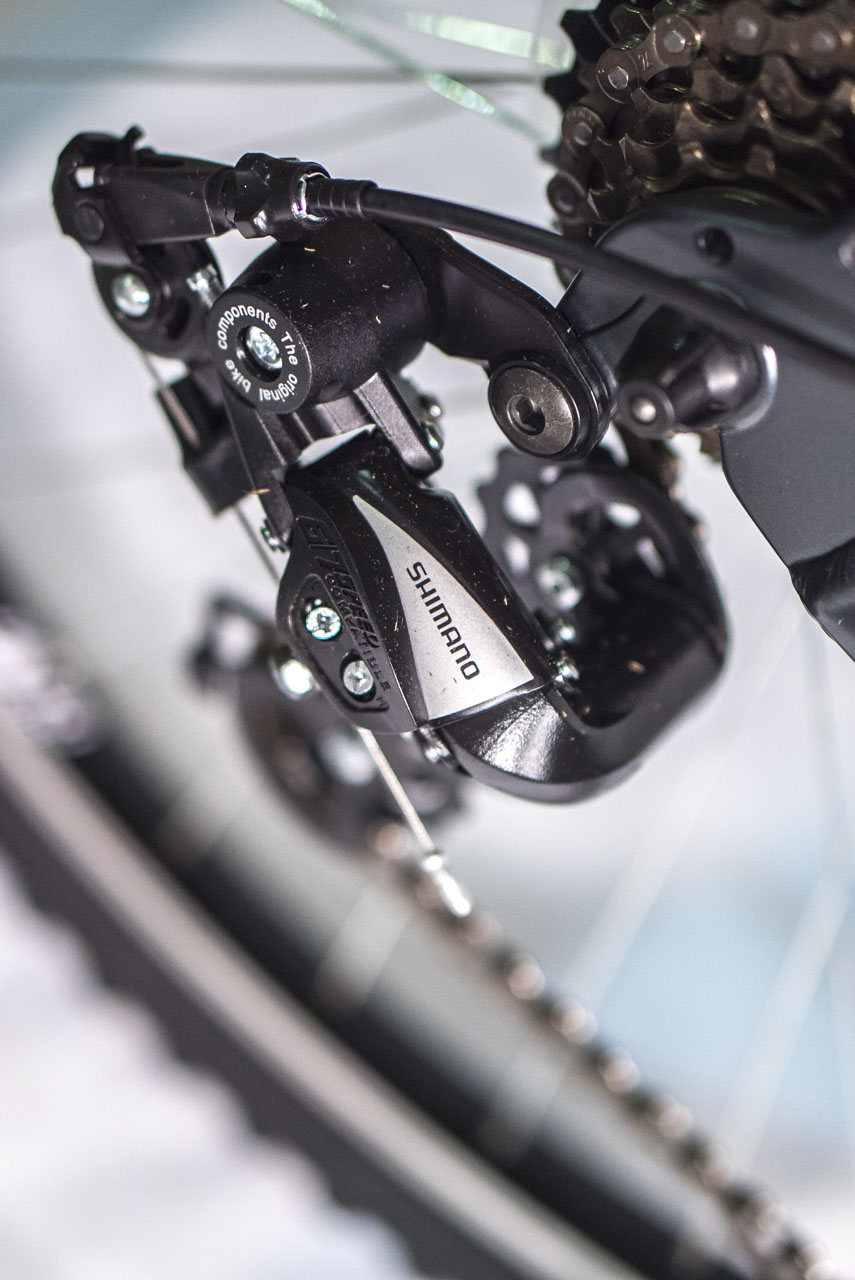

Rear derailleurSHIMANO TX55

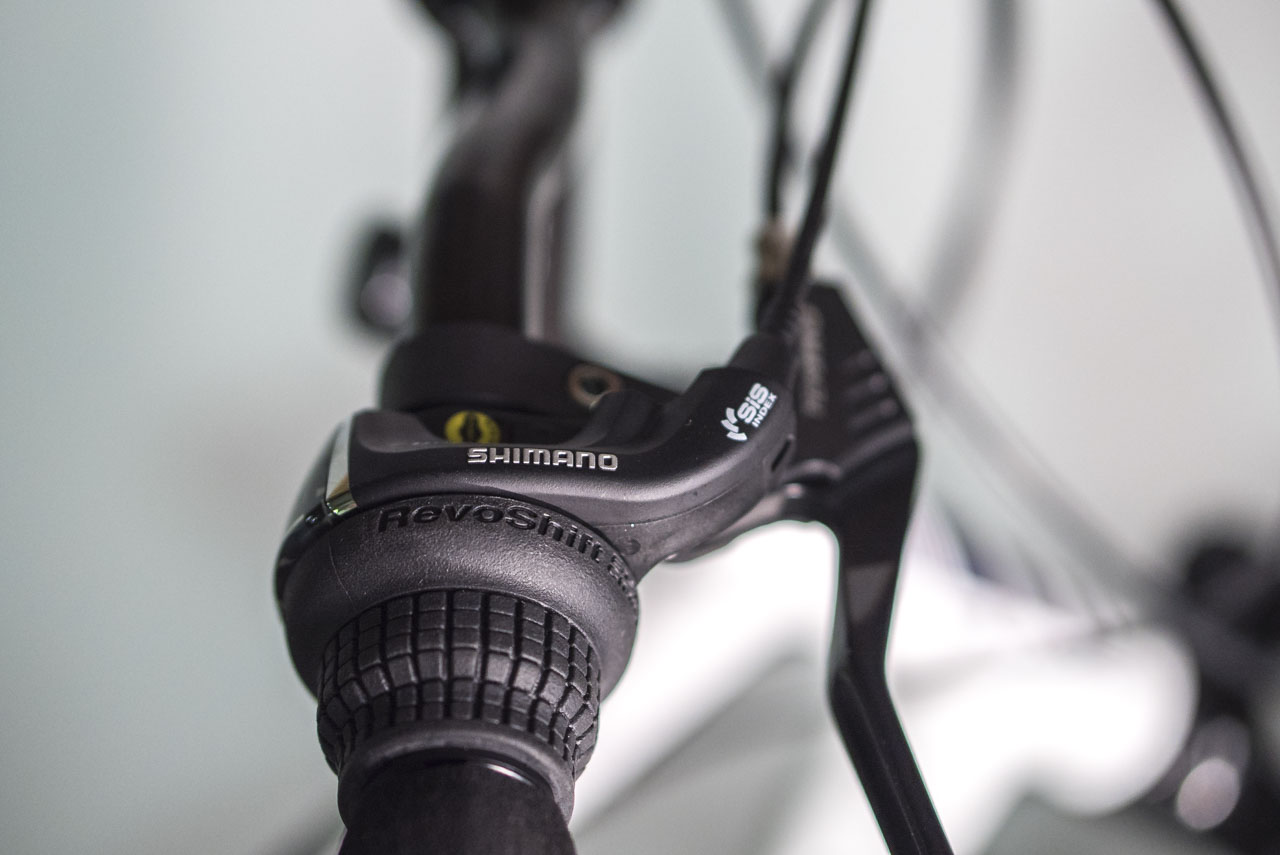

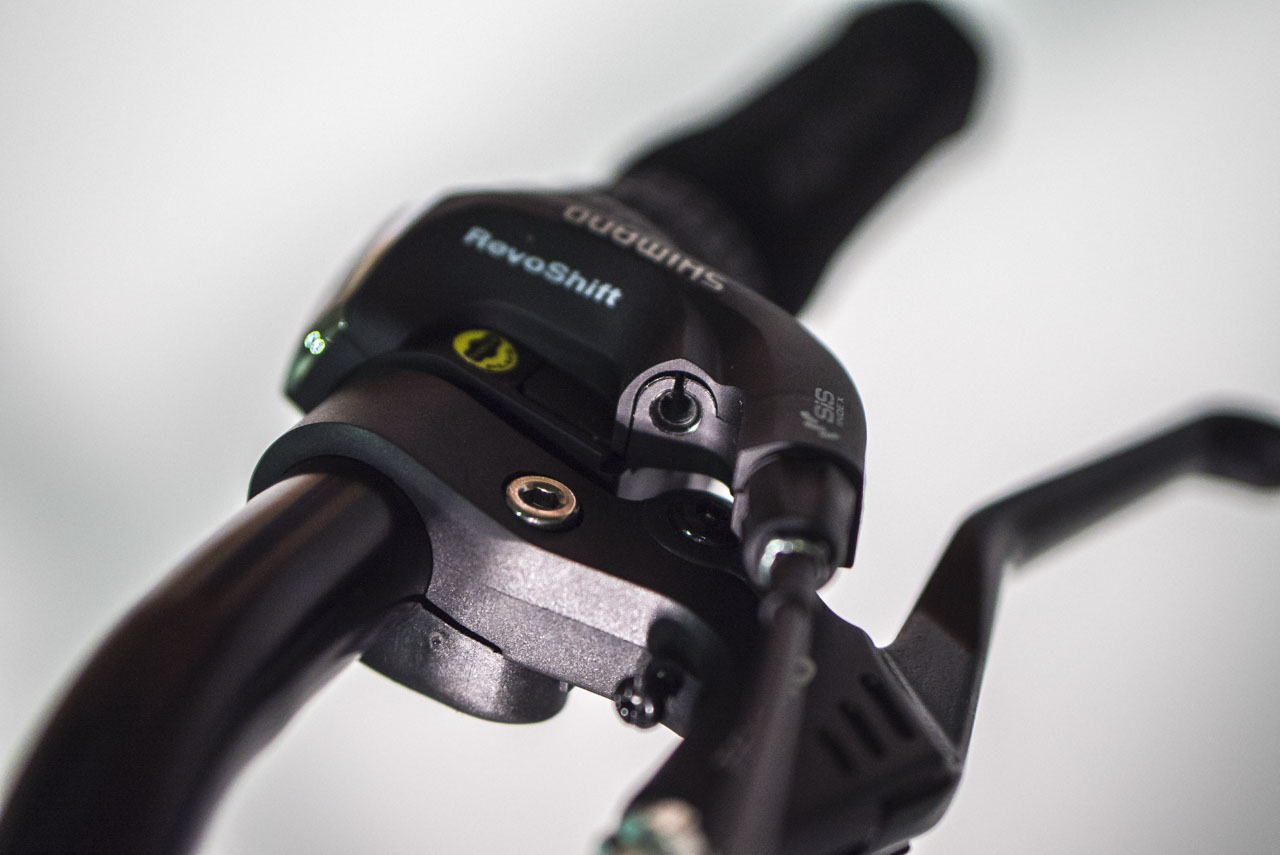

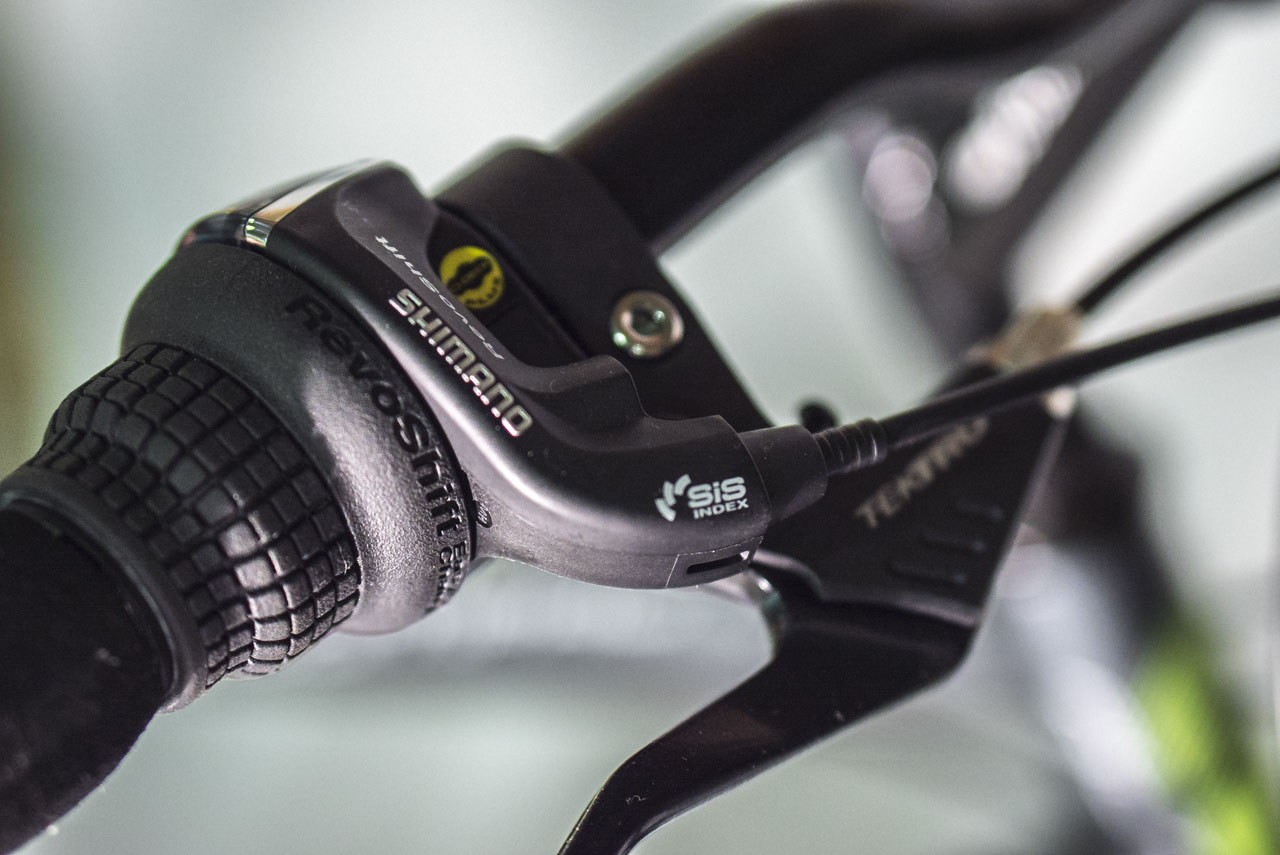

ShiftersSHIMANO Revoshift (21)
Free wheelSHIMANO MF-TZ21 14-28 (7)
ChainKMC Z51

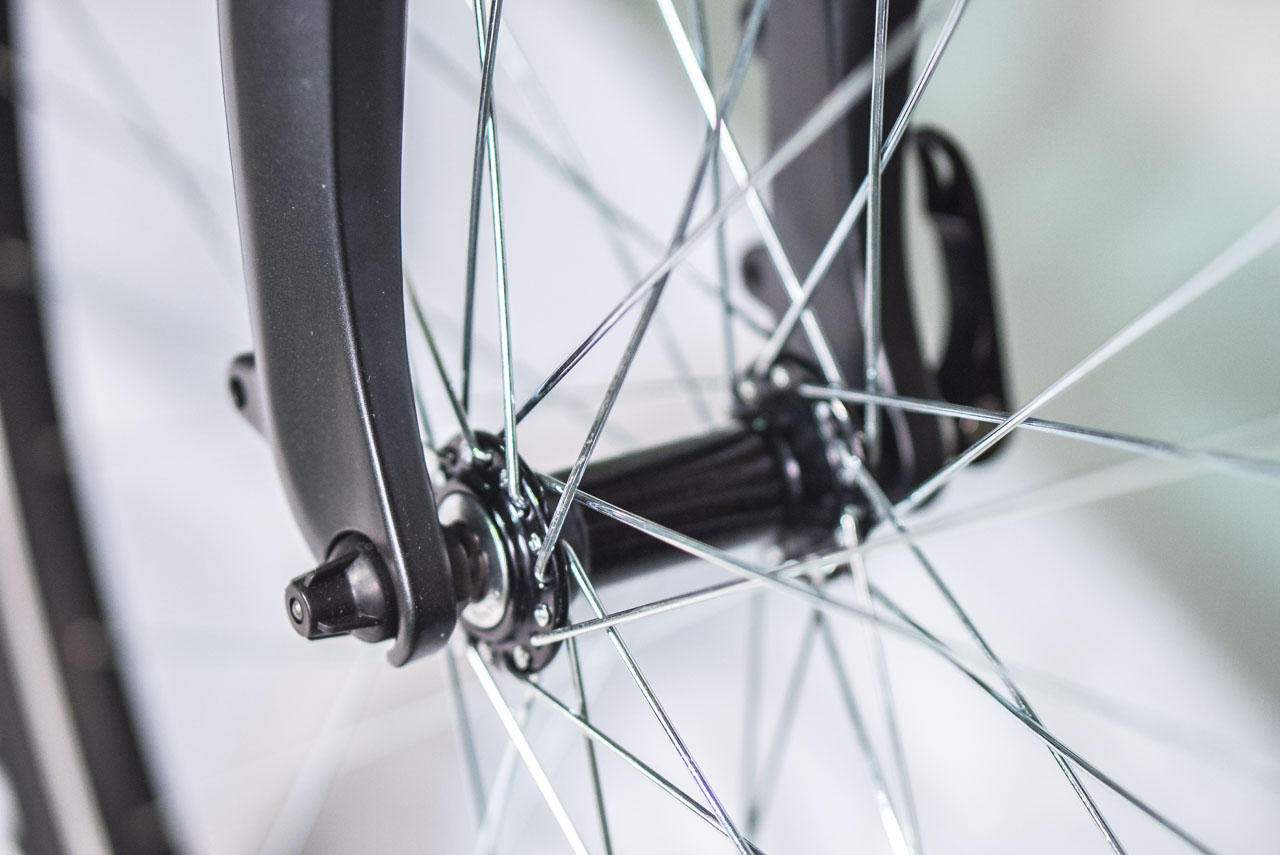

HubsQUANDO 36 holes

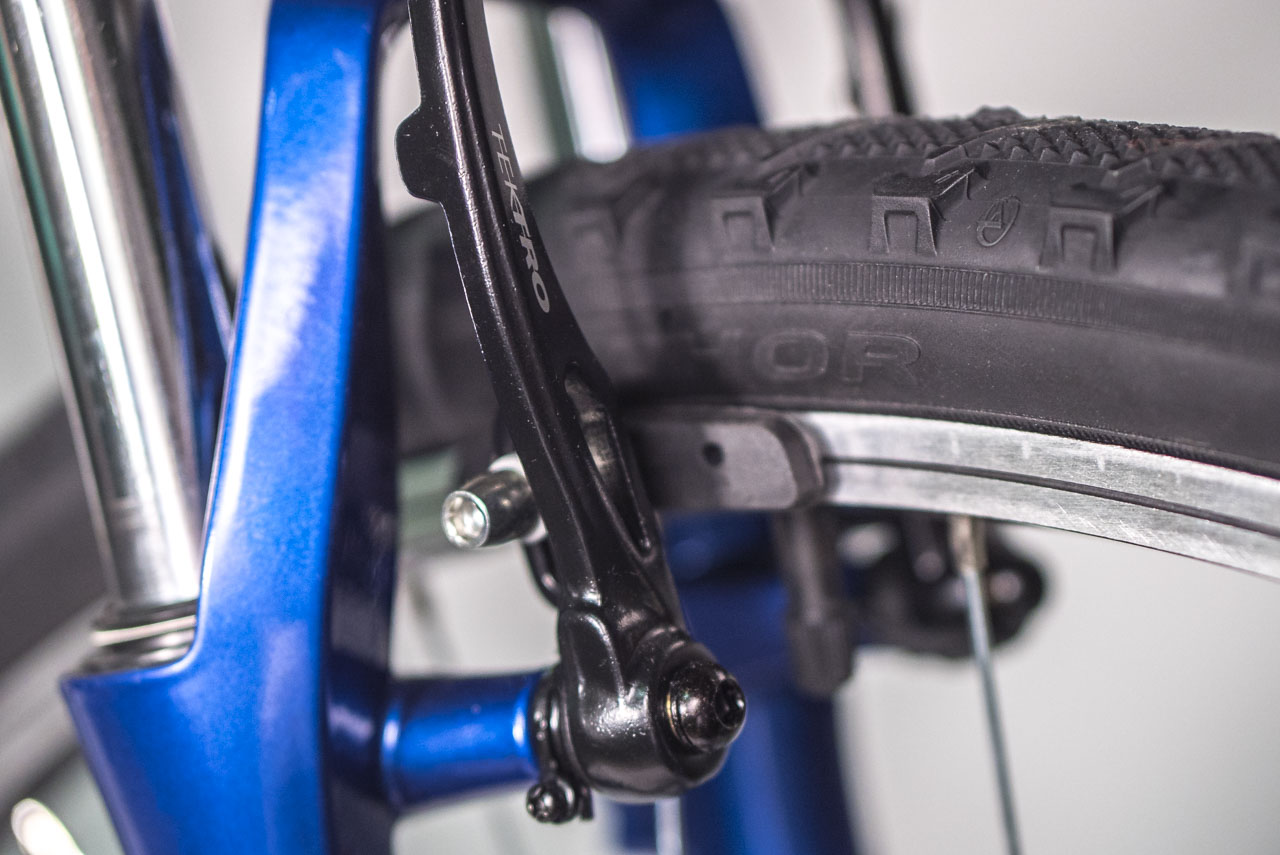

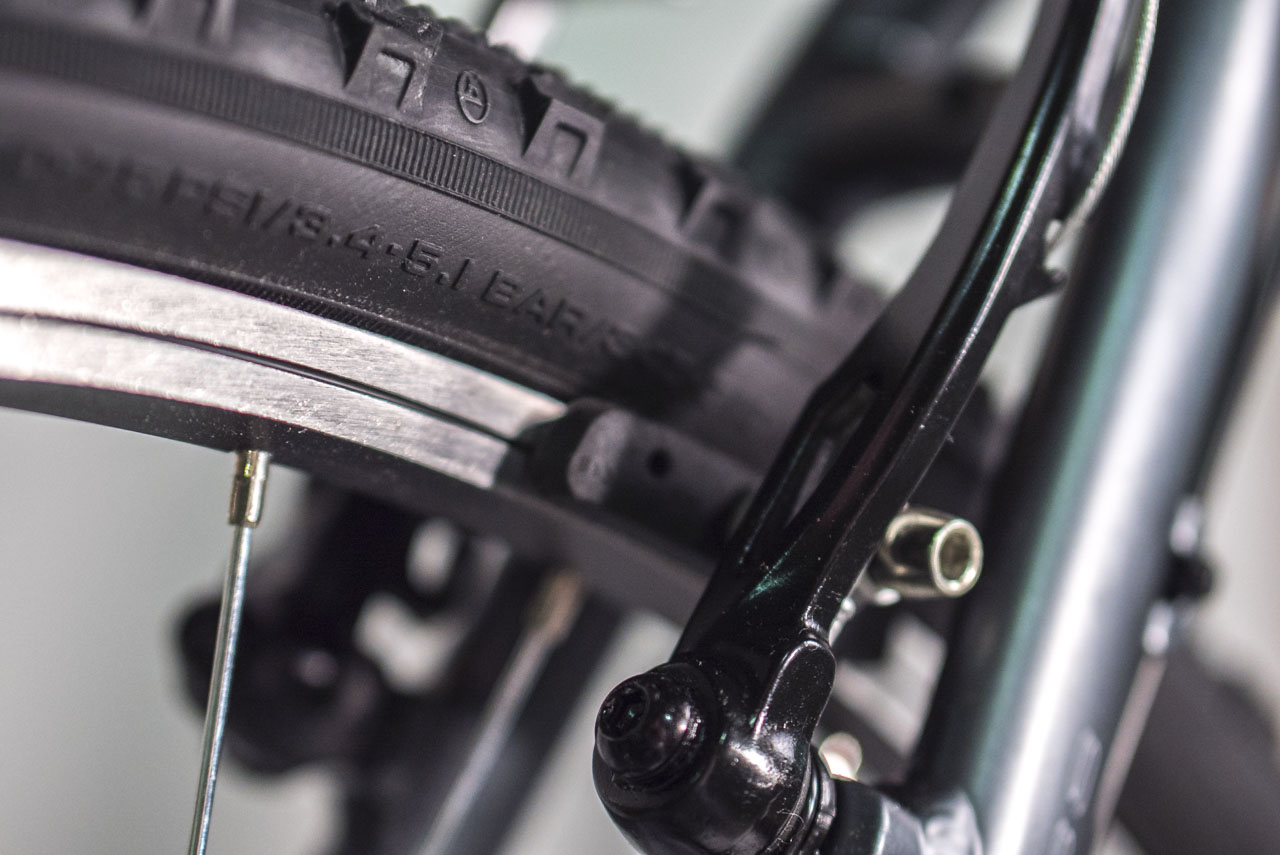

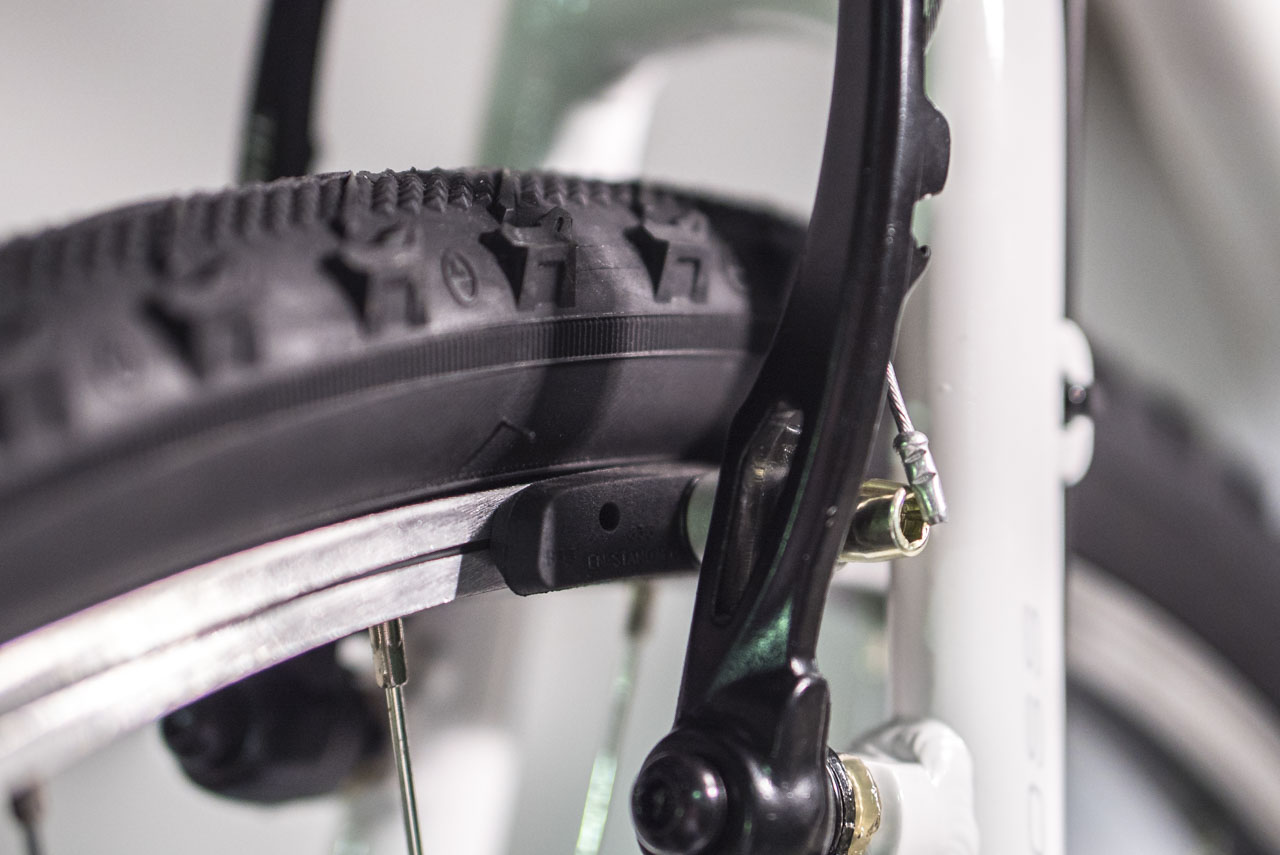

BrakesTEKTRO 855

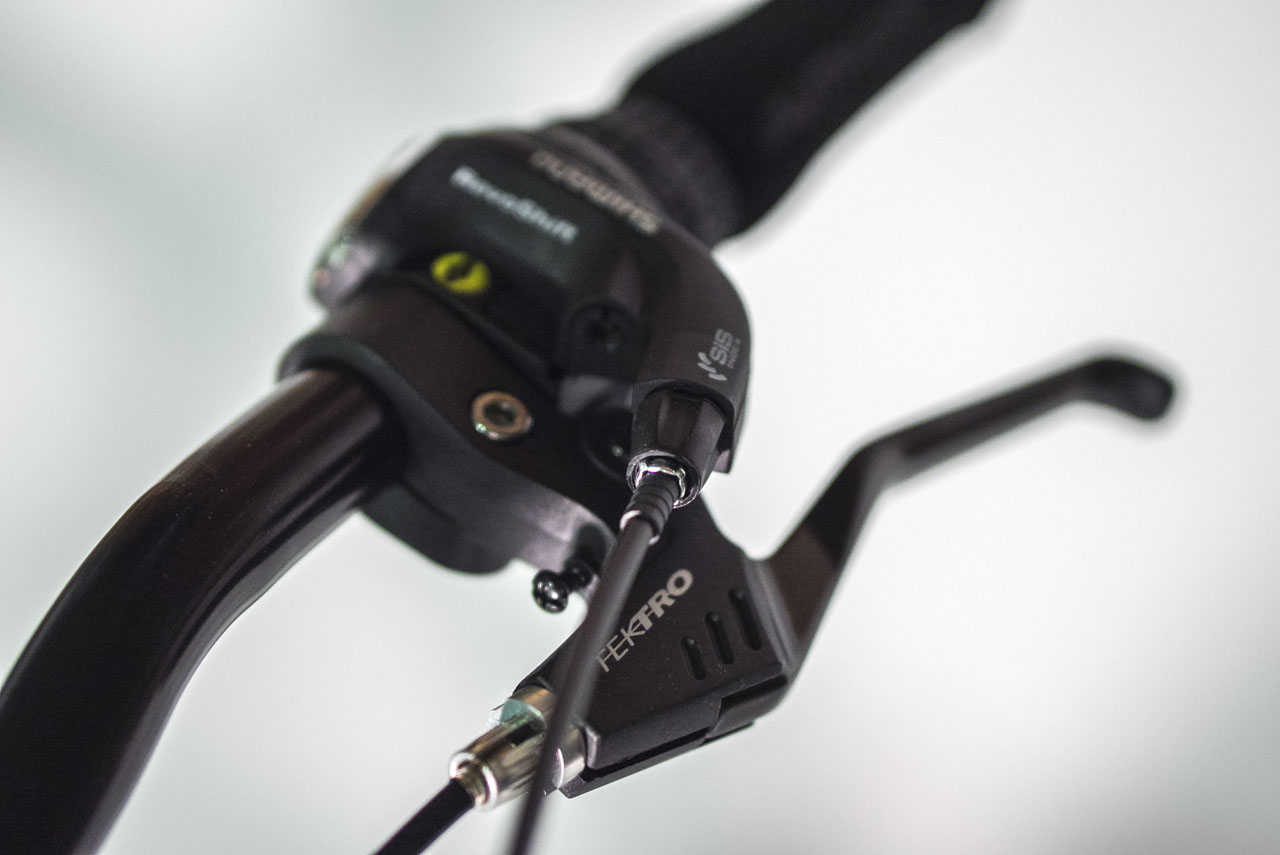

Brakes leversTEKTRO plastic / alloy
Rimsalloy 36 holes
Spokessteel
TiresAUTHOR Speed Master 700 x 42c
Pedalsresin
Handlebarsteel 20 mm 660mm
GripsAUTHOR high density foam

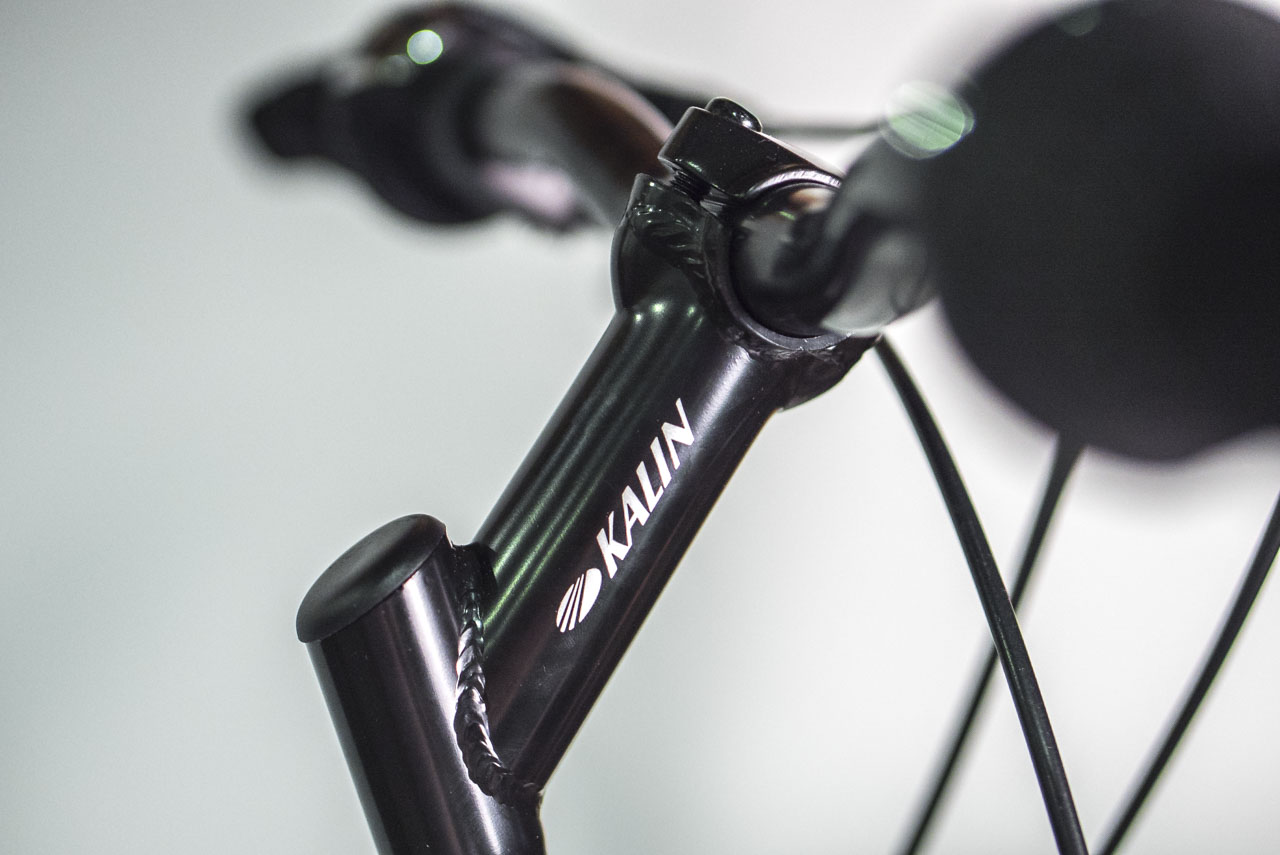

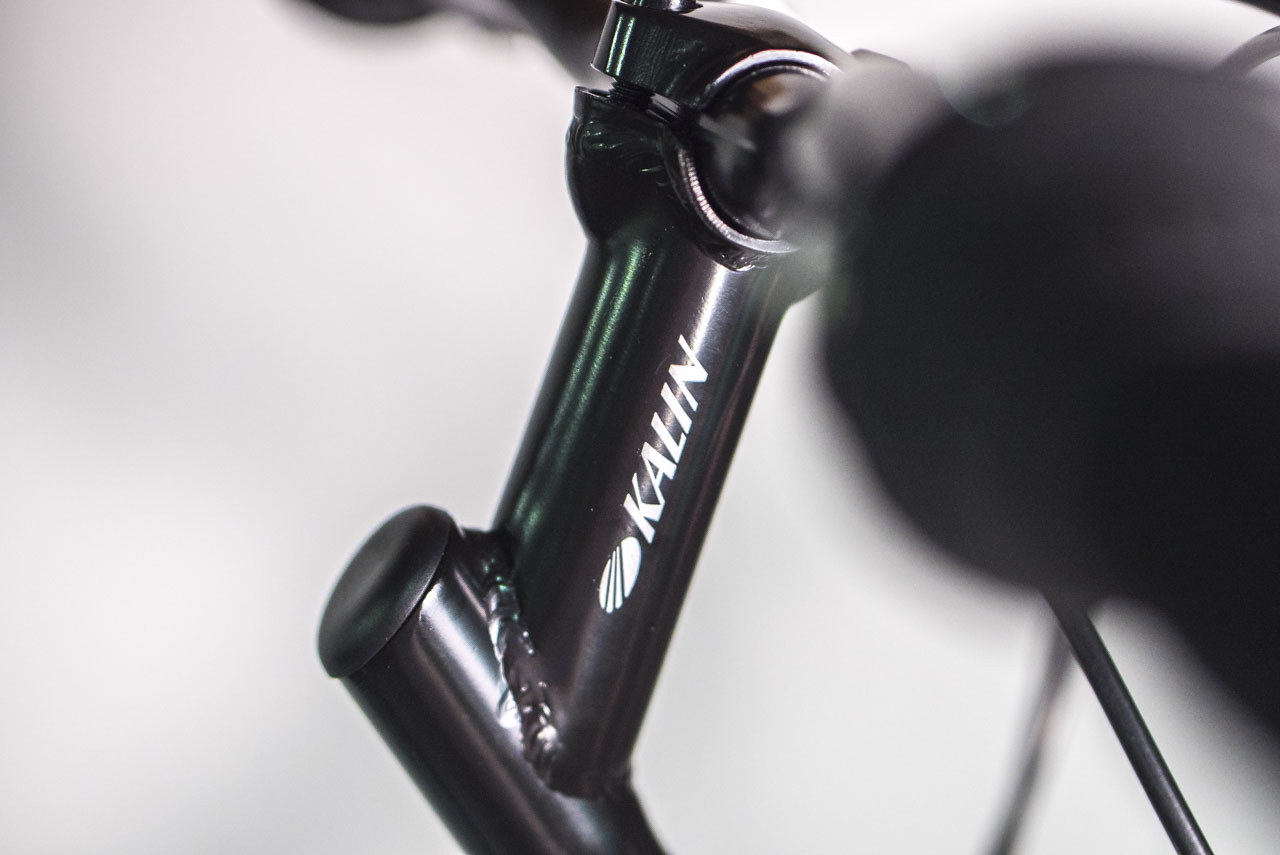

StemZOOM alloy

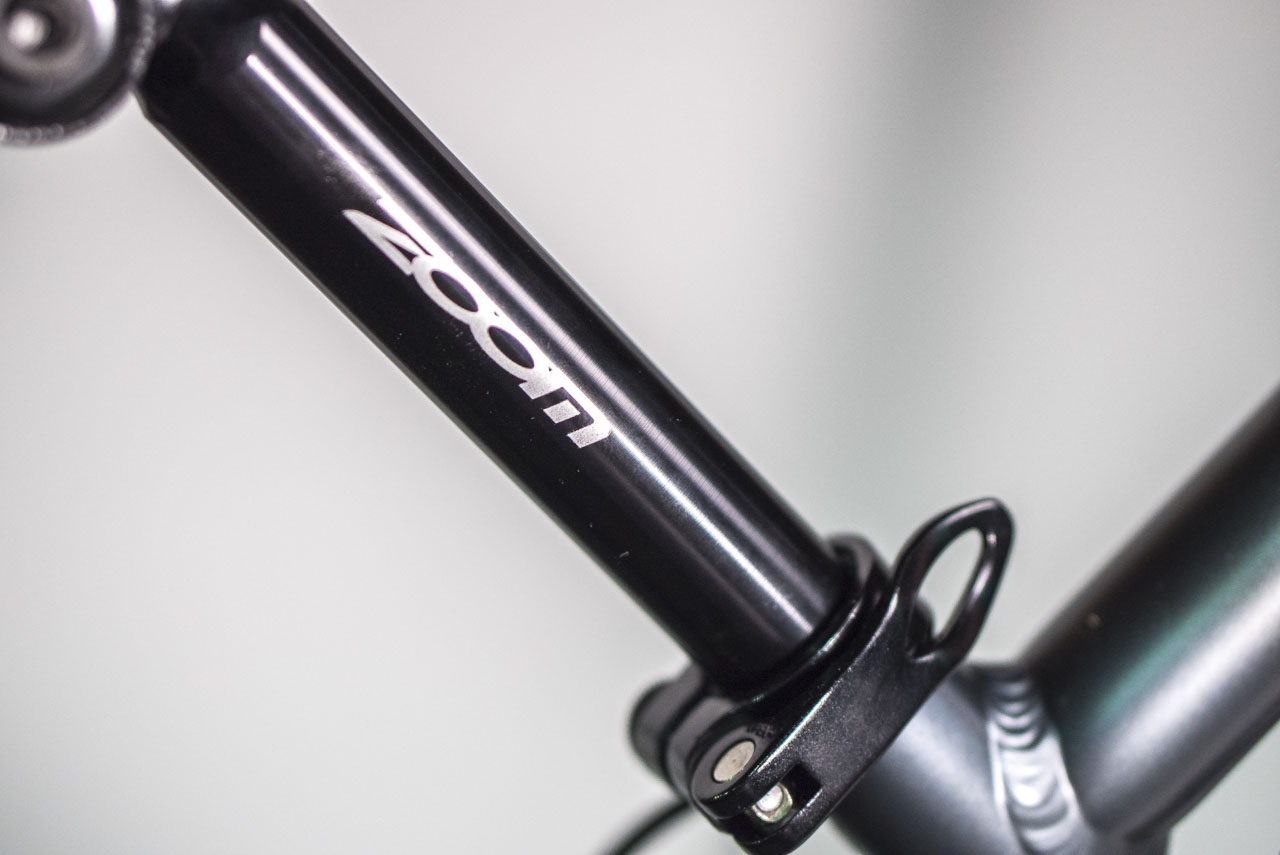

Seat postZOOM alloy (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Courier
Speed21
Weight13.8 kg / 20"

Geometry and sizes

Size 18" 20" 22"
Min. figure [cm] 165 175 185
Max. figure [cm] 178 188 200
S/T c-t [mm] 457 508 559
S/T c-c [mm] 0 0 0
T/T h [mm] 580 600 620
T/T a [mm] 559 577 595
H/T [mm] 120 140 160
C/S [mm] 440 440 440
W/B [mm] 1075 1090 1099
S/T ang. [°] 73.5 73.5 73
H/T ang. [°] 70.5 71 71.5
F/L [mm] 473 473 413
B/B drop [mm] 60 60 60
B/B width [mm] 68 68 68
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 42 42 42
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Compact 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

grey-matt / green18" = UA#42865402   20" = UA#42865403   22" = UA#42865404

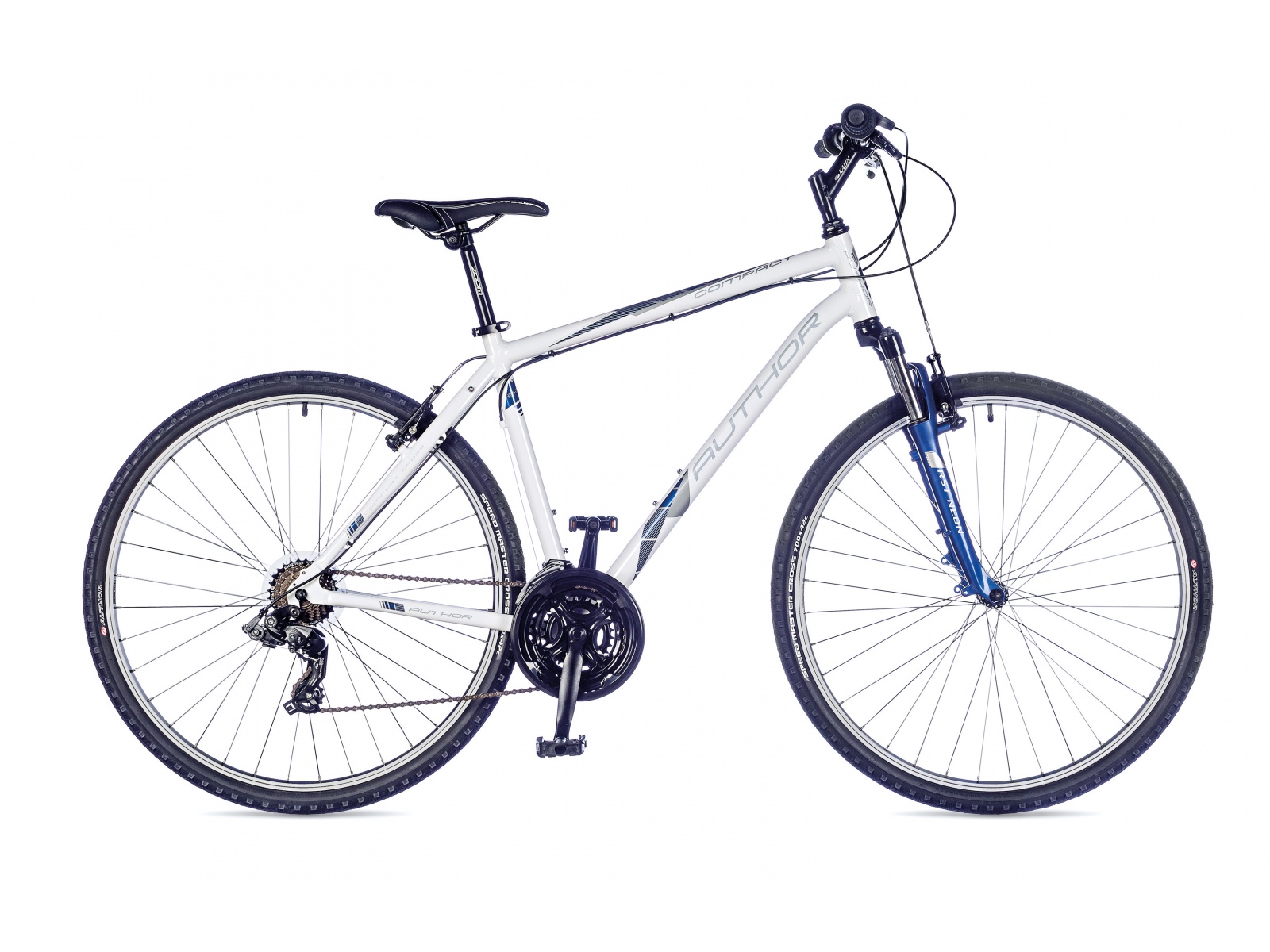

white / blue18" = UA#42865412   20" = UA#42865413   22" = UA#42865414
