Vertigo 2026

Technical specification

Size	16", 18", 20", 22"

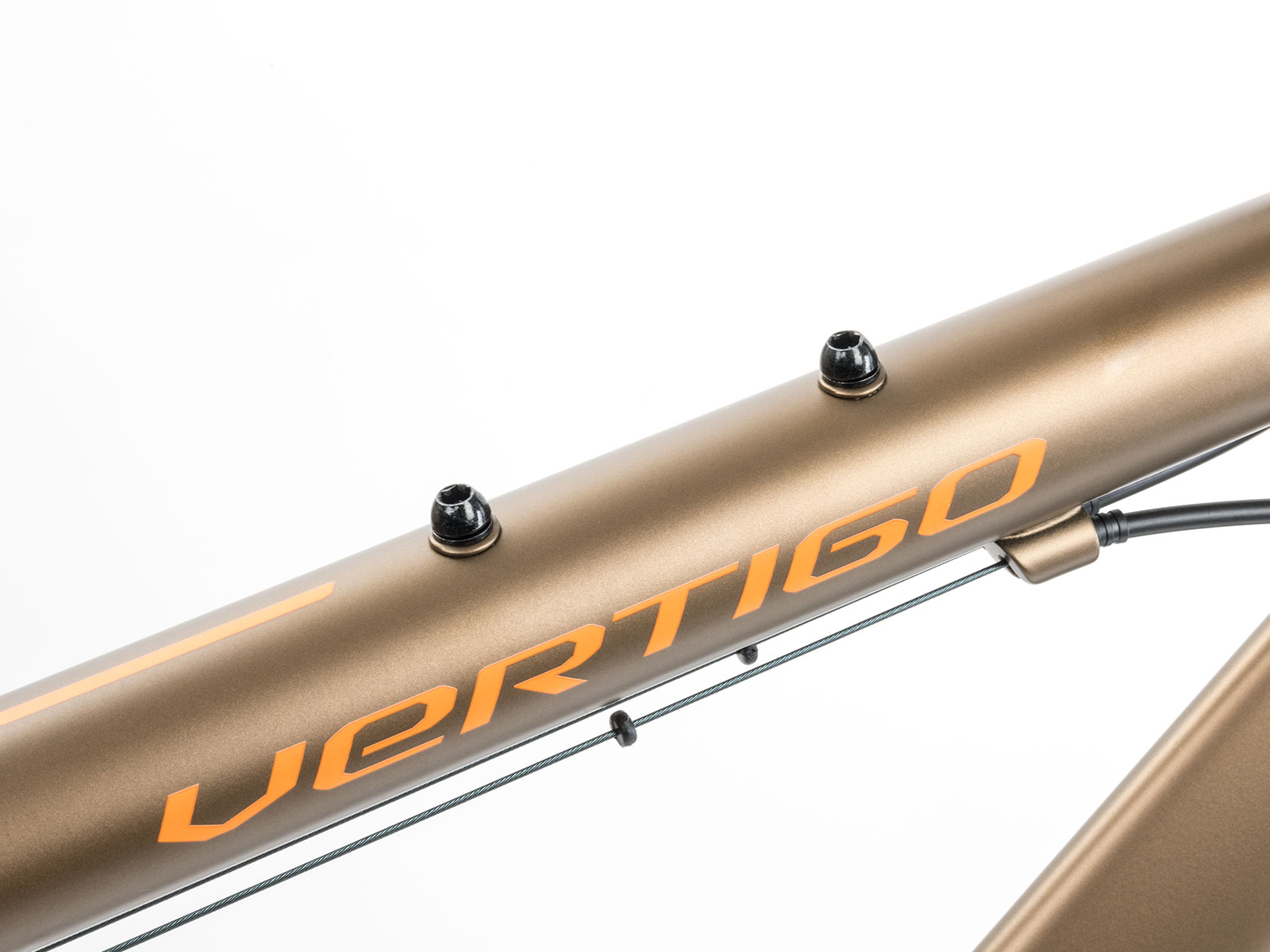

Frame	alloy 700c

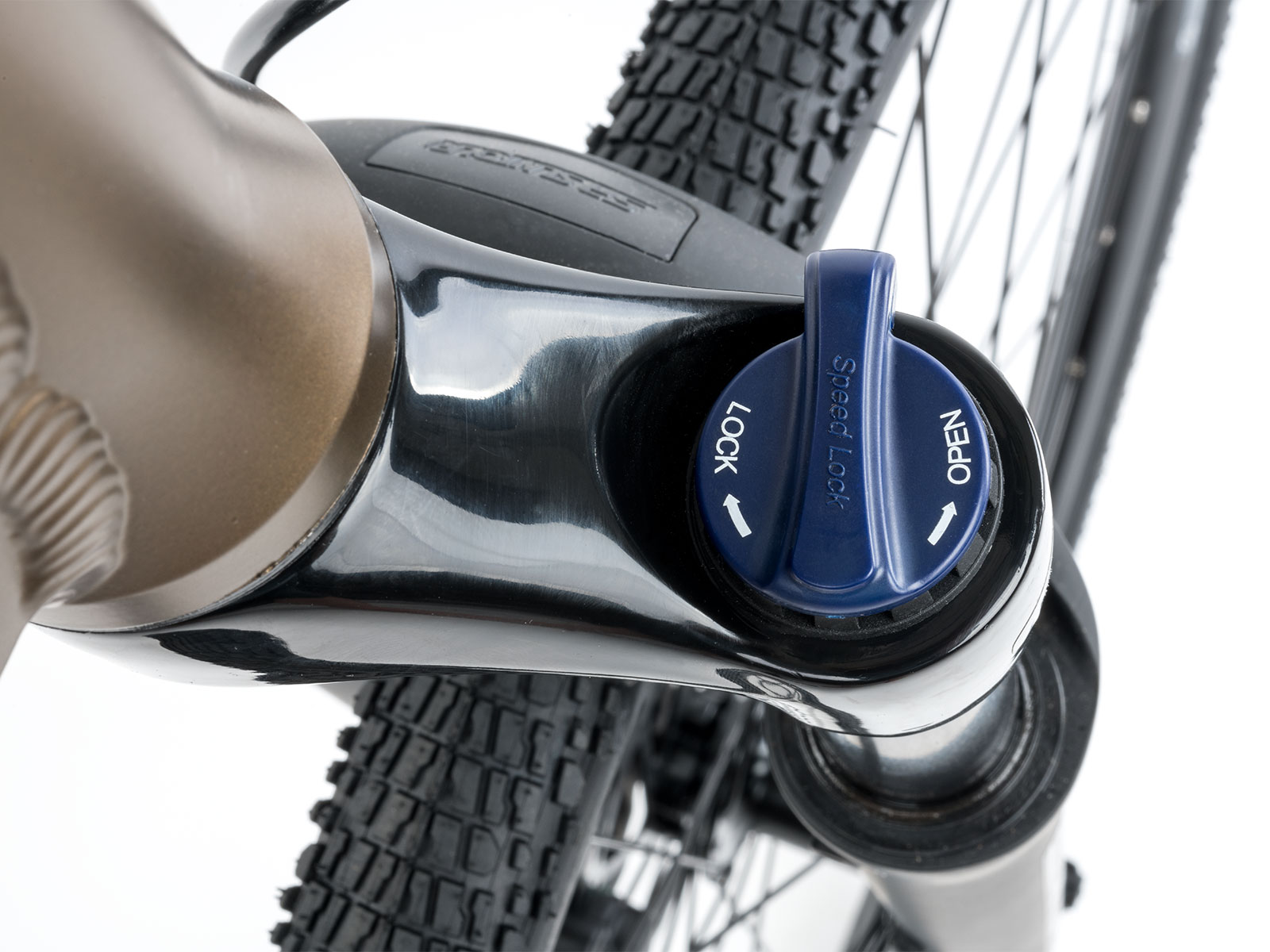

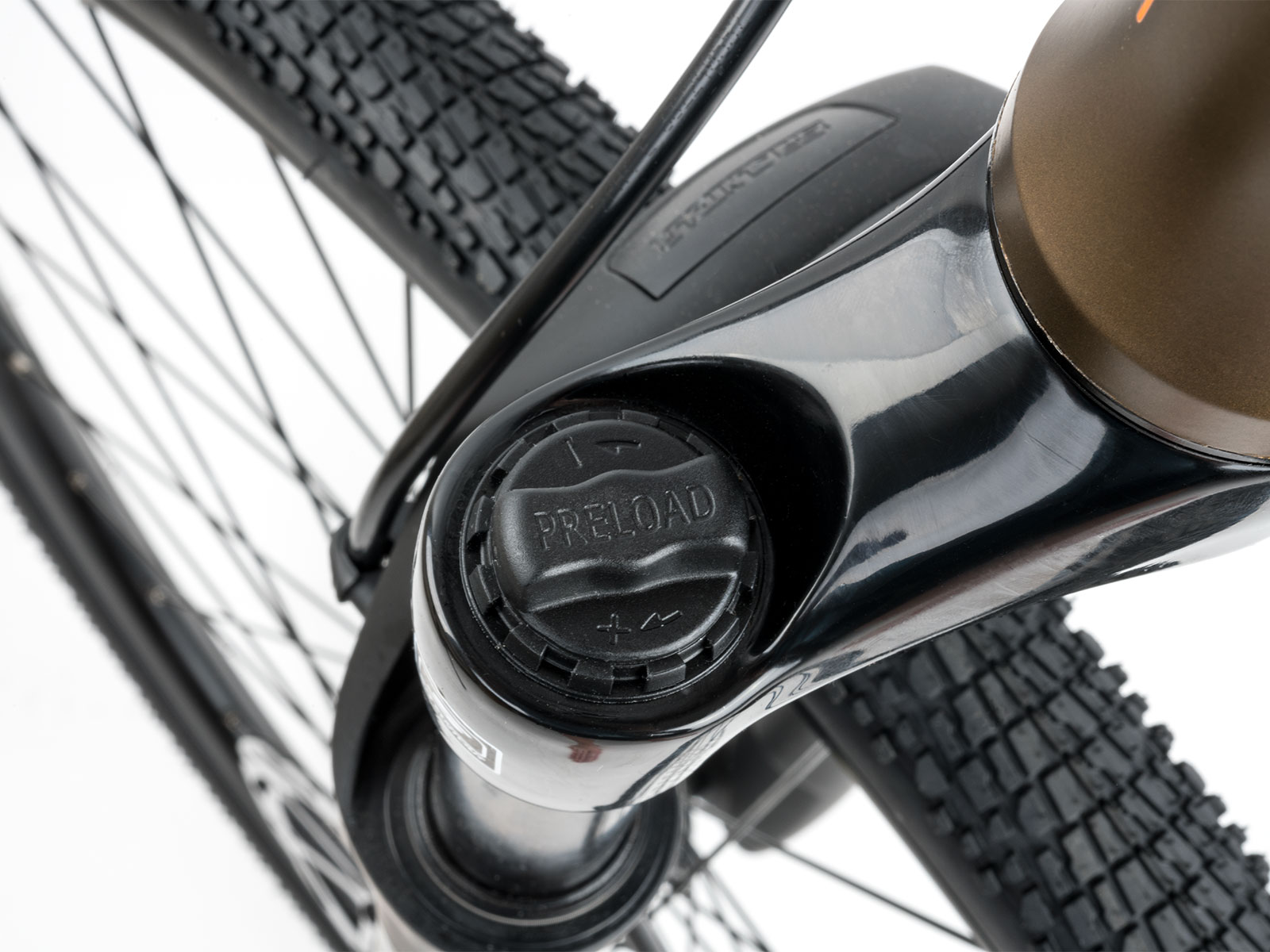

Front fork	SUNTOUR NEX LO, lock out (63 mm)
Head parts	PRESTINE Integrated 1-1/8"

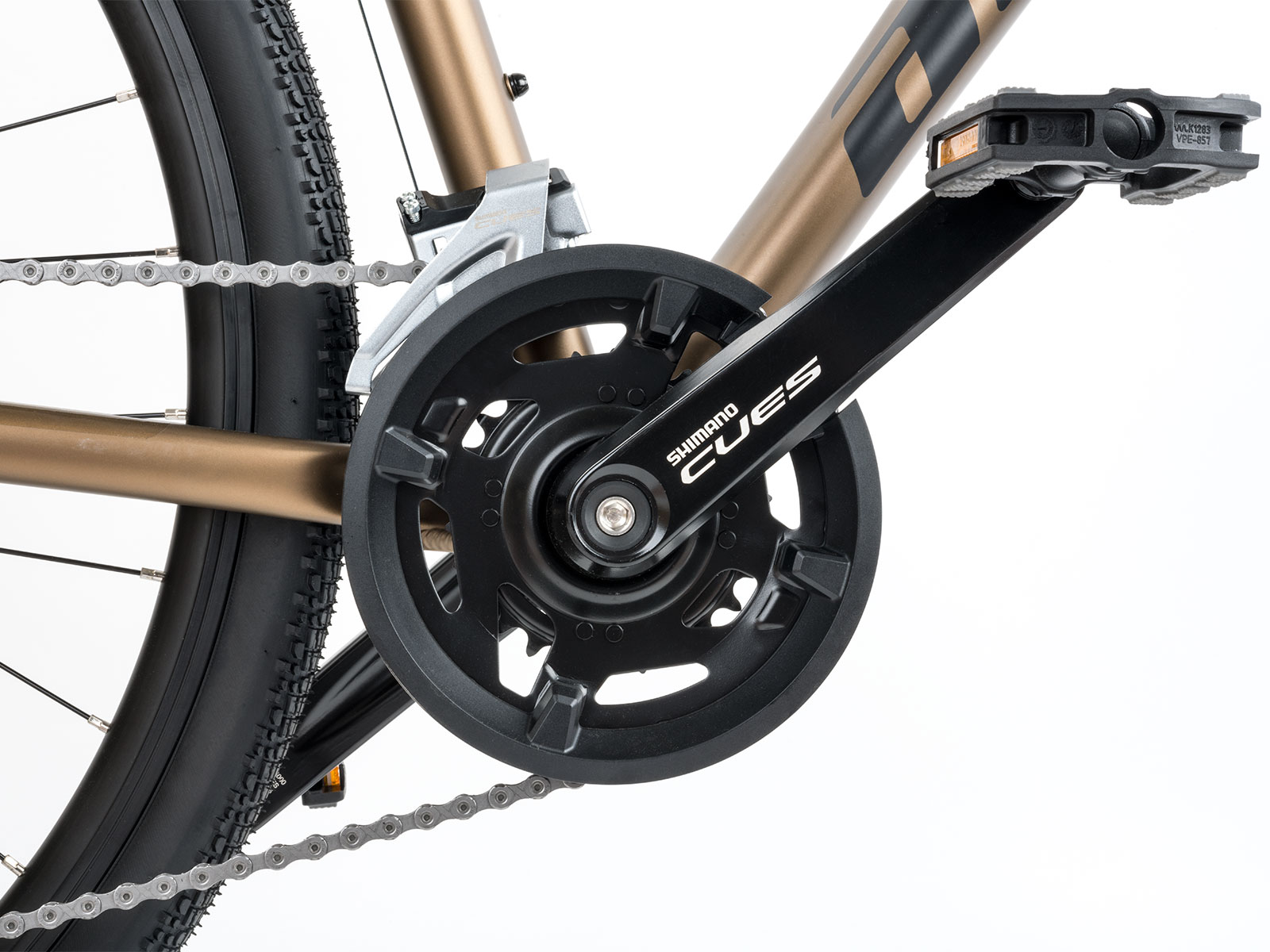

Chain Wheel	SHIMANO Cues 4000-2, 40-26 teeth, 170/175 mm cranks
BBParts	SHIMANO BB-UN101 cartridge
Front derailleur	SHIMANO Cues 4000 (31.8)

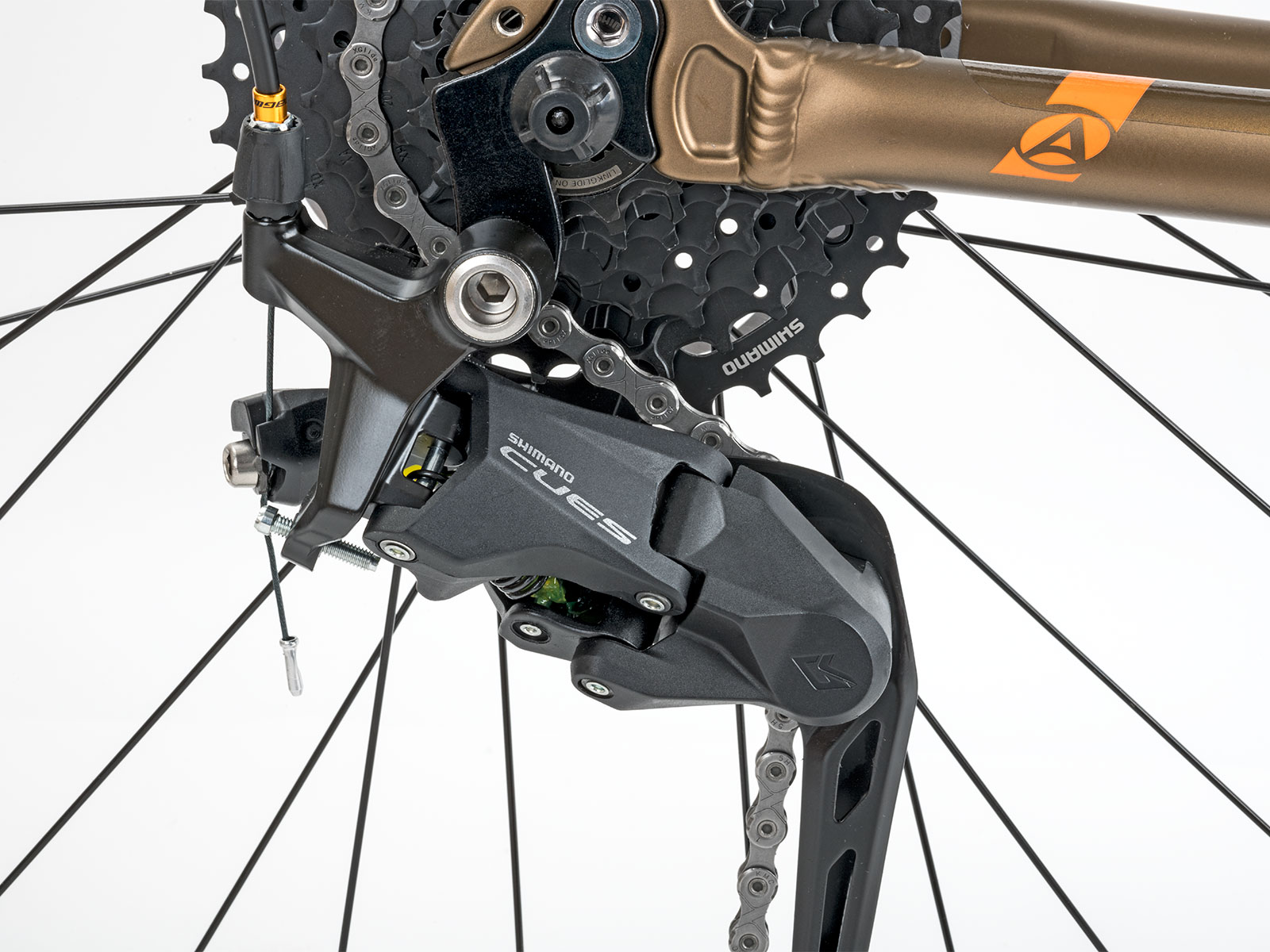

Rear derailleur	SHIMANO Cues 3020

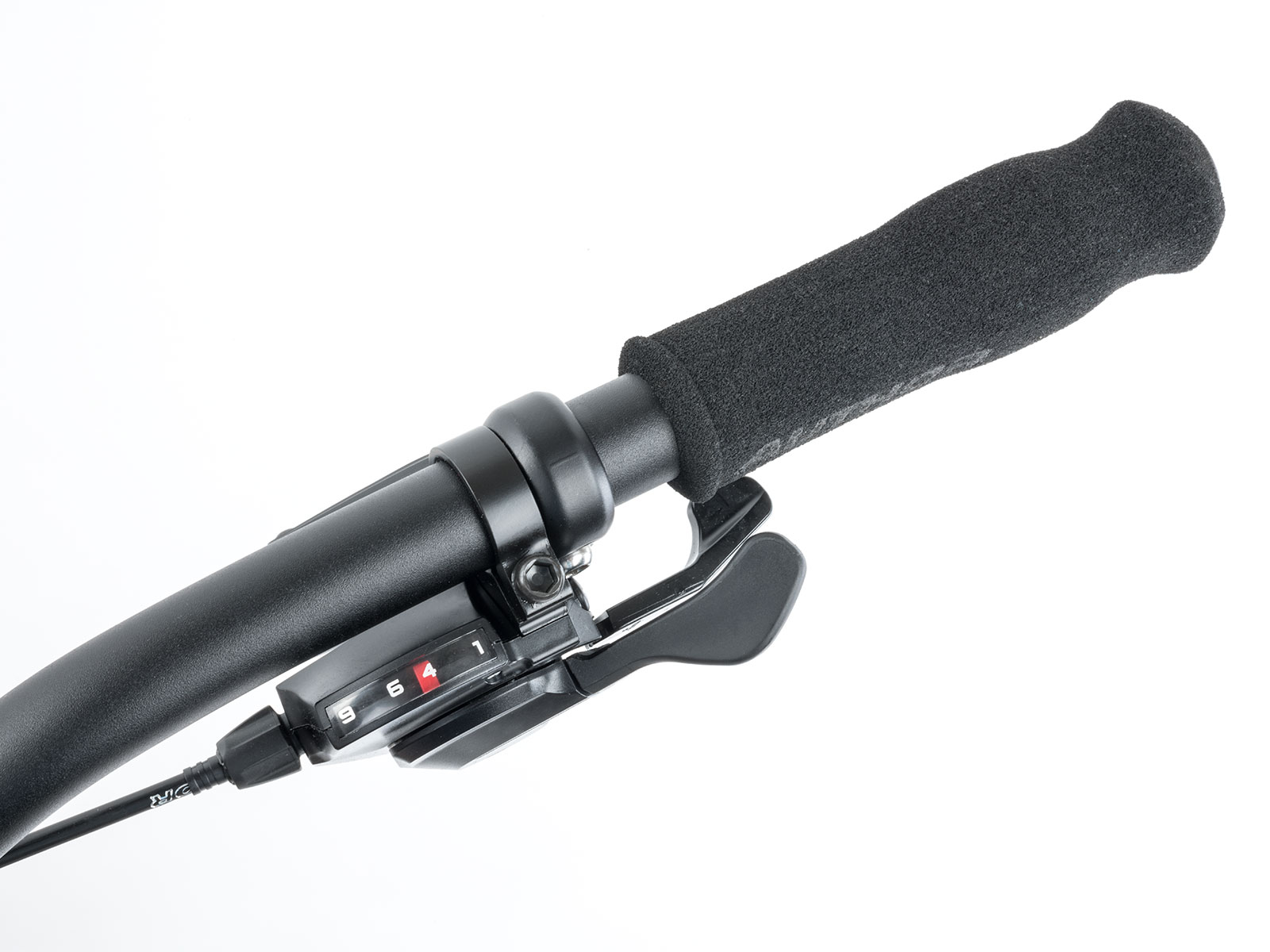

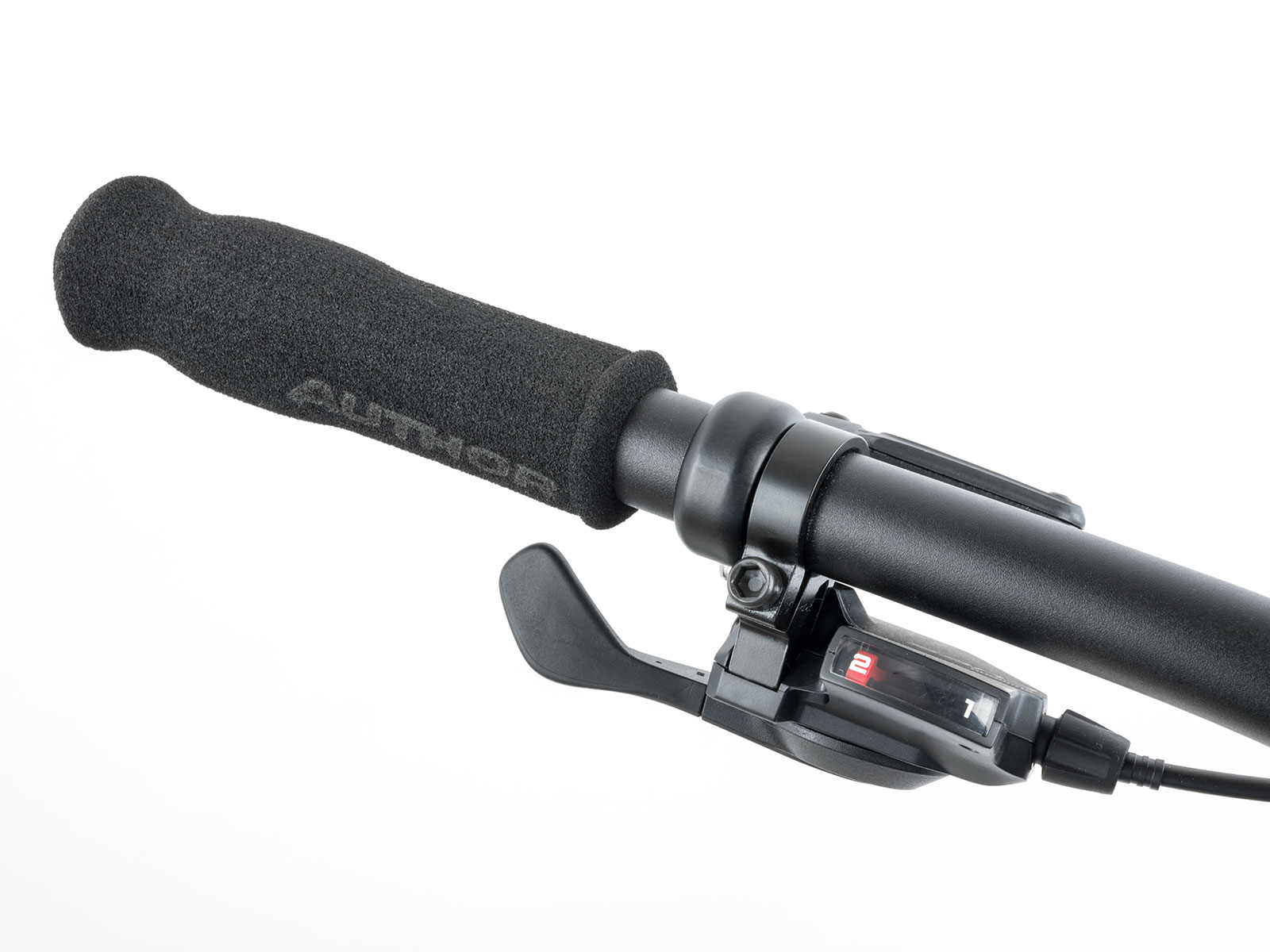

Shifters	SHIMANO Cues 4000 (18)
Free wheel	SHIMANO CS-LG300-9, 11-36 teeth (9)
Chain	KMC XGlide
Hubs	QUANDO Disc, 32 holes

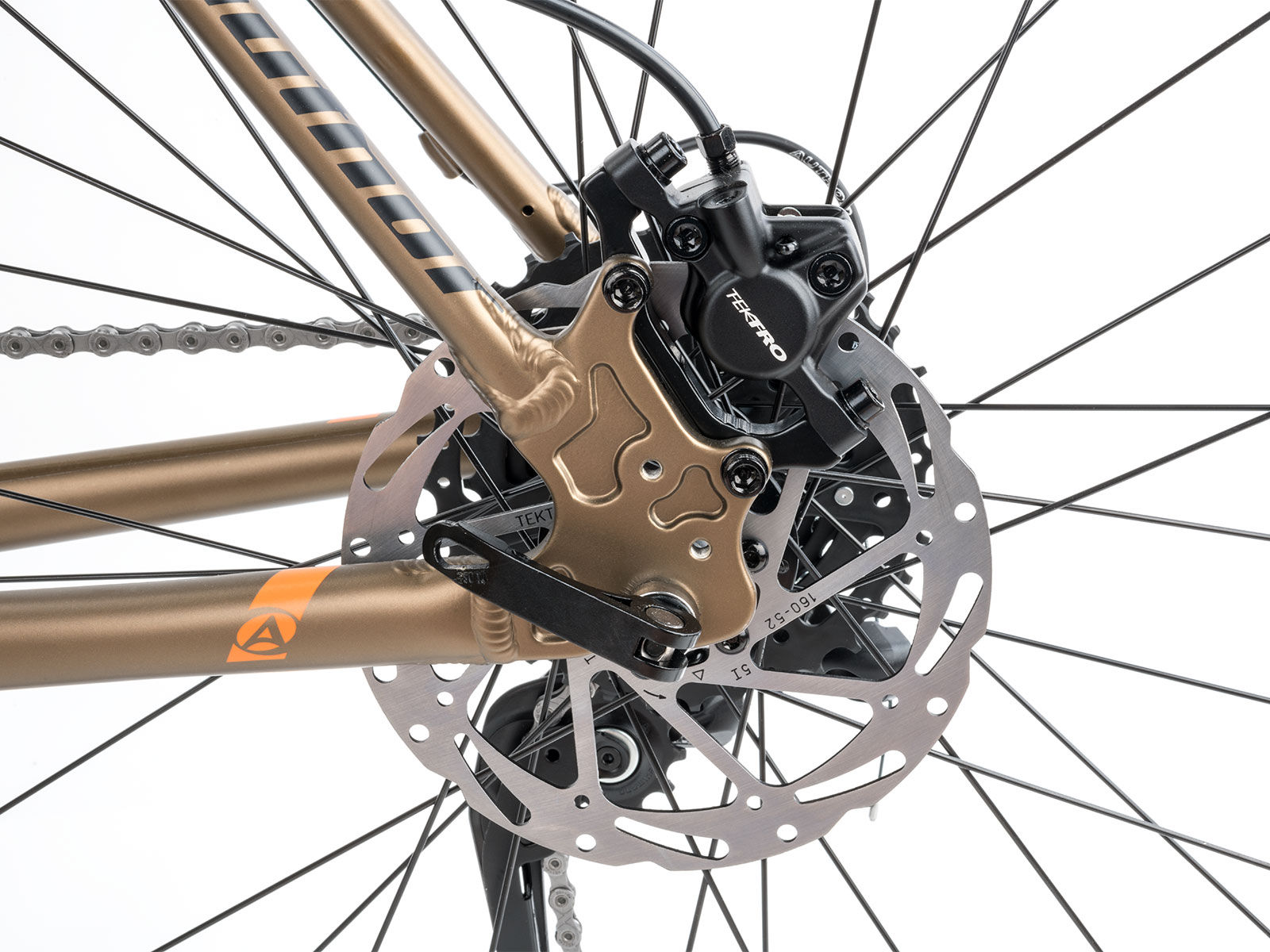

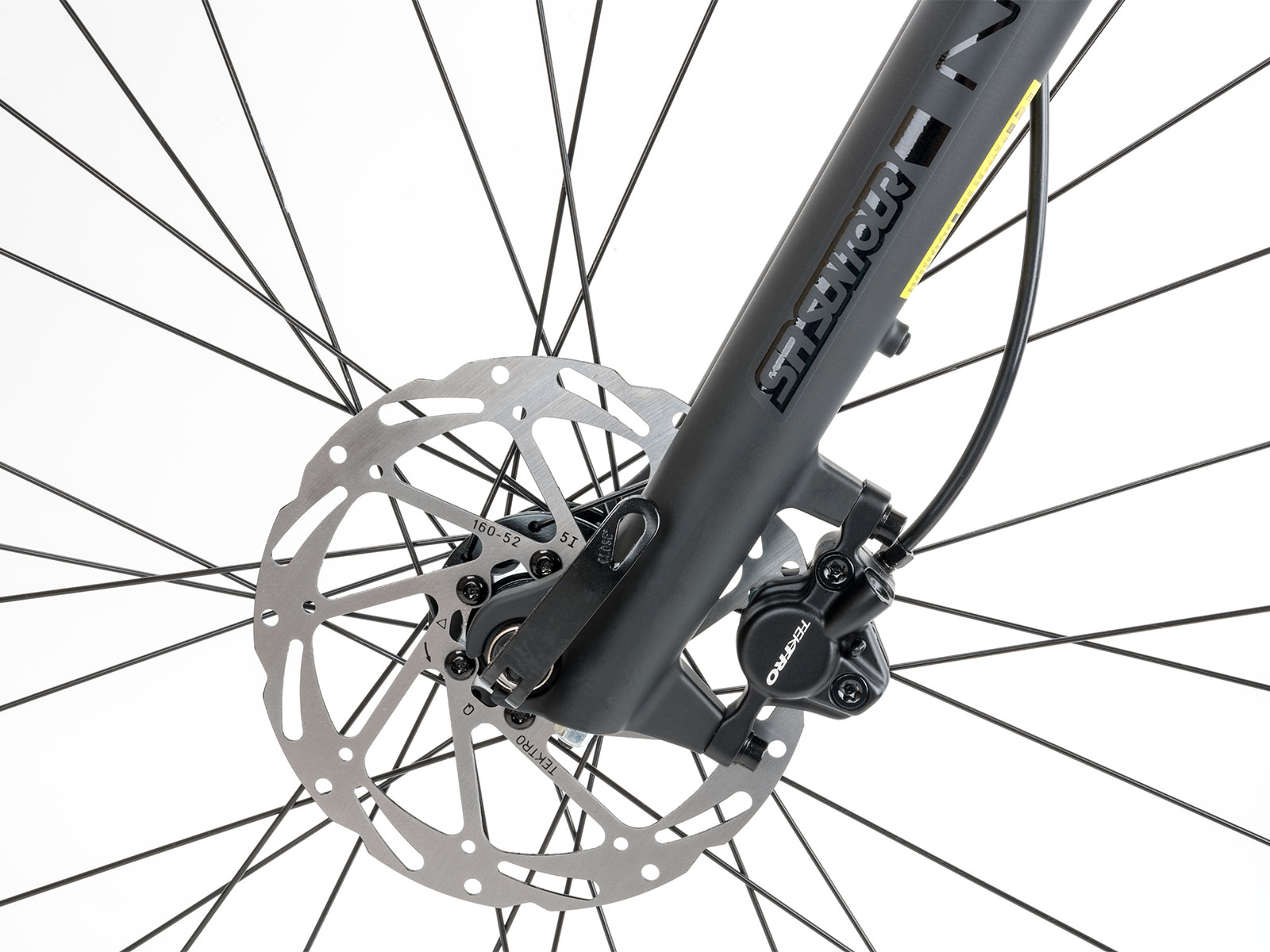

Brakes	TEKTRO HD-T275, disc hydraulic (6" rotors)

Brakes levers	TEKTRO HD-T275

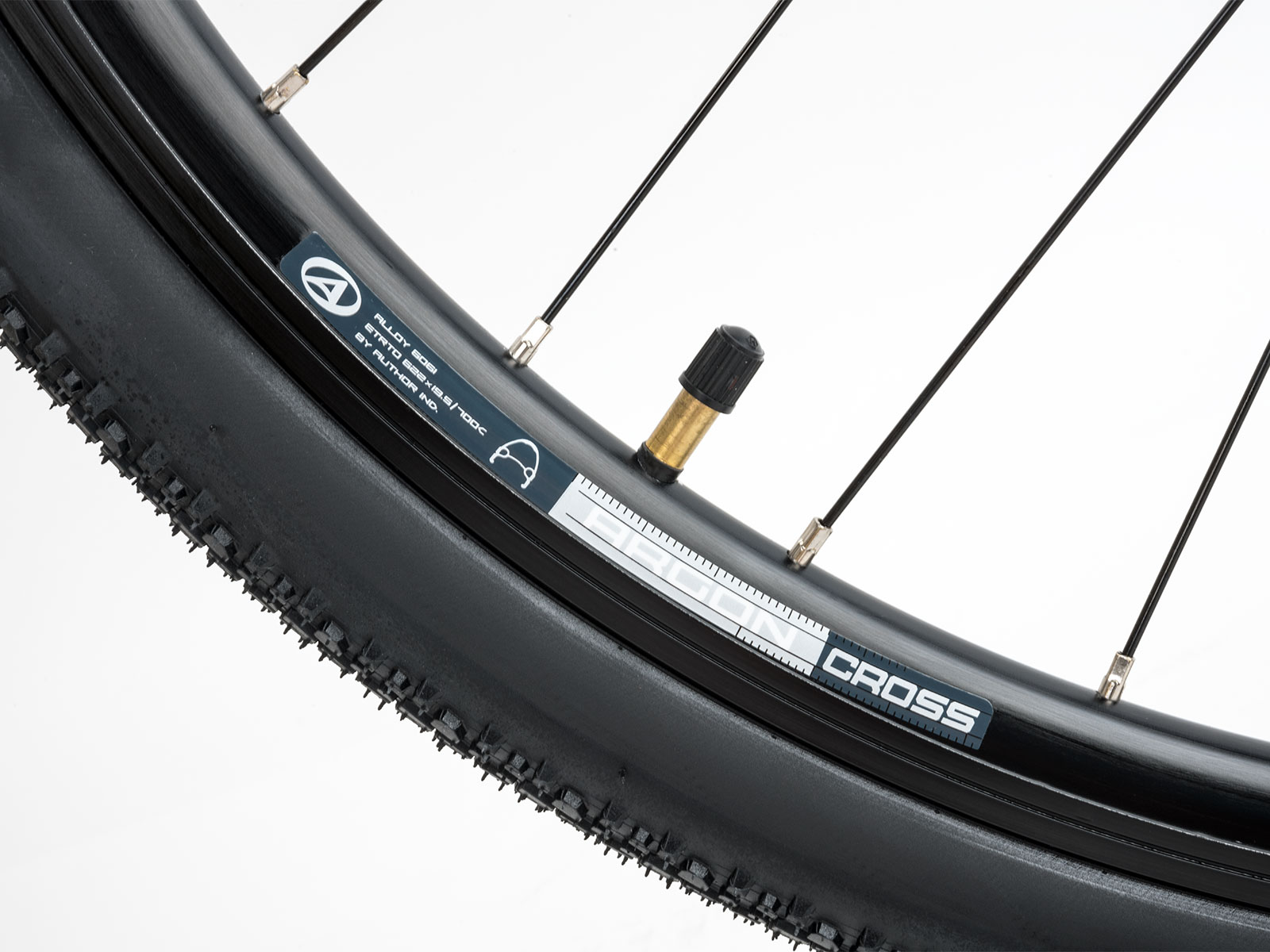

Rims	AUTHOR Argon Cross, 32 holes
Spokes	black stainless steel 1.8 mm

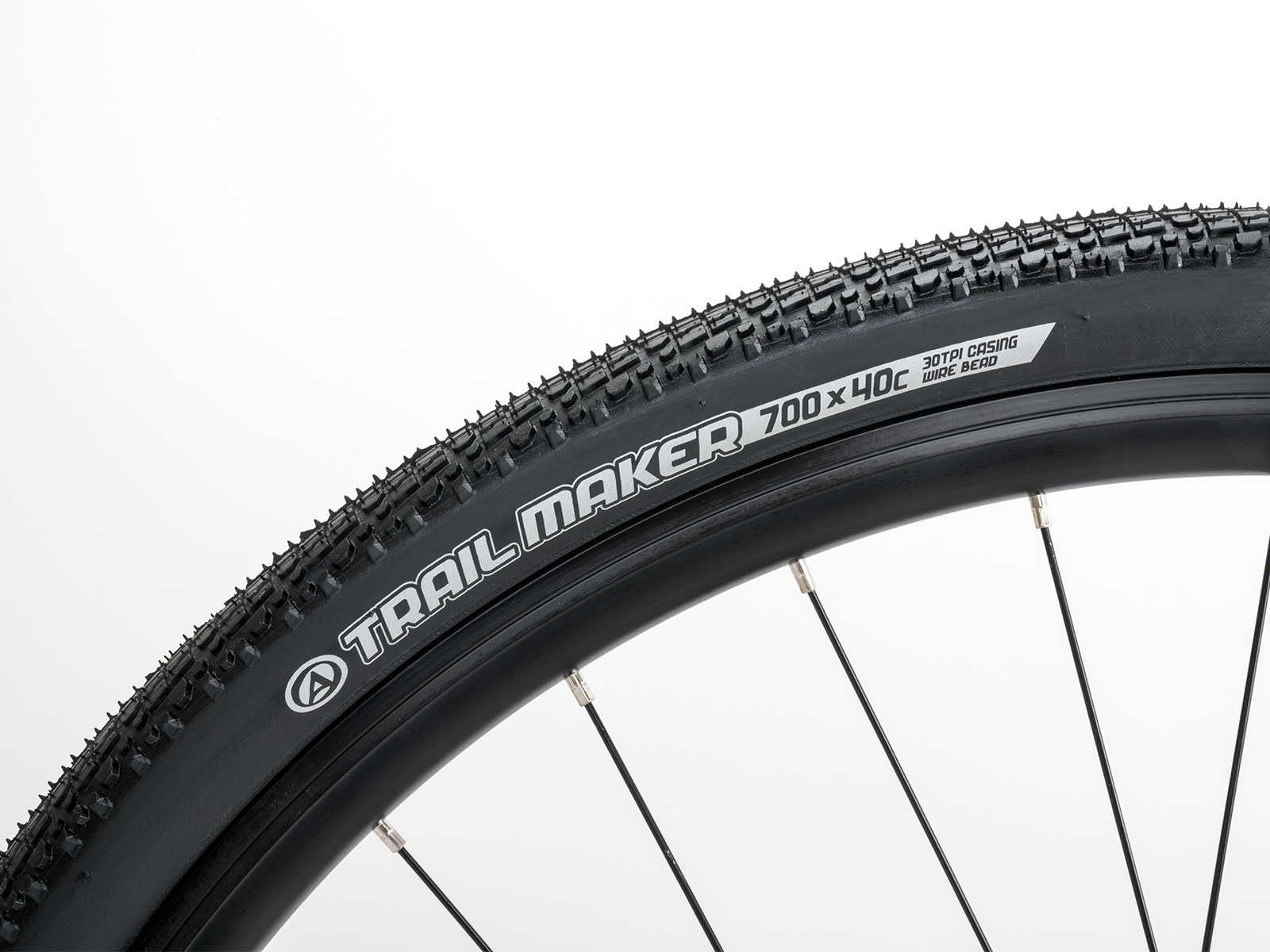

Tires	AUTHOR Trail Maker, 700 x 40c

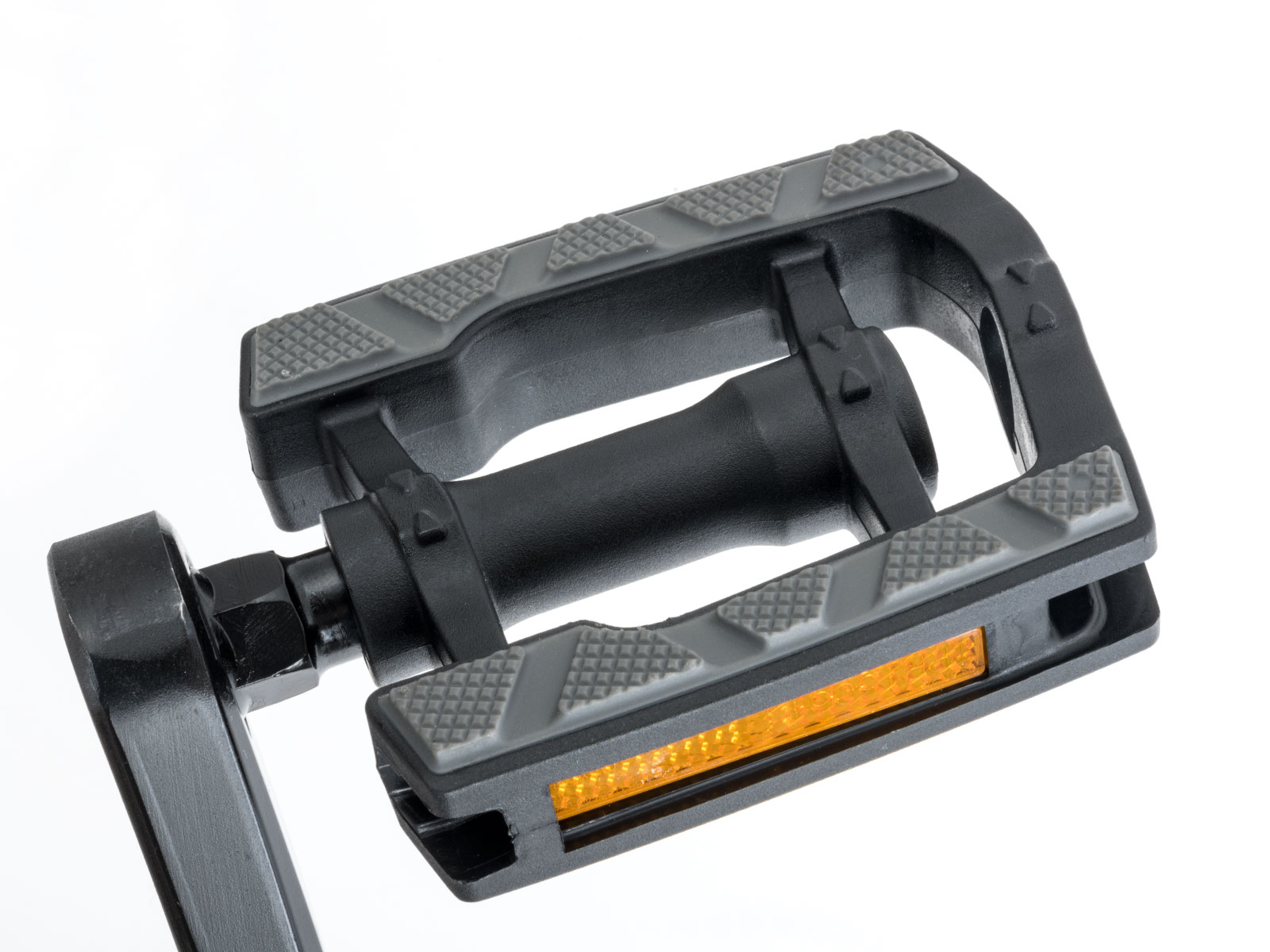

Pedals	AUTHOR Non Slip plastic

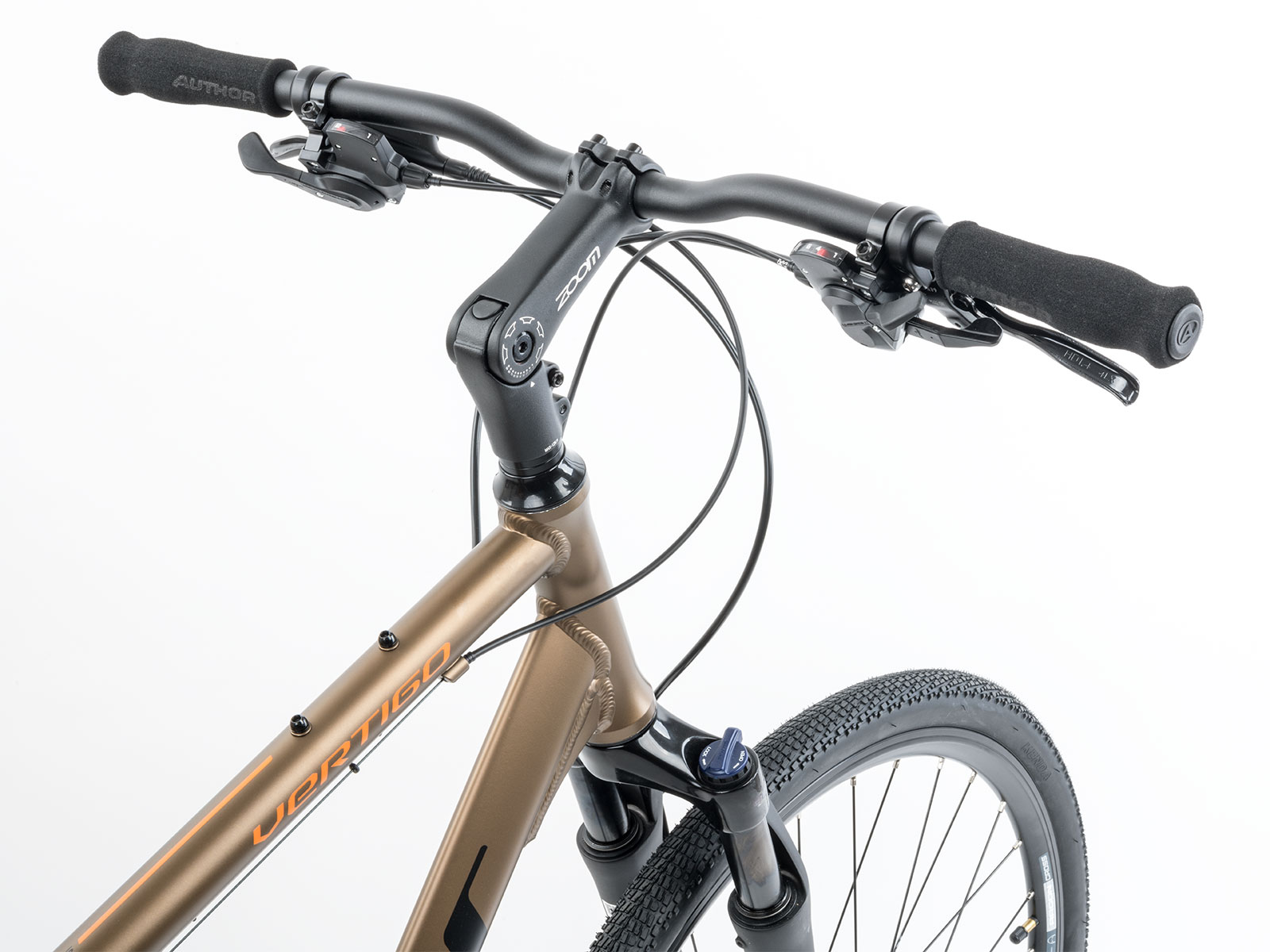

Handlebar	alloy, rise 20 mm, 660/680 mm
Grips/Bar tapes	high density foam

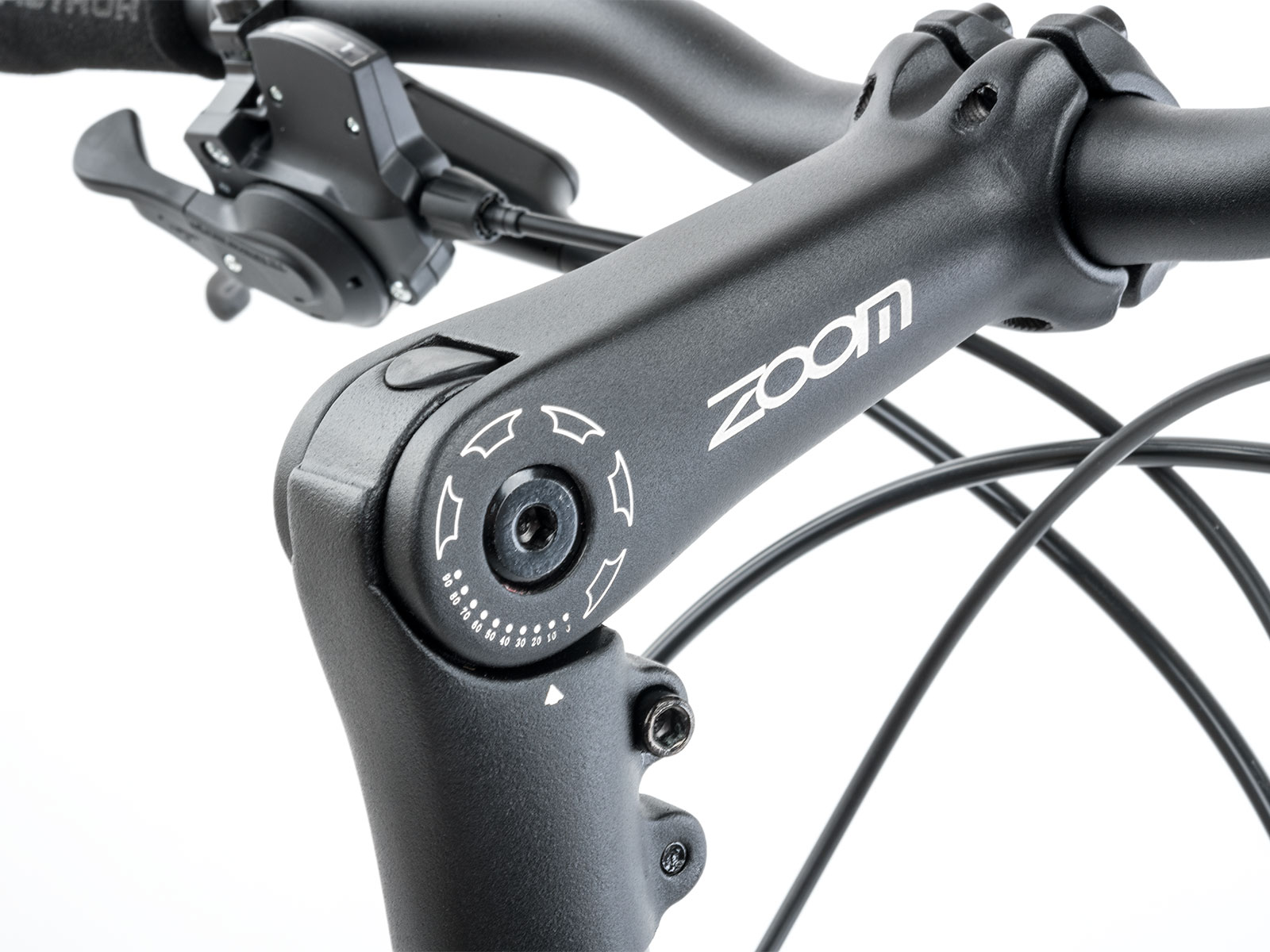

Stem	ZOOM adjustable
Seat post	ZOOM alloy (27.2)
Seat clamp	AUTHOR (31.8)

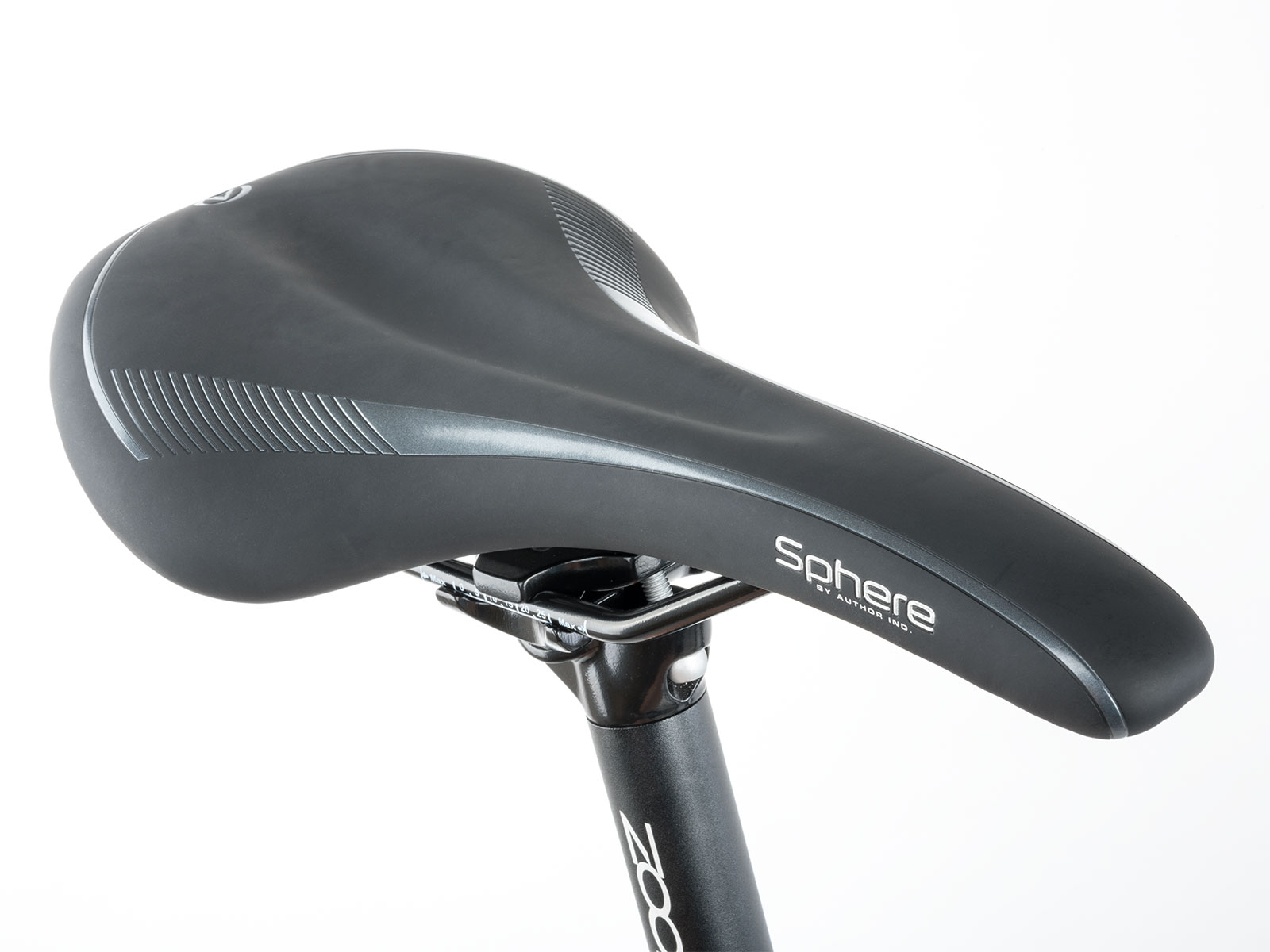

Saddle	AUTHOR Sphere
Speed	18

Geometry and sizes

Size	16"	18"	20"	22"
Min. figure ~~[cm]~~	150	165	175	185
Max. figure ~~[cm]~~	168	178	188	200
S/T c-t ~~[mm]~~	406	457	508	559
S/T c-c ~~[mm]~~	0	0	0	0
T/T h ~~[mm]~~	560	580	600	620
T/T a ~~[mm]~~	0	0	0	0
H/T ~~[mm]~~	130	150	170	180
C/S ~~[mm]~~	440	440	440	440
W/B ~~[mm]~~	1070	1085	1101	1109
S/T ang. ~~[°]~~	74	73.5	73.5	73
H/T ang. ~~[°]~~	70.5	70.5	71	71.5
F/L ~~[mm]~~	470	470	470	470
B/B drop ~~[mm]~~	60	60	60	60
B/B width ~~[mm]~~	68	68	68	68
Reach ~~[mm]~~	0	0	0	0
Stack ~~[mm]~~	0	0	0	0
F/R ~~[mm]~~	51	51	51	51
Handlebars ~~[mm]~~	0	0	0	0
Stem ~~[mm]~~	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
