Limit 24 2026

Technical specification

Size	12.5"
Frame	alloy 24"
Front fork	alloy 24"
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL, 32 teeth, 140 mm cranks
BBParts	VP COMP cartridge
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO Revoshift (8)
Free wheel	SHIMANO CS-HG31-8, 11-34 teeth (8)
Chain	KMC Z8.3
Hubs	QUANDO, 28 holes
Brakes	TEKTRO V
Brakes levers	TEKTRO

Rims	alloy, 28 holes
Spokes	black stainless steel 1.8 mm
Tires	KENDA Small Block Eight, 24" x 1.75"
Pedals	plastic
Handlebar	alloy, rise 20 mm, 580 mm
Grips/Bar tapes	AUTHOR kratton rubber
Stem	alloy
Seat post	alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR Racer
Speed	8

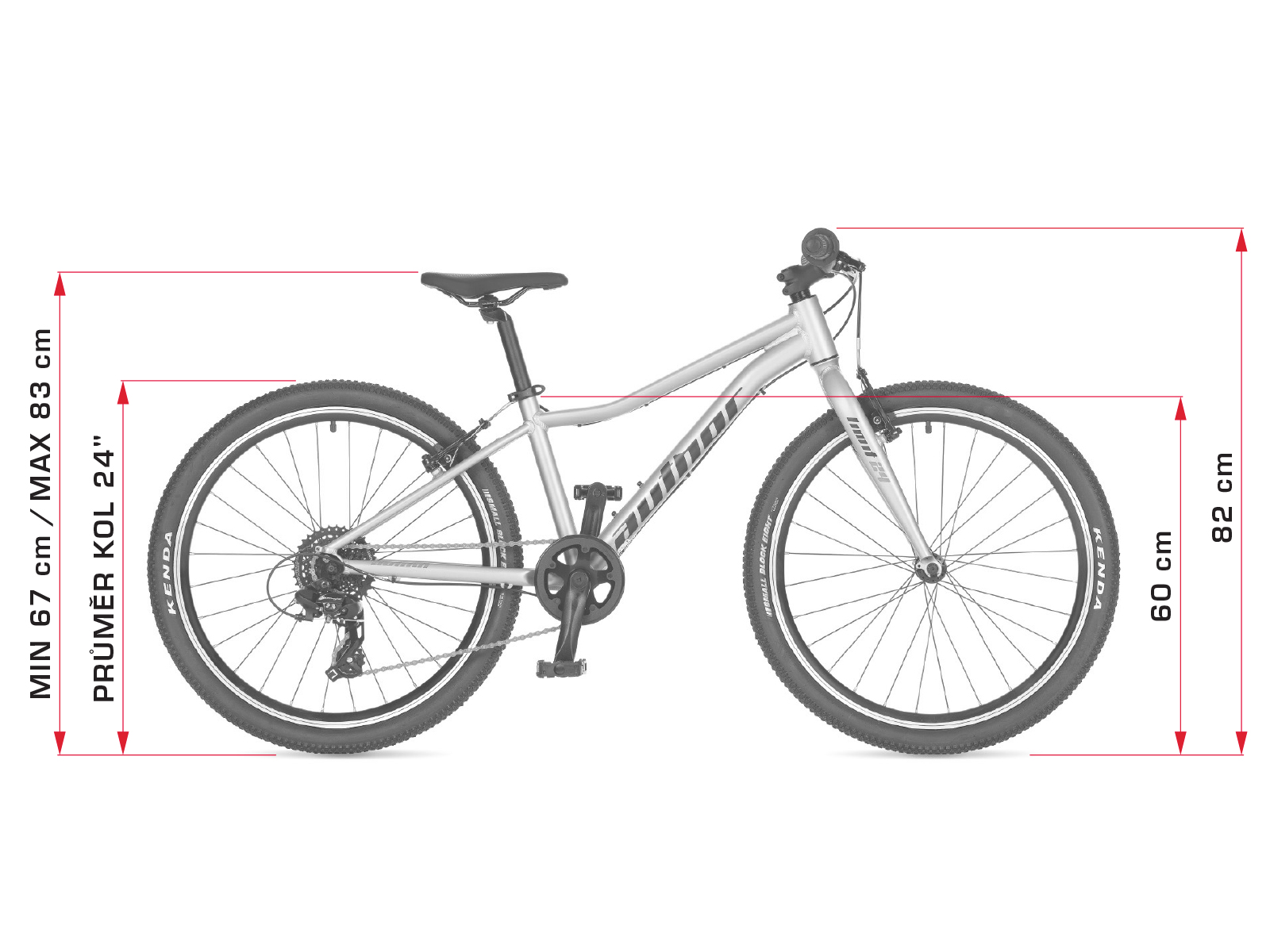

Geometry and sizes

Size	12,5"
Min. figure ~~[cm]~~	125
Max. figure ~~[cm]~~	140
S/T c-t ~~[mm]~~	318
S/T c-c ~~[mm]~~	0
T/T h ~~[mm]~~	492
T/T a ~~[mm]~~	0
H/T ~~[mm]~~	100
C/S ~~[mm]~~	395
W/B ~~[mm]~~	958
S/T ang. ~~[°]~~	73.5
H/T ang. ~~[°]~~	70
F/L ~~[mm]~~	375
B/B drop ~~[mm]~~	20
B/B width ~~[mm]~~	68
Reach ~~[mm]~~	359
Stack ~~[mm]~~	451
F/R ~~[mm]~~	45
Handlebars ~~[mm]~~	0
Stem ~~[mm]~~	0
Cranks ~~[mm]~~	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
