Limit 24 2023-24

~~Colour variants~~

Wheel size 24"Recommended for height 125-140 cmWeight 10,3 kgMTB cross special with single chainwheelLightweight alloy frame and forkSHIMANO components 8 speedLightweight tire KENDA Small Block Eight

AUTHOR Limit 24 focused its weight orientation in every detail, so that a rider who is just growing up does not have to carry the weight of an adult bike. Lightweight alloy frame and fork, Kevlar tires and ergonomic Shimano Revoshift shifting. There is a girl's and boy's color combination.

Technical specification

Size	12.5"
Frame	alloy 6061 24"
Front fork	alloy 6061 24"
Head parts	PRESTINE 1-1/8"
Chain Wheel	PROWHEEL, 32 teeth, 152 mm cranks
BBParts	VP COMP, cartridge
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO Revoshift (8)
Free wheel	SHIMANO HG31-8, 11-34 (8)
Chain	KMC Z8.3
Hubs	QUANDO, 32 holes
Brakes	TEKTRO V
Brakes levers	TEKTRO alloy

Rims	alloy, 32 holes
Spokes	steel
Tires	KENDA Small Block Eight 24" × 1.95"
Pedals	plastic
Handlebar	steel, 20 mm, 580 mm
Grips	AUTHOR kratton rubber
Stem	alloy
Seat post	alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR
Speed	8
Weight	10,3 kg / 12.5"

Geometry and sizes

Size	12,5"
Min. figure ~~[cm]~~	125
Max. figure ~~[cm]~~	140
S/T c-t ~~[mm]~~	318
S/T c-c ~~[mm]~~	0
T/T h ~~[mm]~~	492
T/T a ~~[mm]~~	476
H/T ~~[mm]~~	100
C/S ~~[mm]~~	395
W/B ~~[mm]~~	958
S/T ang. ~~[°]~~	73.5
H/T ang. ~~[°]~~	70
F/L ~~[mm]~~	372
B/B drop ~~[mm]~~	20
B/B width ~~[mm]~~	68
Reach ~~[mm]~~	0
Stack ~~[mm]~~	0
F/R ~~[mm]~~	45
Handlebars ~~[mm]~~	0
Stem ~~[mm]~~	0
Cranks ~~[mm]~~	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

additional accessories

1/3

ABC-37Bottle cage, Light AL 6061T bottle cage, strong construction with universal mount, bottle removing f ... more »

1/2

L&R05Bottle cage AUTHOR ABC-L&R05 designed for easy bottle removing from side direction. It is lightweigh ... more »

R281 F GSBFrame bag, universal velcro attachment for fixation in front frame triangle (on most of types of fra ... more »

1/4

S381 TPN X7The Author saddle bag A-S381 is the easy bag with the one main compartment. Designed for long satisf ... more »

1/2

AKS-06S CKick Stand Author for direct frame fixation. Adjustable for size 14"- 29", Material AL6061-T6 / ... more »

AKS-09A CKick Stand Author for direct frame fixation. Adjustable for size 24"- 29", Material AL6061-T6. ... more »

1/2

AKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 32 mm), recomen ... more »

AKS-550A CKick Stand Author for direct frame fixation. Adjustable for size 24"- 29", Material AL6061-T6. ... more »

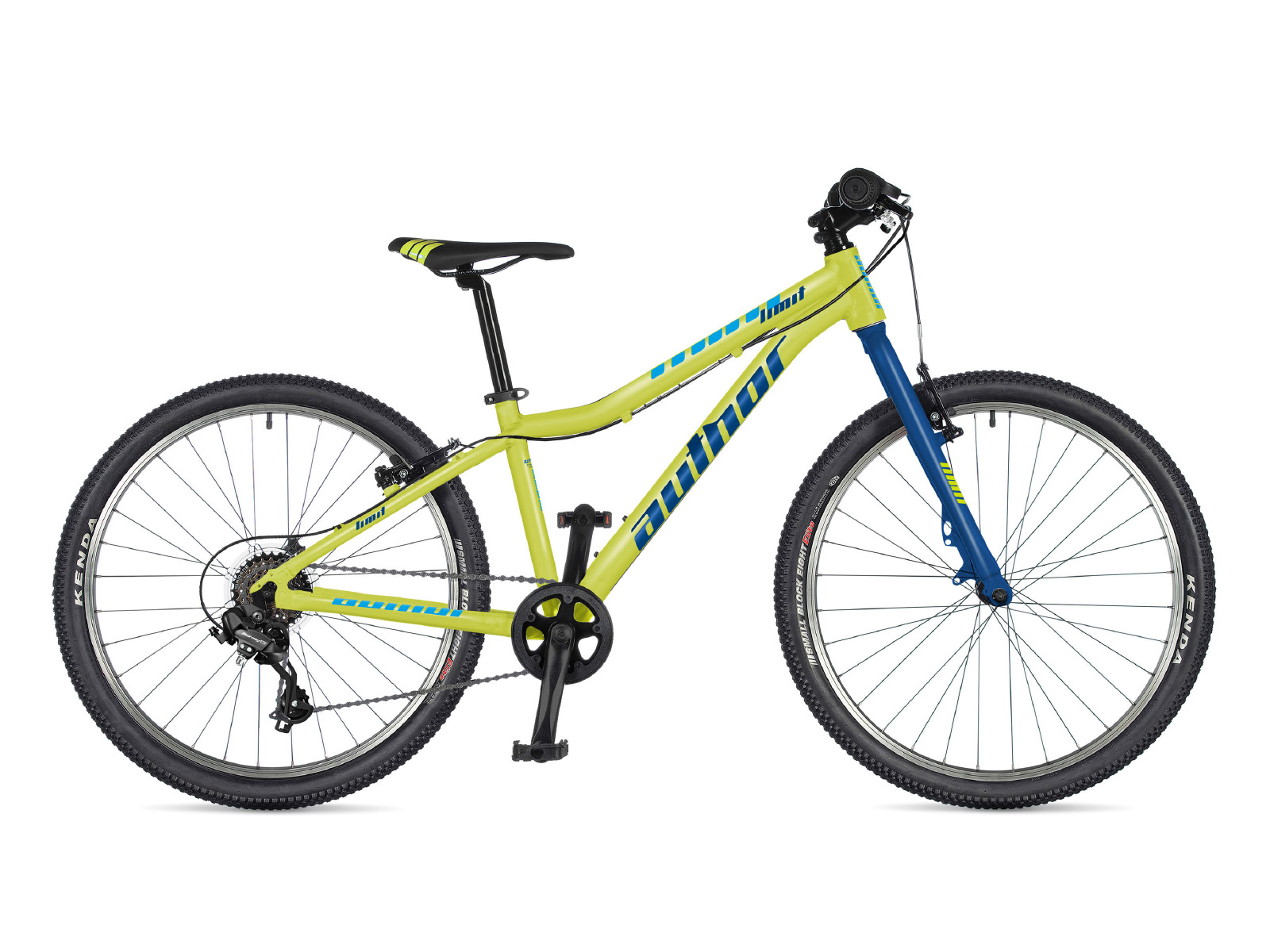

	lime / blue	12,5" = UA#42943501

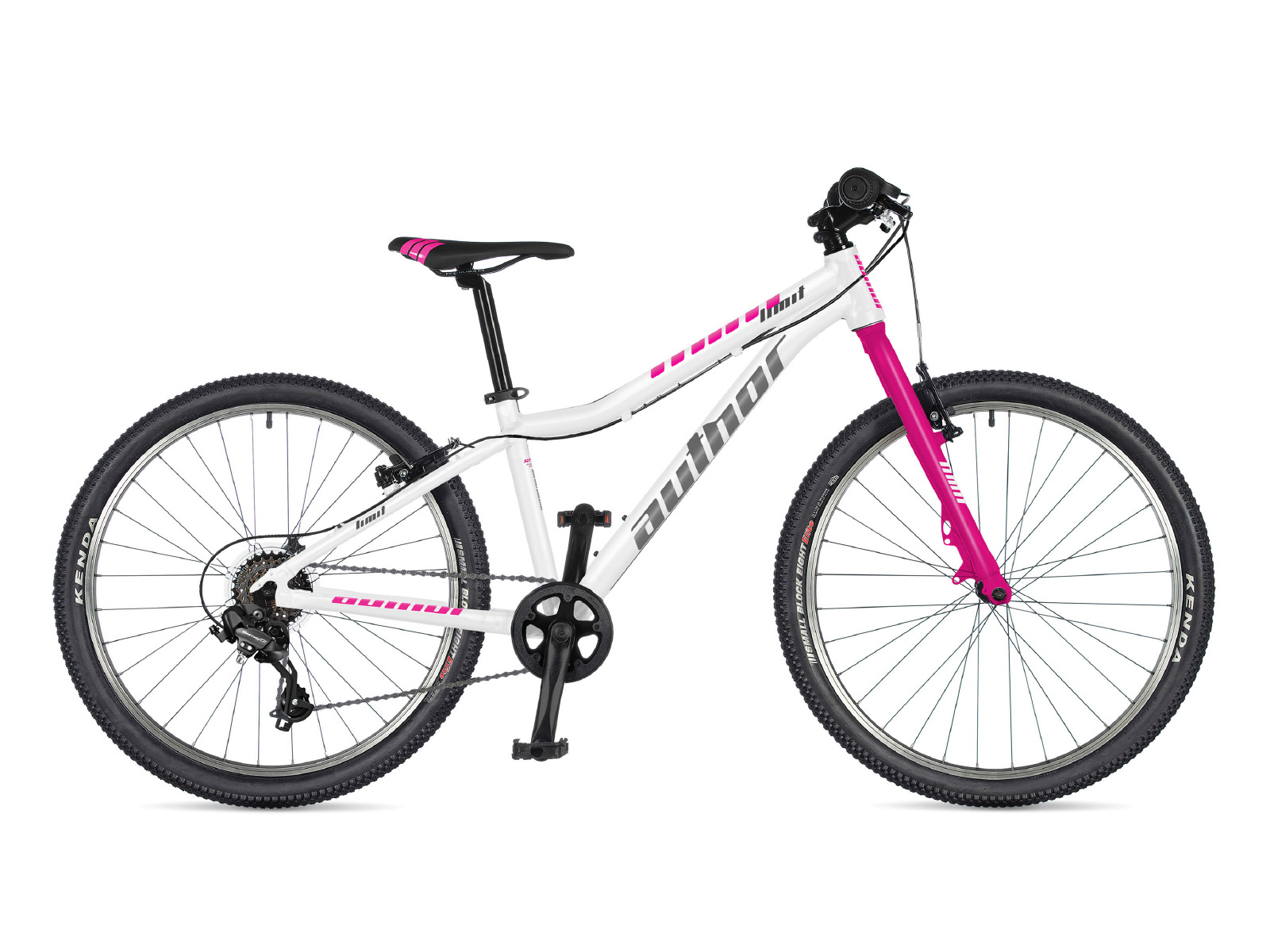

	white / pink	12,5" = UA#42943511
