Rival 27,5 2023-24

Technical specification

Size	15", 17", 19"

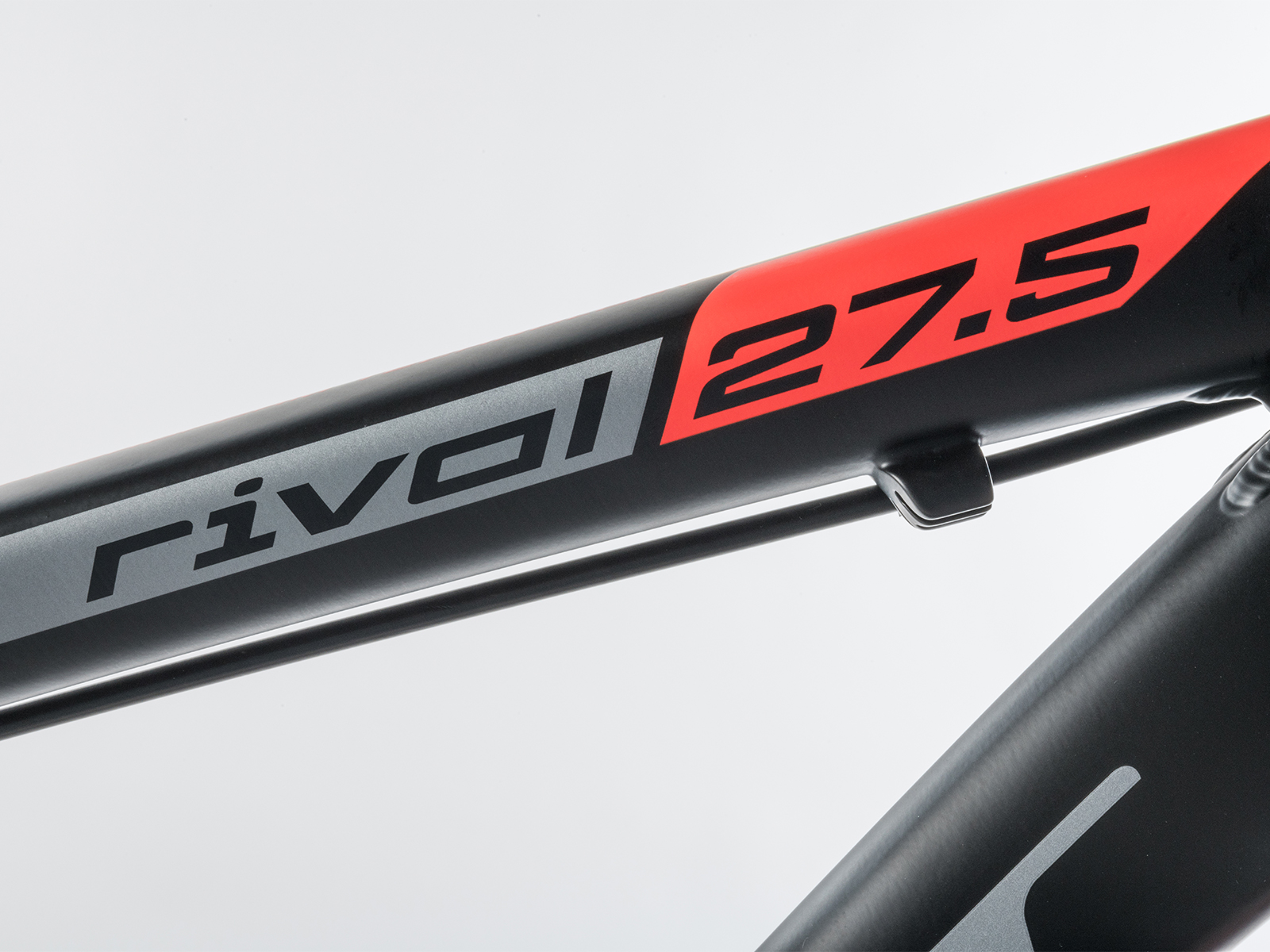

Frame	alloy 6061 27.5"
Front fork	RST Gila 27.5 ML lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL, 42-34-24 teeth, 170 / 175 mm cranks
BBParts	VP COMP, cartridge
Front derailleur	SHIMANO TY700 (34.9)
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO TX800 (24)
Free wheel	SHIMANO HG200-8, 12-32 (8)
Chain	KMC Z8.3
Hubs	QUANDO Disc, 32 holes

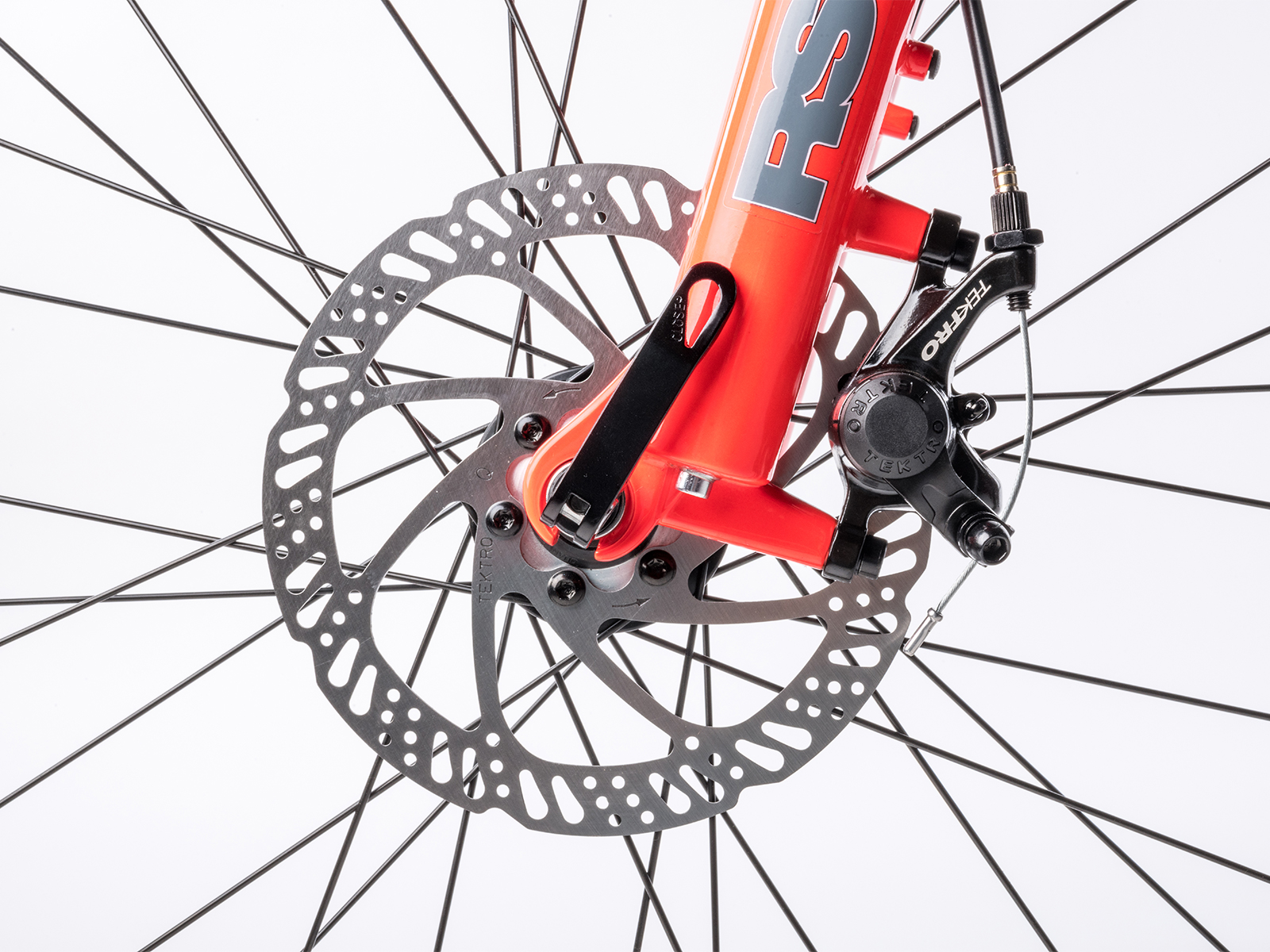

Brakes	TEKTRO, disc mechanical (6" rotors)
Brakes levers	SHIMANO TX800

Rims	AUTHOR Xenon 27.5, 32 holes
Spokes	black steel

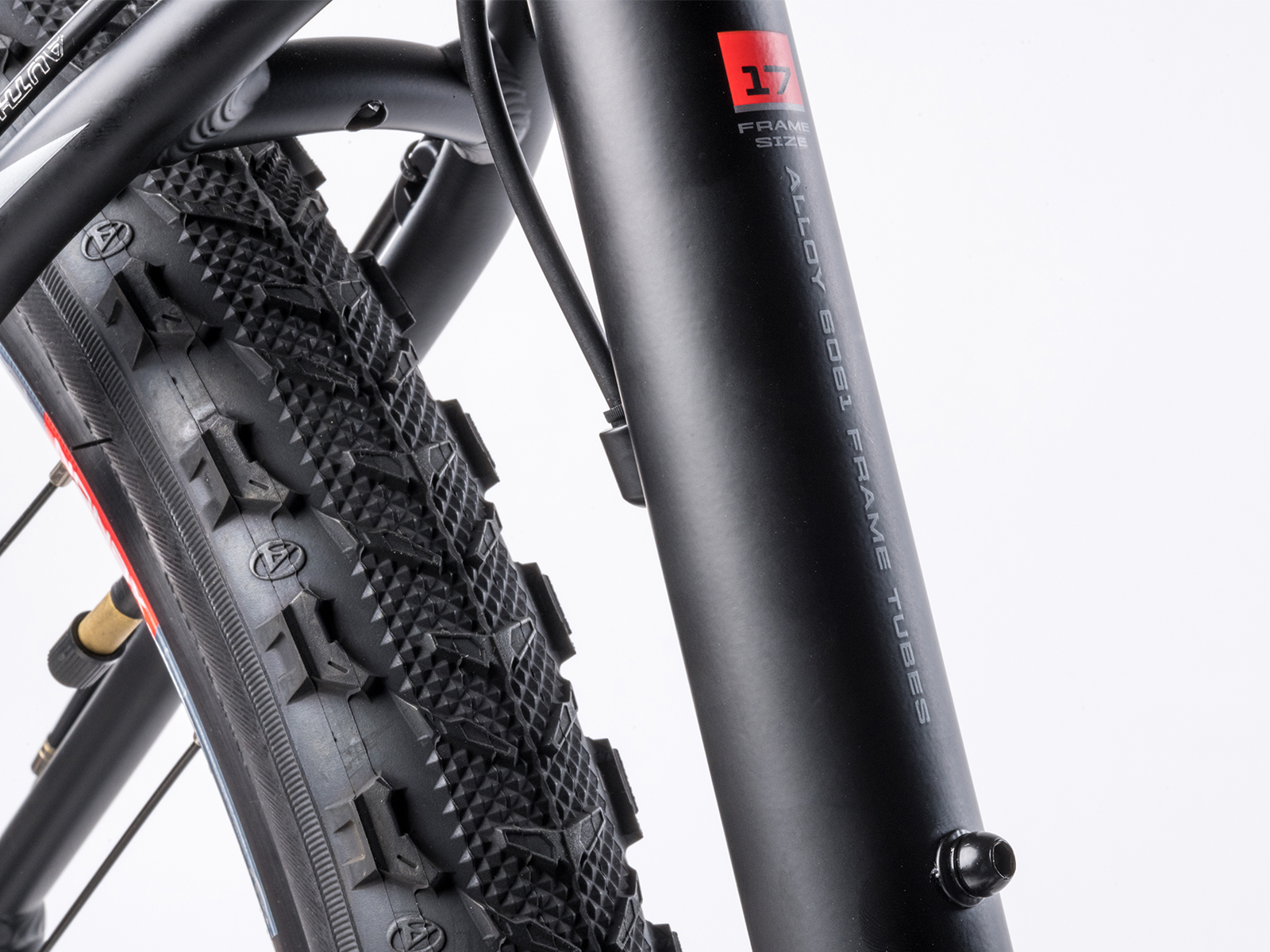

Tires	AUTHOR Rocket 27,5" × 2.10"
Pedals	plastic
Handlebar	AUTHOR rise 15 mm, 9°, 660 / 680 mm
Grips	AUTHOR kratton rubber
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

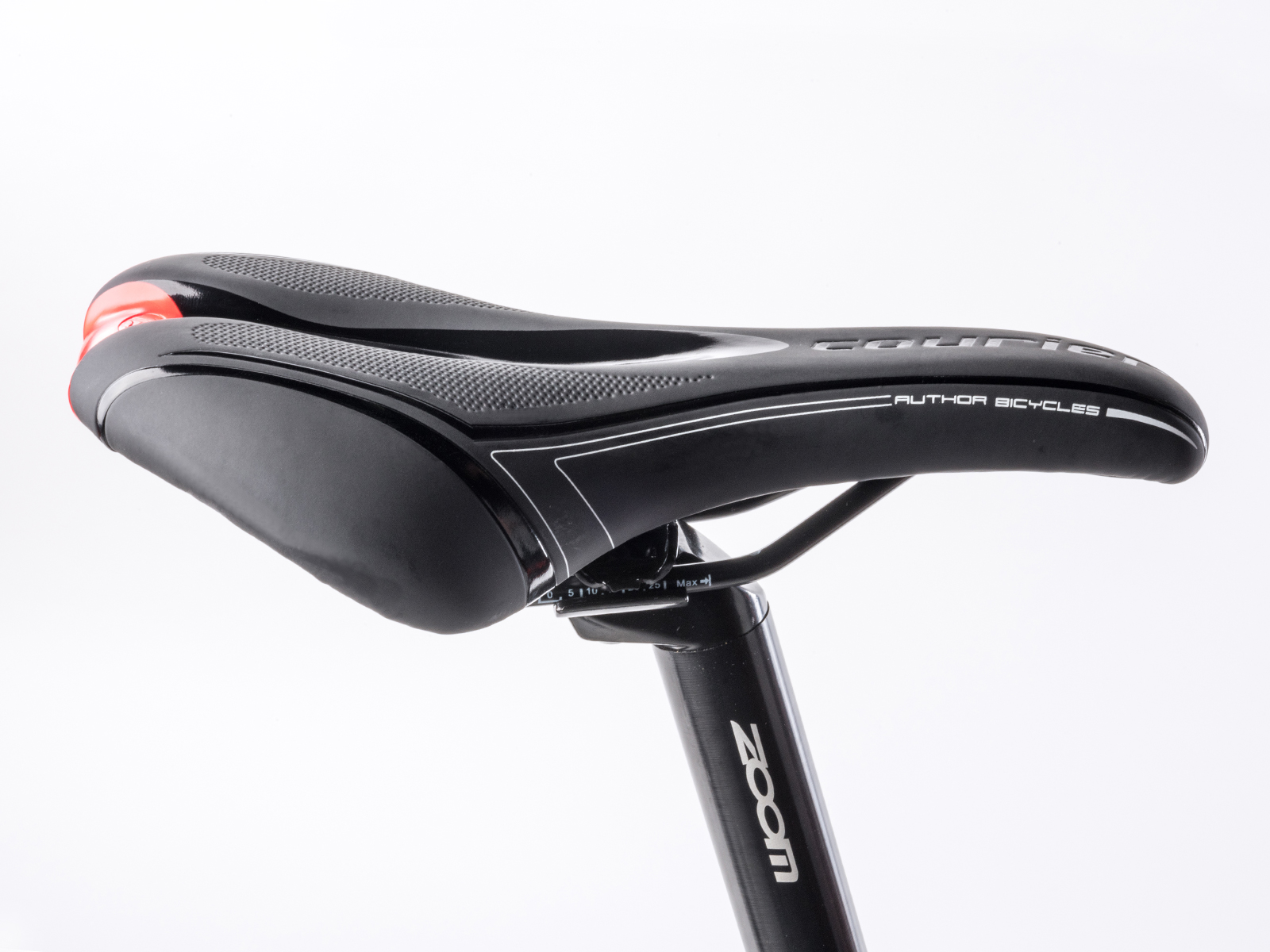

Saddle	AUTHOR Courier
Speed	24
Weight	15 kg / 17"

Geometry and sizes

Size	15"	17"	19"
Min. figure ~~[cm]~~	145	155	170
Max. figure ~~[cm]~~	158	172	185
S/T c-t ~~[mm]~~	381	432	483
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	570	590	615
T/T a ~~[mm]~~	540	554	577
H/T ~~[mm]~~	115	125	130
C/S ~~[mm]~~	435	435	435
W/B ~~[mm]~~	1050	1076	1101
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	495	495	495
B/B drop ~~[mm]~~	35	35	35
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	358	378	401
Stack ~~[mm]~~	593	602	607
F/R ~~[mm]~~	44	44	44
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
