AUTHOR Rival 2019
AUTHOR Rival 2019AUTHOR Rival 2019
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Rival 27,5 2019Archivní model 2019

Colour variants
Alloy frameRST Gila forkDisc TEKTRO brakes
special price 10 990 Kč
original price  12 290 Kč SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size15", 17", 19"
Framealloy 6061 27.5"
Front forkRST Gila 27.5 T (100 mm)
Head partsPRESTINE Integrated 1-1/8"
Chain WheelPROWHEEL 42-34-24 teeth 170 mm cranks
BBPartsVP COMP cartridge
Front derailleurSHIMANO TY700 (34.9)
Rear derailleurSHIMANO TX800
ShiftersSHIMANO TX800 (24)
Free wheelSHIMANO HG200-8 12-32 (8)
ChainKMC Z8.1
HubsQUANDO Disc 32 holes
BrakesTEKTRO disc mechanical (6" rotors)
Brakes leversSHIMANO TX800
RimsAUTHOR Xenon 27.5 32 holes
Spokesblack steel
TiresAUTHOR Rocket 27.5" x 2.10"
Pedalsresin
Handlebarsteel 20 mm 640 mm
GripsAUTHOR kratton rubber
StemZOOM alloy
Seat postZOOM alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Courier
Speed24
Weight15kg / 17"

Geometry and sizes

Size 15" 17" 19" 21"
Min. figure [cm] 145 155 170 182
Max. figure [cm] 158 172 185 200
S/T c-t [mm] 381 432 483 533
S/T c-c [mm] 0 0 0 0
T/T h [mm] 570 590 615 630
T/T a [mm] 540 554 577 596
H/T [mm] 115 125 130 140
C/S [mm] 435 435 435 435
W/B [mm] 1058 1081 1101 1126
S/T ang. [°] 73 73 73 73
H/T ang. [°] 69 69 69 69
F/L [mm] 495 495 495 495
B/B drop [mm] 35 35 35 35
B/B width [mm] 68 68 68 68
Reach [mm] 358 378 401 143
Stack [mm] 593 602 607 616
F/R [mm] 44 44 44 44
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
200 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Rival 27,5 2019

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

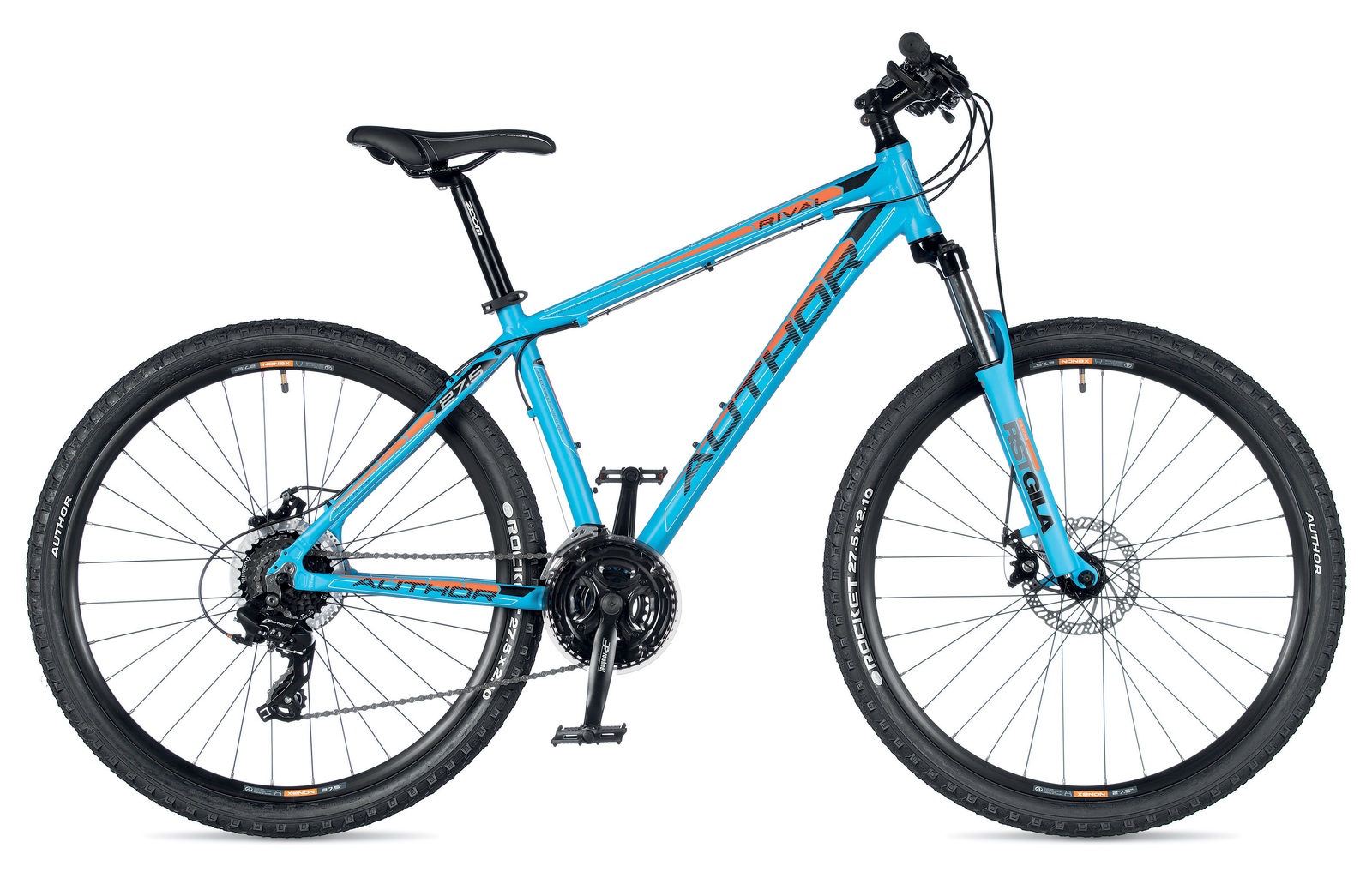

blue-matt / orange17" = UA#42904902   19" = UA#42904903

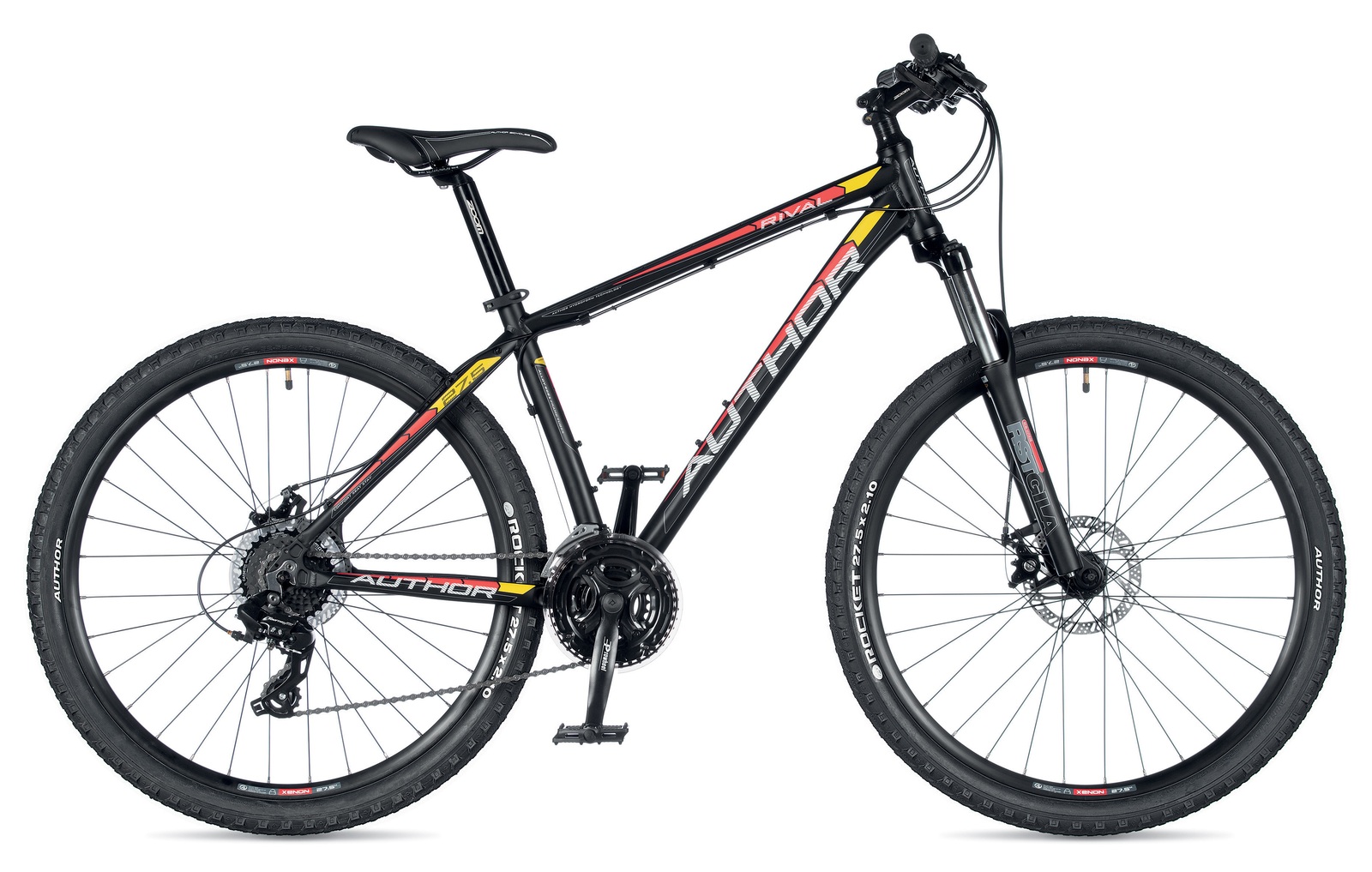

black-matt / red / yellow15" = UA#42904911   17" = UA#42904912   19" = UA#42904913
