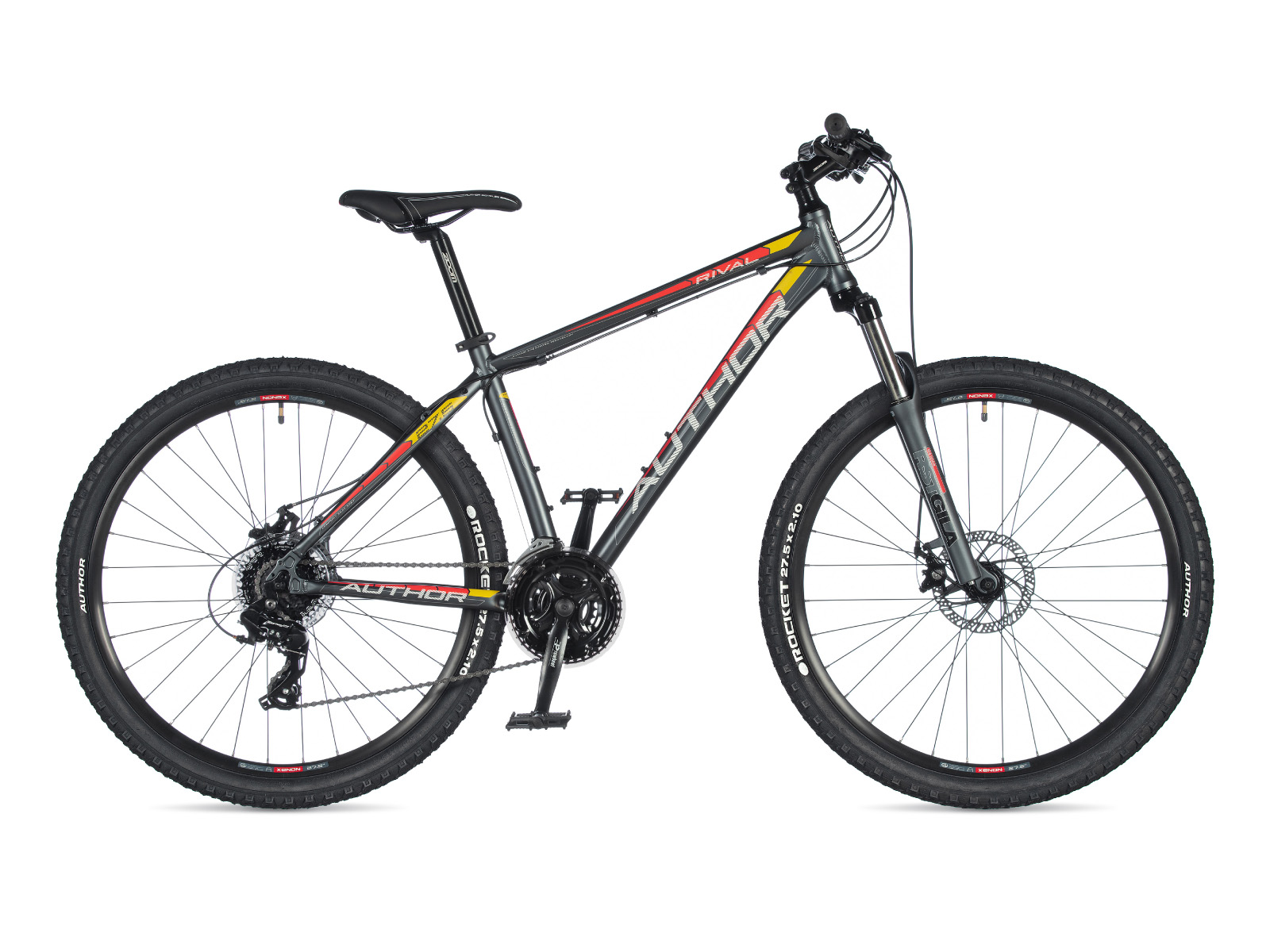

AUTHOR Rival 27,5 2020
AUTHOR Rival 27,5 2020
rival 2020 aut0903 viewde
rival 2020 aut0909 viewde
rival 2020 aut0910 viewde
AUTHOR Rival 27,5 2020AUTHOR Rival 27,5 2020rival 2020 aut0903 viewderival 2020 aut0909 viewderival 2020 aut0910 viewde
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Rival 27,5 2020Archivní model 2020

Colour variants
Alloy frameRST Gila forkDisc TEKTRO brakes
price 12 290 Kč
SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size15", 17", 19"

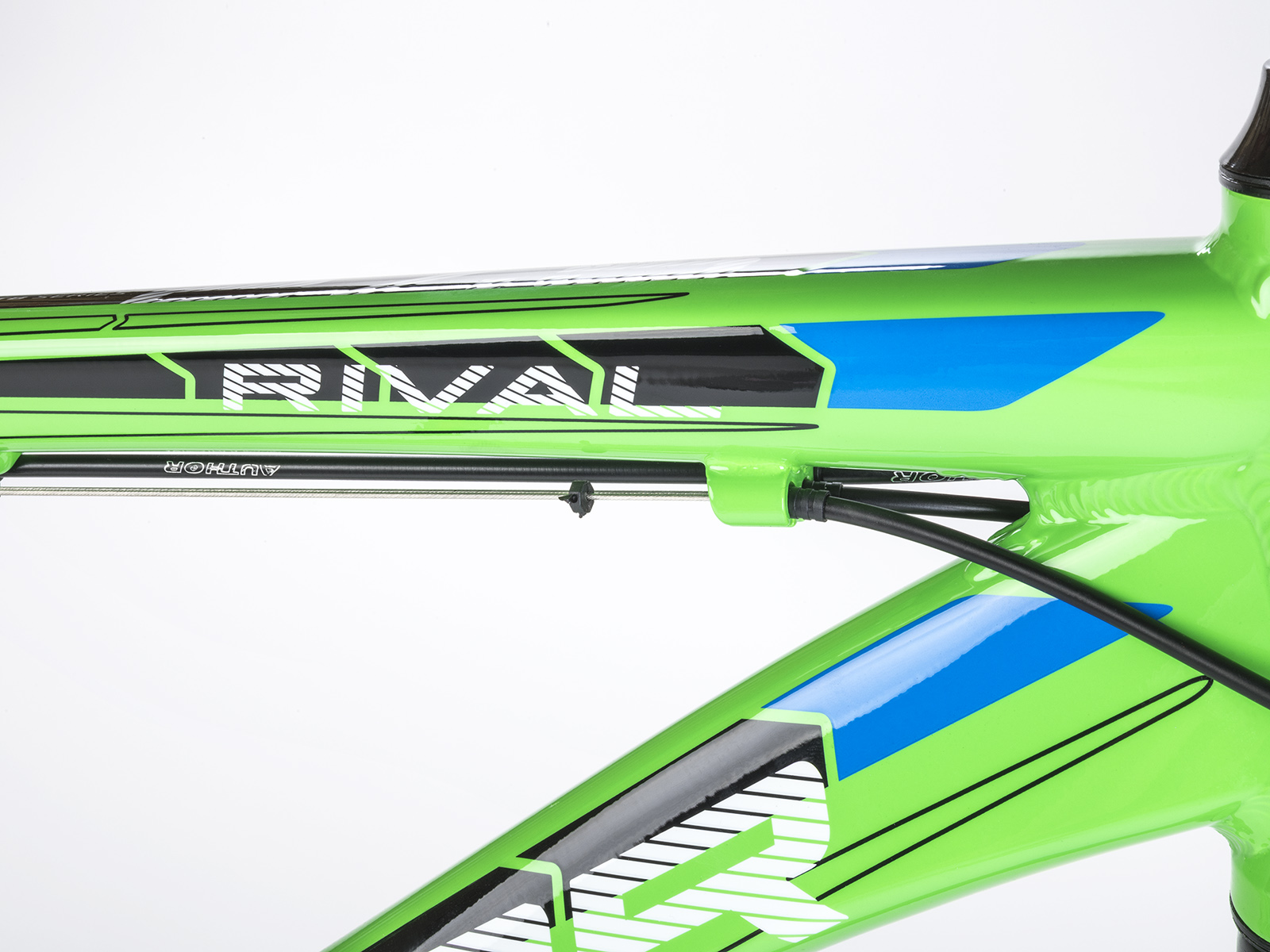

Framealloy 6061 27.5"
Front forkRST Gila 27.5 T (100 mm)
Head partsPRESTINE Integrated 1-1/8"
Chain WheelPROWHEEL 42-34-24 teeth 170 mm cranks
BBPartsVP COMP cartridge
Front derailleurSHIMANO TY700 (34.9)
Rear derailleurSHIMANO TX800
ShiftersSHIMANO TX800 (24)
Free wheelSHIMANO HG200-8 12-32 (8)
ChainKMC Z8.1
HubsQUANDO Disc 32 holes

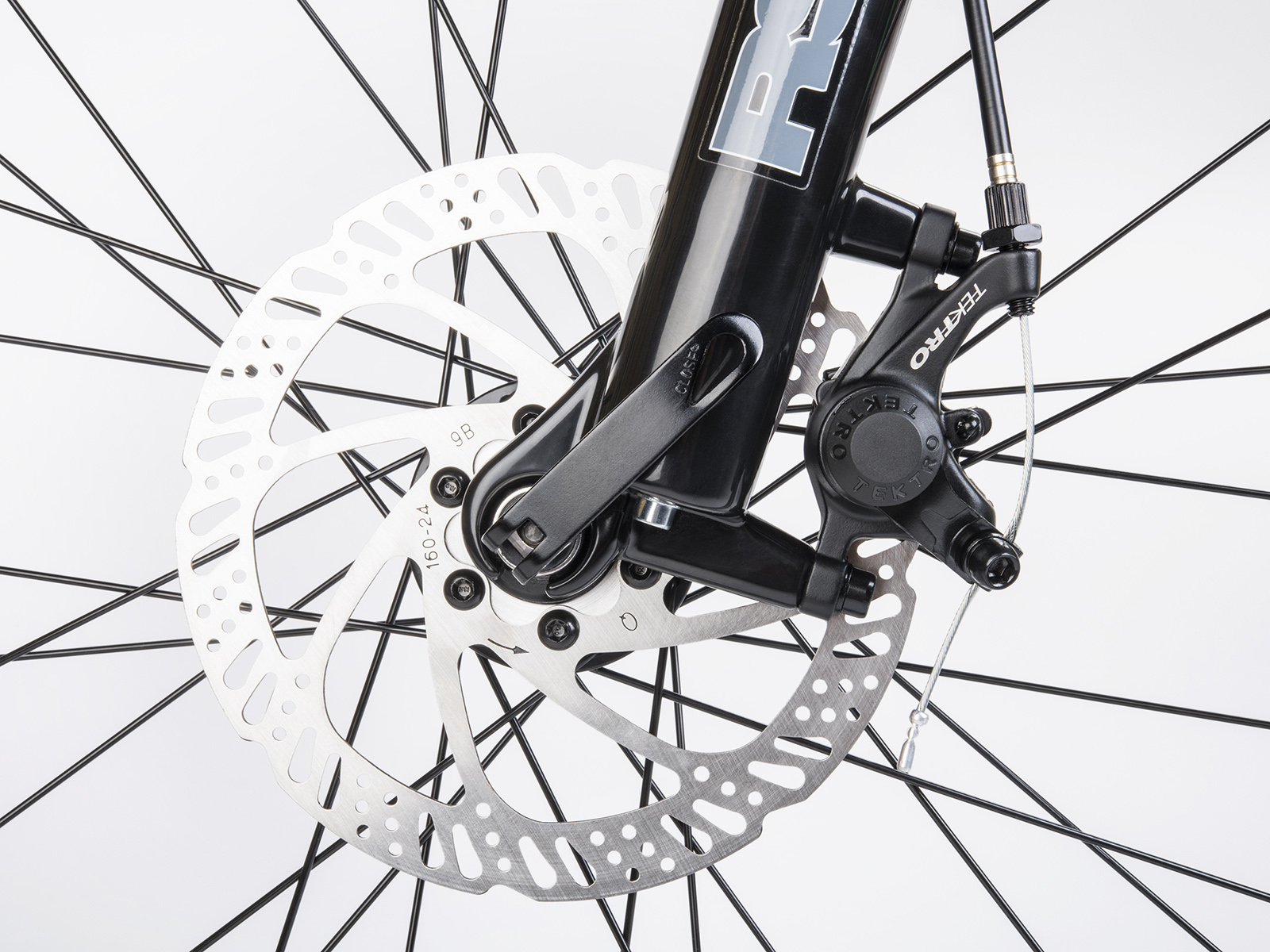

BrakesTEKTRO disc mechanical (6" rotors)
Brakes leversSHIMANO TX800
RimsAUTHOR Xenon 27.5 32 holes
Spokeshi-ten black
TiresAUTHOR Rocket 27.5" x 2.10"

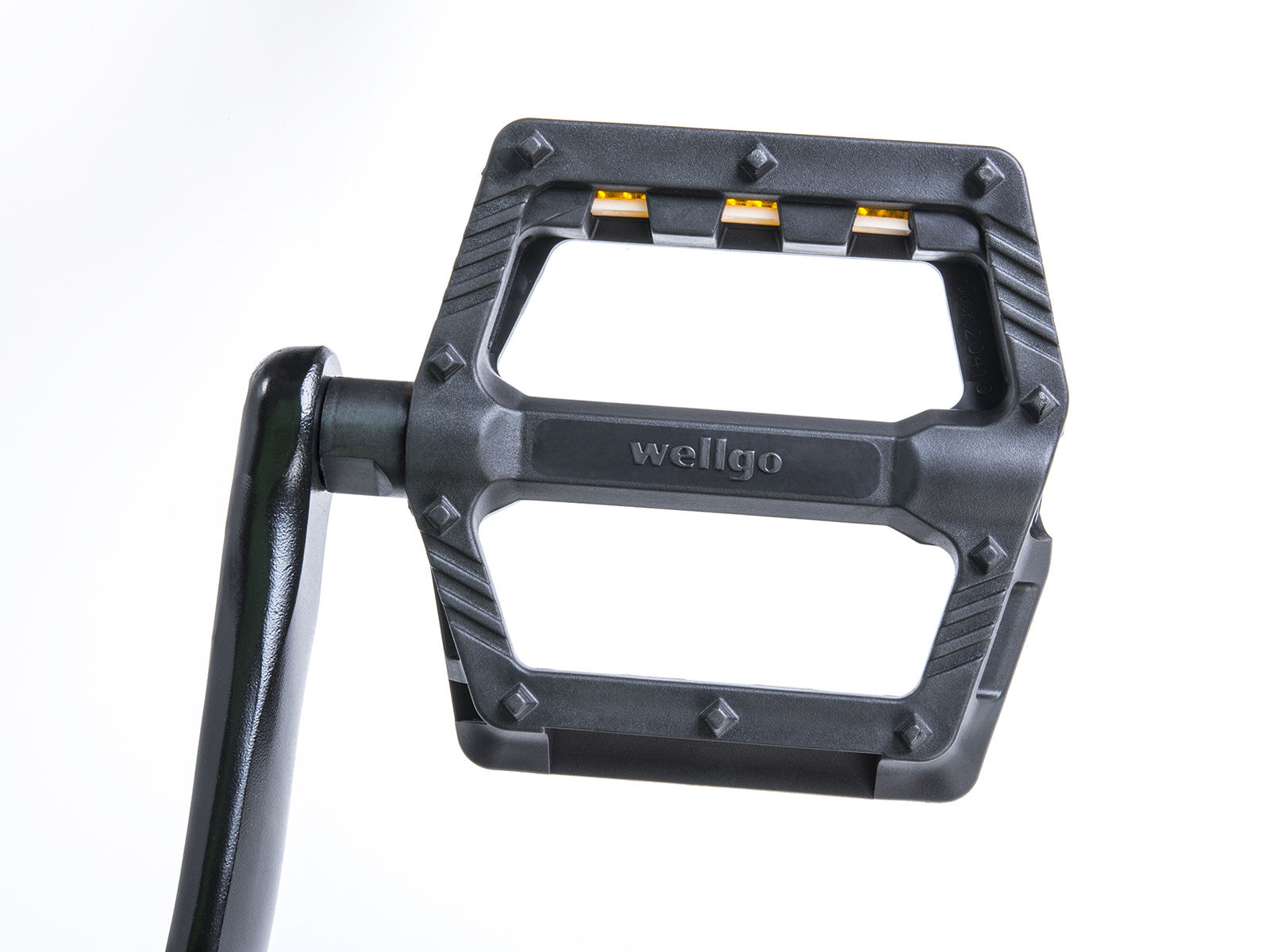

Pedalsresin
Handlebarhi-ten 20 mm 640 mm
GripsAUTHOR kratton rubber
StemZOOM alloy
Seat postZOOM alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Courier
Speed24
Weight15 kg /17"

Geometry and sizes

Size 15" 17" 19"
Min. figure [cm] 145 155 170
Max. figure [cm] 158 172 185
S/T c-t [mm] 381 432 483
S/T c-c [mm] 0 0 0
T/T h [mm] 570 590 615
T/T a [mm] 540 554 577
H/T [mm] 115 125 130
C/S [mm] 435 435 435
W/B [mm] 1050 1076 1101
S/T ang. [°] 73 73 73
H/T ang. [°] 69 69 69
F/L [mm] 495 495 495
B/B drop [mm] 35 35 35
B/B width [mm] 44 44 44
Reach [mm] 358 378 401
Stack [mm] 593 602 607
F/R [mm] 68 68 68
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Rival 27,5 2020

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

green / blue / black15" = UA#42922501   17" = UA#42922502   19" = UA#42922503
grey-matt / red / yellow17" = UA#42922512   19" = UA#42922513
