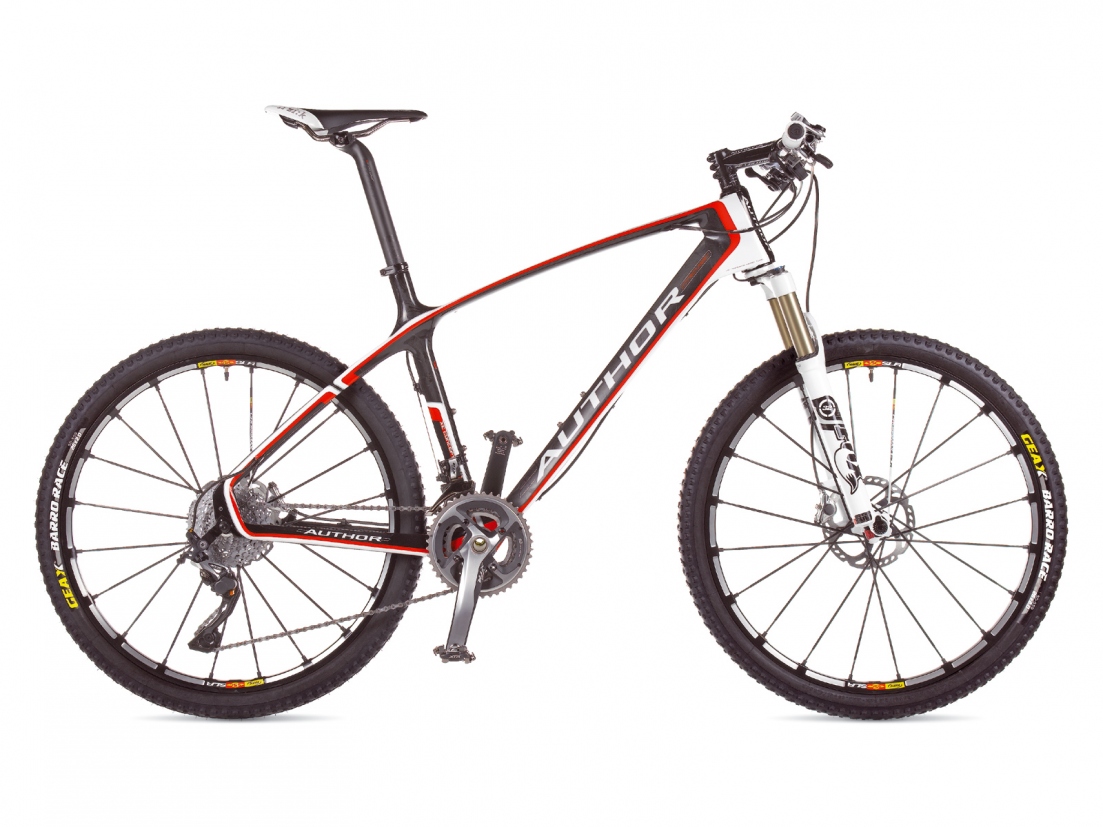

AUTHOR Bicycle Introvert 2013
Interested in other model`s year?

Technical specification

Size16", 17.5", 19", 20.5"
FrameAUTHOR A carbon monocoque 26"
Front forkFOX 32 Float 26 RR CTD Fit 100 air, remote lock out 15 mm thru axle 1.5" taper steerer (100 mm)
Head partsFSA Orbit 1.5B 1.5" taper
Chain WheelSHIMANO XTR 44-30 teeth 170 / 175 mm cranks
BBPartsSHIMANO XTR BB unit
Front derailleurSHIMANO XTR (34.9)
Rear derailleurSHIMANO XTR
ShiftersSHIMANO XTR (20)
Free wheelSHIMANO M771-10 11-36 (10)
ChainSHIMANO HG-94
HubsMAVIC CrossMax SRL Disc 15 mm thru axle Wheel set 24 holes
BrakesSHIMANO XTR disc hydraulic (6" rotors)
Brakes leversSHIMANO XTR
RimsMAVIC CrossMax SRL Disc Wheel set 24 holes
SpokesMAVIC
TiresGEAX Barro Race Kevlar 26" x 2.00"
PedalsSHIMANO M985 clipless
HandlebarRITCHEY WCS Carbon 0 mm 600 mm
GripsAUTHOR GripLock
StemRITCHEY WCS C-260 Carbon
Seat postRITCHEY SL1B Carbon (31.6)
Seat clampAUTHOR (34.9)
SaddleFIZIK Antares k:ium
Speed20
Weight9,1 Kg / 19"

Geometry and sizes

Size 16" 17,5" 19" 20,5"
Min. figure [cm] 150 162 172 183
Max. figure [cm] 165 175 185 197
S/T c-t [mm] 412 456 486 526
S/T c-c [mm] 0 0 0 0
T/T h [mm] 575 590 605 620
T/T a [mm] 555 569 581 594
H/T [mm] 115 120 130 140
C/S [mm] 420 420 420 420
W/B [mm] 1055 1072 1082 1098
S/T ang. [°] 73.5 73.5 73 73
H/T ang. [°] 70.5 70.5 70.5 70.5
F/L [mm] 476 476 476 476
B/B drop [mm] 30 30 30 30
B/B width [mm] 0 0 0 0
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 38 38 38 38
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Introvert 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
