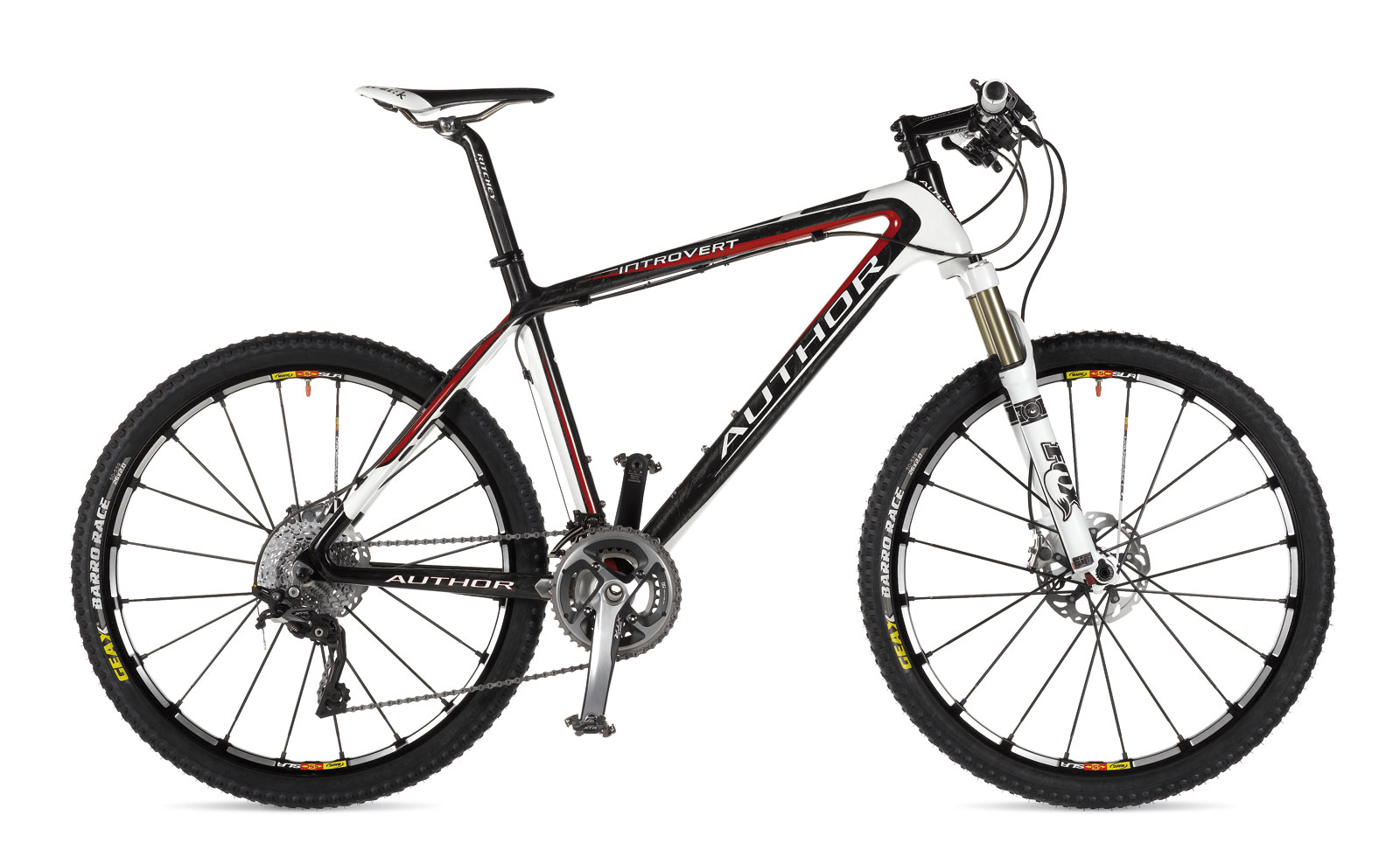

AUTHOR Introvert 2012Archivní model 2012

SOLD OUT

other models

Interested in other model`s year?

2008 2009 2010 2011 2012 2013 2014

Technical specification

Size	17.5", 19", 20.5"
Frame	AUTHOR carbon monocoque 26"
Front fork	FOX 32 Float 100 Fit Remote air, remote lock out 15 mm thru axle 1.5" taper steerer (100 mm)
Head parts	FSA Orbit C-40 1.5" taper
Chain Wheel	SHIMANO XTR 44-30 teeth 170 / 175 mm cranks
BBParts	SHIMANO XTR BB unit
Front derailleur	SHIMANO XTR (34.9)
Rear derailleur	SHIMANO XTR
Shifters	SHIMANO XTR (20)
Free wheel	SHIMANO M771-10 11-36 (10)
Chain	SHIMANO HG-94
Hubs	MAVIC CrossMax SLR Disc wheel sets 20 holes
Brakes	SHIMANO XTR disc hydraulic (6" rotors)
Brakes levers	SHIMANO XTR

Rims	MAVIC CrossMax SLR Disc wheel sets 20 holes
Spokes	MAVIC
Tires	GEAX Barro Race Kevlar 26" x 2.00"
Pedals	SHIMANO M985 clipless
Handlebar	RITCHEY WCS Carbon 0 mm 600 mm
Grips	AUTHOR GripLock
Stem	RITCHEY WCS C-260 Carbon
Seat post	RITCHEY SL1B Carbon (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	FIZIK Antares k:ium
Speed	20
Weight	9,1 Kg / 19"

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
