Limit 26 2025

~~Colour variants~~

Wheel size 26"Recommended for height 130-150 cm, frame size 13,5"Weight 10,4 kgMTB lighweight bike with single chainringLightweight alloy frame and forkSHIMANO components 8 speedHow to choose a bike

~~Buy now~~special price 11 990 Kč

original price ~~12 990 Kč~~

Technical specification

Size	13.5"
Frame	alloy 6061 26"
Front fork	alloy 6061 26"
Head parts	PRESTINE 1-1/8"
Chain Wheel	PROWHEEL, 32 teeth, 152 mm cranks
BBParts	VP COMP, cartridge
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO Altus (8)
Free wheel	SHIMANO CS-HG31-8, 11-34 (8)
Chain	KMC Z8.3
Hubs	QUANDO, 32 holes
Brakes	TEKTRO V
Brakes levers	TEKTRO alloy

Rims	alloy, 32 holes
Spokes	steel
Tires	KENDA Small Block Eight, 26" × 1.95"
Pedals	plastic
Handlebar	steel, 20 mm, 620 mm
Grips/Bar tapes	AUTHOR kratton rubber
Stem	alloy
Seat post	alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR
Speed	8
Weight	10,4 kg / 13,5"

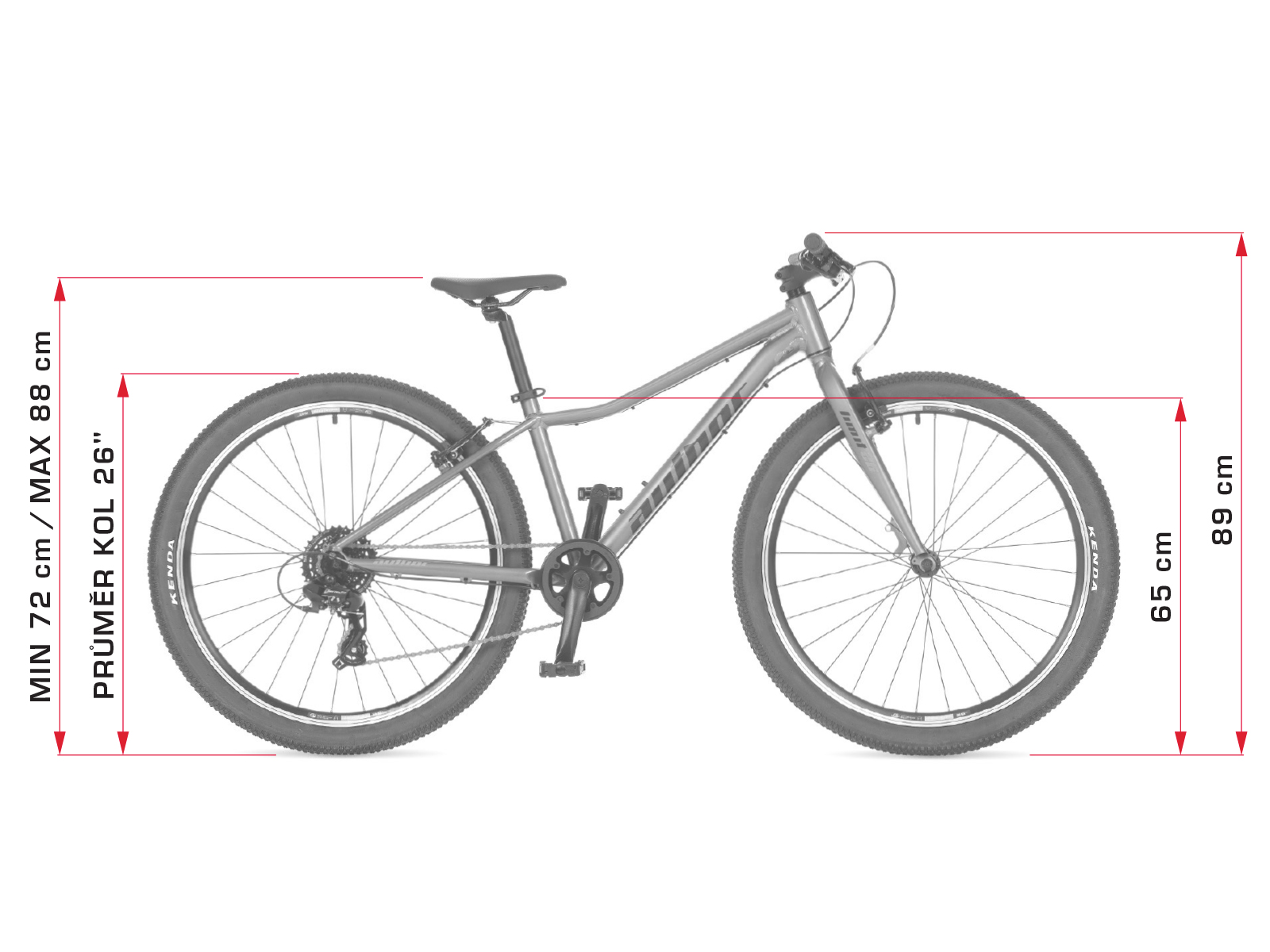

Geometry and sizes

Size	13,5"
Min. figure ~~[cm]~~	130
Max. figure ~~[cm]~~	150
S/T c-t ~~[mm]~~	343
S/T c-c ~~[mm]~~	0
T/T h ~~[mm]~~	526
T/T a ~~[mm]~~	513
H/T ~~[mm]~~	100
C/S ~~[mm]~~	425
W/B ~~[mm]~~	1007
S/T ang. ~~[°]~~	73.5
H/T ang. ~~[°]~~	69.5
F/L ~~[mm]~~	440
B/B drop ~~[mm]~~	30
B/B width ~~[mm]~~	68
Reach ~~[mm]~~	371
Stack ~~[mm]~~	524
F/R ~~[mm]~~	45
Handlebars ~~[mm]~~	0
Stem ~~[mm]~~	0
Cranks ~~[mm]~~	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		13,5"	20 stores				4295450126
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ Cyklotech Jana Hlaváčová		in stock	buy now	Karviná - Mizerov	774 544 311, info@cyklotech.cz	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	▪ Cyklosport Kerda		order	order now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ OtroKolo, s.r.o.		in stock	buy now	Otrokovice	775575822, info@otrokolo.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Velo Fiala		in stock	buy now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ eM Sport Martin Matoušek		in stock	buy now	Slaný	775 710 011, info@kolaslany.cz	map
	▪ ValmezBike		in stock	buy now	Valašské Meziříčí	734 393 565, prodejna@valmezbike.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

additional accessories

1/3

250 KčABC-37Bottle cage, Light AL 6061T bottle cage, strong construction with universal mount, bottle removing f ... more »

1/2

170 Kč ~~199 Kč~~ LR-05Bottle cage AUTHOR ABC-L&R05 designed for easy bottle removing from side direction. It is lightweigh ... more »

1/3

499 KčR211 TWINThe Author saddle bag A-R211 TWIN is the easy bag with the one main compartment on each side. Design ... more »

425 KčR281 F GSBFrame bag, universal velcro attachment for fixation in front frame triangle (on most of types of fra ... more »

1/4

299 KčS310 TPNThe Author saddle bag A-S310 is the easy bag with the one main compartment. Designed for long satisf ... more »

1/4

299 KčS381 TPN X7The Author saddle bag A-S381 is the easy bag with the one main compartment. Designed for long satisf ... more »

1/2

550 KčAKS-500 RKick Stand Author for rear fork fixation. Adjustable for wheel diameter 24"-29". Material AL606 ... more »

1/2

399 KčAKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 32 mm), recomen ... more »

1/2

325 KčAXP-810-UniRear mudguard AUTHOR, for seat post tube mounting, easy insertion/ slide out, fabric plastic. For si ... more »

1/5

299 KčX-BowRear mudguard AUTHOR, modern shorter mudguards with universal bracket, fabric plastic. Weight 163g. more »

250 KčAXP-04Modern plastic mudguards suitable for "V" brakes, for sizes 24"-27,5" with universal attachment. Th ... more »

	blue / lime	13,5" = UA#4295450126
	white / pink	13,5" = UA#4295451126
