Integra 2023-24

~~Colour variants~~

Alloy Lady frameFork RST Neon ML with lockComponents SHIMANO Alivio/ AceraComfort grip AUTHOR ErgoGripTires AUTHOR Cross 700 × 38cPedals AUTHOR Non SlipComfort saddle AUTHOR Noble

~~Buy now~~special price 12 990 Kč

original price ~~15 990 Kč~~

Technical specification

Size	17", 19"

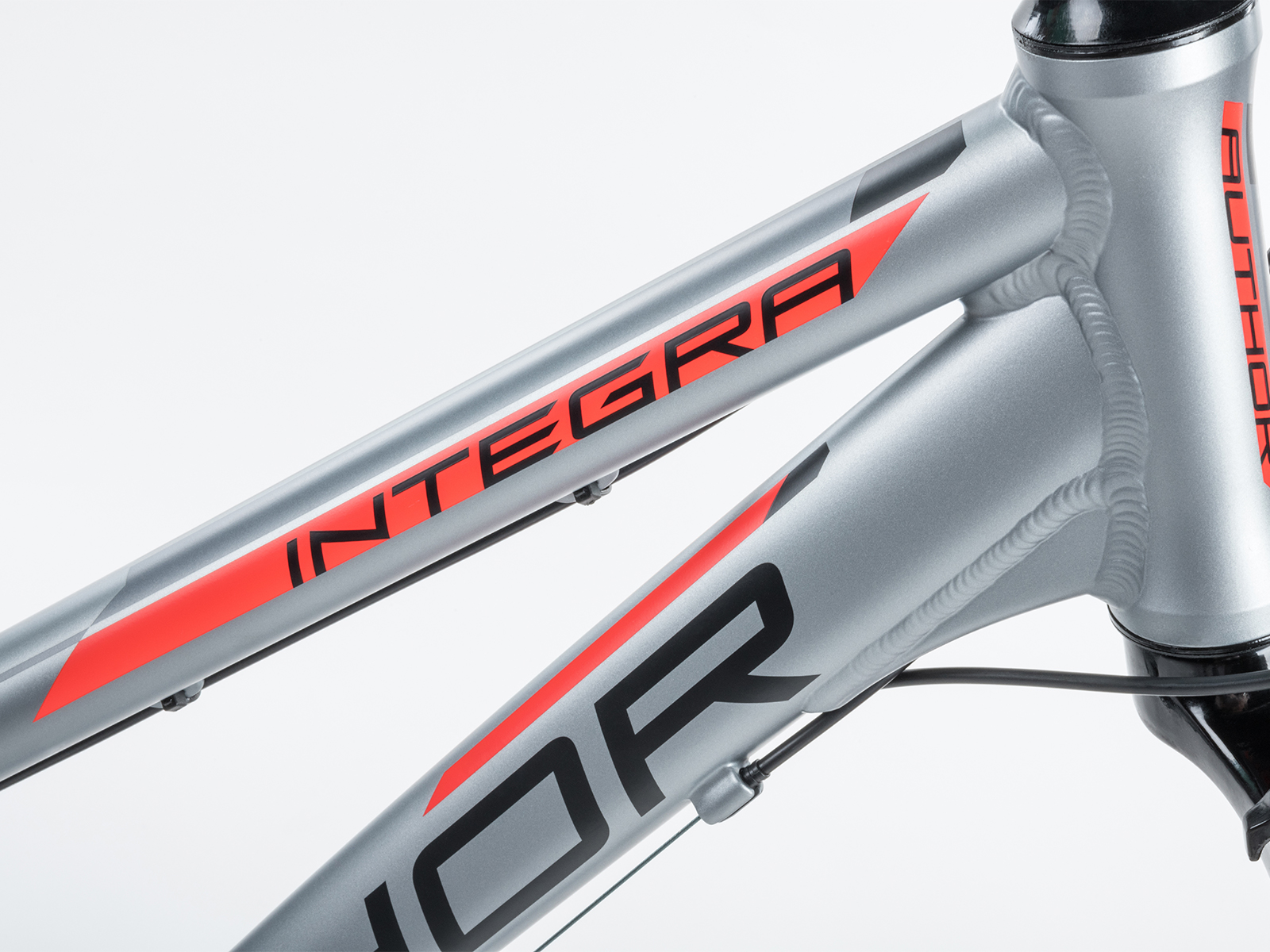

Frame	alloy 6061 (L)

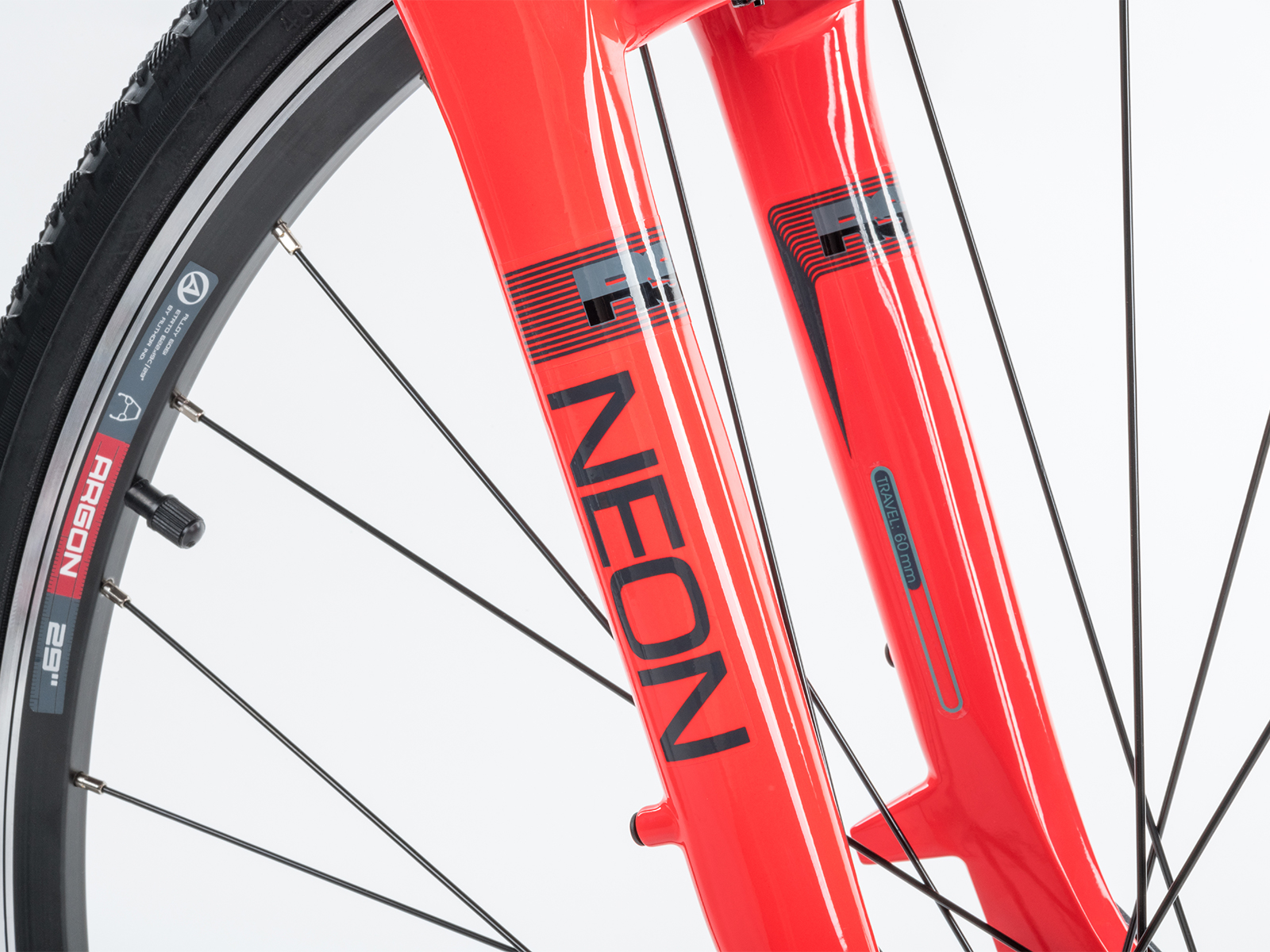

Front fork	RST Neon ML, lock out (60 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL Burner, 44-32-22 teeth, 170 / 175 mm cranks
BBParts	VP COMP, cartridge
Front derailleur	SHIMANO Altus (31.8)

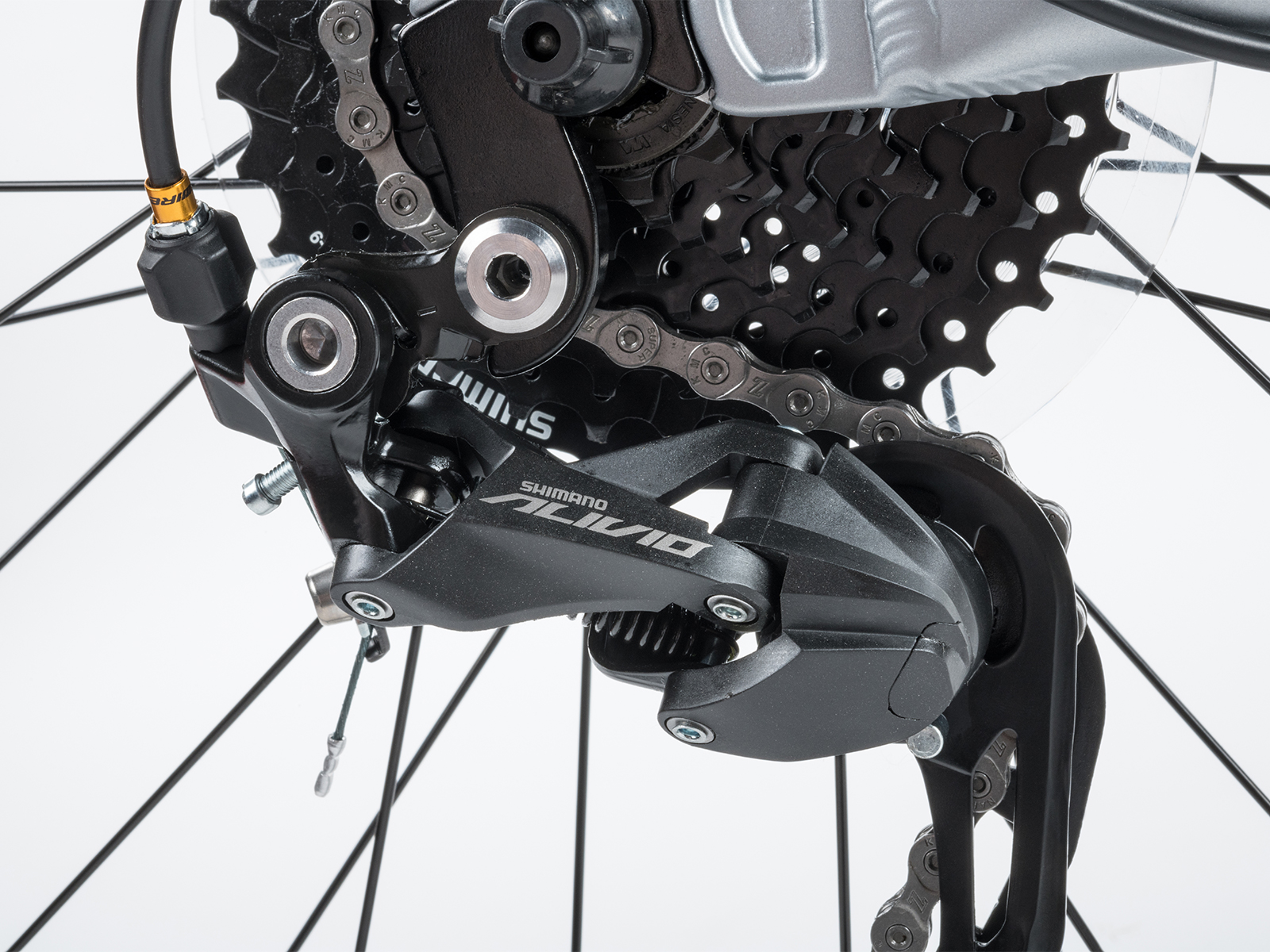

Rear derailleur	SHIMANO Alivio
Shifters	SHIMANO Acera (27)
Free wheel	SHIMANO HG200-9, 11-34 (9)
Chain	KMC Z9
Hubs	QUANDO, 32 holes
Brakes	TEKTRO V
Brakes levers	TEKTRO

Rims	AUTHOR Argon 29, 32 holes
Spokes	black steel

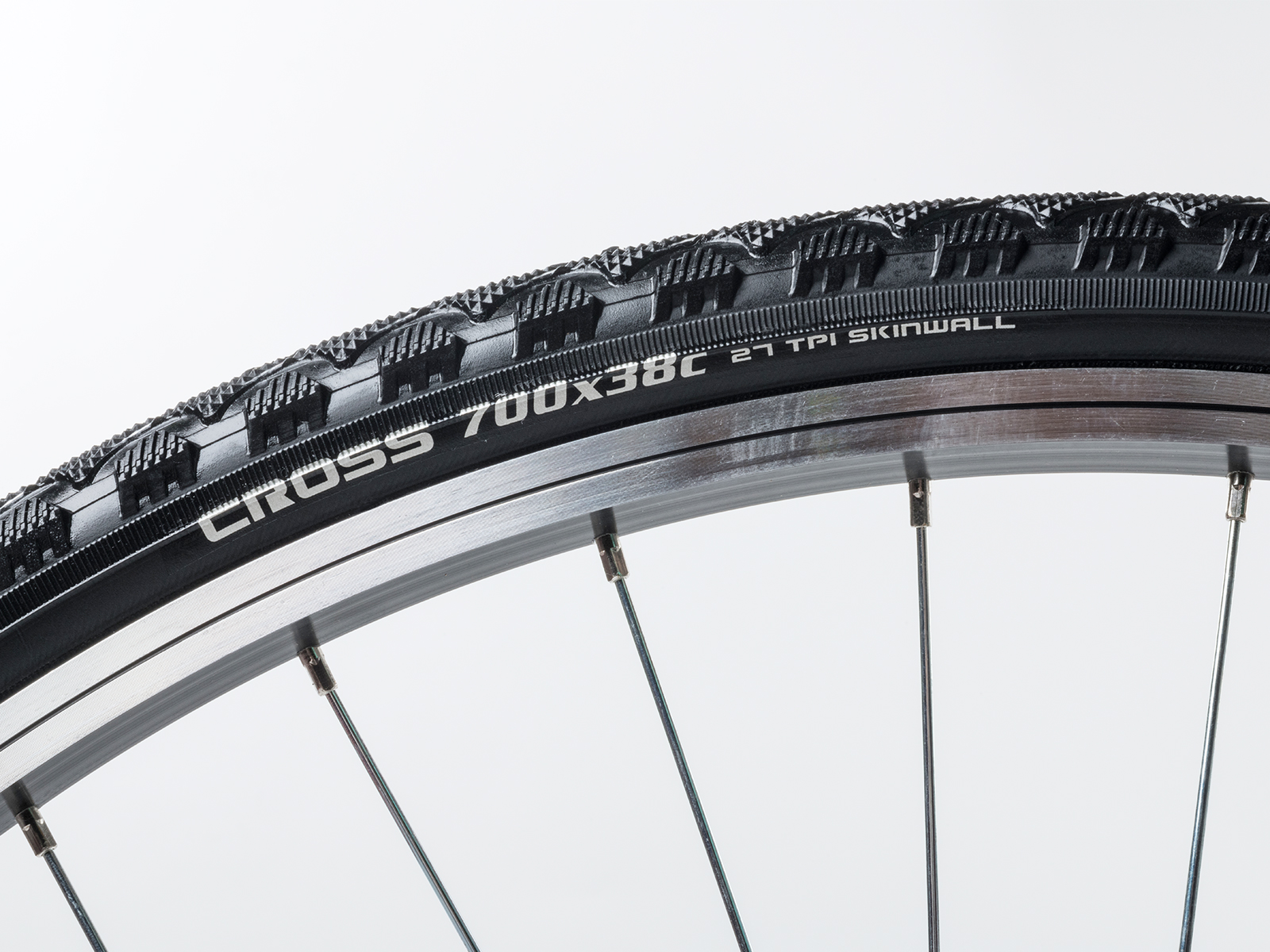

Tires	AUTHOR Cross 700 × 38c
Pedals	AUTHOR Non Slip plastic
Handlebar	steel, 20 mm, 640 mm
Grips	AUTHOR ErgoGrip
Stem	ZOOM adjustable
Seat post	ZOOM alloy (27.2)
Seat clamp	AUTHOR (31.8)

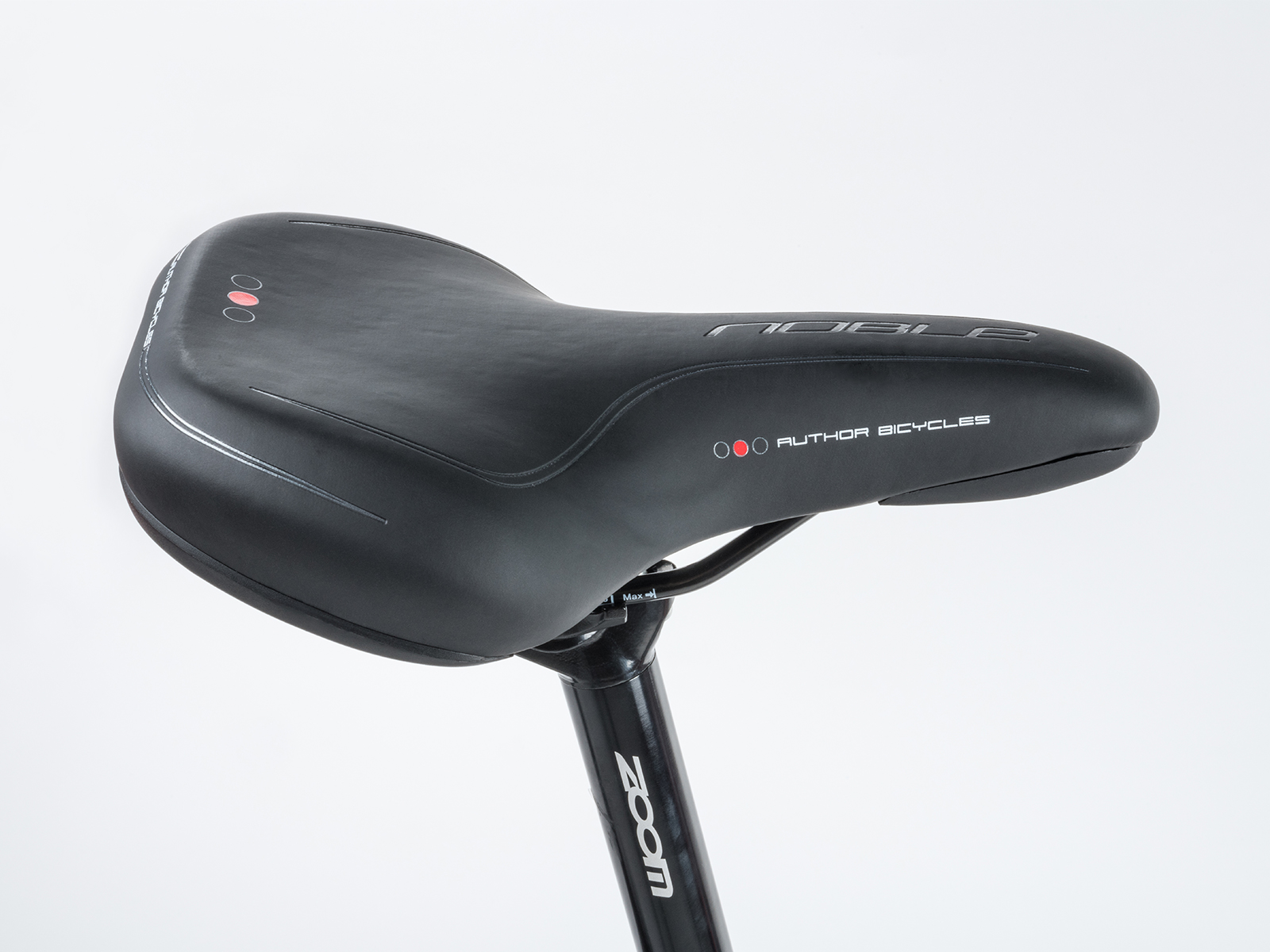

Saddle	AUTHOR Noble
Speed	27
Weight	13,5 kg / 17"

Geometry and sizes

Size	17"	19"
Min. figure ~~[cm]~~	155	167
Max. figure ~~[cm]~~	169	182
S/T c-t ~~[mm]~~	432	483
S/T c-c ~~[mm]~~	0	0
T/T h ~~[mm]~~	565	585
T/T a ~~[mm]~~	591	610
H/T ~~[mm]~~	140	150
C/S ~~[mm]~~	440	440
W/B ~~[mm]~~	1070	1090
S/T ang. ~~[°]~~	73.5	73.5
H/T ang. ~~[°]~~	70.5	70.5
F/L ~~[mm]~~	470	470
B/B drop ~~[mm]~~	60	60
B/B width ~~[mm]~~	68	68
Reach ~~[mm]~~	0	0
Stack ~~[mm]~~	0	0
F/R ~~[mm]~~	51	51
Handlebars ~~[mm]~~	0	0
Stem ~~[mm]~~	0	0
Cranks ~~[mm]~~	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
