  » Bicycles » ladies » mtb 27.5 ladies
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Impulse ASL 2016Archivní model 2016

Colour variants
Alloy frame with ladies geometryLock out fork RST GilaHydraulic disc brakes TEKTRO
price 13 990 Kč
SOLD OUT
Mountain bike Author Impulse ASL with an alloy ladies frame with and RST Gila suspension fork.
other models
Interested in other model`s year?

Technical specification

Size14", 16", 18"
Framealloy 6061 27.5" (ASL)
Front forkRST Gila 27.5 ML lock out (100 mm)
Head partsPRESTINE Integrated 1-1/8"
Chain WheelPROWHEEL 42-34-24 teeth 170 mm cranks
BBPartsVP COMP cartridge
Front derailleurSHIMANO M190 (34.9)
Rear derailleurSHIMANO Altus
ShiftersSHIMANO Altus (21)
Free wheelSHIMANO HG20-7 12-32 (7)
ChainKMC Z51
HubsQUANDO Disc 32 holes
BrakesTEKTRO Auriga disc hydraulic (6" rotors)
Brakes leversTEKTRO Auriga WS
RimsAUTHOR Radon 27.5 32 holes
Spokesblack steel
TiresAUTHOR Speed Master 27.5" x 2.00"
Pedalsresin
HandlebarAUTHOR 25 mm 640 / 660 mm
GripsAUTHOR high density foam
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Fenix
Speed21
Weight14.3 kg / 18"

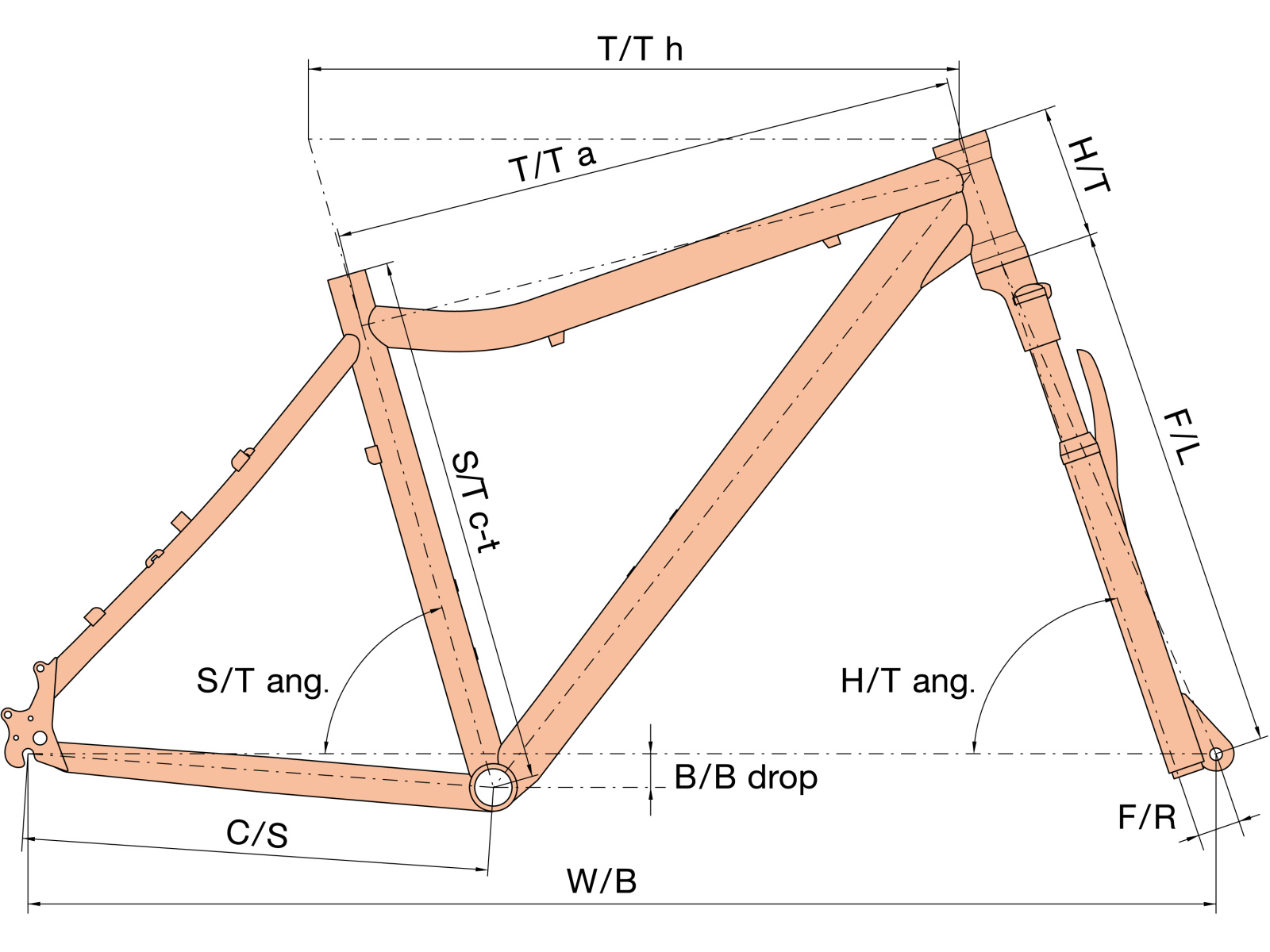

Geometry and sizes

Size 14" 16" 18"
Min. figure [cm] 140 155 170
Max. figure [cm] 158 173 188
S/T c-t [mm] 356 406 457
S/T c-c [mm] 0 0 0
T/T h [mm] 545 560 585
T/T a [mm] 542 545 563
H/T [mm] 110 120 130
C/S [mm] 425 425 425
W/B [mm] 1033 1054 1079
S/T ang. [°] 73 73 73
H/T ang. [°] 70 69.5 69.5
F/L [mm] 495 495 495
B/B drop [mm] 45 45 45
B/B width [mm] 68 68 68
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 44 44 44
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Impulse ASL 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
