AUTHOR Impulse 27,5 ASL 2021-22
AUTHOR Impulse 27,5 ASL 2021-22AUTHOR Impulse 27,5 ASL 2021-22impulseasl27.5 aut4878 viewdeimpulseasl27.5 aut4880 viewdeimpulseasl27.5 aut4881 viewdeimpulseasl27.5 aut4883 viewde
  » Bicycles » ladies » mtb 27.5 ladies
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Impulse 27,5 ASL 2021-22Archivní model 2021-22

Colour variants

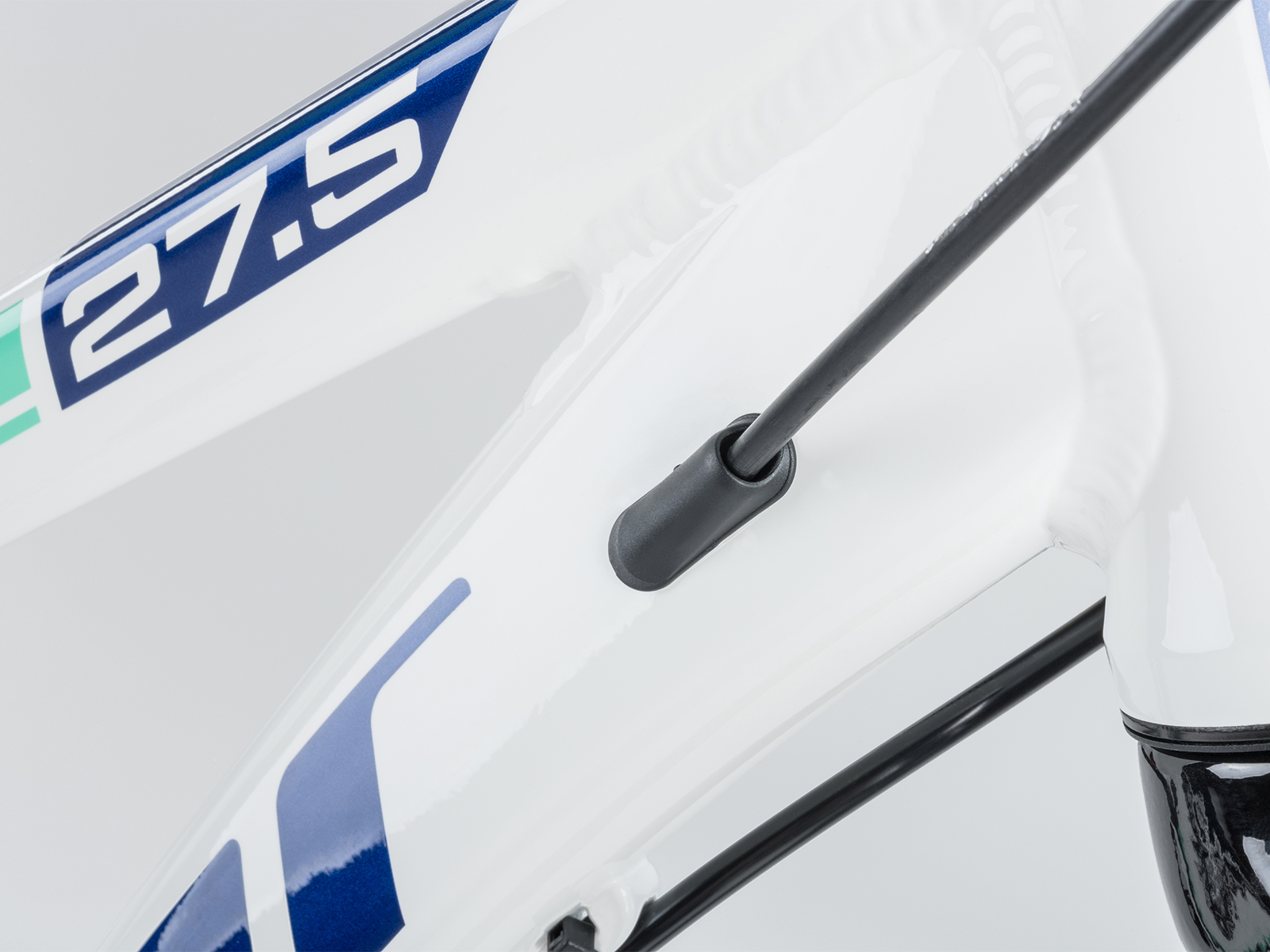

Alloy ASL frame with semi integrated cable routingRST GILA 27.5 ML forkSHIMANO ALTUS, 24 speed
Buy nowspecial price 14 990 Kč
original price  17 590 Kč
other models
Interested in other model`s year?

Technical specification

Size16", 18"

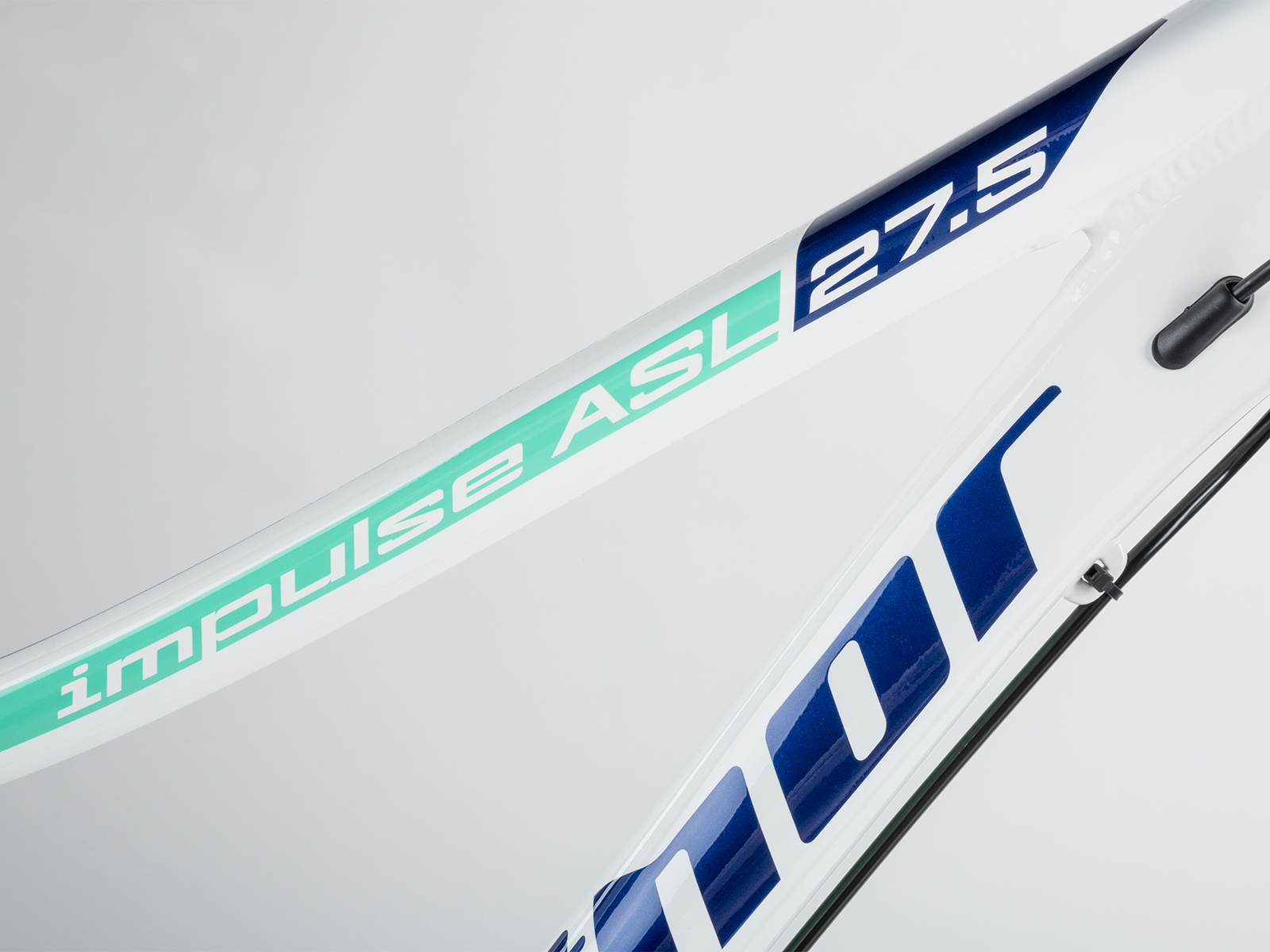

Framealloy 6061 27.5" (ASL)
Front forkRST Gila 27.5 ML lock out (100 mm)
Head partsPRESTINE Integrated 1-1/8"
Chain WheelPROWHEEL 42-34-24 teeth 170 mm cranks
BBPartsVP COMP cartridge
Front derailleurSHIMANO TY700 (34.9)
Rear derailleurSHIMANO Altus
ShiftersSHIMANO Altus (24)
Free wheelSHIMANO HG200-8 12-32 (8)
ChainKMC Z8.3
HubsQUANDO Disc 32 holes

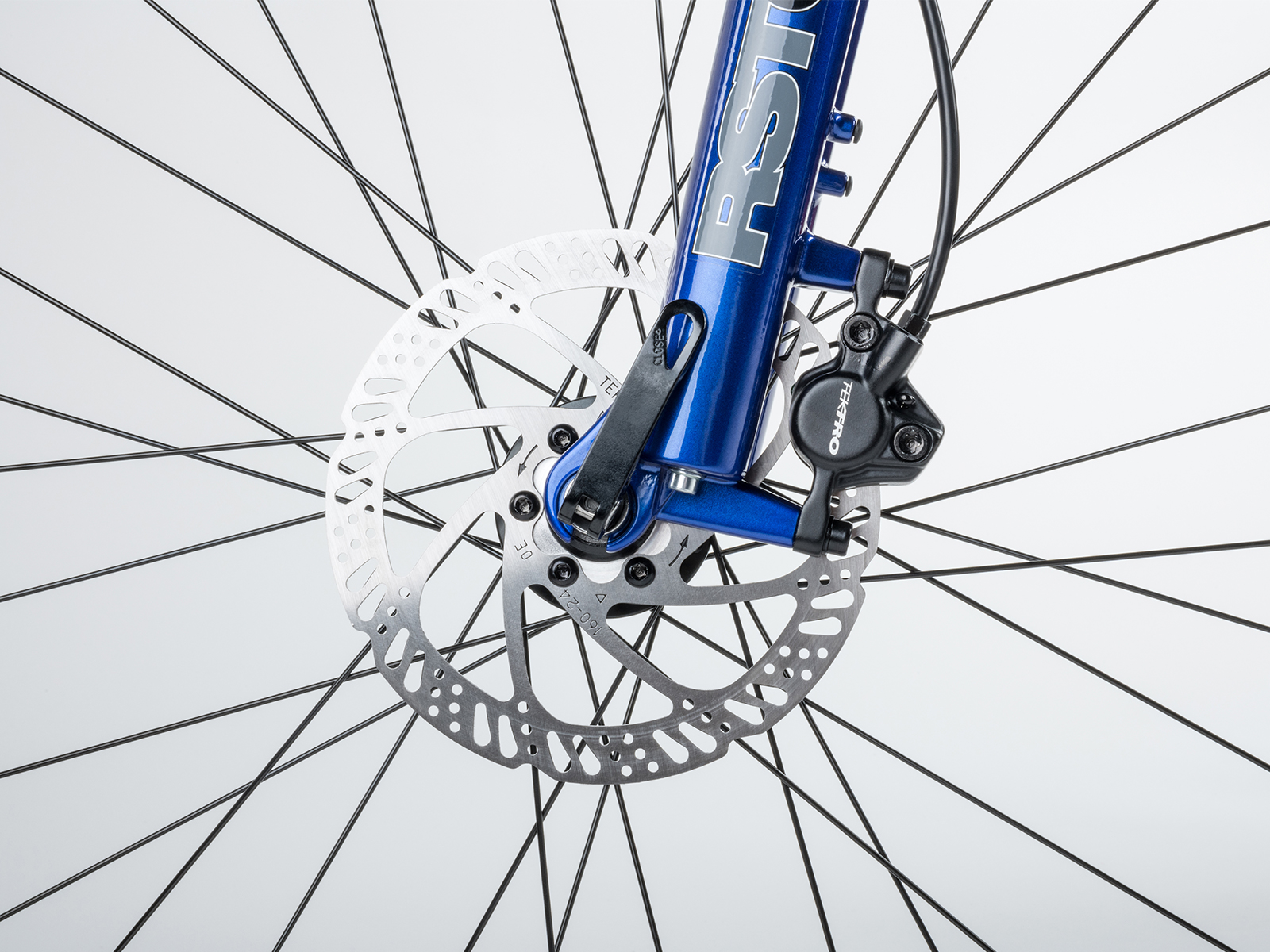

BrakesTEKTRO disc hydraulic (6" rotors)
Brakes leversTEKTRO WS
RimsAUTHOR Xenon 27.5 32 holes
Spokesblack steel
TiresAUTHOR Speed Master 27.5" × 2.00"
Pedalsresin
HandlebarAUTHOR 8° 640 / 660 mm
GripsAUTHOR high density foam
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)

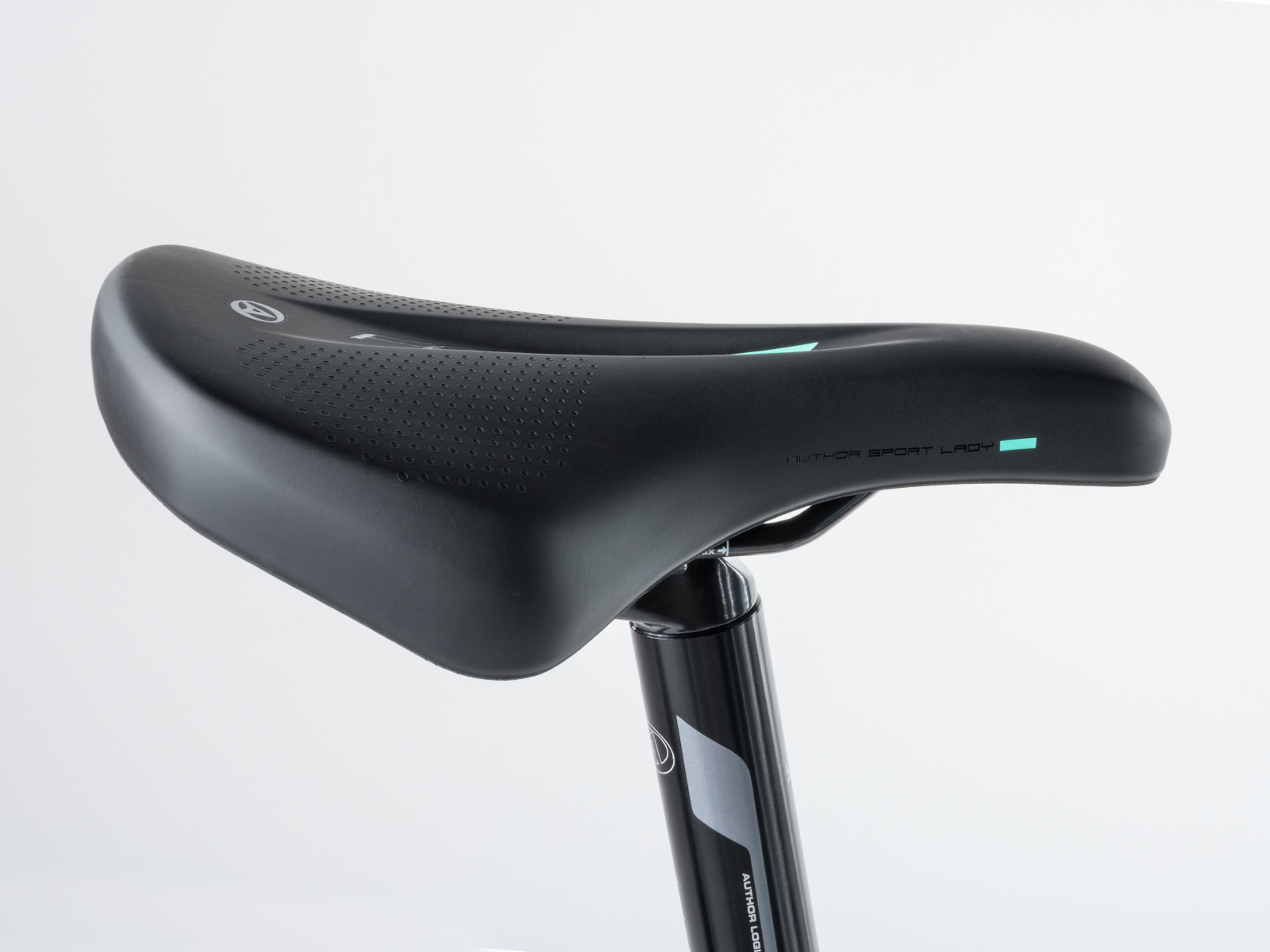

SaddleAUTHOR Fenix
Speed24
Weight13,9 kg / 16"

Geometry and sizes

Size 14" 16" 18"
Min. figure [cm] 140 155 168
Max. figure [cm] 158 170 185
S/T c-t [mm] 356 406 457
S/T c-c [mm] 0 0 0
T/T h [mm] 545 560 585
T/T a [mm] 542 546 563
H/T [mm] 110 120 130
C/S [mm] 435 435 435
W/B [mm] 1043 1064 1080
S/T ang. [°] 73 73 73
H/T ang. [°] 70 69.5 69.5
F/L [mm] 495 495 495
B/B drop [mm] 45 45 45
B/B width [mm] 68 68 68
Reach [mm] 361 374 396
Stack [mm] 602 609 619
F/R [mm] 44 44 44
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
185 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Impulse 27,5 ASL 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
16"3 stores42933901
 ▪   Bike Sportin stockbuy nowChrudim608 430 492, info@bike-sport-shop.czmap
 ▪   Velo Fialain stockbuy nowPraha 6725 729 111, tomas@velofiala.czmap
 ▪   ZAF Velo Sportin stockbuy nowVelké Pavlovice776 820 690, velo@zaf.czmap
⟲  In other storesin 2 daysdealers
18"6 stores42933902
 ▪   Bike Sportin stockbuy nowChrudim608 430 492, info@bike-sport-shop.czmap
 ▪   Dům sportu Stratílek, s.r.o.in stockbuy nowLitomyšl606 613 399, cyklo@stratilek.czmap
 ▪   AXIT bike sportin stockbuy nowNáchod491 426 020, axit@axit.czmap
 ▪   Cyklo IK Petr Krejčíin stockbuy nowNeratovice603 832 059, p-krejci@volny.czmap
 ▪   KOLA ŠILHAVÝ s.r.o.in stockbuy nowPlzeň602 495 439, silhavy@silhavy-ramala.czmap
 ▪   Sedláček s.r.o. in stockbuy nowPříbram 1318 621 473, info@cyklosport-sedlacek.czmap
⟲  In other storesin 2 daysdealers
18"2 stores42933912
 ▪   Bike Sportin stockbuy nowChrudim608 430 492, info@bike-sport-shop.czmap
 ▪   Dům sportu Stratílek, s.r.o.in stockbuy nowLitomyšl606 613 399, cyklo@stratilek.czmap
⟲  In other storesin 2 daysdealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

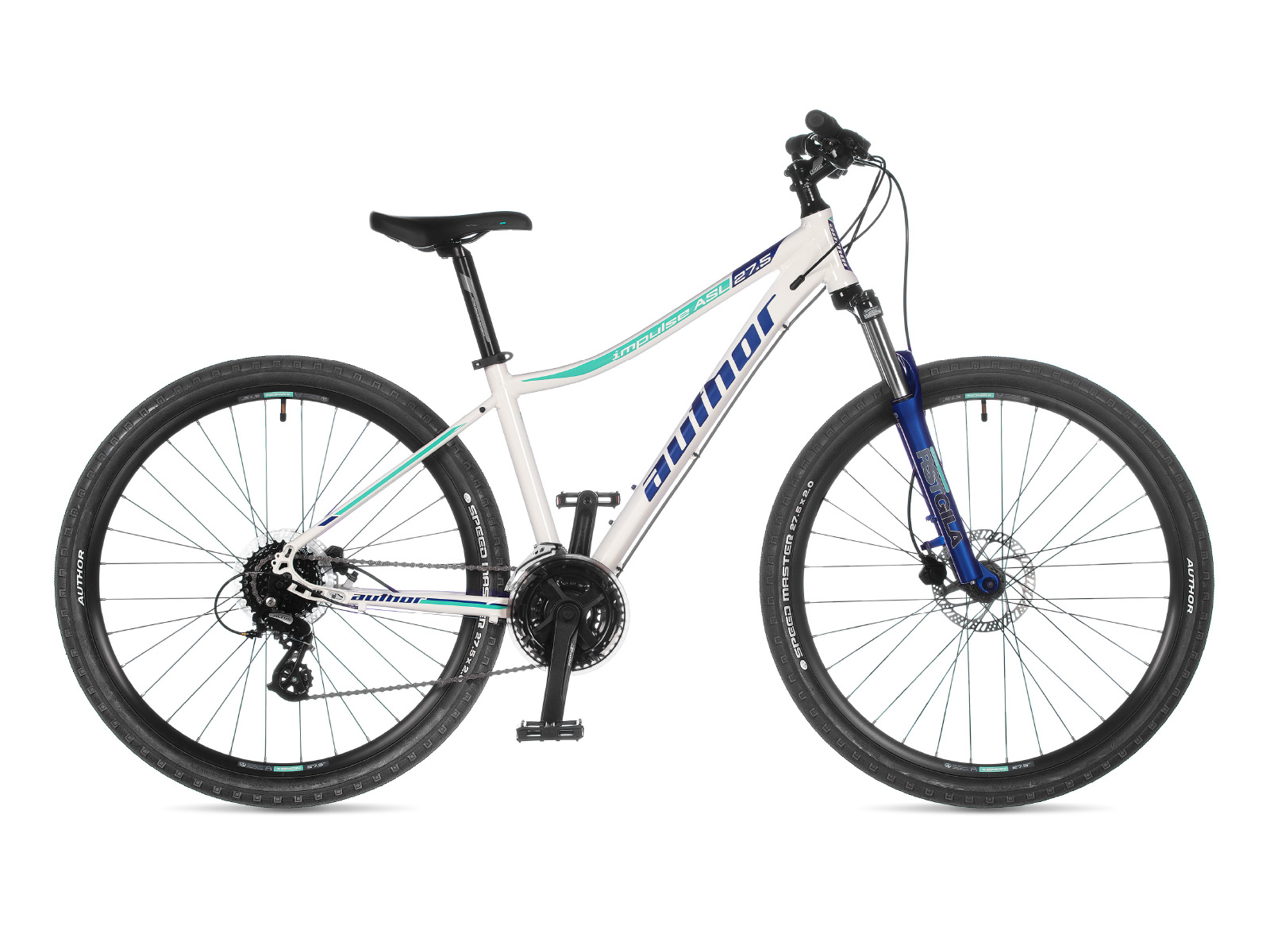

white / blue / green16" = UA#42933901   18" = UA#42933902

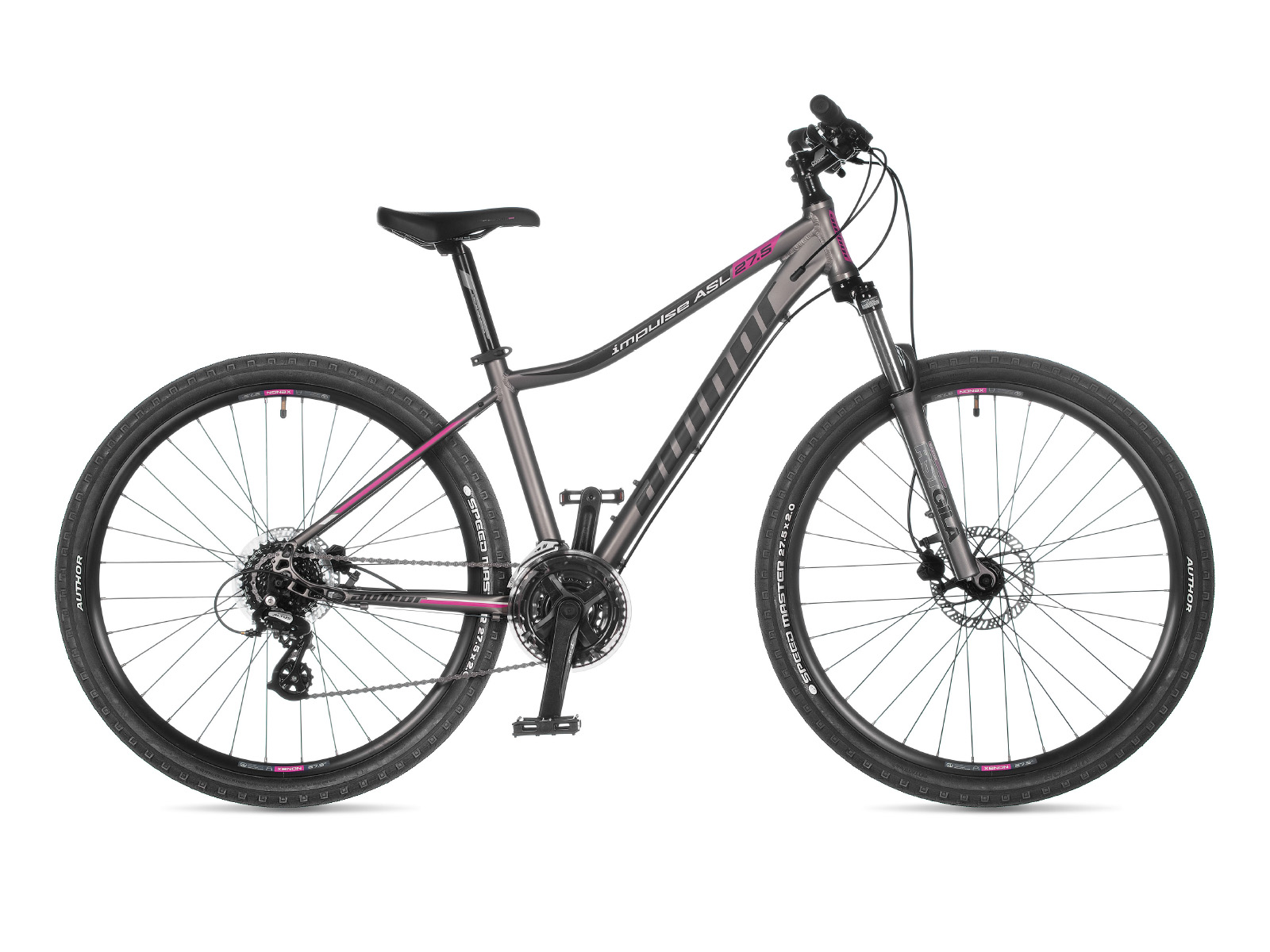

silver-matt / pink16" = UA#42933911   18" = UA#42933912
