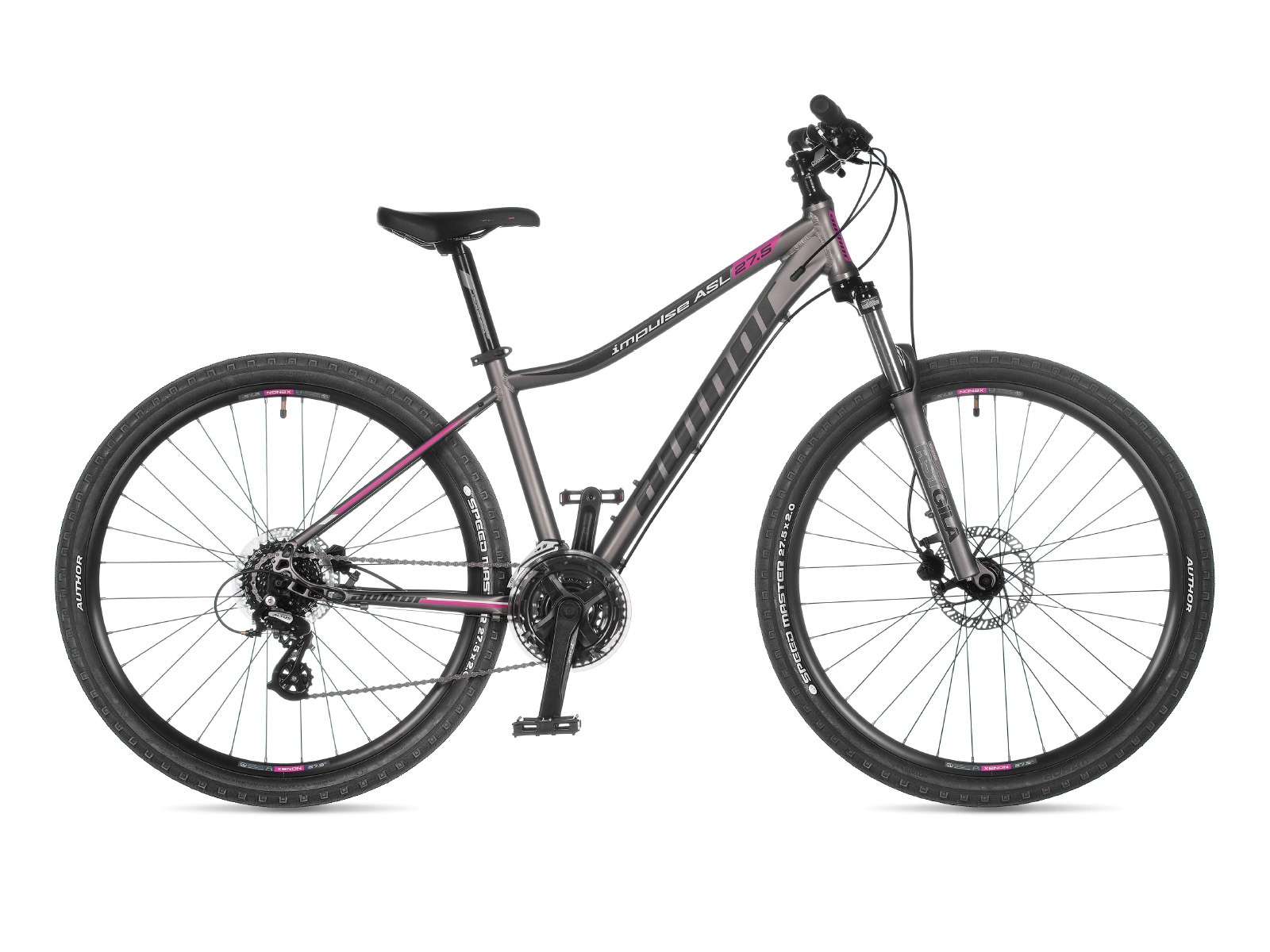

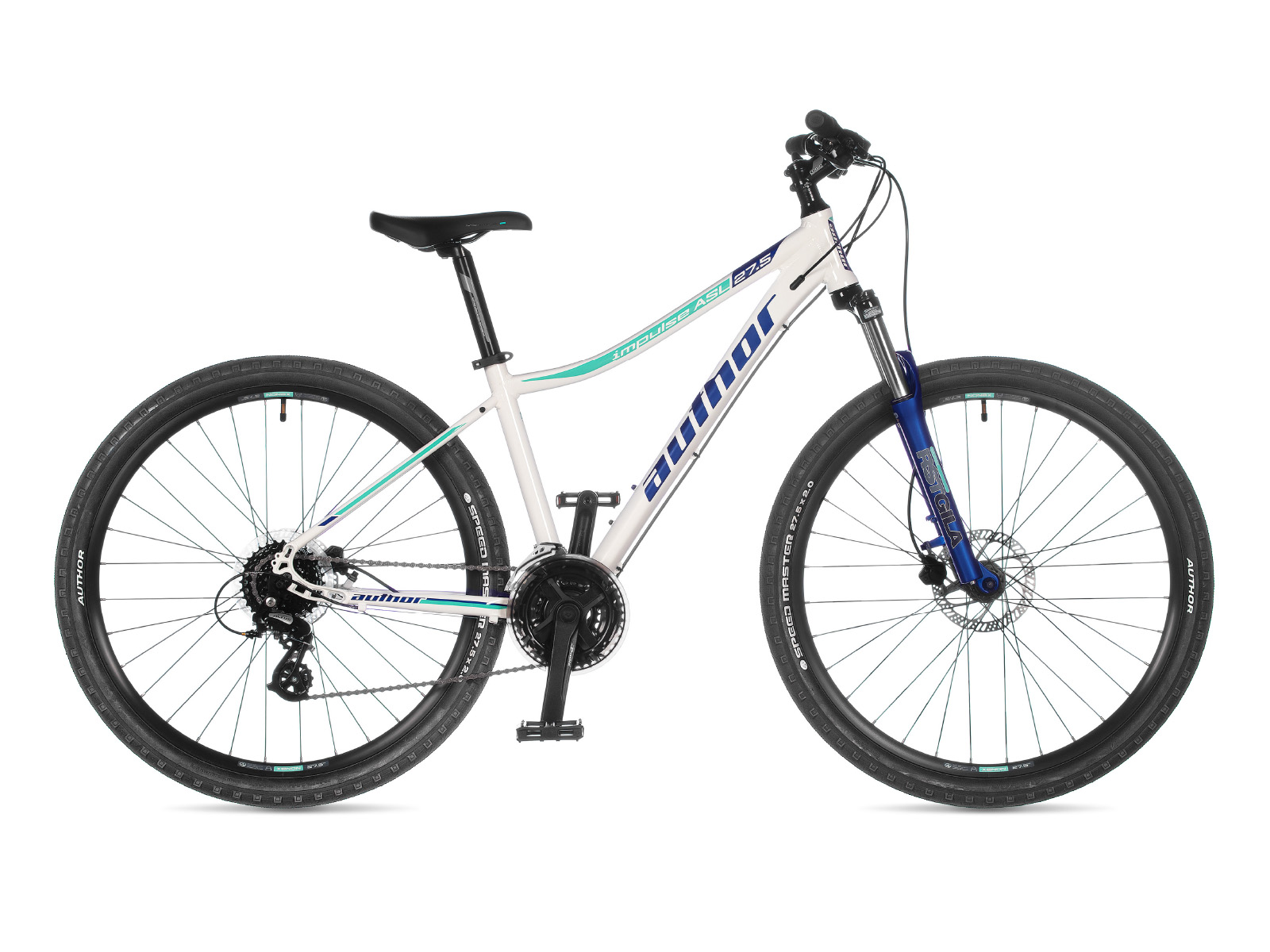

Impulse 27,5 ASL 2023-24

~~Colour variants~~

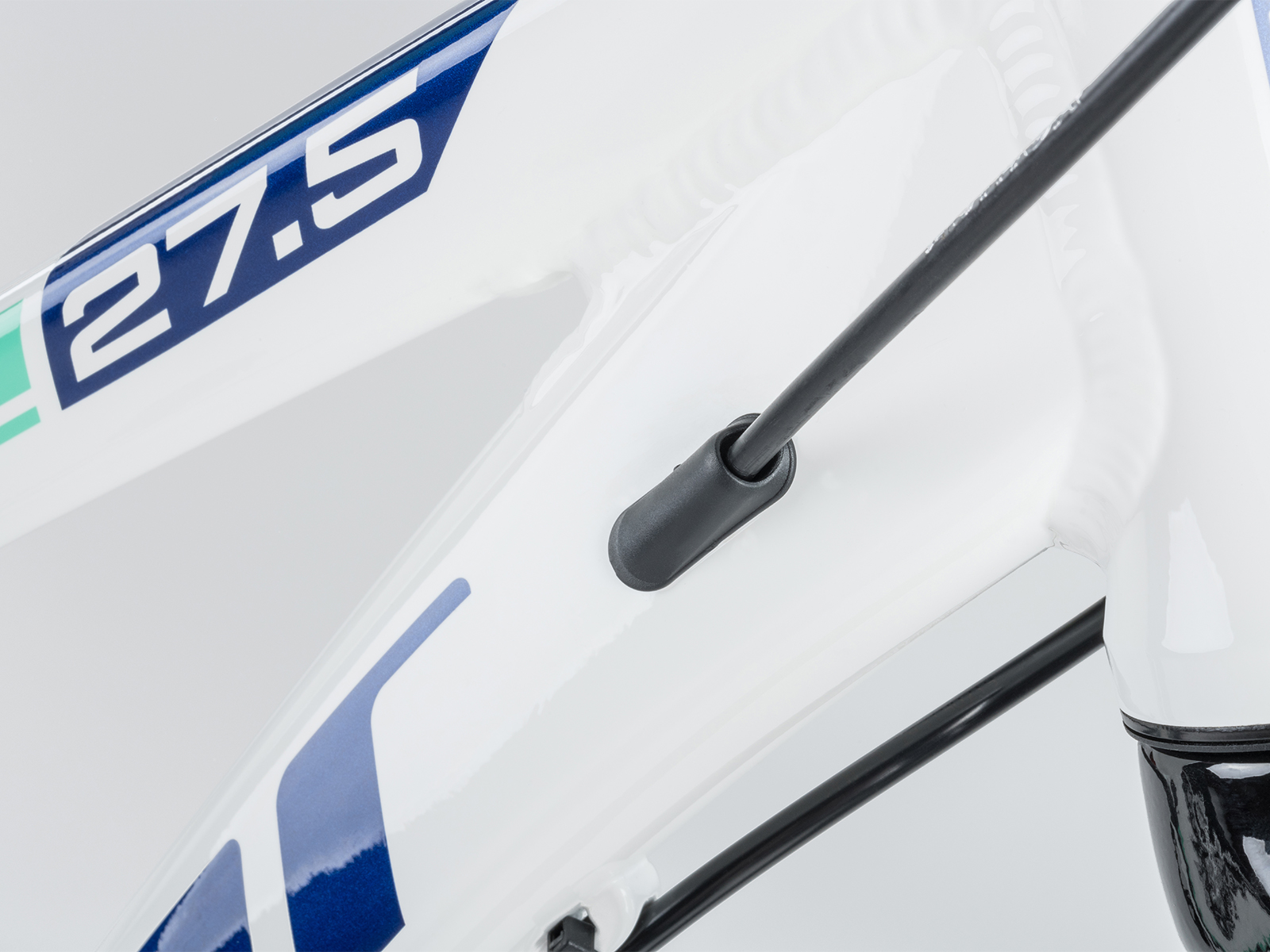

Wheel size 27,5"Alloy ASL frame with internal cable routing.SHIMANO components ALTUS, 24 speedSuspension fork RST Gila 27,5 with lockQuality tire AUTHOR Speed Master 29" × 2.00"TEKTRO disc hydraulic BrakeComfort saddle AUTHOR Fenix

~~Buy now~~special price 12 990 Kč

original price ~~17 590 Kč~~

Technical specification

Size	16", 18"

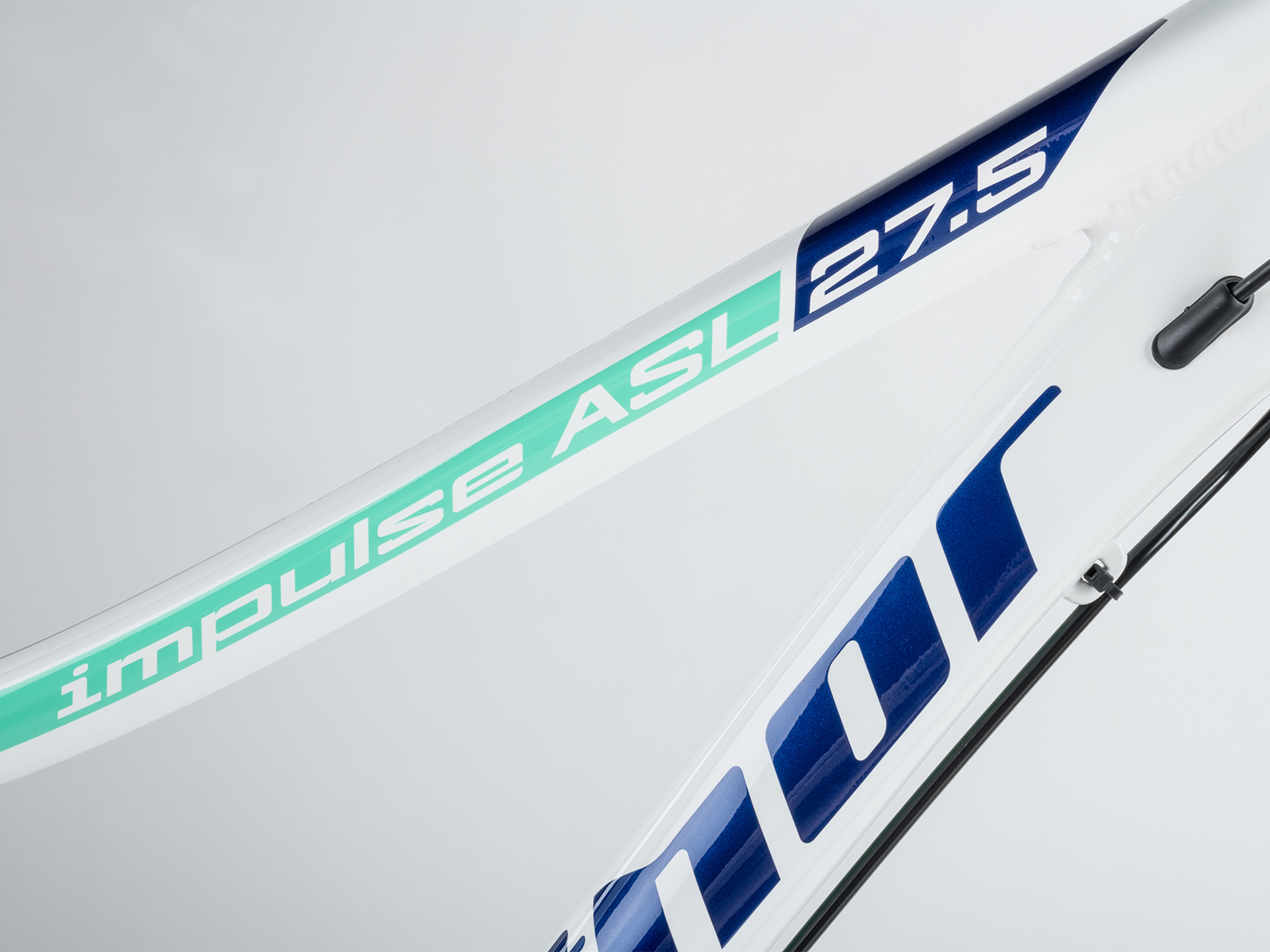

Frame	alloy 6061 27.5" (ASL)
Front fork	RST Gila 27.5 ML lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL, 42-34-24 teeth, 170 mm cranks
BBParts	VP COMP, cartridge
Front derailleur	SHIMANO TY700 (34.9)
Rear derailleur	SHIMANO Altus
Shifters	SHIMANO Altus (24)
Free wheel	SHIMANO HG200-8, 12-32 (8)
Chain	KMC Z8.3
Hubs	QUANDO Disc, 32 holes

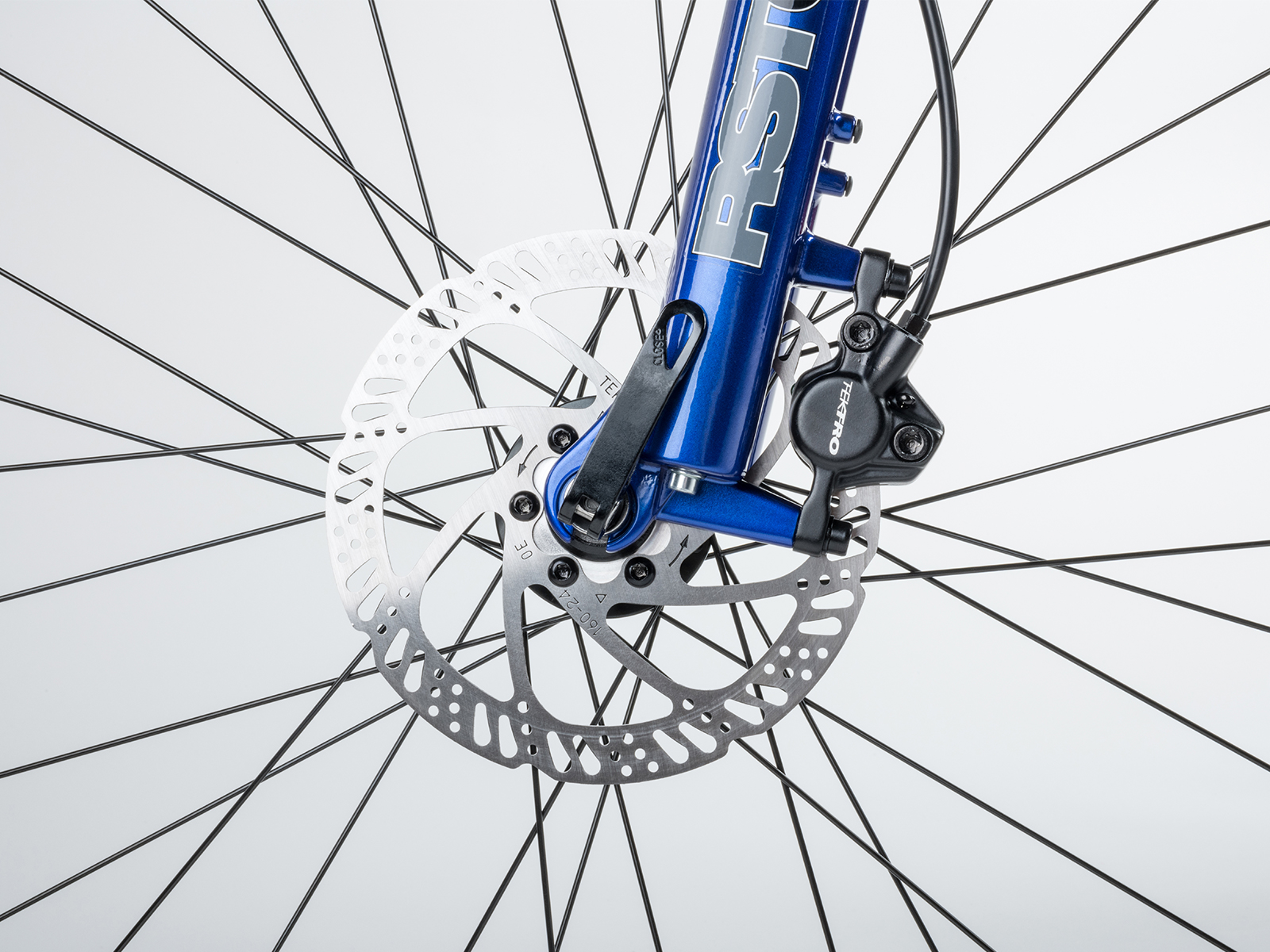

Brakes	TEKTRO HD-M276, disc hydraulic (6" rotors)
Brakes levers	TEKTRO HD-M276 WS

Rims	AUTHOR Xenon 27.5, 32 holes
Spokes	black steel
Tires	AUTHOR Speed Master 27.5" × 2.00"
Pedals	plastic
Handlebar	AUTHOR rise 25 mm, 9°, 640 / 660 mm
Grips	AUTHOR high density foam
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

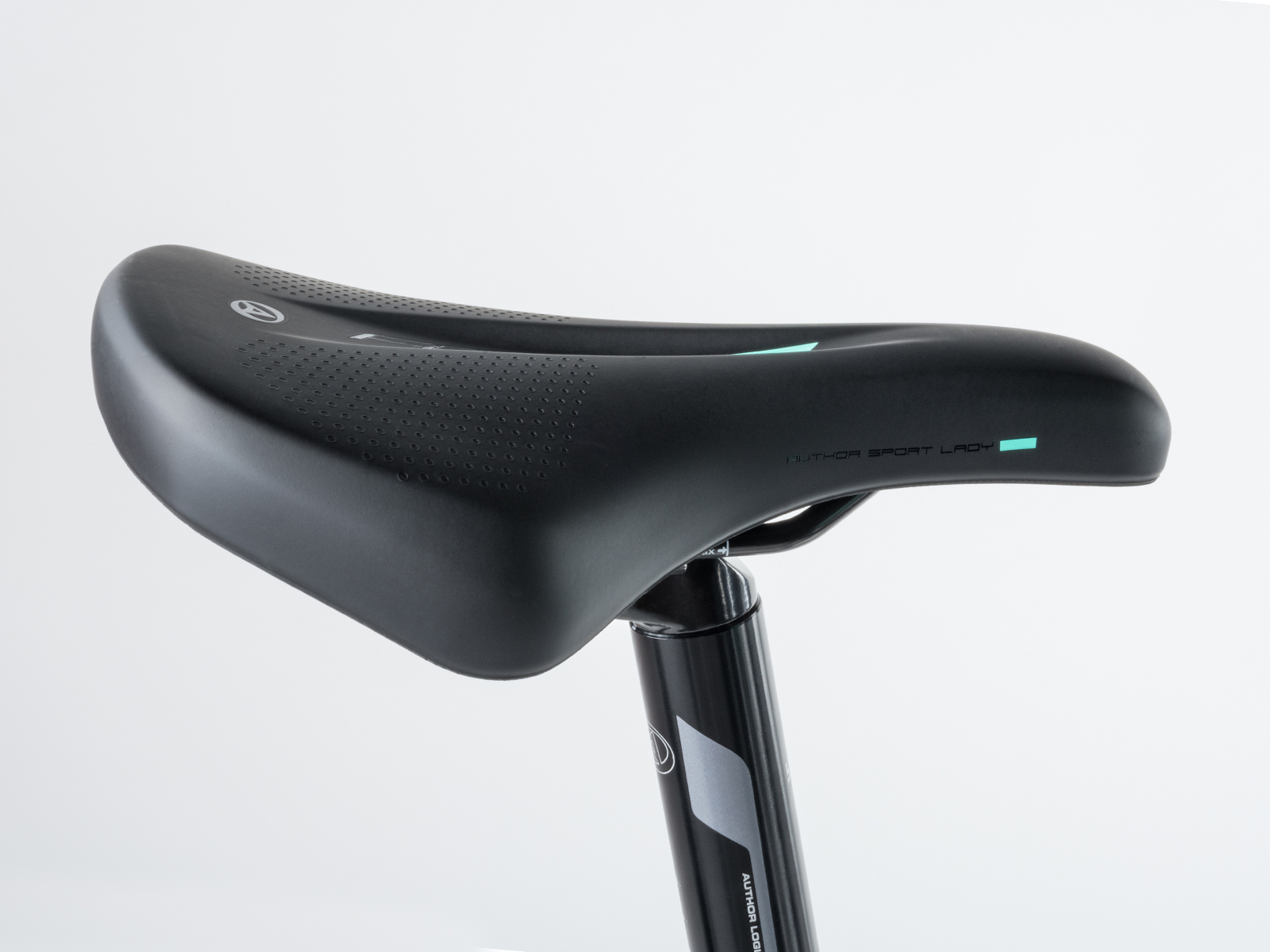

Saddle	AUTHOR Fenix
Speed	24
Weight	13,9 kg / 16"

Geometry and sizes

Size	14"	16"	18"
Min. figure ~~[cm]~~	140	155	168
Max. figure ~~[cm]~~	158	170	185
S/T c-t ~~[mm]~~	356	406	457
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	545	560	585
T/T a ~~[mm]~~	542	546	563
H/T ~~[mm]~~	110	120	130
C/S ~~[mm]~~	435	435	435
W/B ~~[mm]~~	1043	1064	1080
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	70	69.5	69.5
F/L ~~[mm]~~	495	495	495
B/B drop ~~[mm]~~	45	45	45
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	361	374	396
Stack ~~[mm]~~	602	609	619
F/R ~~[mm]~~	44	44	44
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
