  » Bicycles » cross » cross 700c

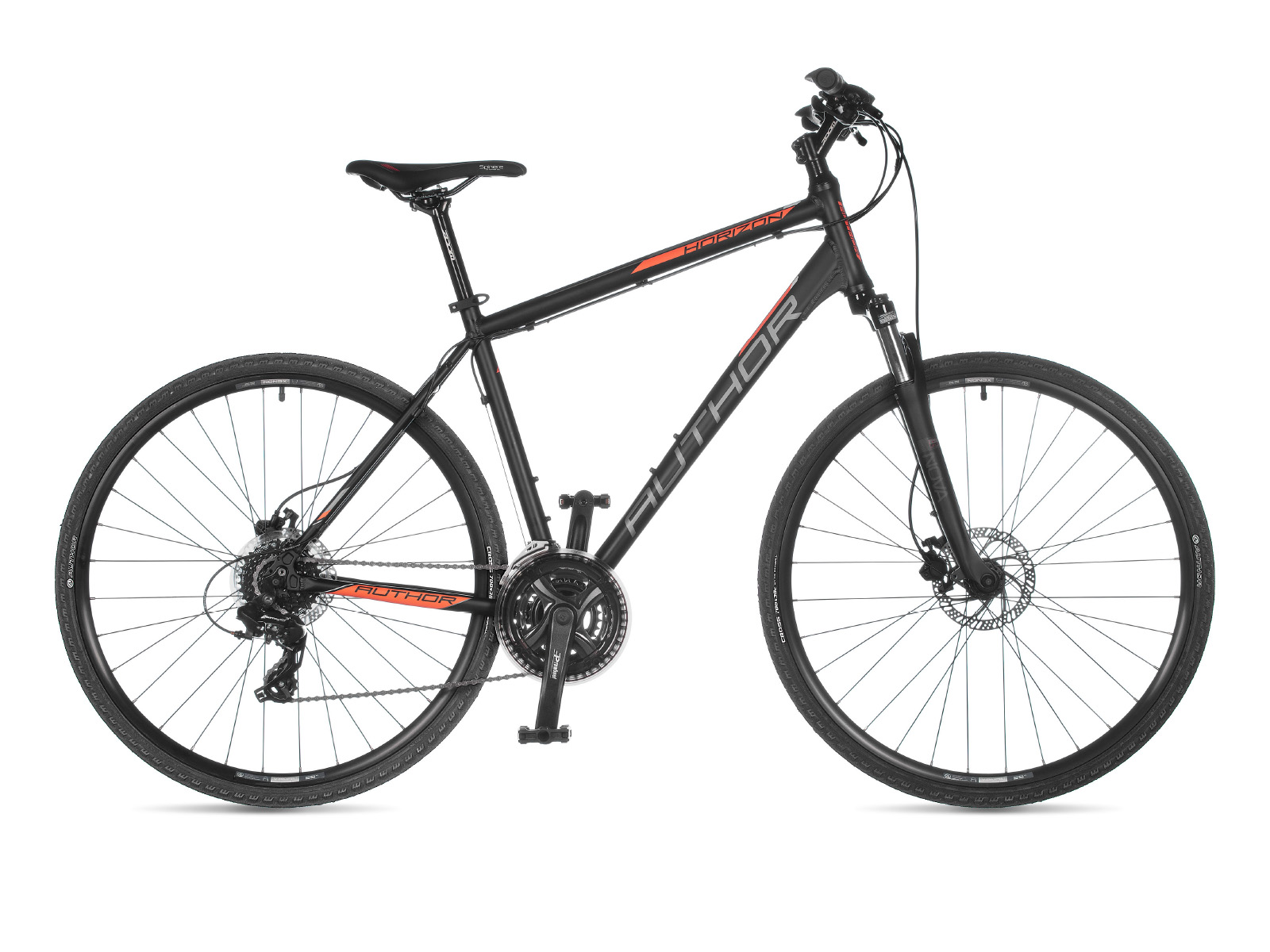

Horizon 2023-24

Colour variants
Alloy frameSuspension fork RST Nova MLComponents SHIMANO Tourney / AceraComfort grip AUTHOR ErgoGripTires AUTHOR Cross 700 × 38cTEKTRO disc hydraulic brakeComfort saddle AUTHOR Sphere
other models

Technical specification

Size16", 18", 20", 22"

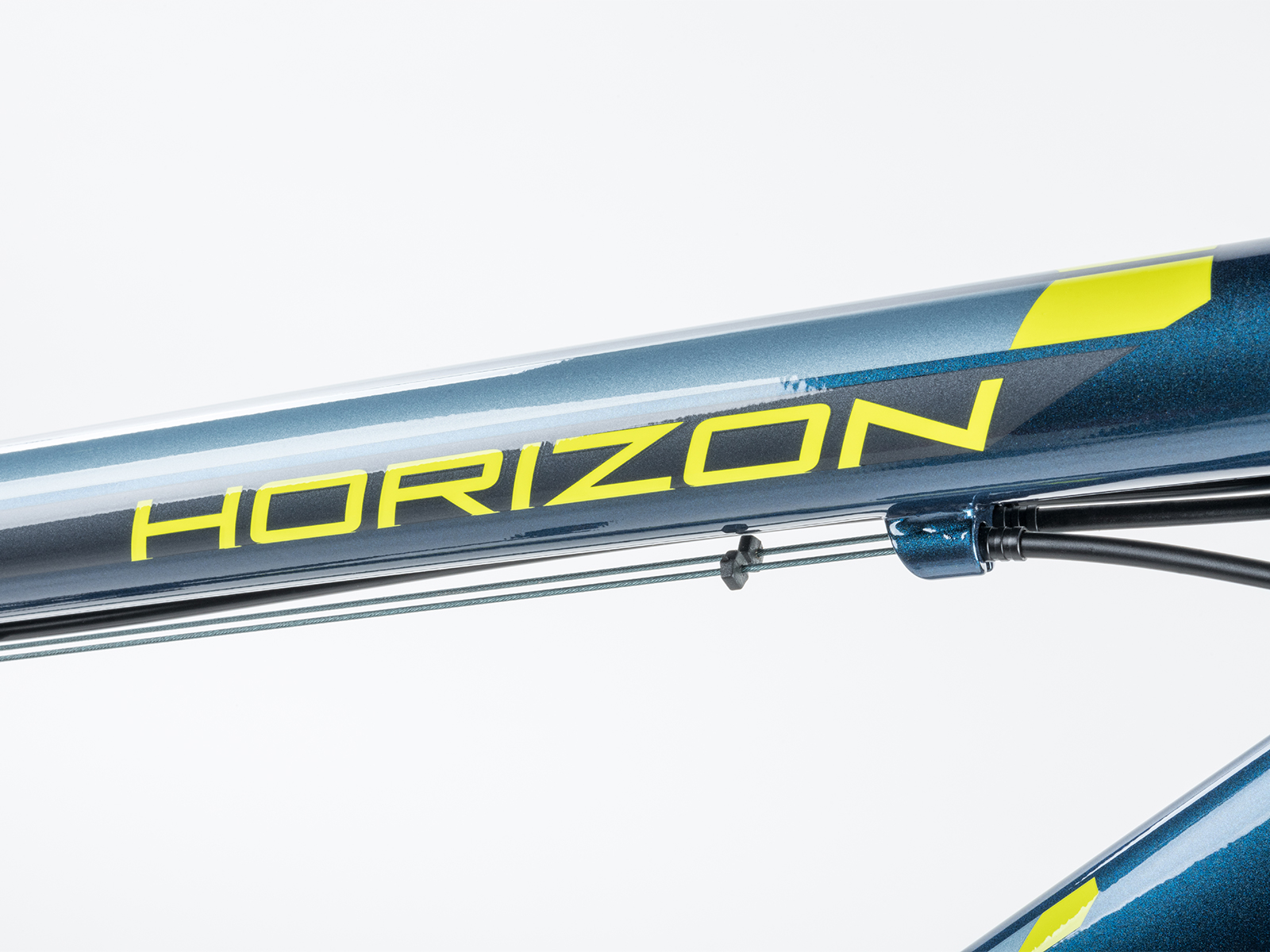

Framealloy 6061
Front forkRST Nova ML lock out (60 mm)
Head partsPRESTINE Integrated 1-1/8"
Chain WheelPROWHEEL, 48-38-28 teeth, 170 / 175 mm cranks
BBPartsVP COMP, cartridge
Front derailleurSHIMANO TY710 (31.8)
Rear derailleurSHIMANO TX800
ShiftersSHIMANO Acera (24)
Free wheelSHIMANO HG200-8, 12-32 (8)
ChainKMC Z8.3
HubsQUANDO Disc, 32 holes

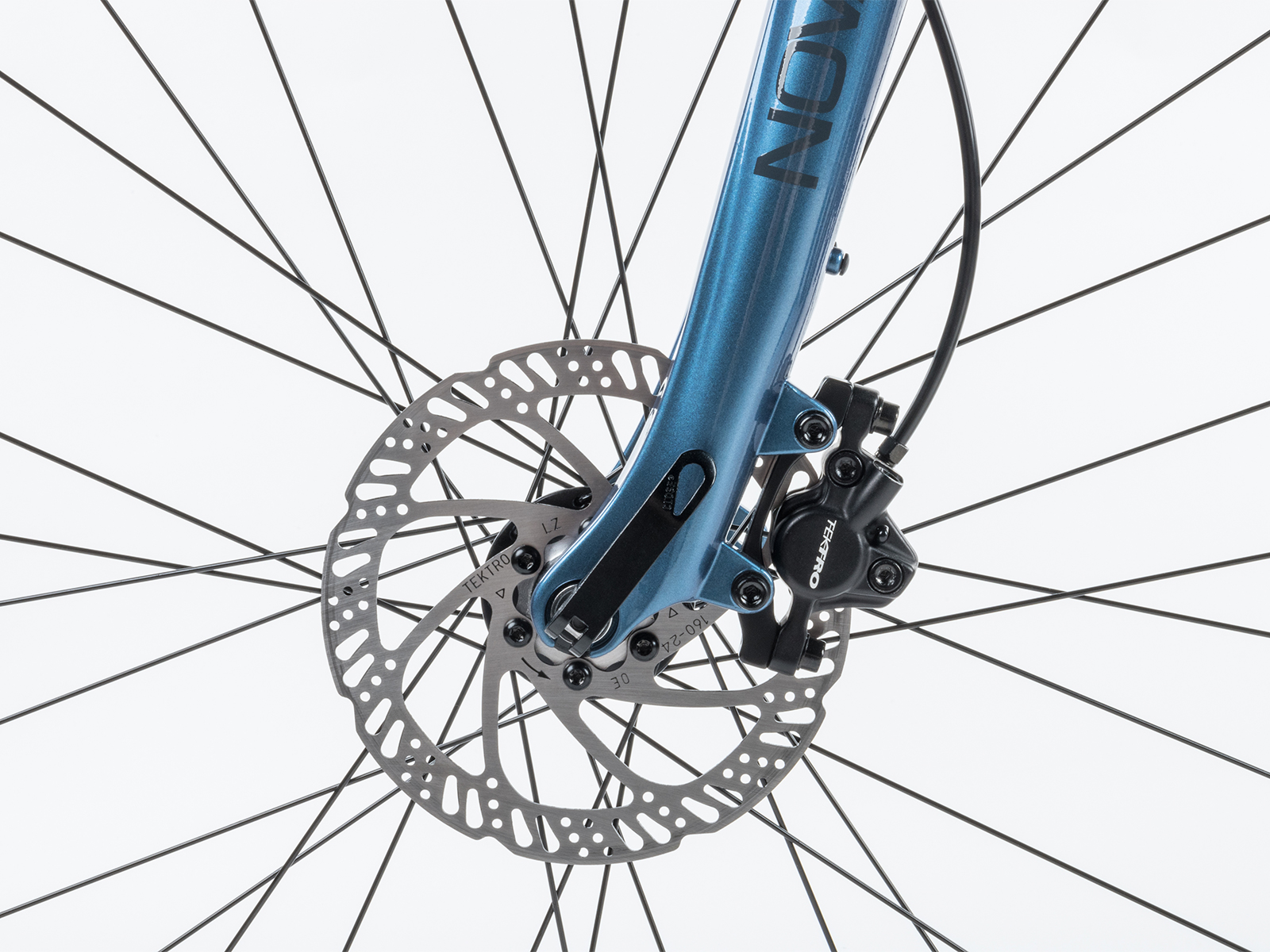

BrakesTEKTRO HD-T275, disc hydraulic (6" rotors)
Brakes leversSHIMANO
RimsAUTHOR Xenon 29, 32 holes
Spokesblack steel
TiresAUTHOR Cross 700 × 38c
PedalsAUTHOR Non Slip resin
Handlebarsteel, 20 mm, 680mm
GripsAUTHOR ErgoGrip
StemZOOM alloy
Seat postZOOM alloy (27.2)
Seat clampAUTHOR (31.8)

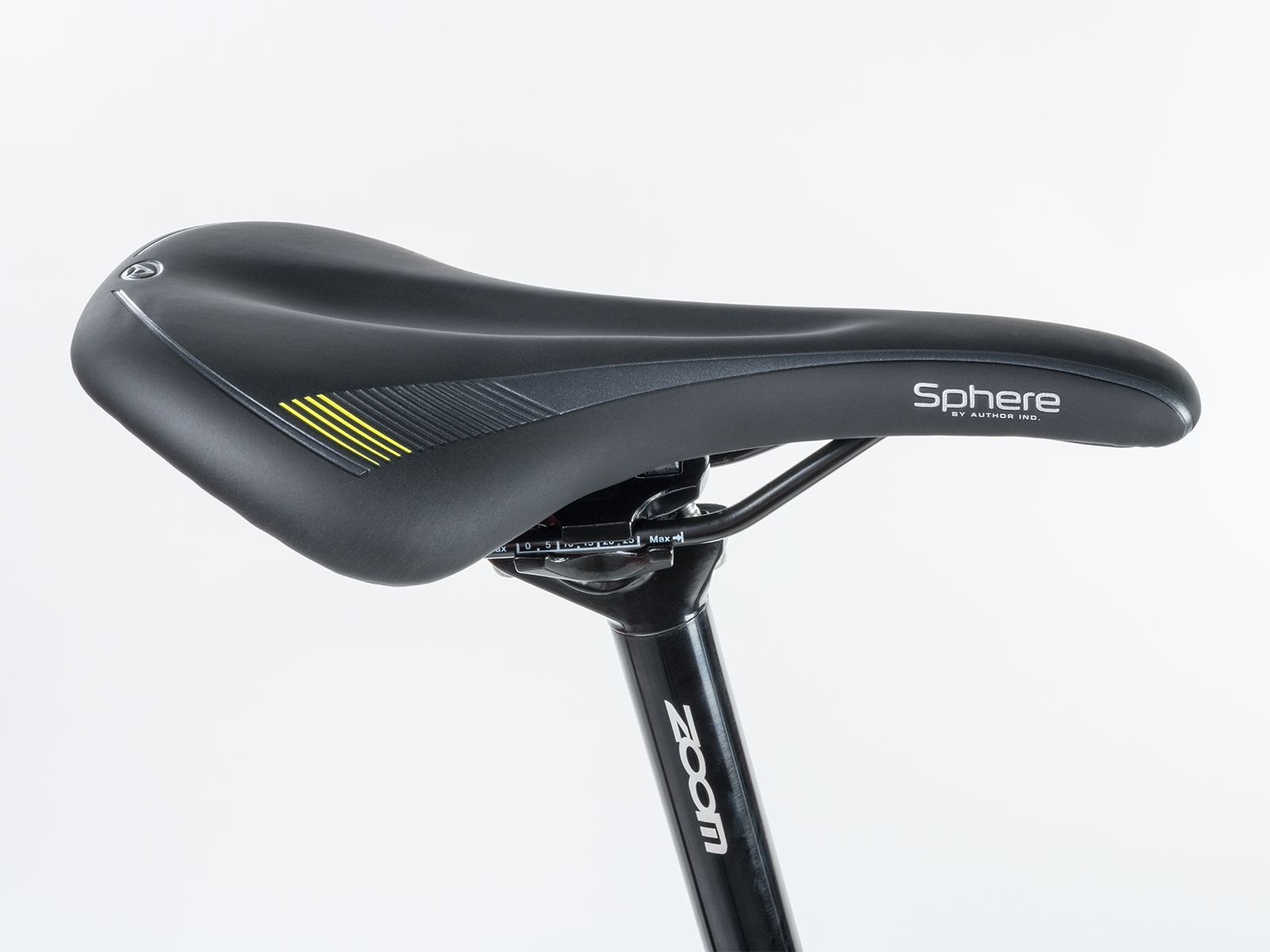

SaddleAUTHOR Sphere
Speed24
Weight14,3 kg / 20"

Geometry and sizes

Size 16" 18" 20" 22"
Min. figure [cm] 150 165 175 185
Max. figure [cm] 168 178 188 200
S/T c-t [mm] 406 457 508 559
S/T c-c [mm] 0 0 0 0
T/T h [mm] 560 580 600 620
T/T a [mm] 550 561 577 594
H/T [mm] 130 150 170 180
C/S [mm] 440 440 440 440
W/B [mm] 1070 1085 1101 1109
S/T ang. [°] 74 73.5 73.5 73
H/T ang. [°] 70.5 70.5 71 71.5
F/L [mm] 470 470 470 470
B/B drop [mm] 60 60 60 60
B/B width [mm] 68 68 68 68
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 51 51 51 51
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Horizon 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

blue / lime18" = UA#42948002   20" = UA#42948003
black-matt / orange16" = UA#42948011   18" = UA#42948012   20" = UA#42948013   22" = UA#42948014
