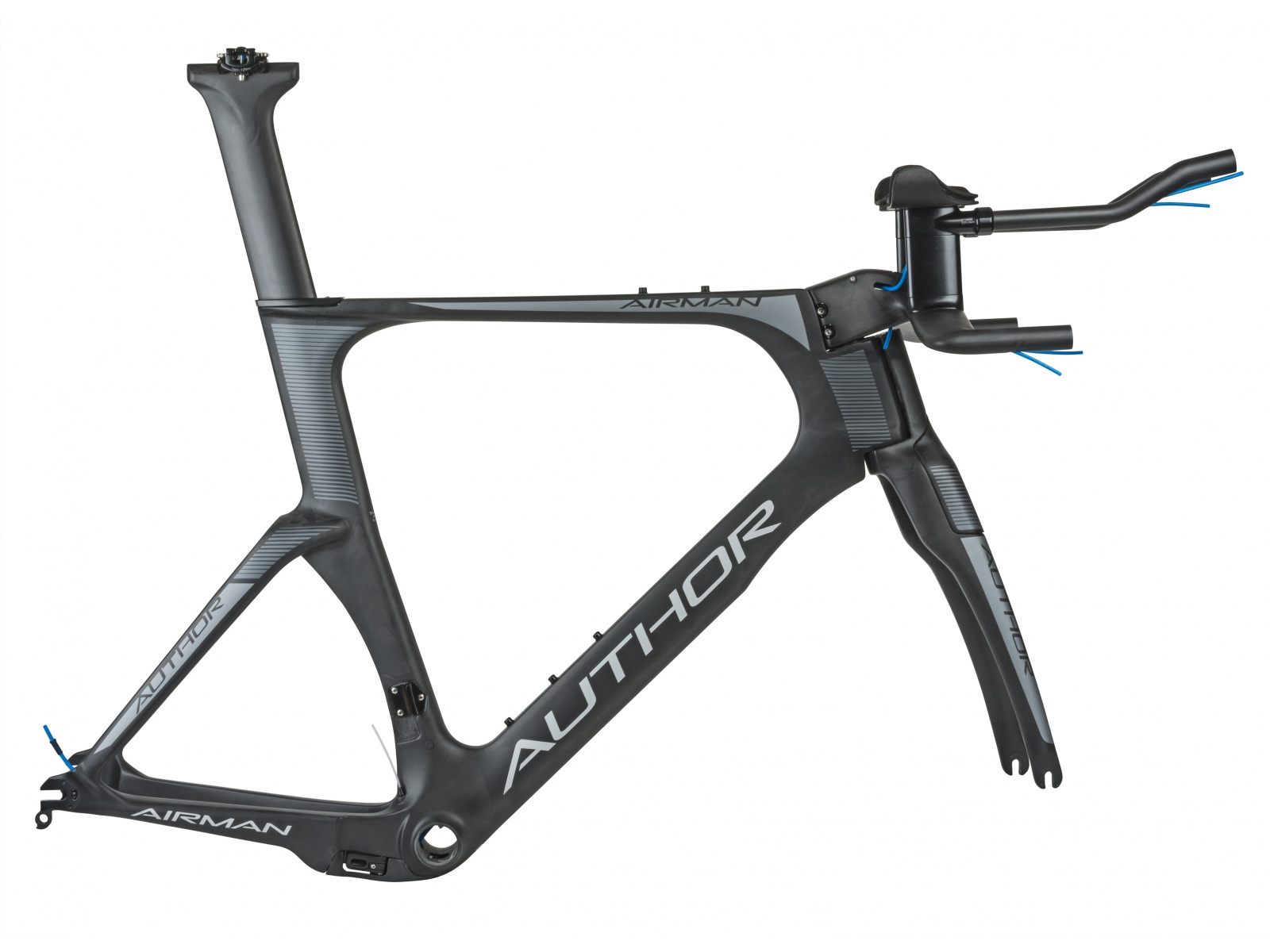

Frame+fork Airman

Colour variants
1
Buy nowspecial price 26 990 Kč
original price  33 990 Kč
ONLY frame set!
The frame set includes a fork, seatpost, combo (handlebars + stem), brake shoes, head set, seat post, handlebar extensions and armrests.
The weight of the whole frame set is 3.55 kg.
The BB part is not part of the frame set - compatible with Press Fit Shimano SM-BB92-41B (Dura Ace) or Shimano SM-BB72-41B (Ultegra + 105 level).
Add to compare
other models
Frame+Fork Charisma 5529 990Frame+fork Airman26 990
Interested in other model`s year?

Technical specification

SizeS, M, L, XL
FrameAUTHOR A carbon monocoque
Front forkAUTHOR A carbon monocoque 1.5" tapered
Handlebarcombo, w/ stem, seat clamp and armrest cushions
Weight3,55 kg

Geometry and sizes

Size S M L XL
Min. figure [cm] 158 162 170 180
Max. figure [cm] 164 172 180 190
S/T c-t [mm] 510 535 555 574
S/T c-c [mm] 468 487 517 547
T/T h [mm] 486 502 523 545
T/T a [mm] 0 0 0 0
H/T [mm] 54 70 90 110
C/S [mm] 388 388 388 388
W/B [mm] 937 946 970 994
S/T ang. [°] 77 77 77 77
H/T ang. [°] 72 73 73 73
F/L [mm] 369 369 369 369
B/B drop [mm] 62 62 62 62
B/B width [mm] 86 86 86 86
Reach [mm] 382 394 411 430
Stack [mm] 452 470 489 508
F/R [mm] 43 43 43 43
Handlebars [mm] 785 785 800 800
Stem [mm] 30 30 30 30
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Frame+fork Airman

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
L1 shop3989091226
 ▪   Bike Servis FRODLorderorder nowČáslav603 510 347, mpbike@seznam.czmap
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

carbon / black-mattL = UA#3989091226
