AUTHOR Bicycle Vision 27 2014
  » Bicycles » mountain bike » mtb 27.5

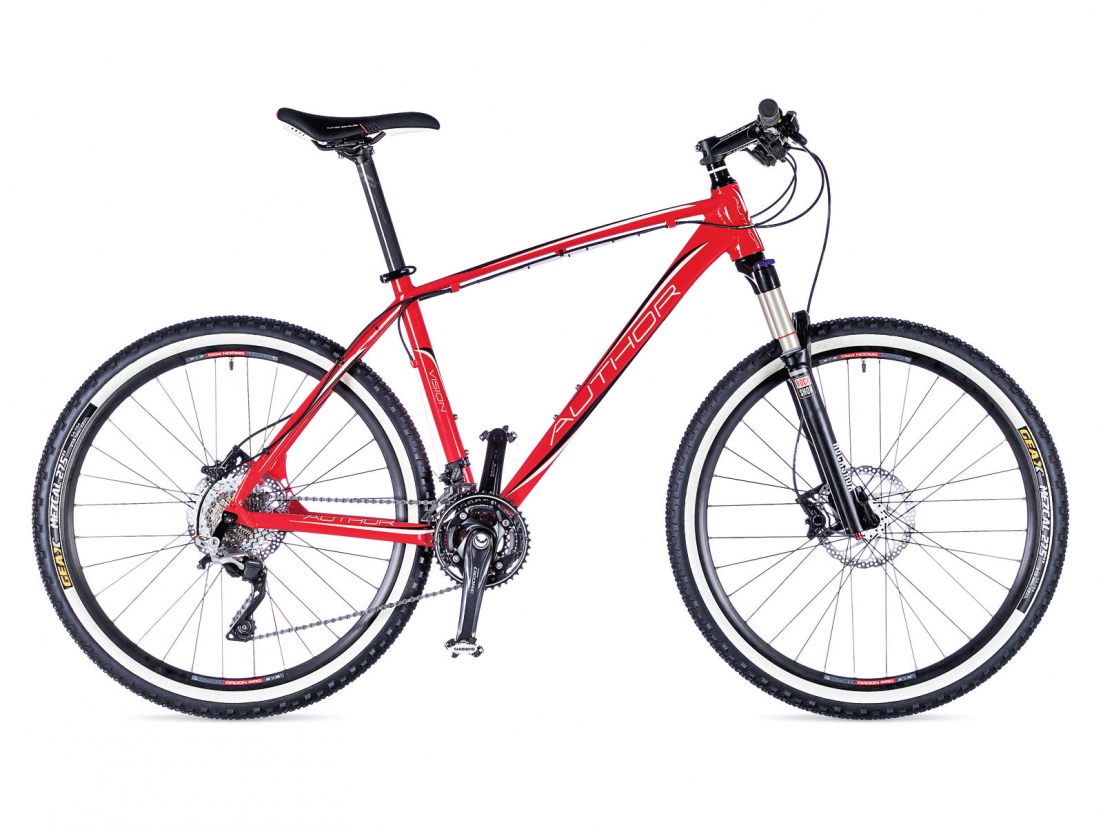

AUTHOR Vision 27 2014Archivní model 2014

SOLD OUT
Add to compare
other models
Ultrasonic 27,533 990Traction32 990Traction ASL31 990Instinct 27,5 ASL26 990Sonic 27,526 990Kinetic23 990Kinetic ASL23 990more models »
Interested in other model`s year?

Technical specification

Size16", 17.5", 19", 20.5", 22"
Frametriple butted alloy 6061 27.5"
Front forkROCK SHOX Recon Gold TK 27.5 15 Solo Air air, lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Head partsFSA Orbit 1.5B 1.5" tapered
Chain WheelSHIMANO M610 42-32-24 teeth 170 / 175 mm cranks
BBPartsSHIMANO M610 BB unit
Front derailleurSHIMANO SLX (34.9)
Rear derailleurSHIMANO XT
ShiftersSHIMANO SLX (30)
Free wheelSHIMANO HG-81-10 11-36 (10)
ChainSHIMANO HG-75
HubsAUTHOR Helium / Xenon Disc 15 mm thru axle white 32 holes
BrakesSHIMANO M615 disc hydraulic (7" rotors)
Brakes leversSHIMANO M615
RimsAUTHOR Radon Pro 27.5" black 32 holes
Spokesblack stainless steel 2.0 mm
TiresGEAX Mezcal Kevlar white sidewalls 27.5" x 2.10"
PedalsSHIMANO M520 clipless
HandlebarRITCHEY Pro 0 mm 600 / 620 mm
GripsAUTHOR Pro Lock
StemRITCHEY Pro 4-Axis
Seat postAUTHOR carbon (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Summit CR
Speed30
Weight12,7 kg / 19"

Geometry and sizes

Size 16" 17,5" 19" 20,5" 22"
Min. figure [cm] 150 162 172 183 195
Max. figure [cm] 165 175 185 197 205
S/T c-t [mm] 406 445 483 520 559
S/T c-c [mm] 0 0 0 0 0
T/T h [mm] 575 590 605 620 635
T/T a [mm] 555 566 580 595 613
H/T [mm] 110 117 125 132 140
C/S [mm] 425 425 425 425 425
W/B [mm] 1065 1080 1095 1105 1120
S/T ang. [°] 73 73 73 72.5 72.5
H/T ang. [°] 70 70 70 70 70
F/L [mm] 488 488 488 488 488
B/B drop [mm] 40 40 40 40 40
B/B width [mm] 0 0 0 0 0
Reach [mm] 0 0 0 0 0
Stack [mm] 0 0 0 0 0
F/R [mm] 44 44 44 44 44
Handlebars [mm] 0 0 0 0 0
Stem [mm] 0 0 0 0 0
Cranks [mm] 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
