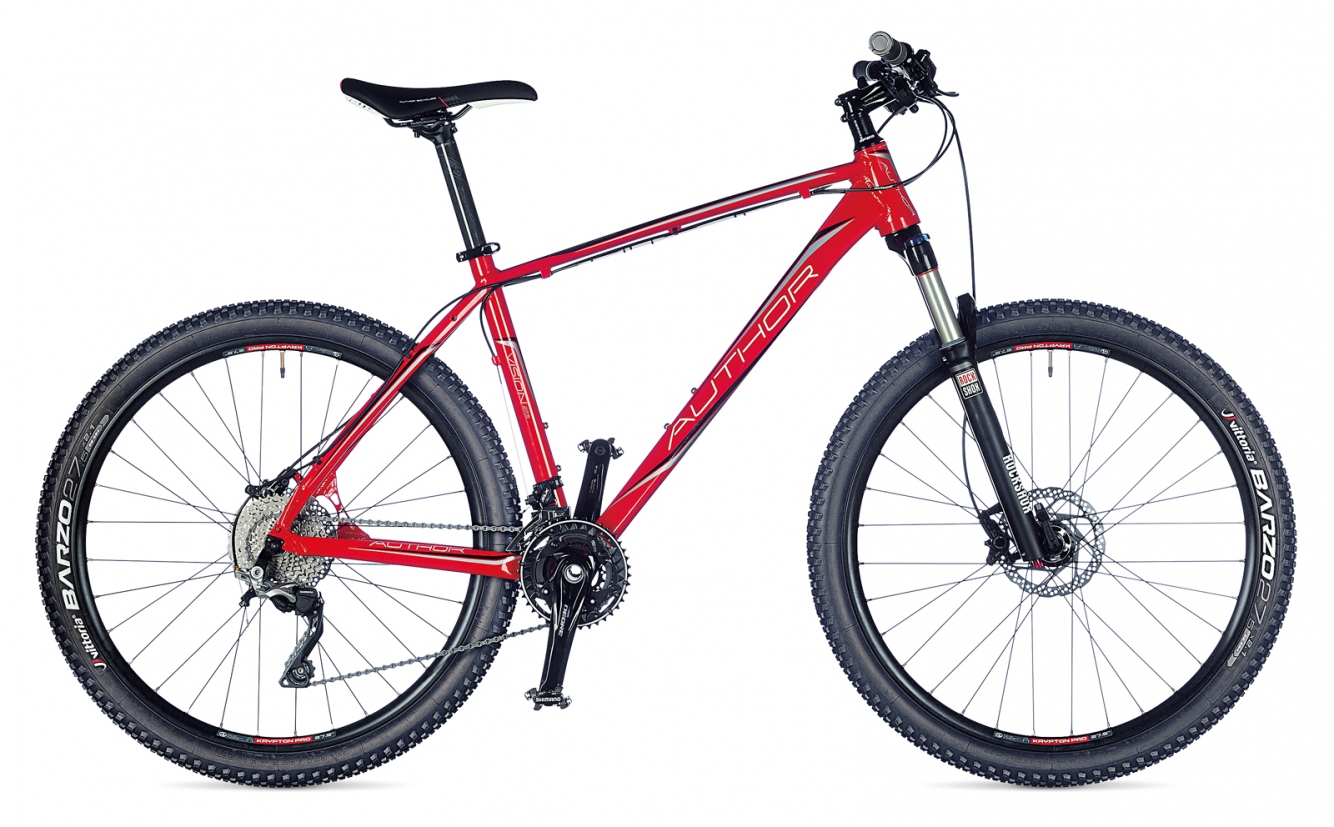

AUTHOR Bicycle Vision 2015
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Vision 2015Archivní model 2015

Triple butted alloy frame with hydroroformed shapingAir remote lock out fork ROCK SHOX Recon GoldDisc hydraulic brakes SHIMANO M615
SOLD OUT

Mountain bike Author VISION with triple butted alloy frame and air ROCK SHOX Recon Gold fork with lock out unit.

other models
Interested in other model`s year?

Technical specification

Size16", 17.5", 19", 20.5"
Frametriple butted alloy 6061 27.5" - hydroforming
Front forkROCK SHOX Recon Gold TK 27 15 Solo Air air, lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Head partsFSA Orbit 1.5B 1.5" tapered
Chain WheelSHIMANO Deore 40-30-22 teeth 170 / 175 mm cranks
BBPartsSHIMANO Deore BB unit
Front derailleurSHIMANO SLX (34.9)
Rear derailleurSHIMANO XT "clutch"
ShiftersSHIMANO SLX (30)
Free wheelSHIMANO HG50-10 11-36 (10)
ChainSHIMANO HG54
HubsAUTHOR Helium / Xenon Disc 15 mm thru axle 32 holes
BrakesSHIMANO M615 disc hydraulic (6" rotors)
Brakes leversSHIMANO M615
RimsAUTHOR Krypton Pro 27.5 32 holes
Spokesblack stainless steel 2.0 mm
TiresVITTORIA Barzo kevlar 27.5" x 2.10"
PedalsSHIMANO M520 clipless
HandlebarAUTHOR 15 mm 660 / 680 mm
GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postAUTHOR carbon (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Summit
Speed30
Weight12.3 kg / 19"

Geometry and sizes

Size 17,5" 19" 20,5"
Min. figure [cm] 162 174 184
Max. figure [cm] 175 185 196
S/T c-t [mm] 445 483 520
S/T c-c [mm] 0 0 0
T/T h [mm] 590 605 620
T/T a [mm] 566 580 595
H/T [mm] 117 125 132
C/S [mm] 425 425 425
W/B [mm] 1080 1095 1105
S/T ang. [°] 73 73 72.5
H/T ang. [°] 70 70 70
F/L [mm] 488 488 488
B/B drop [mm] 40 40 40
B/B width [mm] 73 73 73
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 44 44 44
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Vision 2015

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
