Technical specification

Size16", 18"
Framealloy 6061 26" (L)
Front forkhi-ten
Head partsPRESTINE 1-1/8"
Chain WheelPROWHEEL 48-38-28 teeth 170 mm cranks
BBPartsVP COMP. cartridge
Front derailleurSHIMANO TX51 (31.8)
Rear derailleurSHIMANO TX35
ShiftersSHIMANO Revoshift (21)
Free wheelSHIMANO MF-TZ21 14-28 (7)
ChainKMC Z51
HubsQUANDO 36 holes
BrakesTEKTRO 837AL
Brakes leversTEKTRO plastic / alloy
Rimsalloy 36 holes
Spokessteel
TiresAUTHOR Spanker 26" x 1.95"
Pedalsresin
HandlebarKALIN steel 20 mm 620 mm
GripsAUTHOR high density foam
StemZOOM alloy
Seat postKALIN steel (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR
Speed21
Weight12,9 Kg / 18"

Geometry and sizes

Size 16" 18"
Min. figure [cm] 150 162
Max. figure [cm] 164 175
S/T c-t [mm] 406 457
S/T c-c [mm] 0 0
T/T h [mm] 582 592
T/T a [mm] 572 581
H/T [mm] 120 120
C/S [mm] 425 425
W/B [mm] 1060 1070
S/T ang. [°] 73 73
H/T ang. [°] 71 71
F/L [mm] 407 407
B/B drop [mm] 38 38
B/B width [mm] 0 0
Reach [mm] 0 0
Stack [mm] 0 0
F/R [mm] 45 45
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.

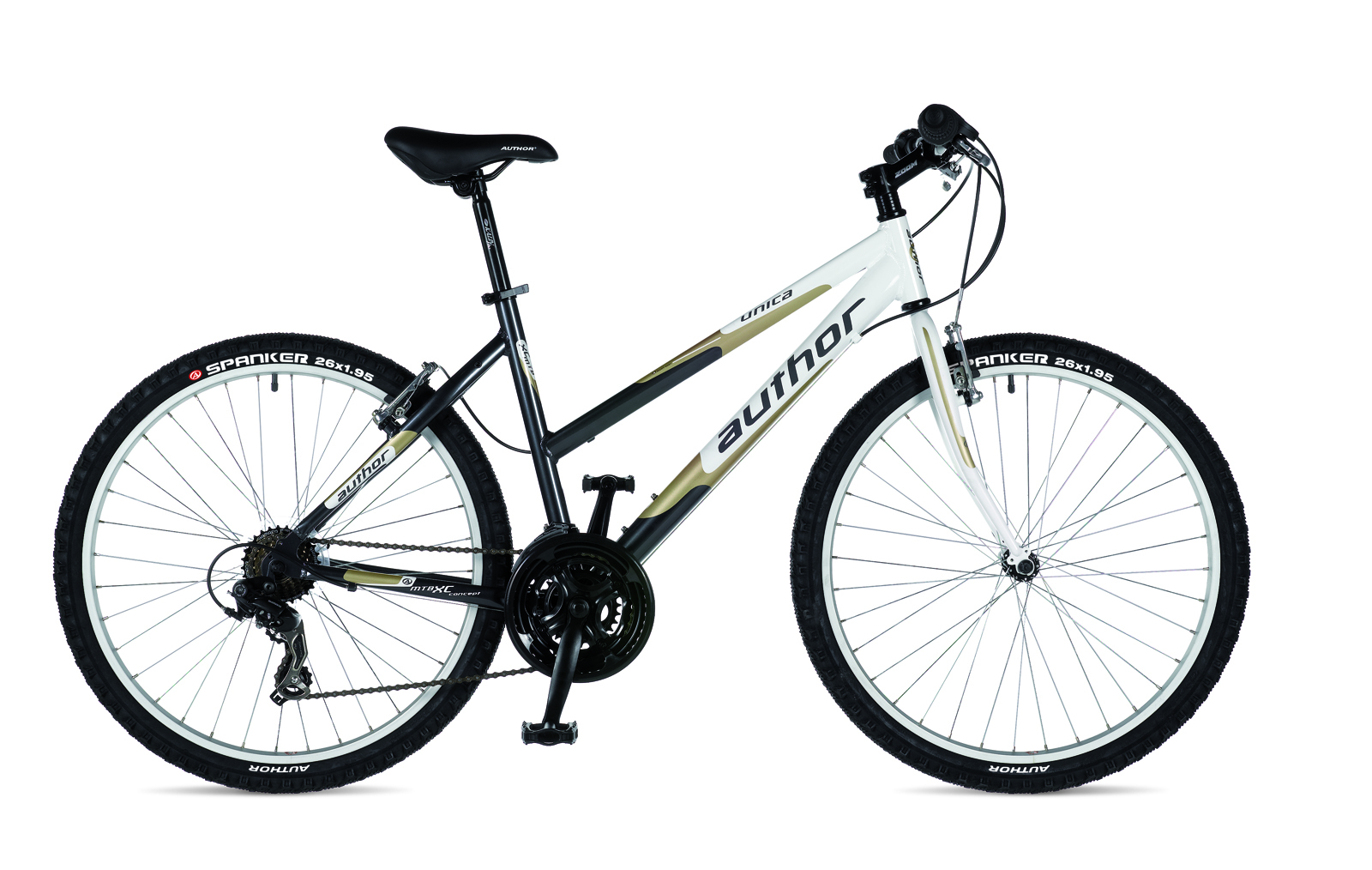

AUTHOR Unica 2012

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
