AUTHOR Bicycle Traction 2016
AUTHOR Bicycle Traction 2016AUTHOR Bicycle Traction 2016author traction 27 201602 viewdeauthor traction 27 201601 viewdeauthor traction 27 201622 viewdeauthor traction 27 201621 viewdeauthor traction 27 201620 viewdeauthor traction 27 201619 viewdeauthor traction 27 201618 viewdeauthor traction 27 201617 viewdeauthor traction 27 201616 viewdeauthor traction 27 201615 viewdeauthor traction 27 201614 viewdeauthor traction 27 201613 viewdeauthor traction 27 201611 viewdeauthor traction 27 201610 viewdeauthor traction 27 201609 viewdeauthor traction 27 201608 viewdeauthor traction 27 201607 viewdeauthor traction 27 201606 viewdeauthor traction 27 201605 viewdeauthor traction 27 201604 viewdeauthor traction 27 201603 viewdeauthor traction 27 201612 viewde
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Traction 2016Archivní model 2016

Colour variants
Double butted alloy frame with hydroroformed shapingAir remote lock out fork RST AerialDisc hydraulic TEKTRO brakes
special price 19 990 Kč
original price  21 990 Kč SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size15", 17", 19", 21"

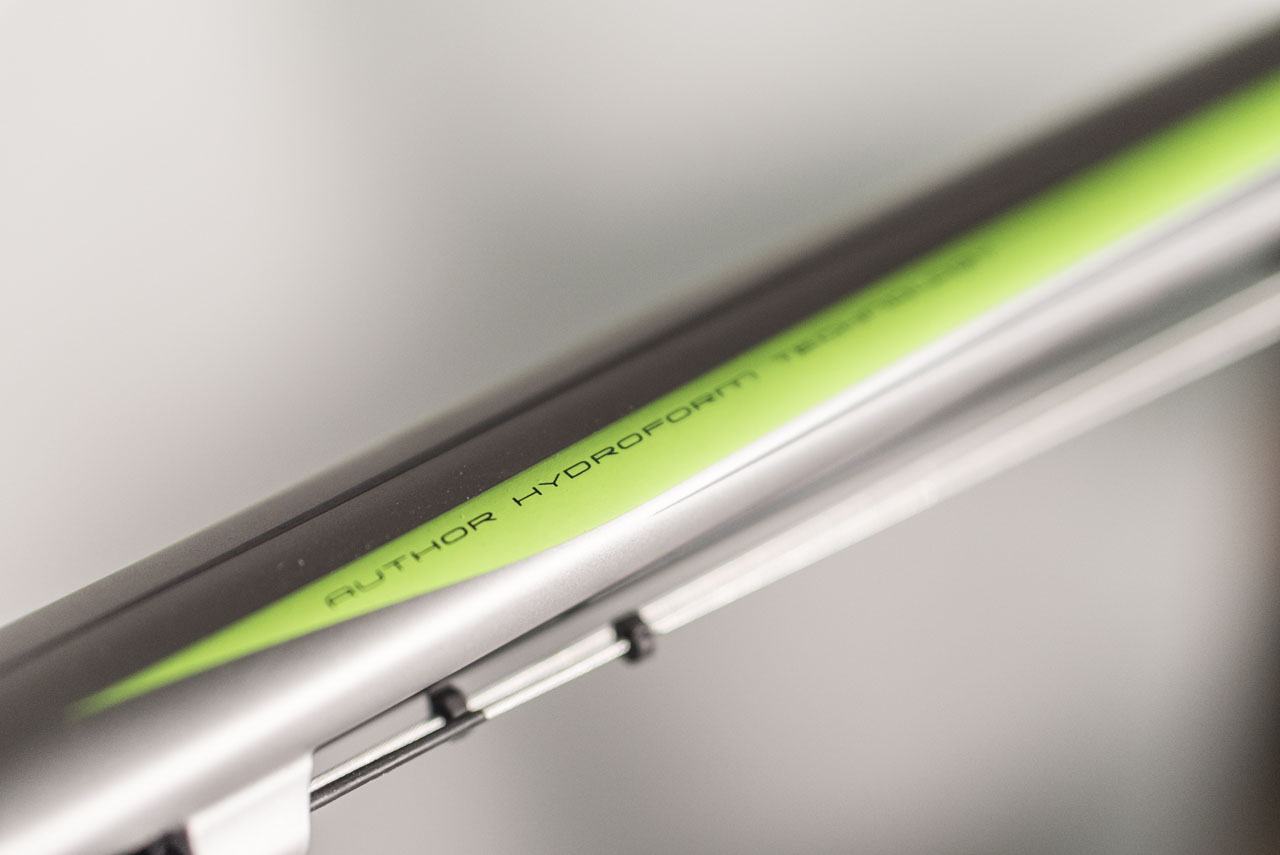

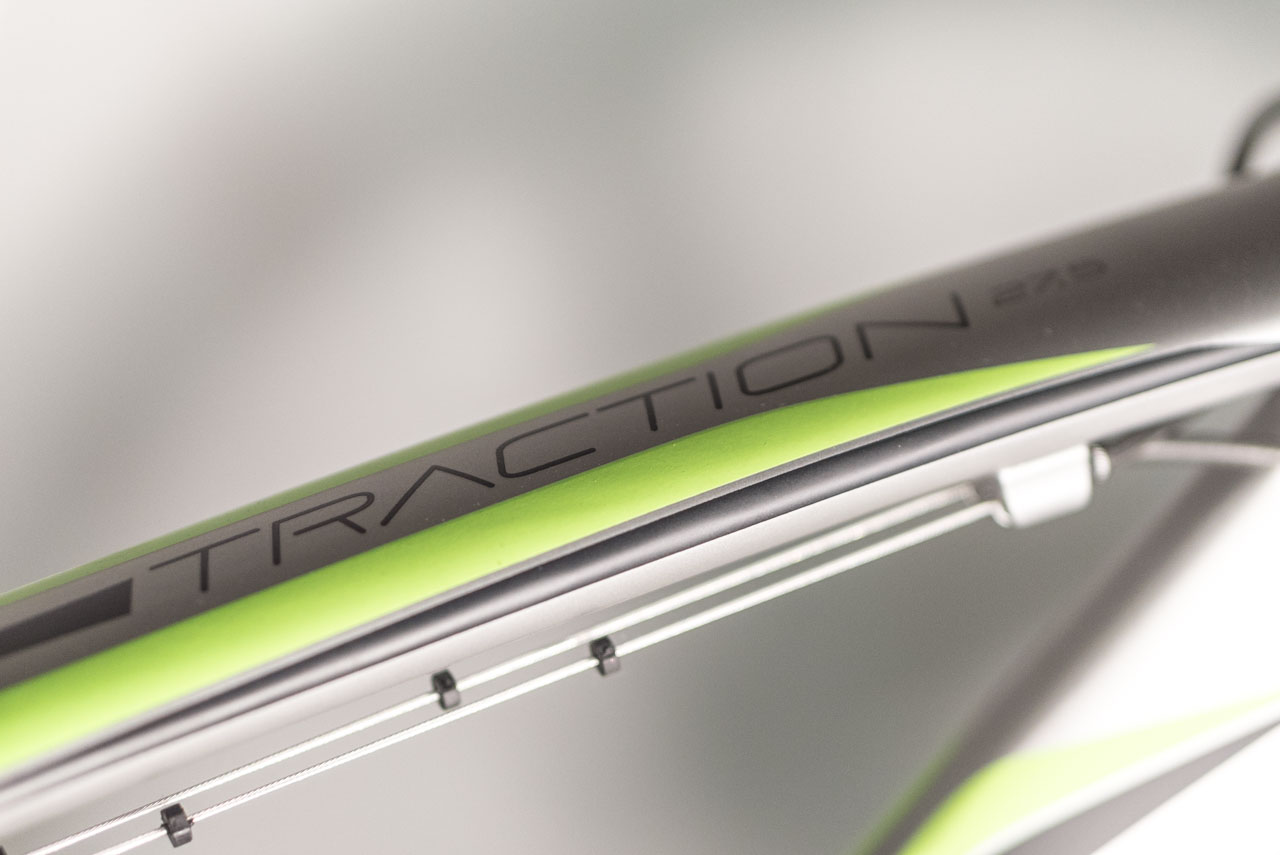

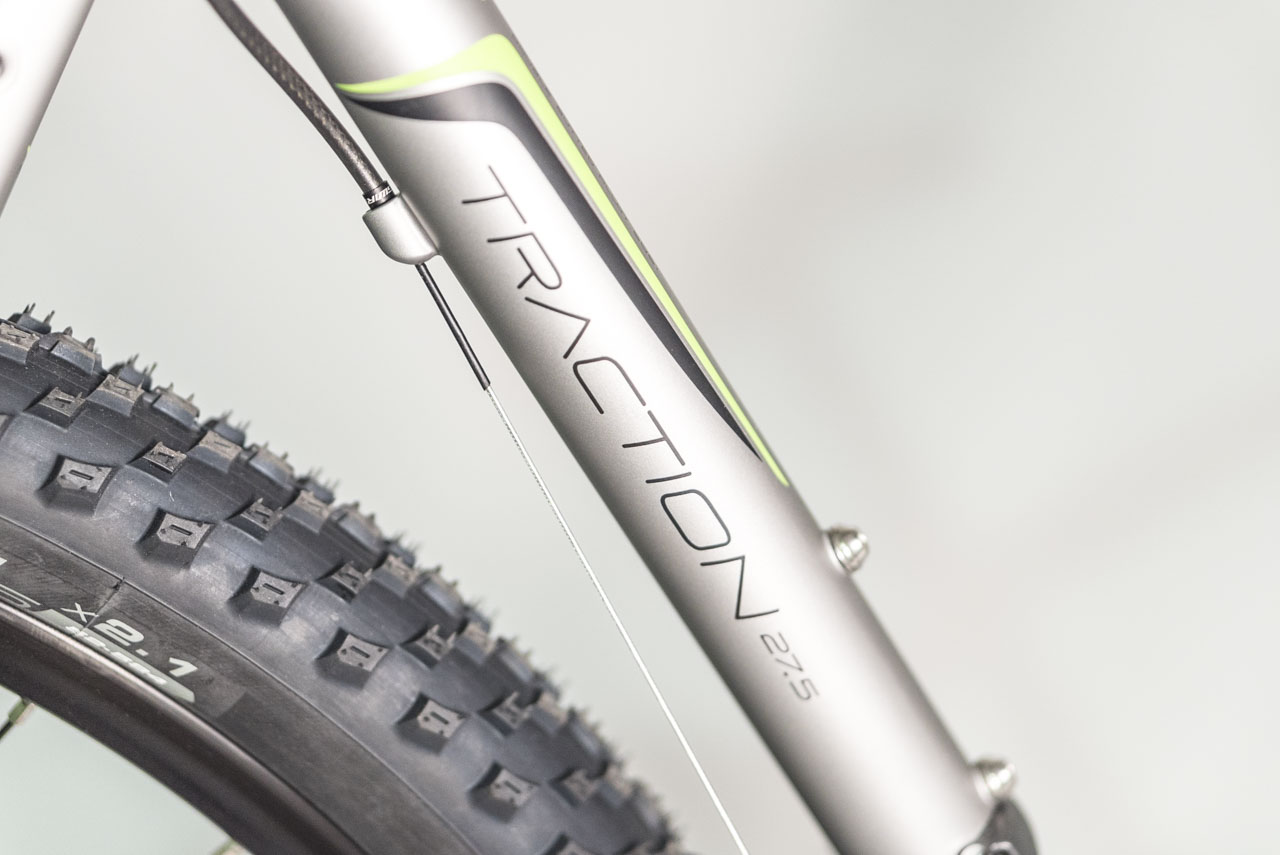

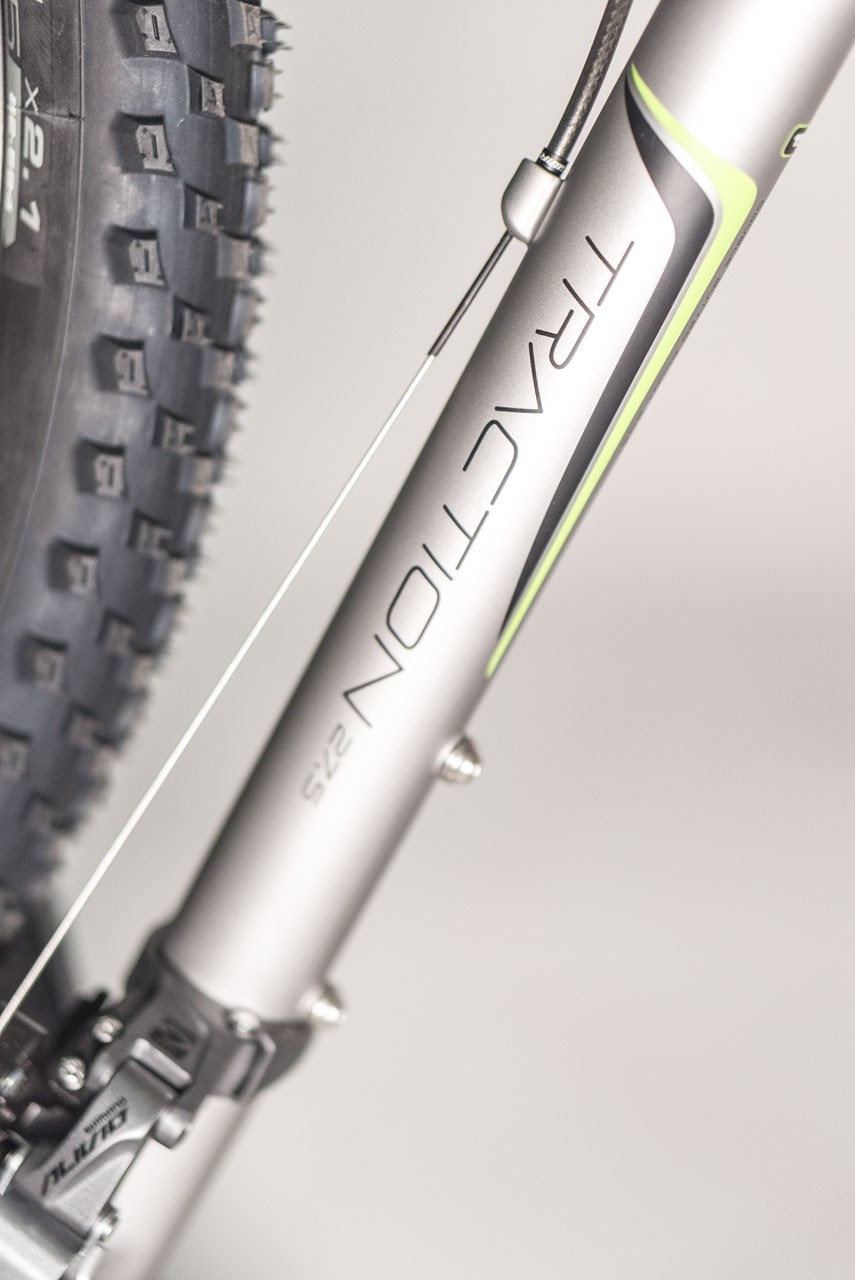

Framedouble butted hydroformed alloy 6061 27.5"

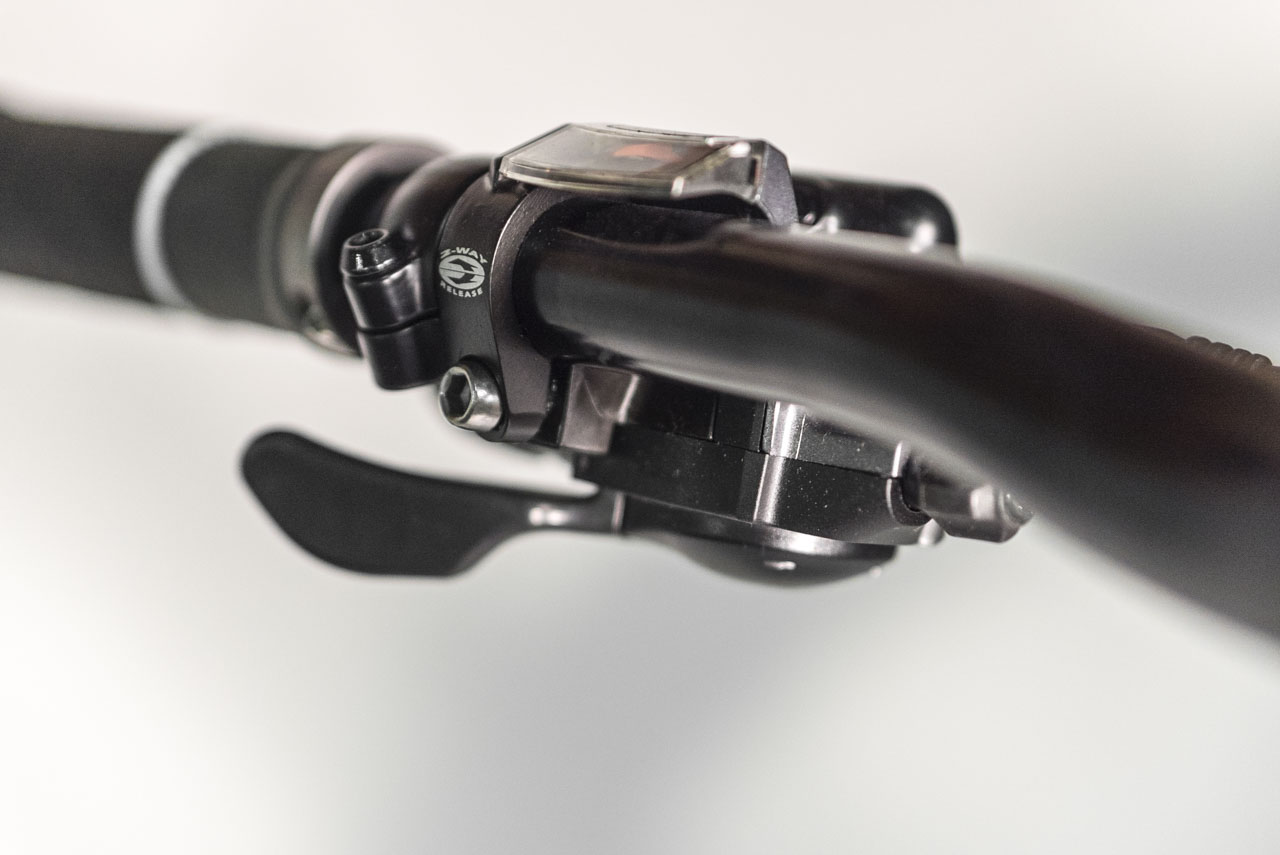

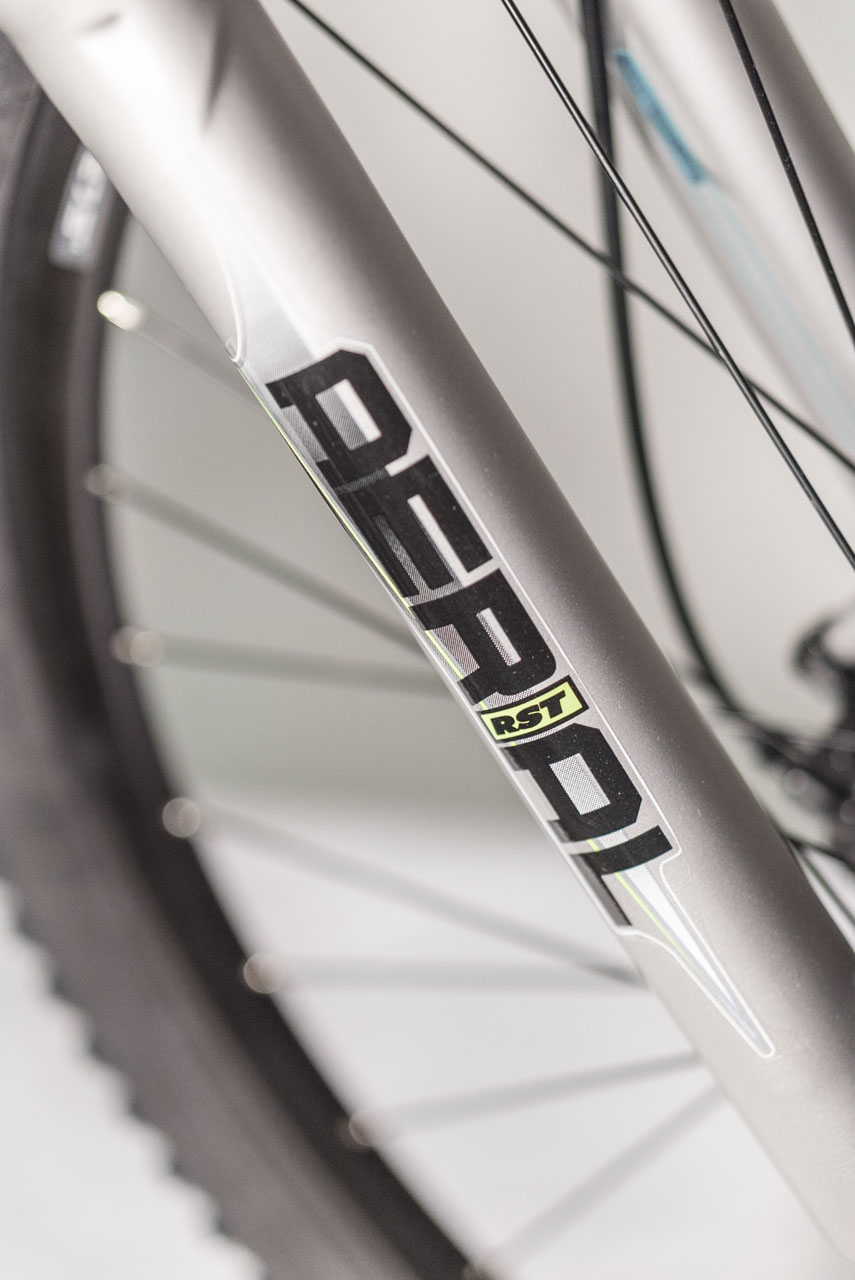

Front forkRST Aerial 27.5 TnL air, lock out (100 mm)

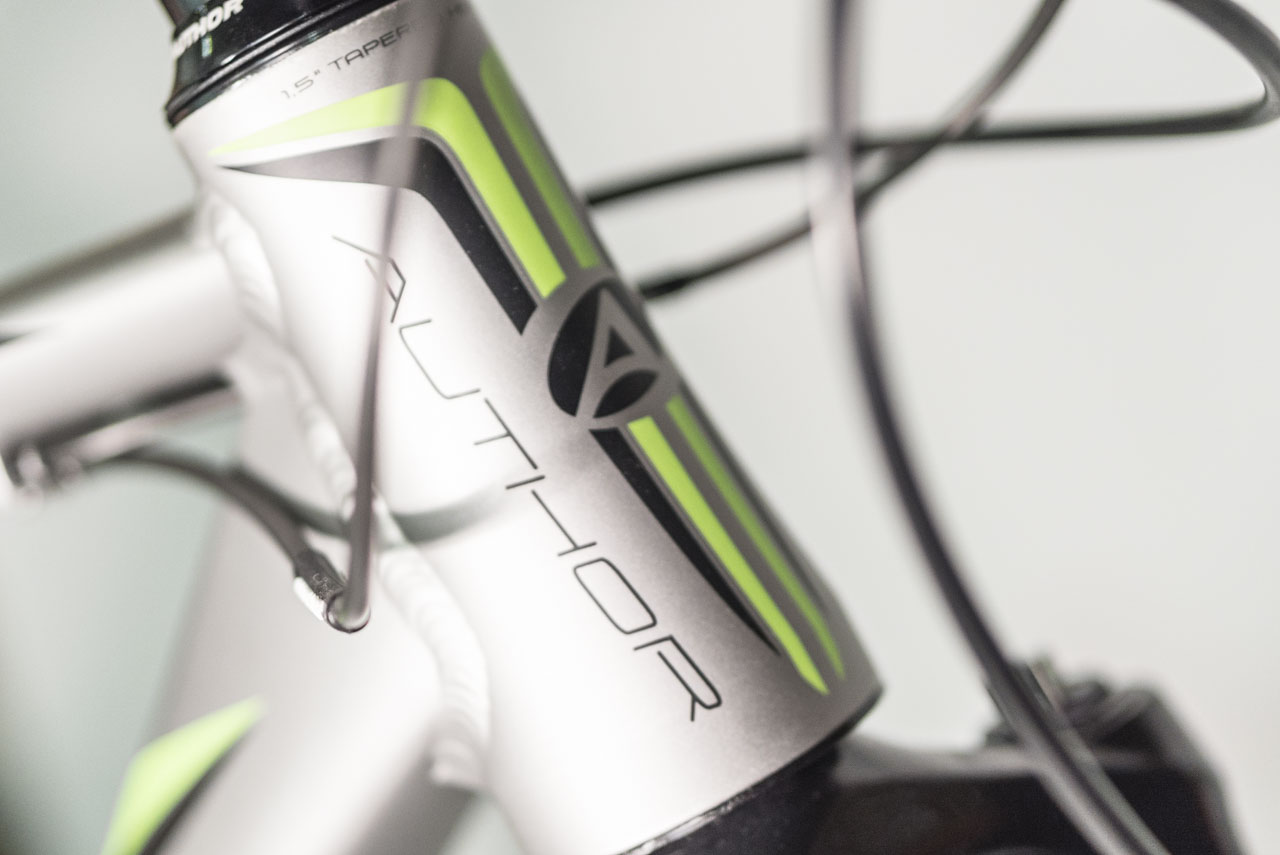

Head partsAUTHOR Integrated 1.5" tapered

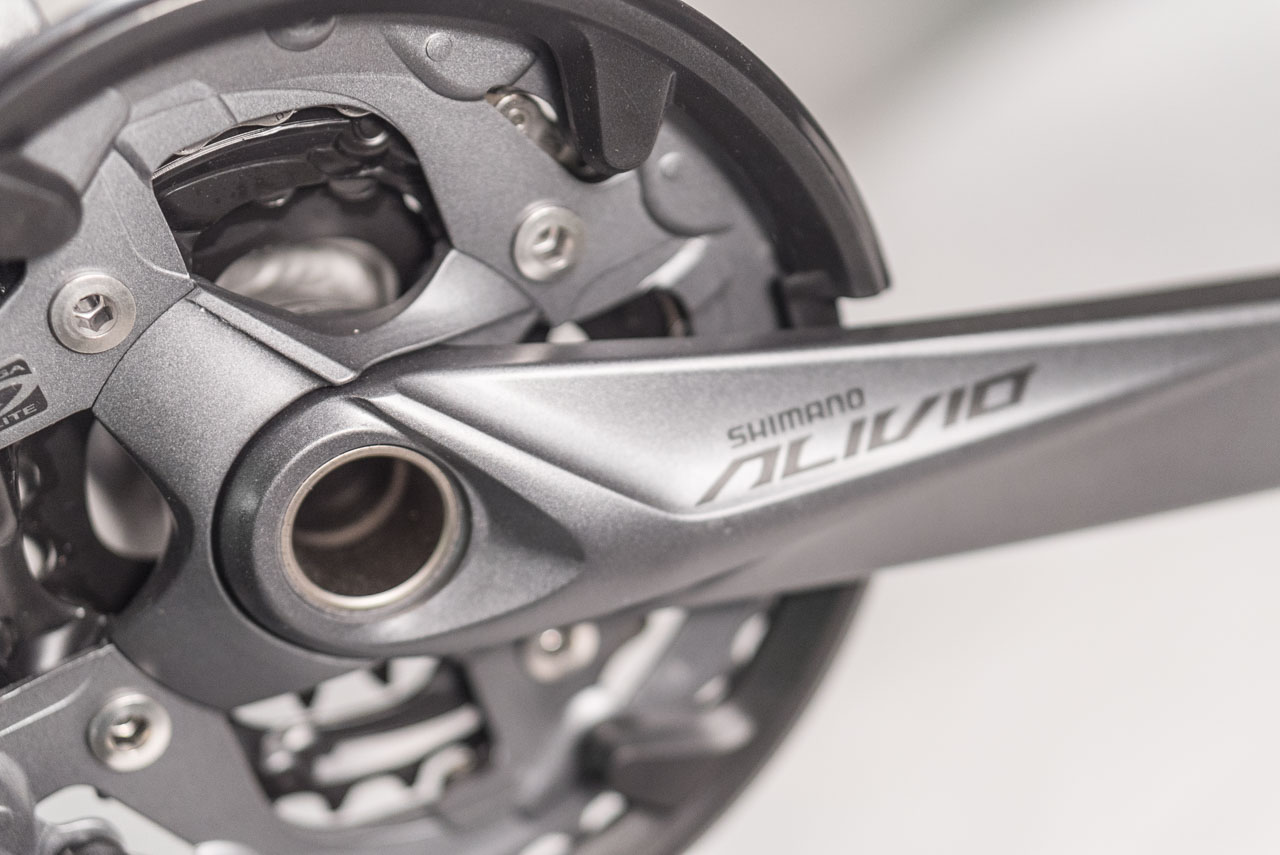

Chain WheelSHIMANO Alivio 40-30-22 teeth 170 / 175 mm cranks
BBPartsSHIMANO BB52 BB unit

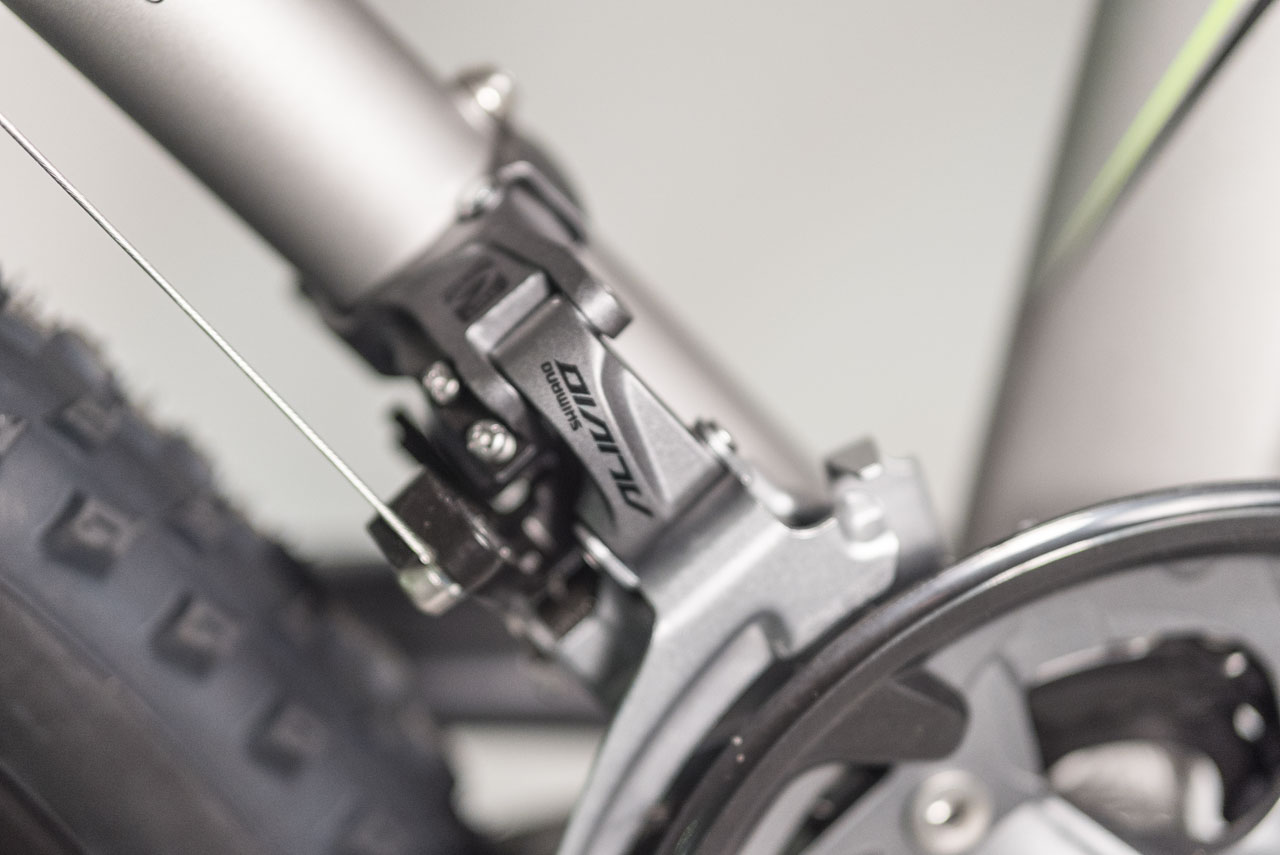

Front derailleurSHIMANO Alivio (34.9)

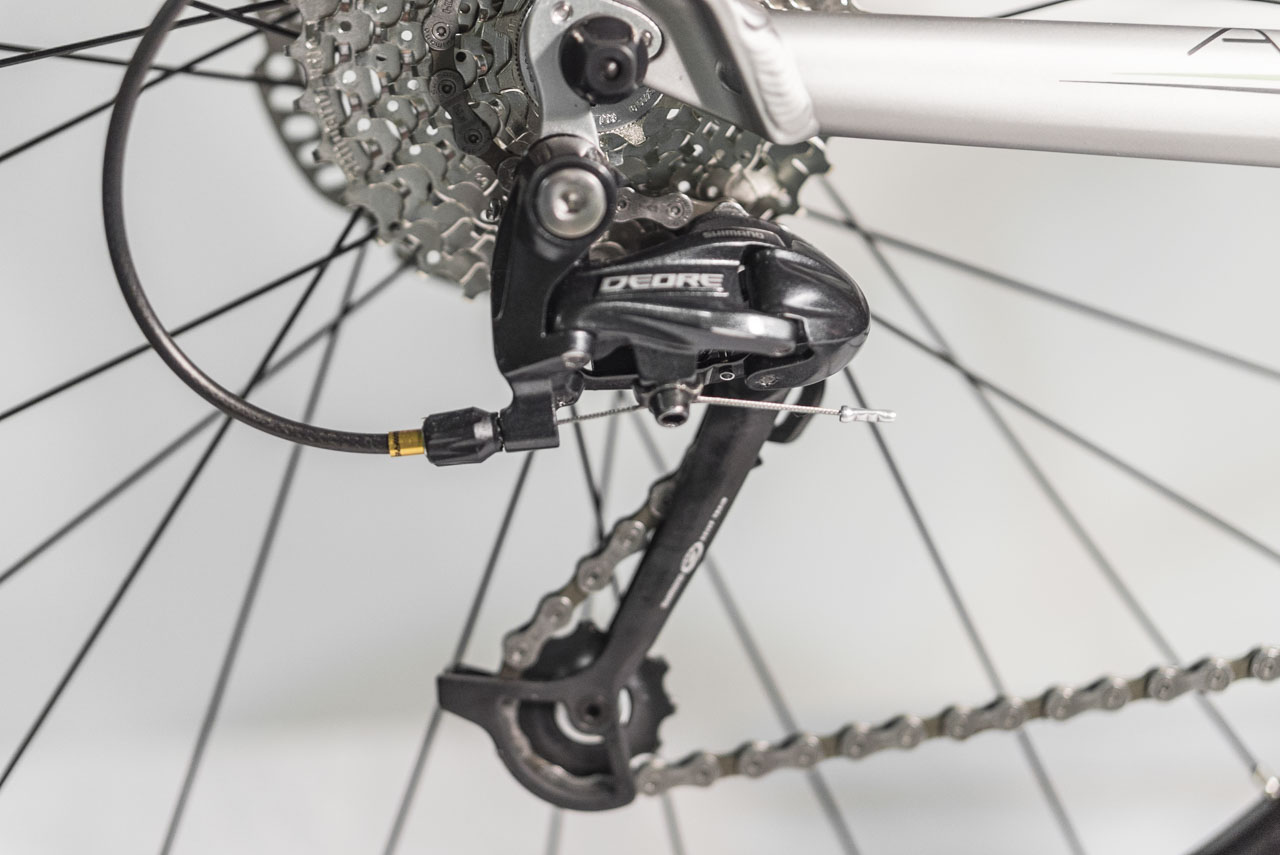

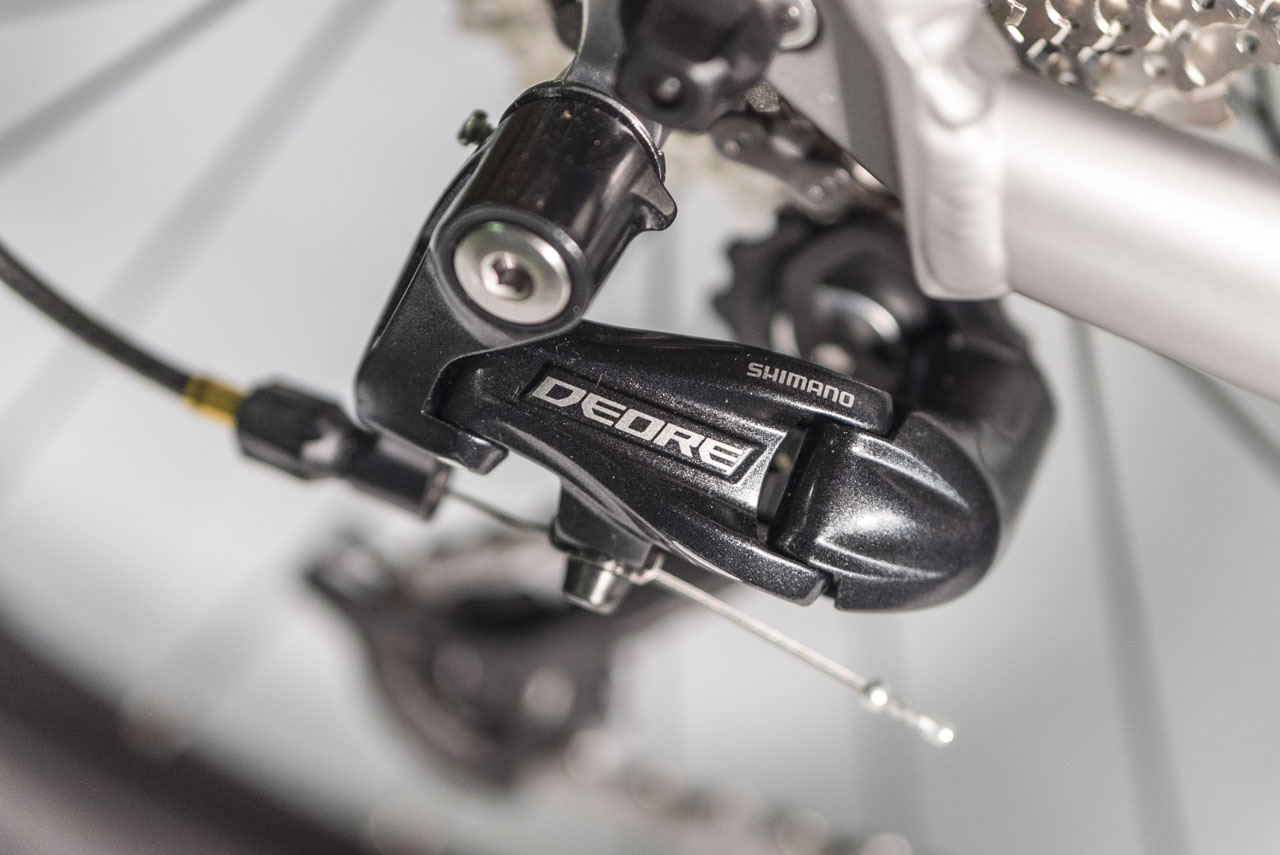

Rear derailleurSHIMANO Deore

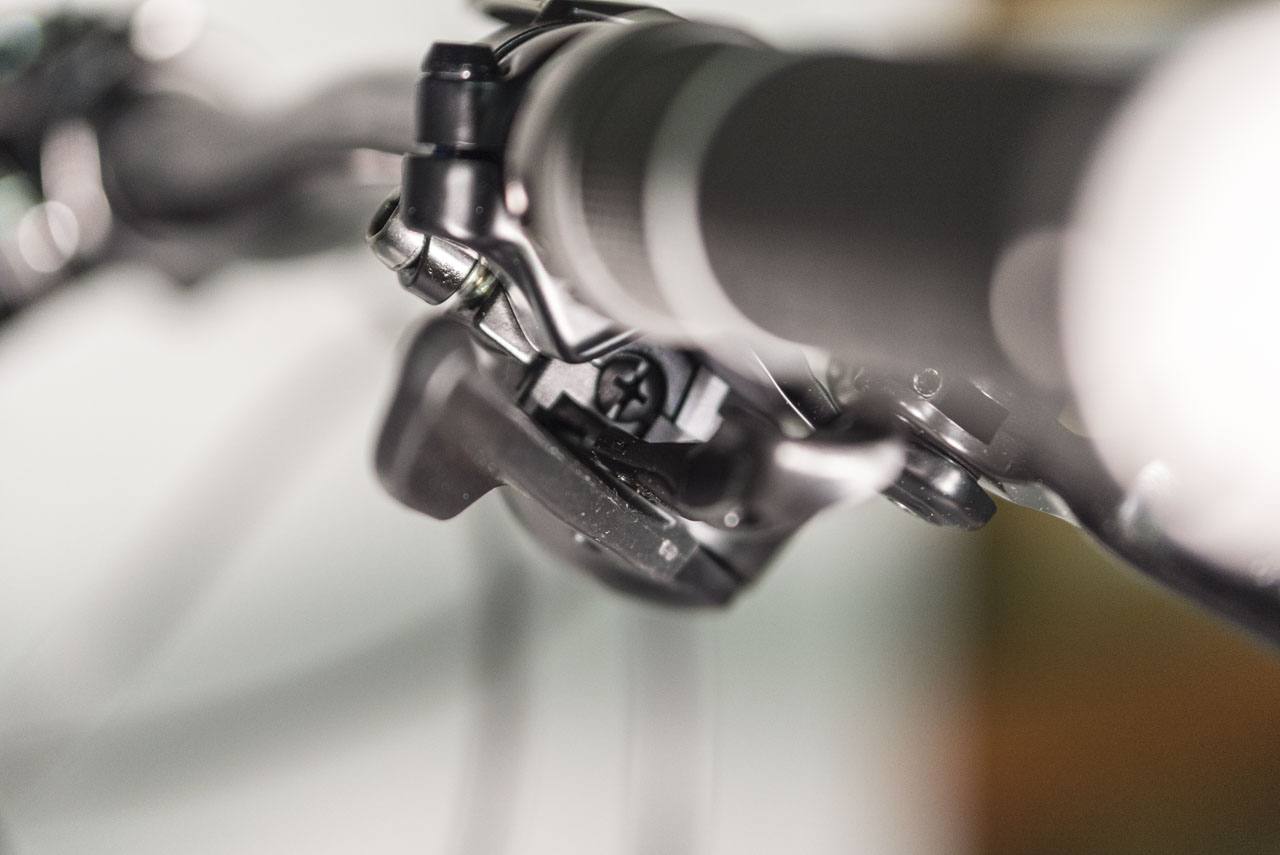

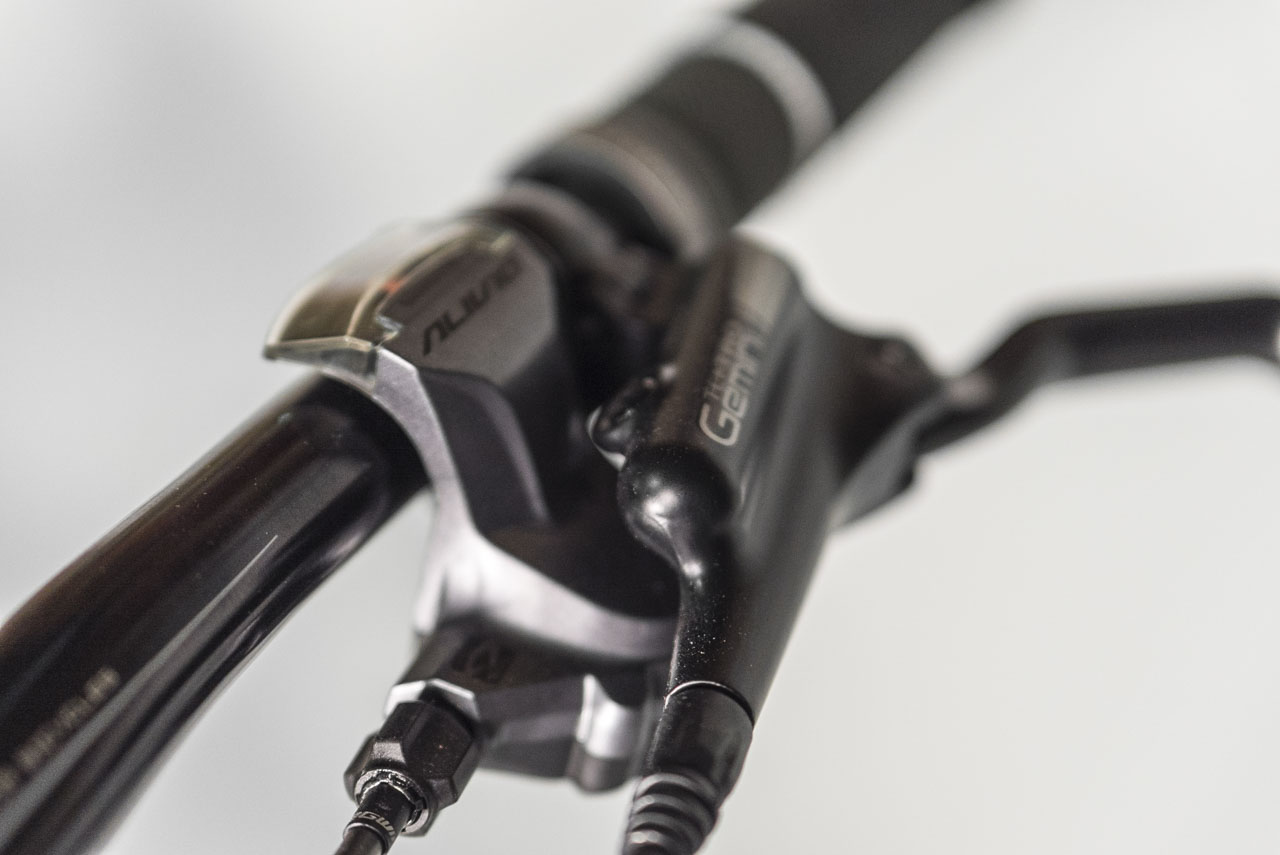

ShiftersSHIMANO Alivio (27)
Free wheelSHIMANO HG400-9 11-34 (9)

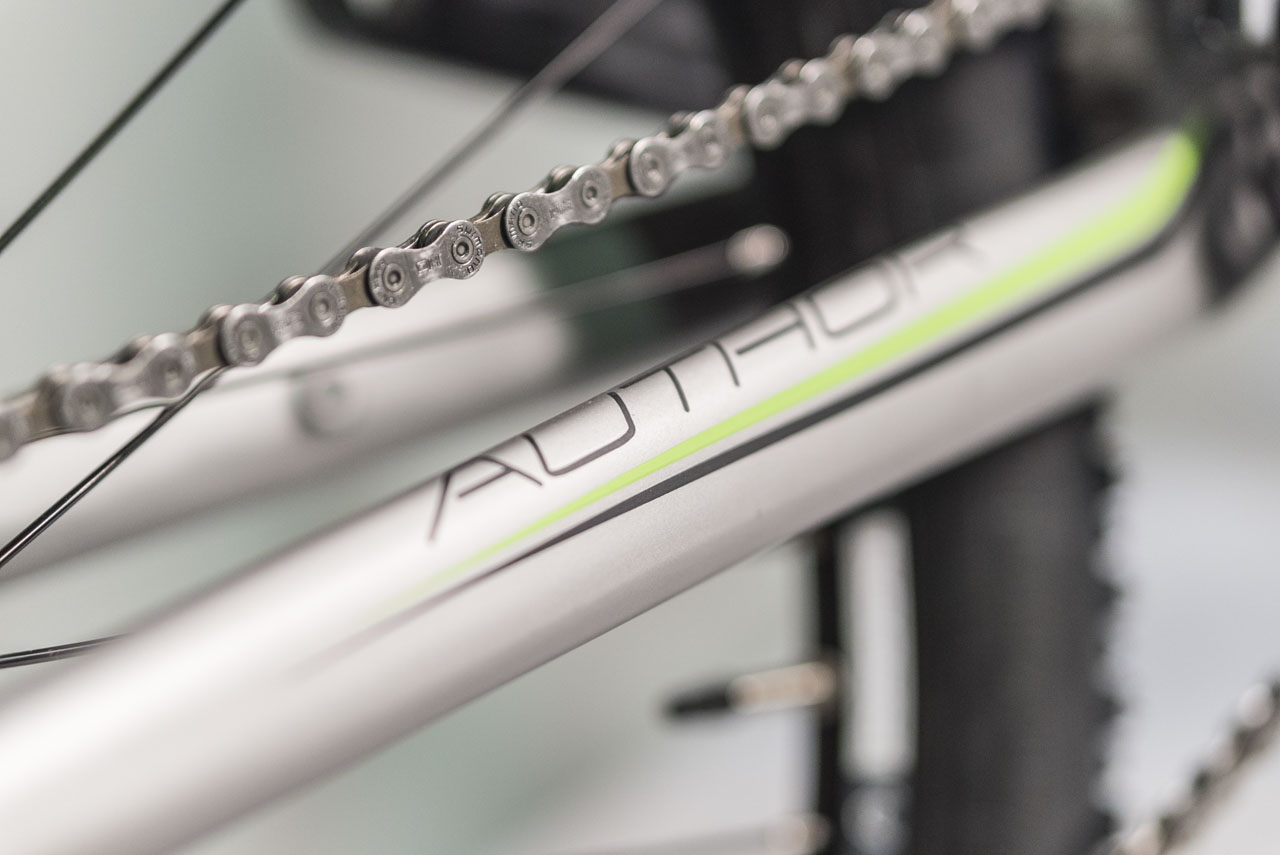

ChainSHIMANO HG53
HubsAUTHOR Radon 32 holes

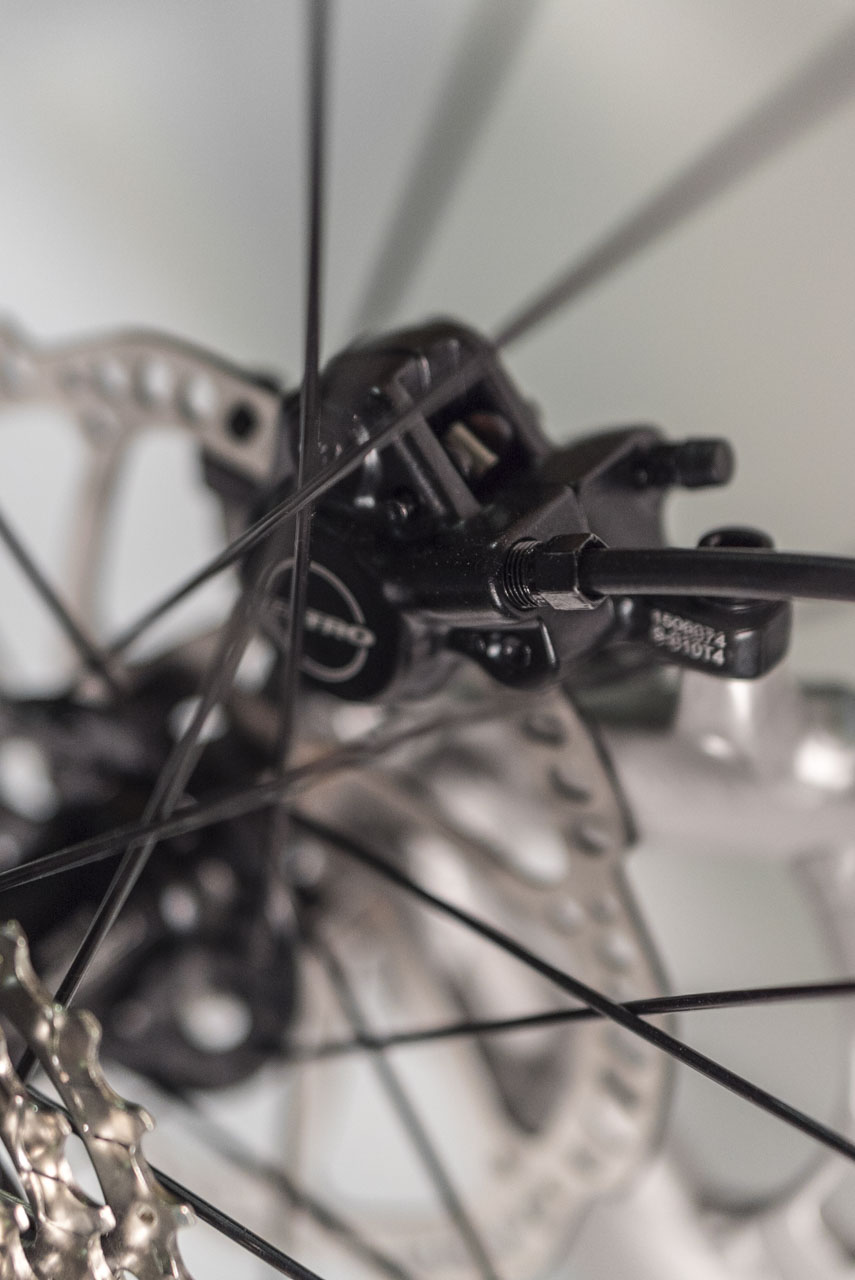

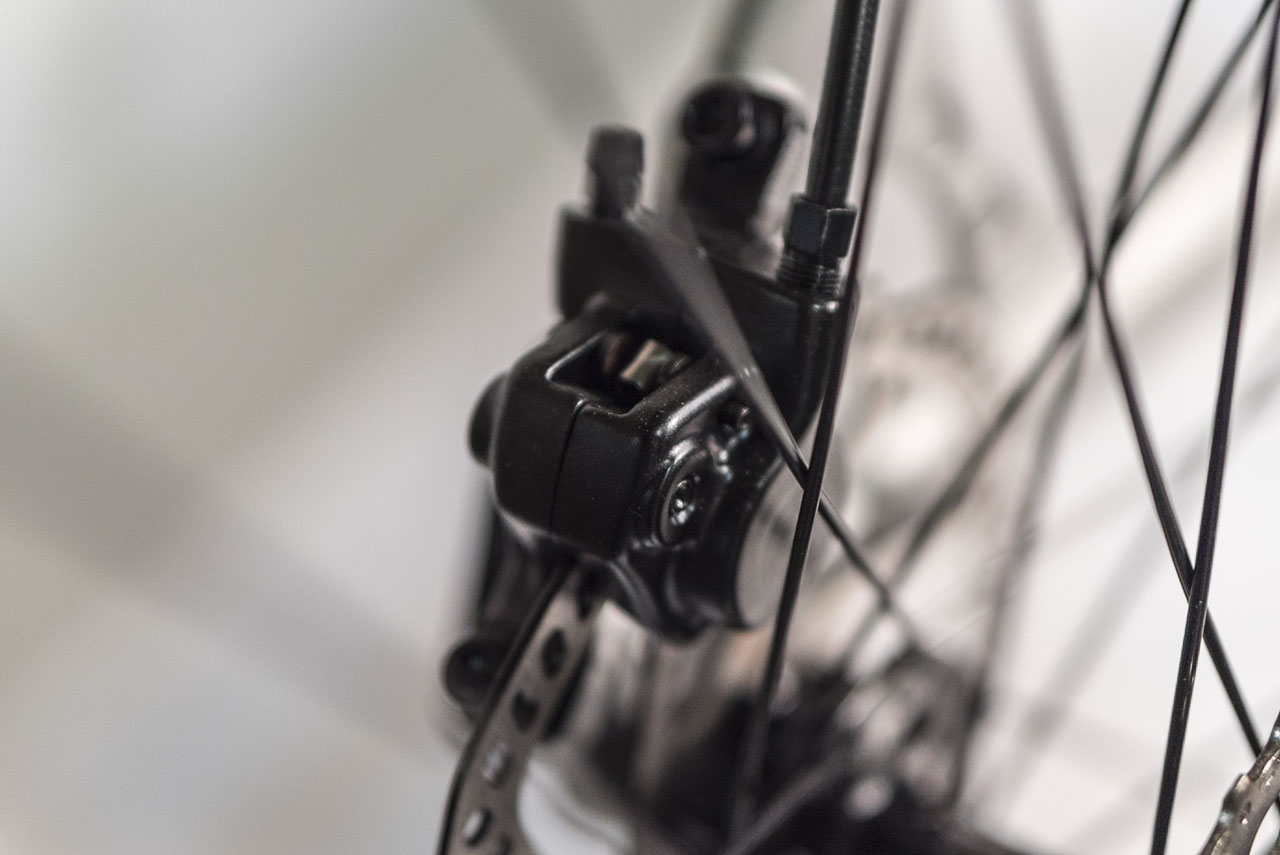

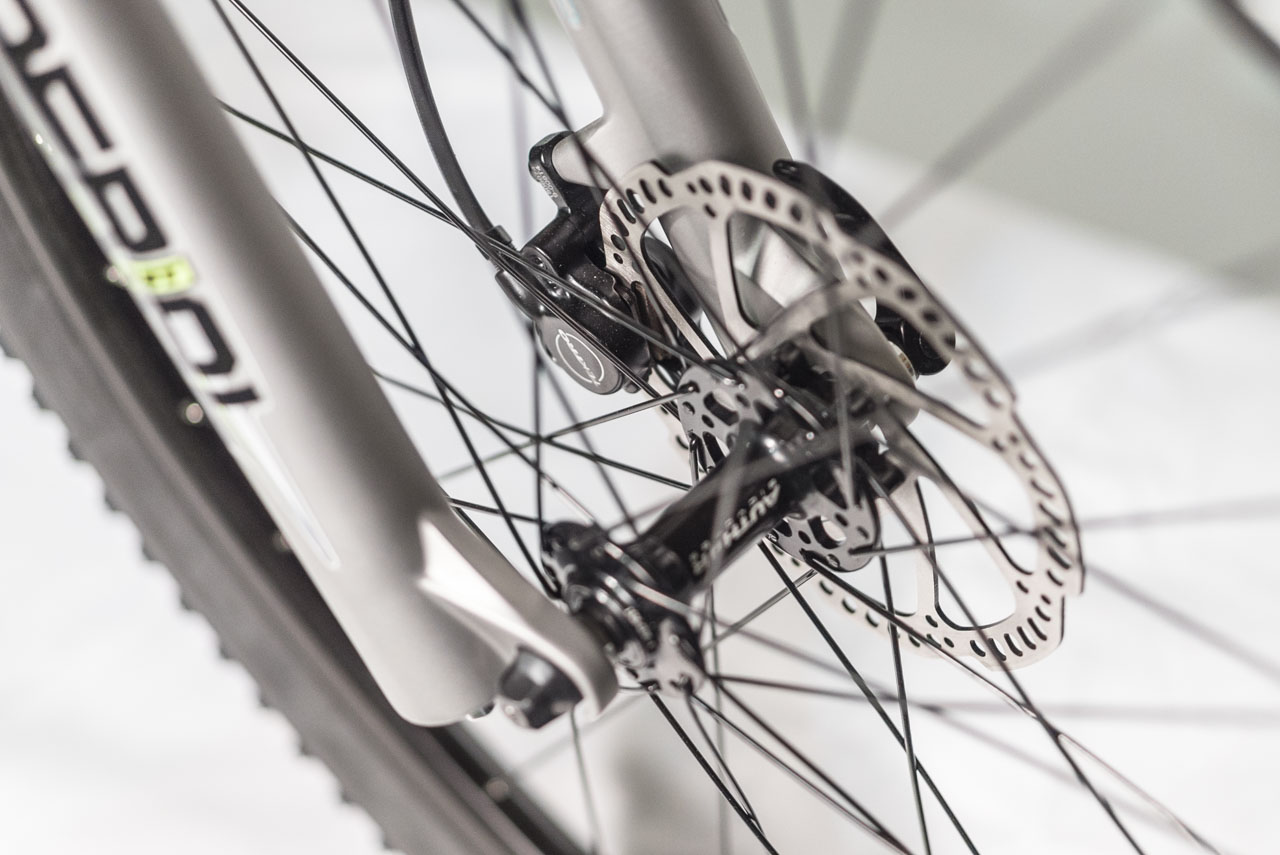

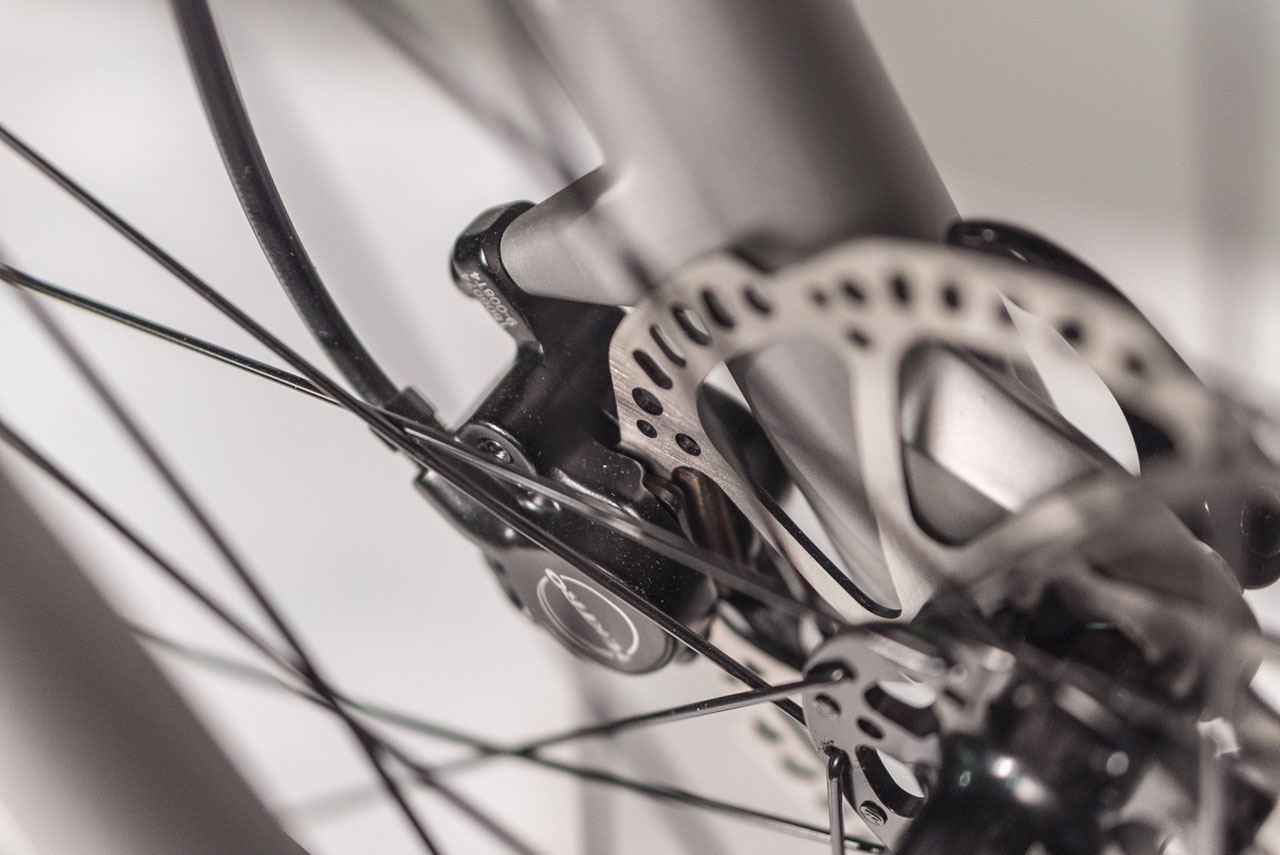

BrakesTEKTRO Gemini disc hydraulic (6" rotors)
Brakes leversTEKTRO Gemini
RimsAUTHOR Radon Pro 27.5 32 holes
Spokesblack stainless steel 2.0 mm
TiresVITTORIA Barzo 27.5" x 2.10"
PedalsAUTHOR alloy

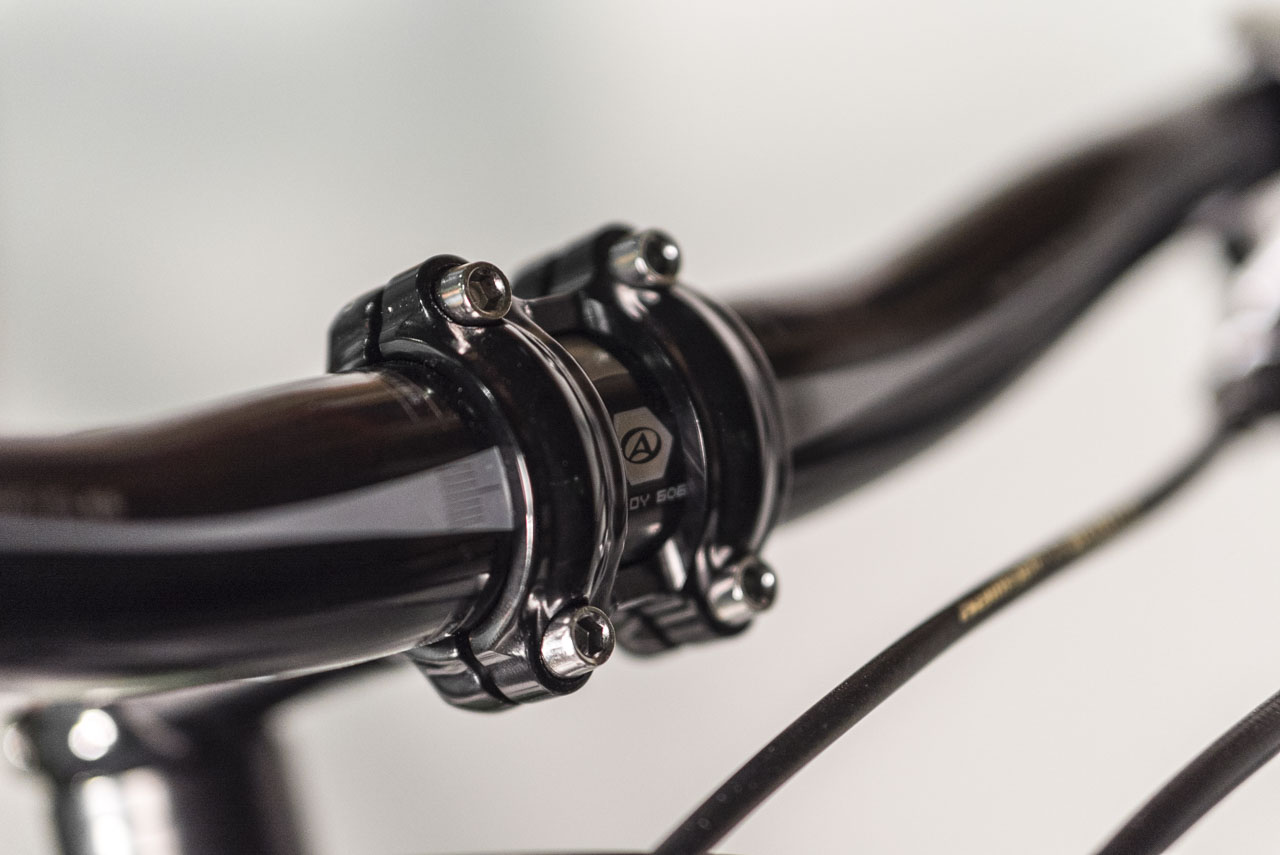

HandlebarAUTHOR 15 mm 660 / 680 mm
GripsAUTHOR Pro Lock

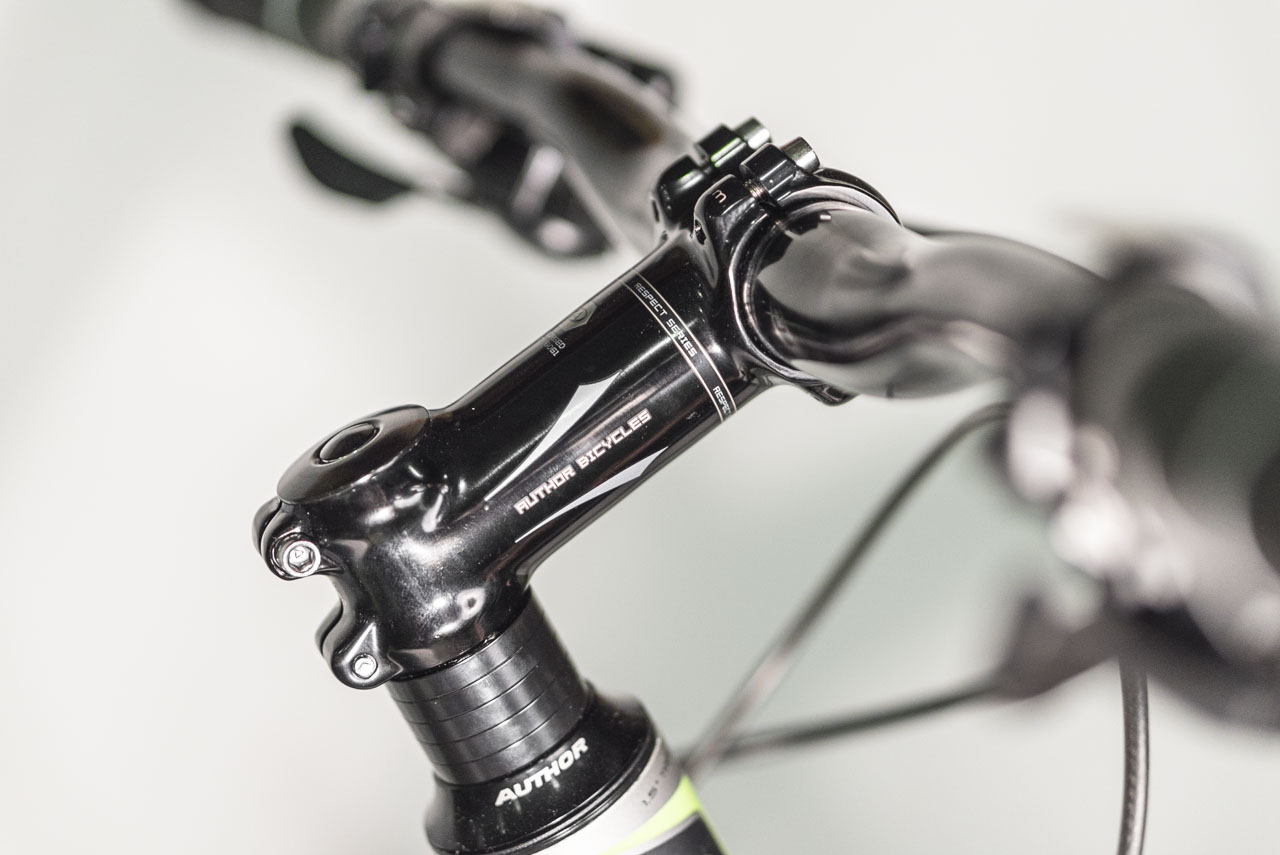

StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)

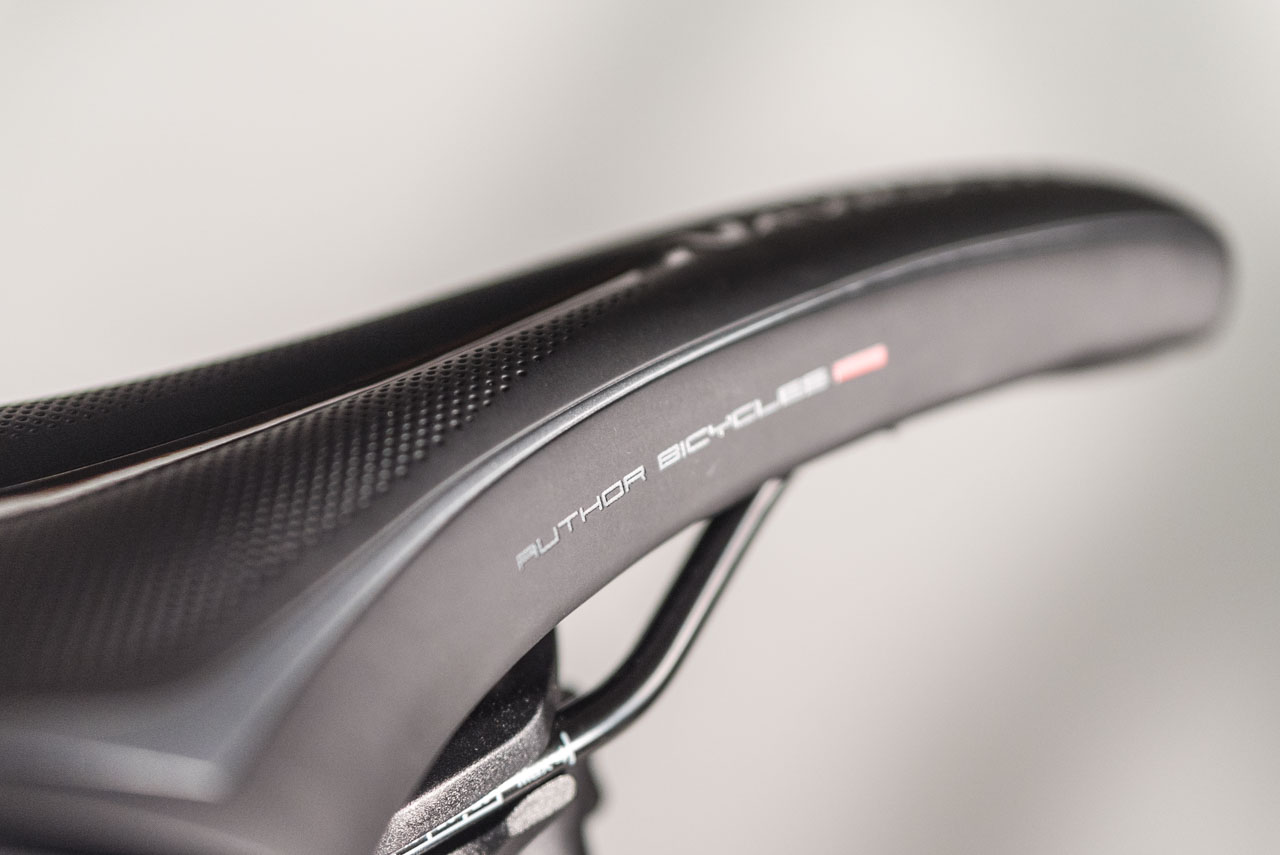

SaddleAUTHOR Navigator
Speed27
Weight13.5 kg / 19"

Geometry and sizes

Size 15" 17" 19" 21"
Min. figure [cm] 145 155 170 182
Max. figure [cm] 158 172 185 195
S/T c-t [mm] 381 432 483 533
S/T c-c [mm] 0 0 0 0
T/T h [mm] 570 590 615 635
T/T a [mm] 540 554 578 602
H/T [mm] 115 125 130 140
C/S [mm] 435 435 435 435
W/B [mm] 1056 1076 1101 1121
S/T ang. [°] 73 73 73 73
H/T ang. [°] 69 69 69 69
F/L [mm] 495 495 495 495
B/B drop [mm] 35 35 35 35
B/B width [mm] 68 68 68 68
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 44 44 44 44
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
195 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Traction 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

silver-matt / green15" = UA#42863701   17" = UA#42863702   19" = UA#42863703   21" = UA#42863704

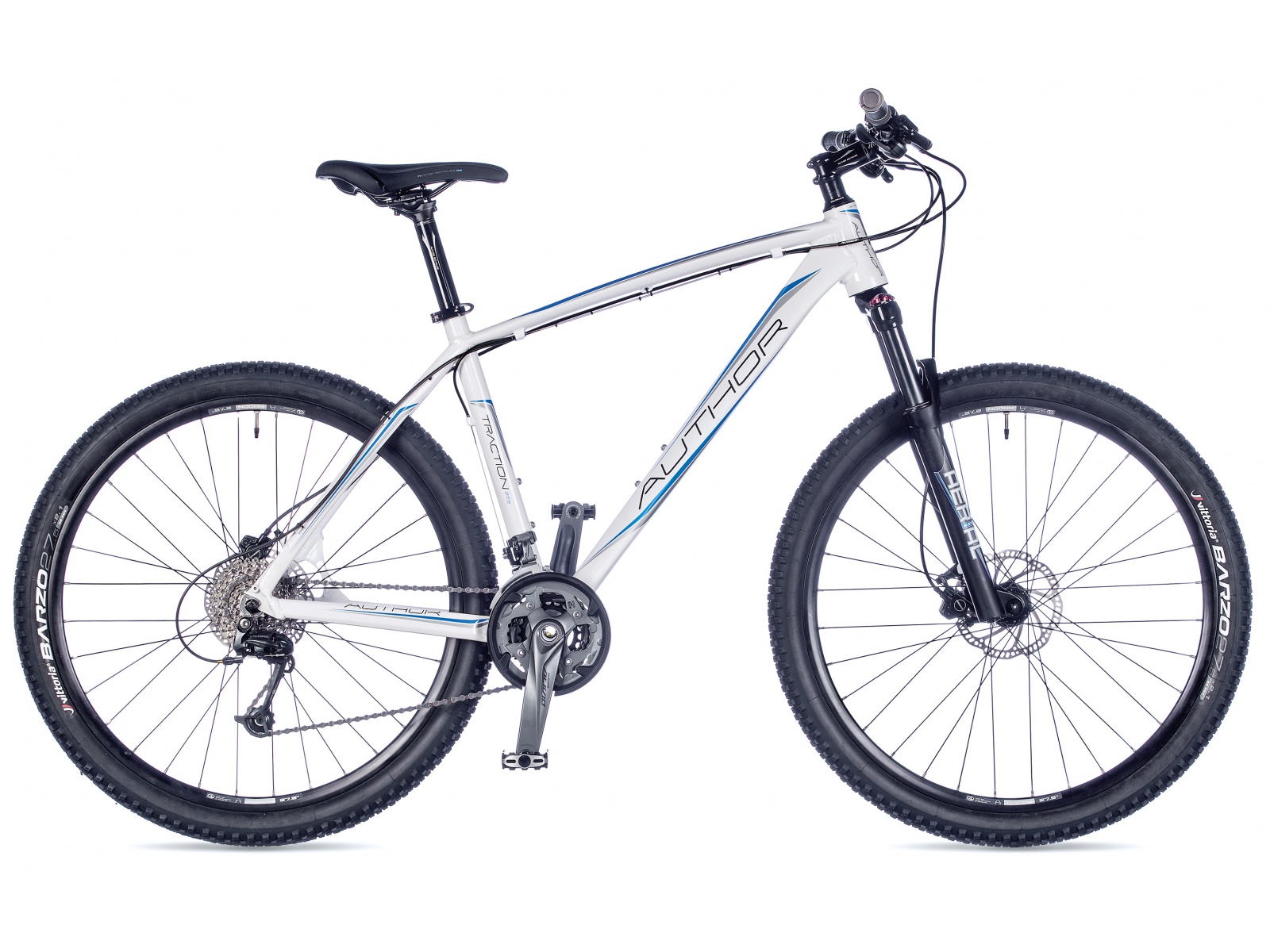

white / blue / black17" = UA#42863712   19" = UA#42863713   21" = UA#42863714
