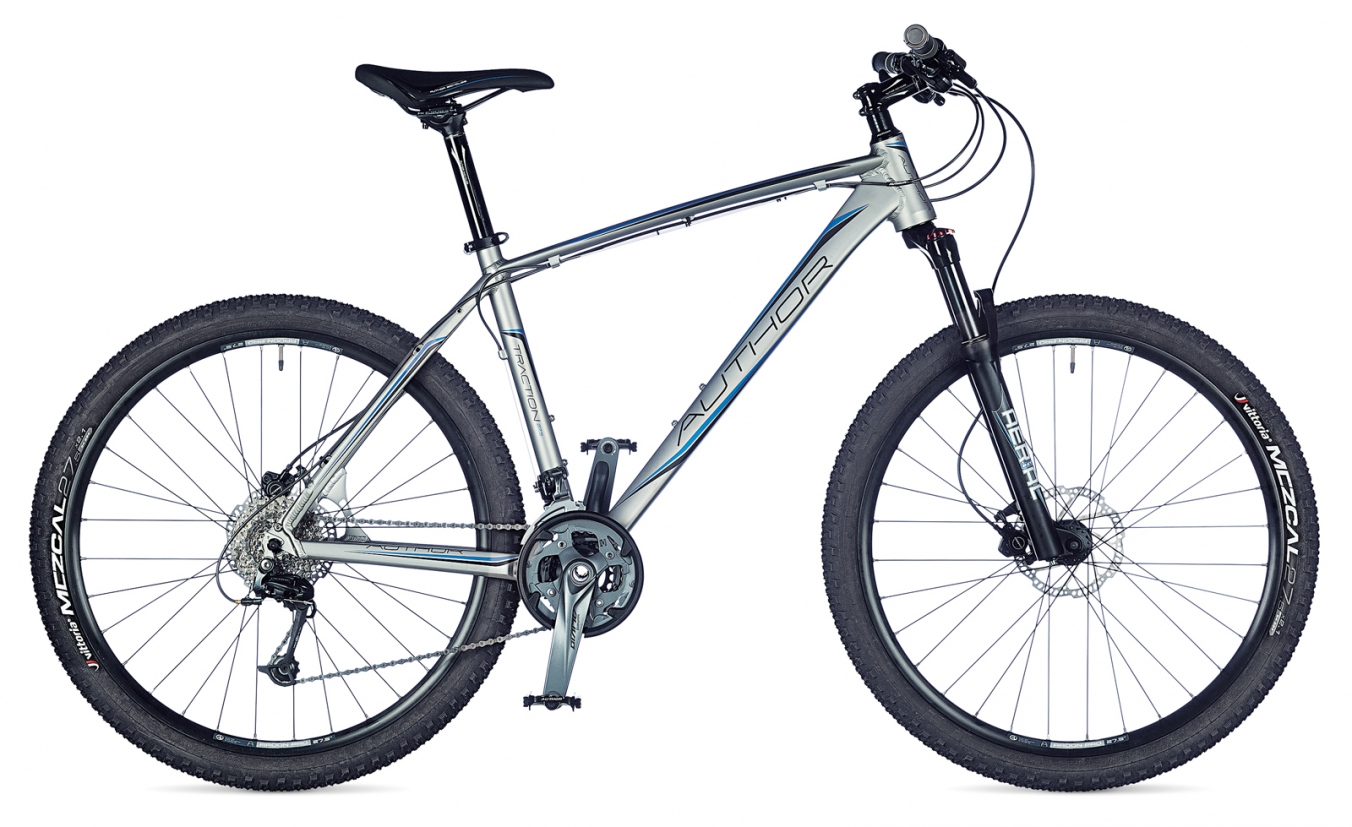

AUTHOR Bicycle Traction 2015
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Traction 2015Archivní model 2015

Double butted alloy frame with hydroroformed shapingAir remote lock out fork RST AerialDisc hydraulic TEKTRO brakes
SOLD OUT

Mountain bike Author TRACTION on double butted hydroformed alloy frame and air, RST Aerial fork with lock out unit.

other models
Interested in other model`s year?

Technical specification

Size15", 17", 19", 21"
Framedouble butted alloy 6061 27.5" - hydroforming
Front forkRST Aerial 27.5 TnL air, lock out (100 mm)
Head partsAUTHOR Integrated 1.5" tapered
Chain WheelSHIMANO Alivio 40-30-22 teeth 170 / 175 mm cranks
BBPartsSHIMANO Alivio BB unit
Front derailleurSHIMANO Alivio (34.9)
Rear derailleurSHIMANO Deore
ShiftersSHIMANO Alivio (27)
Free wheelSHIMANO HG400-9 11-34 (9)
ChainSHIMANO HG-53
HubsAUTHOR Xenon Disc 32 holes
BrakesTEKTRO Gemini disc hydraulic (6" rotors)
Brakes leversTEKTRO Gemini
RimsAUTHOR Radon Pro 27.5 32 holes
Spokesblack stainless steel 2.0 mm
TiresVITTORIA Mezcal 27.5" x 2.10"
PedalsAUTHOR alloy
HandlebarAUTHOR 15 mm 660 / 680 mm
GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Navigator
Speed27
Weight13.4 kg / 19"

Geometry and sizes

Size 15" 17" 19" 21"
Min. figure [cm] 148 158 169 182
Max. figure [cm] 162 172 184 195
S/T c-t [mm] 381 432 483 533
S/T c-c [mm] 0 0 0 0
T/T h [mm] 570 585 600 615
T/T a [mm] 555 563 575 590
H/T [mm] 110 117 125 132
C/S [mm] 425 425 425 425
W/B [mm] 1060 1075 1091 1100
S/T ang. [°] 73 73 73 72.5
H/T ang. [°] 70 70 70 70
F/L [mm] 495 495 495 495
B/B drop [mm] 40 40 40 40
B/B width [mm] 73 73 73 73
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 44 44 44 44
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Traction 2015

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
