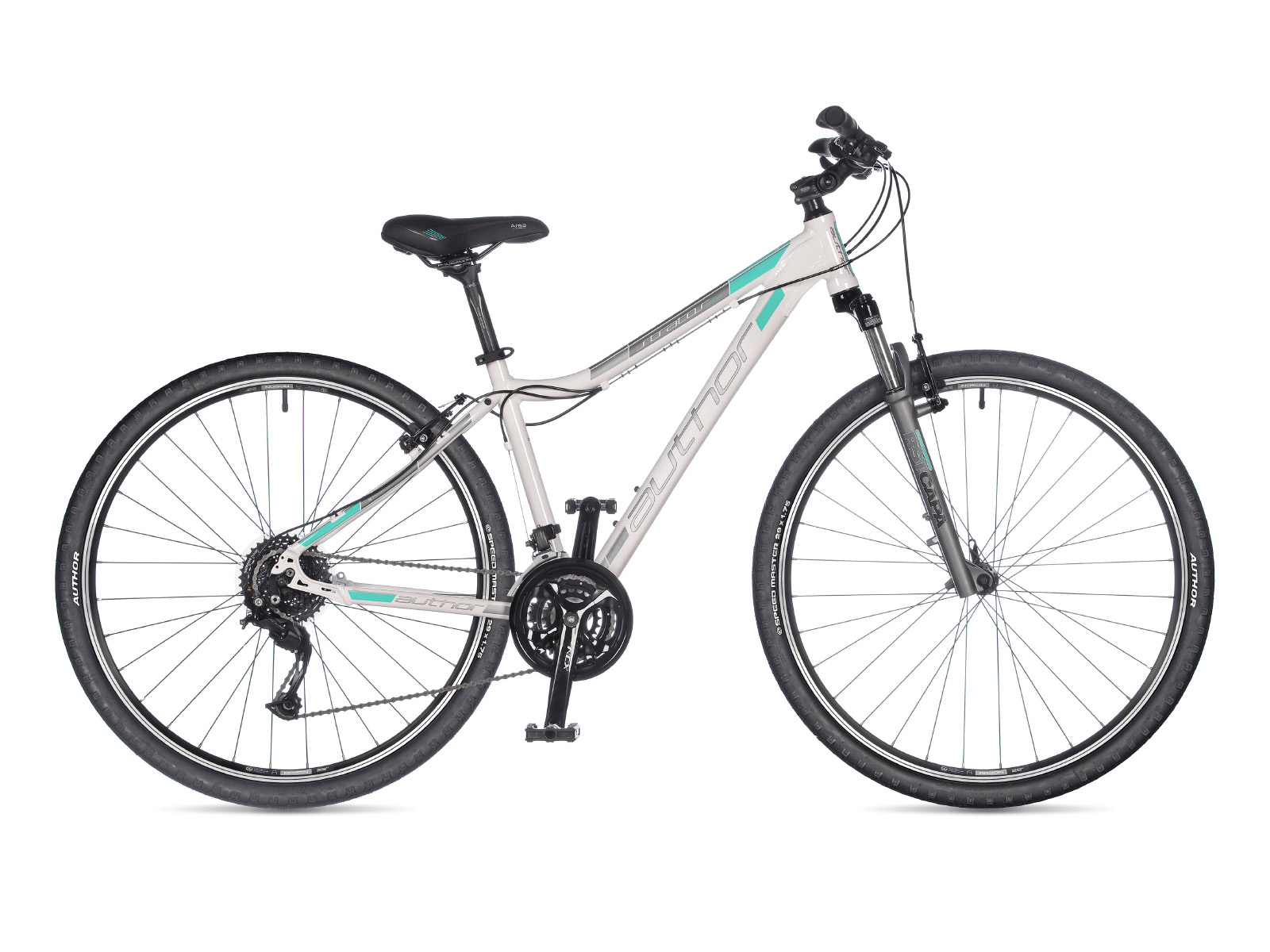

Stratos ASL 2023-24

~~Colour variants~~

Alloy ASL frameLock out fork RST CAPA 29 MLMechanical V-brakes TektroSHIMANO components, 27 speedAUTHOR Speed Master 29" × 1.75" tiresAUTHOR ErgoGrip Lock comfortable gripsAUTHOR Area Gel saddle

~~Buy now~~special price 15 990 Kč

original price ~~17 990 Kč~~

Technical specification

Size	15", 17", 19"

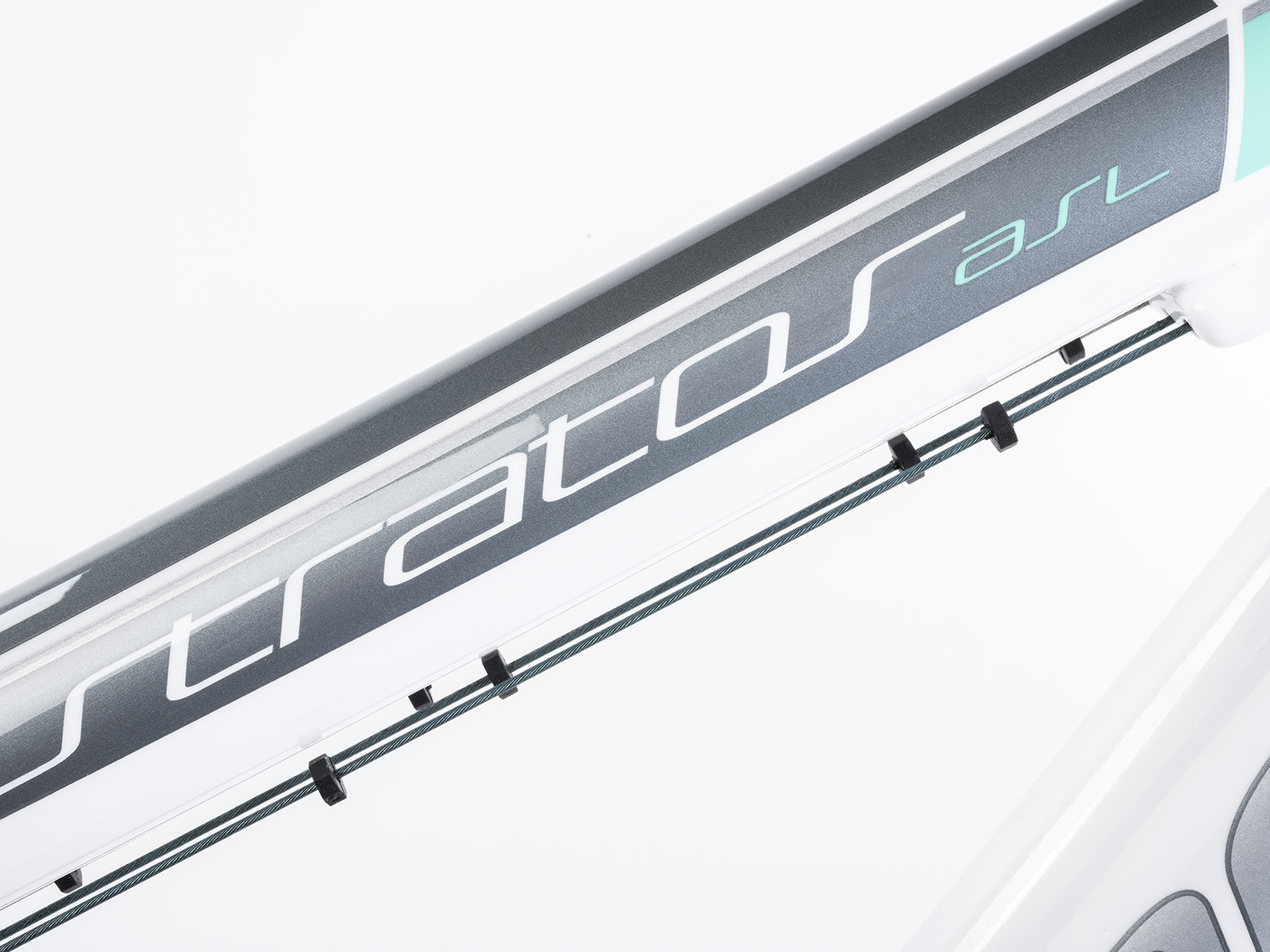

Frame	alloy 6061 29" (ASL)

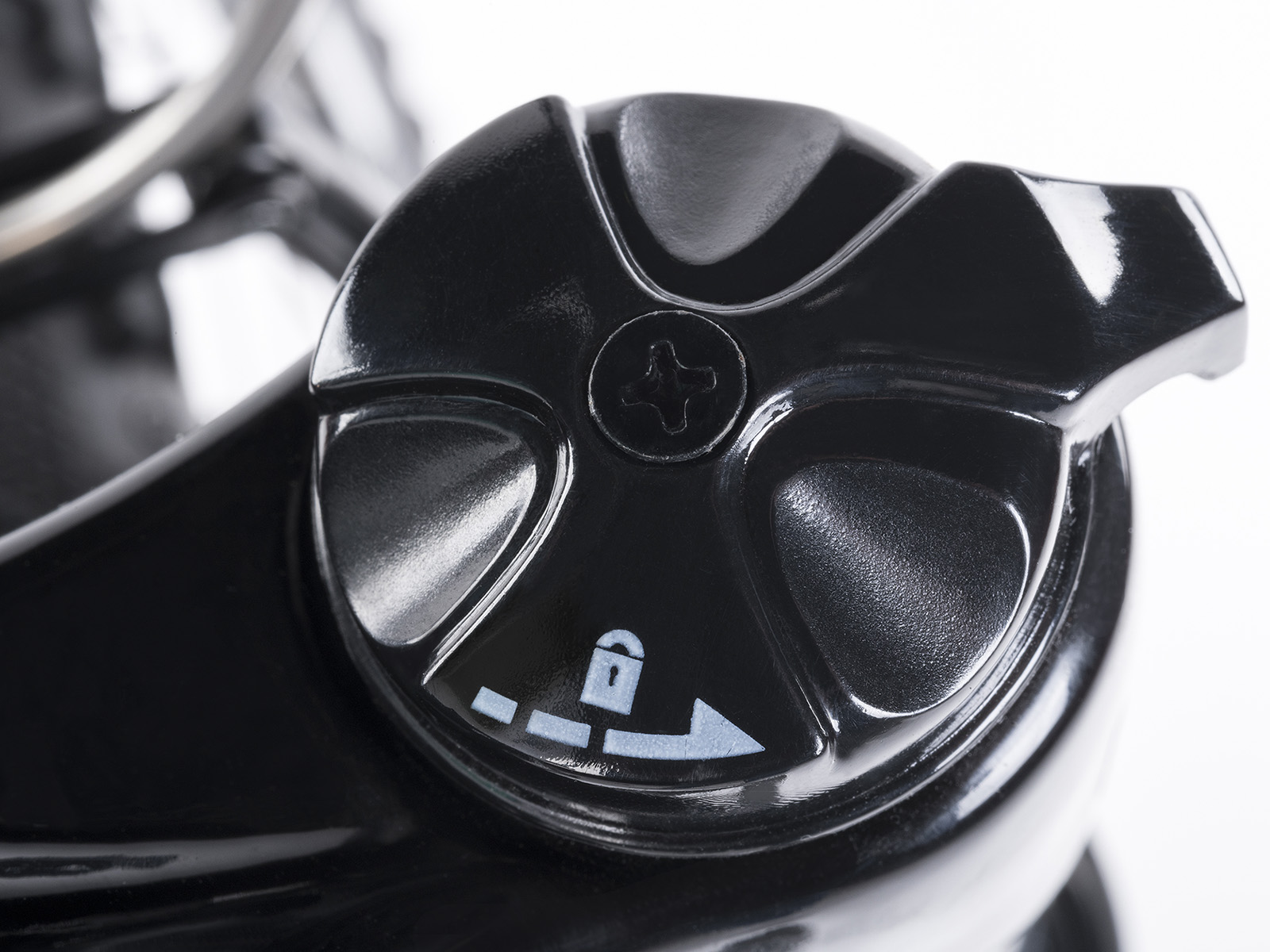

Front fork	RST Capa 29 ML lock out (80 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL Burner, 44-32-22 teeth, 170 / 175 mm cranks
BBParts	VP COMP, cartridge
Front derailleur	SHIMANO Altus (31.8)
Rear derailleur	SHIMANO Alivio
Shifters	SHIMANO Acera (27)
Free wheel	SHIMANO HG200-9, 11-36 (9)
Chain	KMC Z9
Hubs	QUANDO, 32 holes
Brakes	TEKTRO V
Brakes levers	TEKTRO alloy

Rims	AUTHOR Argon 29, 32 holes
Spokes	black stainless steel 2.0 mm
Tires	AUTHOR Speed Master 29" × 1.75"
Pedals	AUTHOR Non Slip alloy
Handlebar	AUTHOR 25 mm, 660 / 680 mm

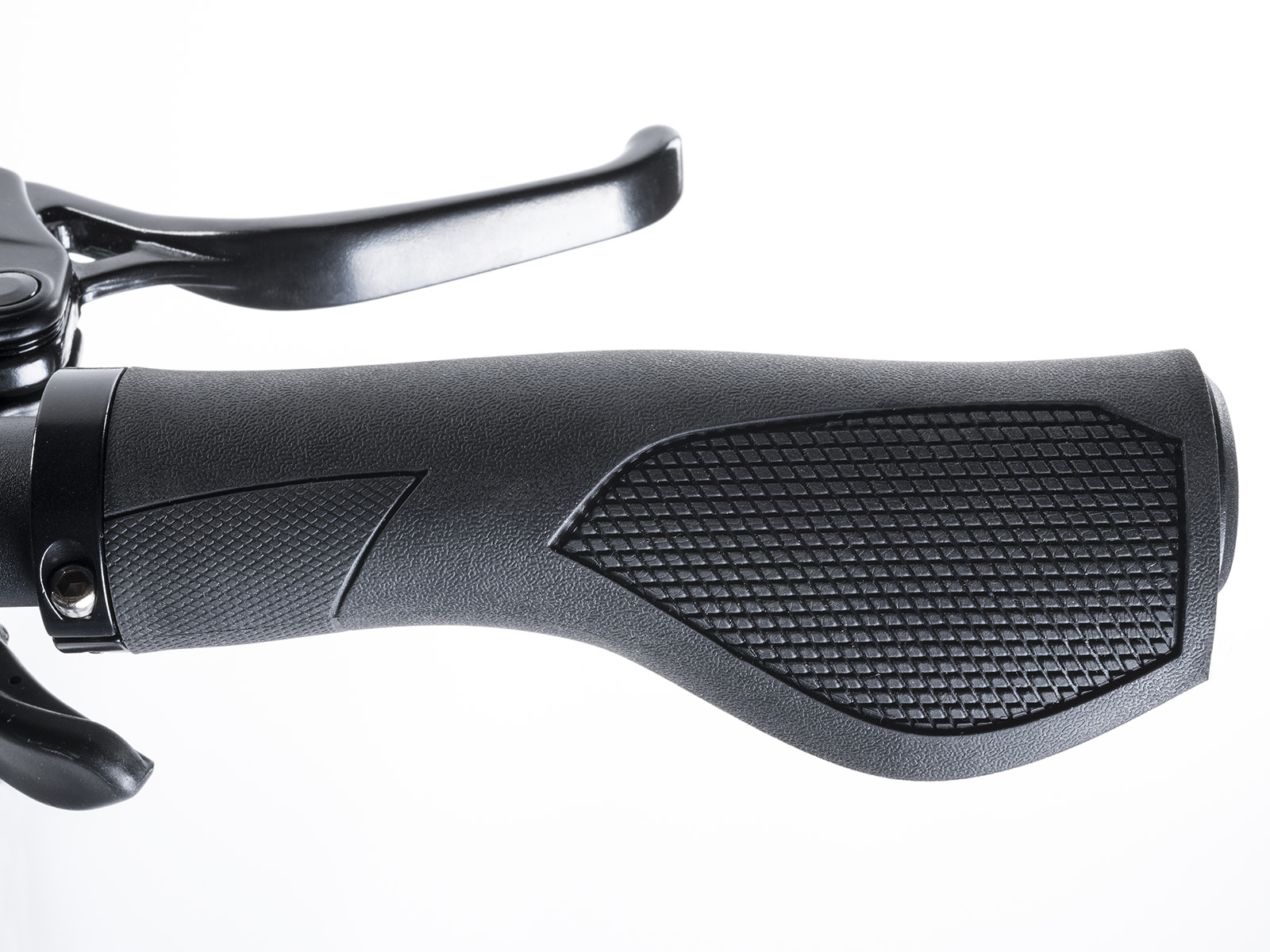

Grips	AUTHOR ErgoGrip Lock
Stem	UNO adjustable
Seat post	AUTHOR alloy (27.2)
Seat clamp	AUTHOR (31.8)

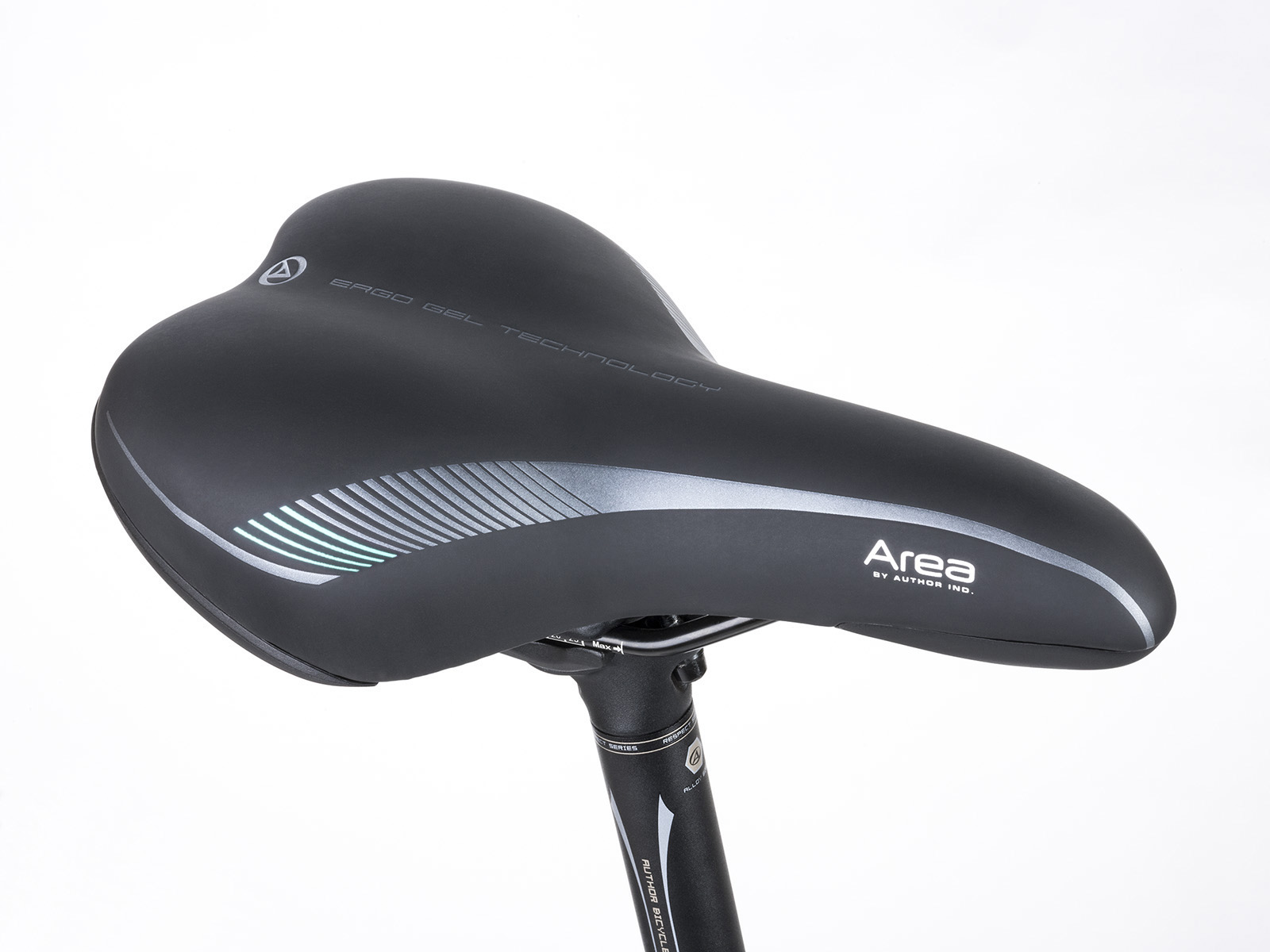

Saddle	AUTHOR Area Gel
Speed	27
Weight	13,9 kg / 17"

Geometry and sizes

Size	17"	19"
Min. figure ~~[cm]~~	155	170
Max. figure ~~[cm]~~	172	185
S/T c-t ~~[mm]~~	432	483
S/T c-c ~~[mm]~~	0	0
T/T h ~~[mm]~~	570	590
T/T a ~~[mm]~~	549	566
H/T ~~[mm]~~	120	130
C/S ~~[mm]~~	450	450
W/B ~~[mm]~~	1077	1098
S/T ang. ~~[°]~~	73.5	73.5
H/T ang. ~~[°]~~	70.5	70.5
F/L ~~[mm]~~	490	490
B/B drop ~~[mm]~~	60	60
B/B width ~~[mm]~~	68	68
Reach ~~[mm]~~	0	0
Stack ~~[mm]~~	0	0
F/R ~~[mm]~~	44	44
Handlebars ~~[mm]~~	0	0
Stem ~~[mm]~~	0	0
Cranks ~~[mm]~~	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		17"	17 stores				4294870225
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ bikee.cz		in stock	buy now	Kutná Hora	327 513 119, cyklo@autocombi.cz	map
	▪ CykloCentrum Mladá Boleslav		in stock	buy now	Mladá Boleslav	725 121 447, boleslav@cyklocentrum.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ OtroKolo, s.r.o.		in stock	buy now	Otrokovice	775575822, info@otrokolo.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		19"	14 stores				4294870325
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ bikee.cz		in stock	buy now	Kutná Hora	327 513 119, cyklo@autocombi.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

additional accessories

299 KčL&R35 X7Bottle cage Author ABC-35, easy bottle removing from side direction (left or right according the fix ... more »

1/3

250 KčABC-37Bottle cage, Light AL 6061T bottle cage, strong construction with universal mount, bottle removing f ... more »

1/3

499 KčR211 TWINThe Author saddle bag A-R211 TWIN is the easy bag with the one main compartment on each side. Design ... more »

425 KčR281 F GSBFrame bag, universal velcro attachment for fixation in front frame triangle (on most of types of fra ... more »

1/2

150 Kč ~~275 Kč~~ R250 TWaterproof top frame bag, universal velcro fixation for most bicycle frames, 3 separate inside pocke ... more »

1/4

399 KčS315 TPNThe Author saddle bag A-S315 TPN is the easy bag with the one main pocket and separate compartments ... more »

1/2

399 KčAKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 32 mm), recomen ... more »

1/2

499 KčAKS-570 R40Lightweight and high performing kick Stand Author for frame dropout fixation AUTHOR IS-R40. For whee ... more »

1/3

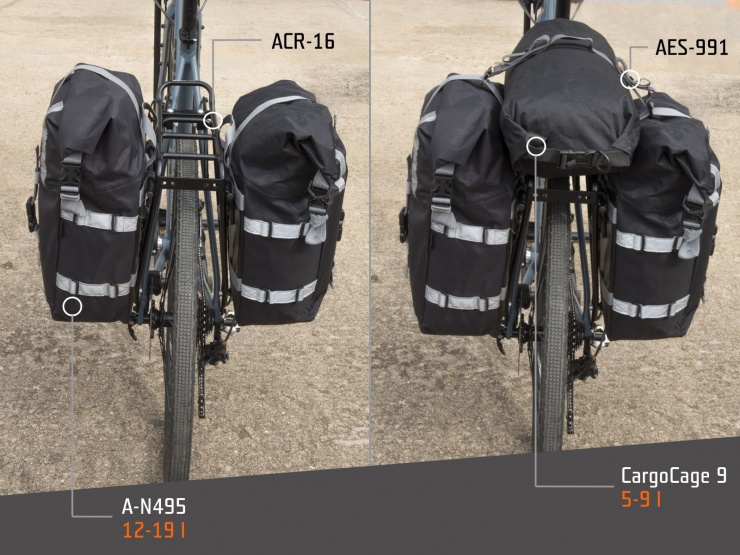

695 KčACR-16-AluA tough rear rack AUTHOR ACR-16-Alu. Equipped with adjustable legs to fit most 24” to 29” wheel ... more »
