AUTHOR STRATOS ASL 2012
  » Bicycles » cross

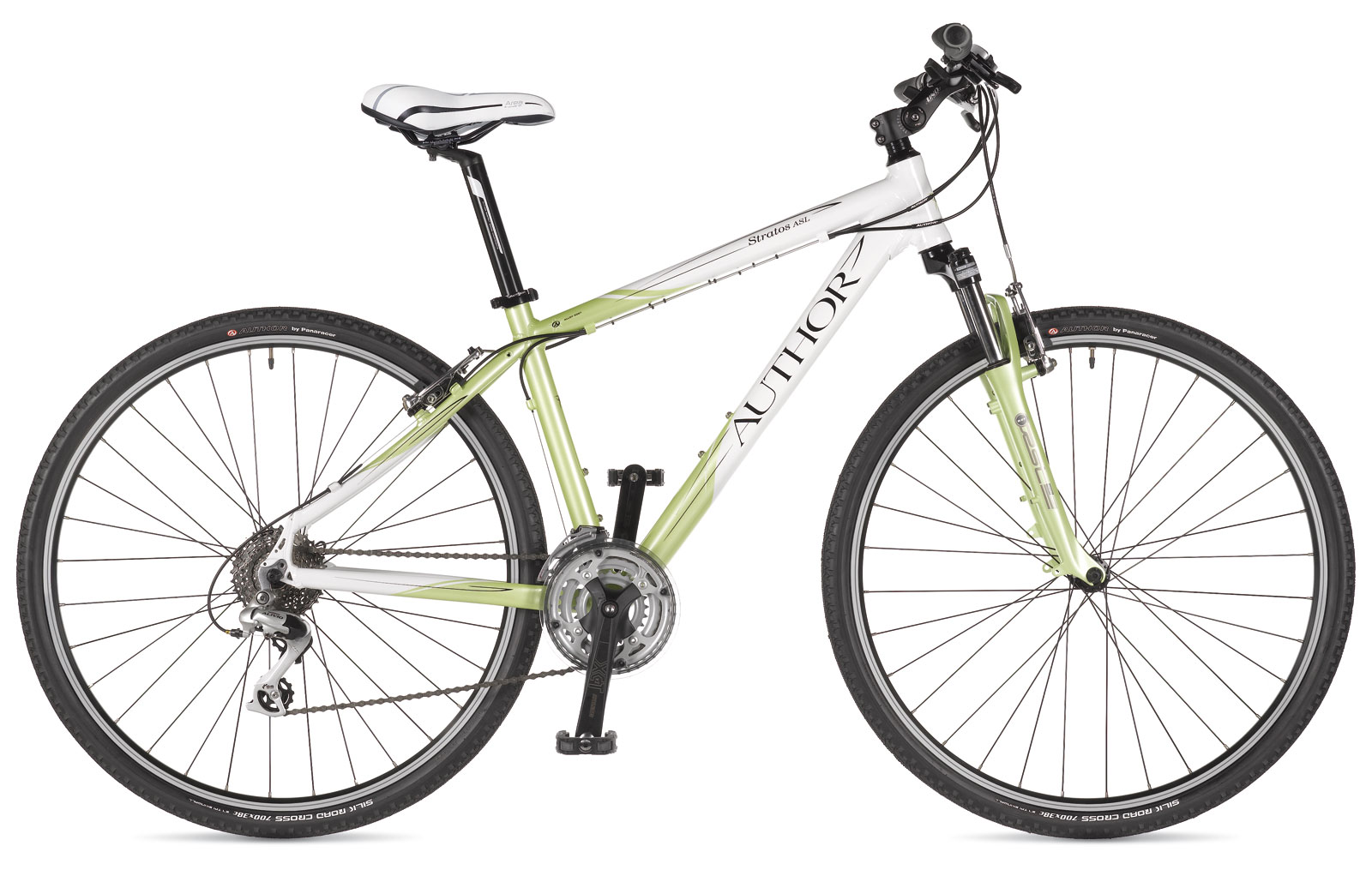

AUTHOR Stratos ASL 2012Archivní model 2012

Technical specification

Size17", 19.5"
Framealloy 6061 700c (ASL)
Front forkRST Neon ML mechanical lock out (60 mm)
Head partsAUTHOR Integrated 1-1/8"
Chain WheelSUNTOUR XCT-V1-T102 42-34-24 teeth 170 / 175 mm cranks
BBPartsSUNTOUR XCM cartridge
Front derailleurSHIMANO M191 (34.9)
Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Acera (24)
Free wheelSHIMANO HG-41-8 11-32 (8)
ChainSHIMANO HG-50
HubsQUANDO 32 holes
BrakesTEKTRO 857AL
Brakes leversSHIMANO Acera
RimsAUTHOR Xenon Cross 32 holes
Spokesblack stainless steel 2.0 mm
TiresAUTHOR PANARACER Silk Road Cross 700 x 38c
PedalsAUTHOR NonSlip alloy
HandlebarAUTHOR 20 mm 620 / 640 mm
GripsAUTHOR ErgoGrip
StemUNO adjustable
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Area Gel
Speed24
Weight12,8 Kg / 17"

Geometry and sizes

Size 17" 19,5"
Min. figure [cm] 155 170
Max. figure [cm] 172 185
S/T c-t [mm] 432 495
S/T c-c [mm] 0 0
T/T h [mm] 575 590
T/T a [mm] 553 566
H/T [mm] 120 130
C/S [mm] 440 440
W/B [mm] 1071 1086
S/T ang. [°] 73 73
H/T ang. [°] 71 71
F/L [mm] 470 470
B/B drop [mm] 45 45
B/B width [mm] 0 0
Reach [mm] 0 0
Stack [mm] 0 0
F/R [mm] 48 48
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Stratos ASL 2012

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
