AUTHOR Sector 2018

Technical specification

Size	16", 17.5", 19", 20.5"
Frame	AUTHOR B carbon monocoque 27.5"
Front fork	FOX 32 Float SC 27.5 100 Remote air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Head parts	FSA Orbit 1.5B 1.5" tapered
Chain Wheel	SHIMANO XT 38-28 teeth 170 / 175 mm cranks
BBParts	SHIMANO BB-MT800 BB unit
Front derailleur	SHIMANO XT (34.9)
Rear derailleur	SHIMANO XT "clutch"
Shifters	SHIMANO XT (22)
Free wheel	SHIMANO M7000-11 11-42 (11)
Chain	SHIMANO HG601
Hubs	MAVIC Crossride Light 27.5 wheel set 24 holes 15 x 110 mm thru front axle 12 x 142 mm thru rear axle
Brakes	SHIMANO SLX disc hydraulic (6" rotors)

Brakes levers	SHIMANO SLX
Wheel set	MAVIC Crossride Light 27.5 wheel set 24 holes
Spokes	MAVIC
Tires	VITTORIA Barzo kevlar 27.5" x 2.10"
Handlebar	RITCHEY WCS Flat 10° 660 mm
Grips	AUTHOR Pro Lock
Stem	RITCHEY WCS 4-Axis
Seat post	RITCHEY Comp Carbon (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	PROLOGO Nago Evo X10
Speed	22
Weight	10,4 kg / 19"

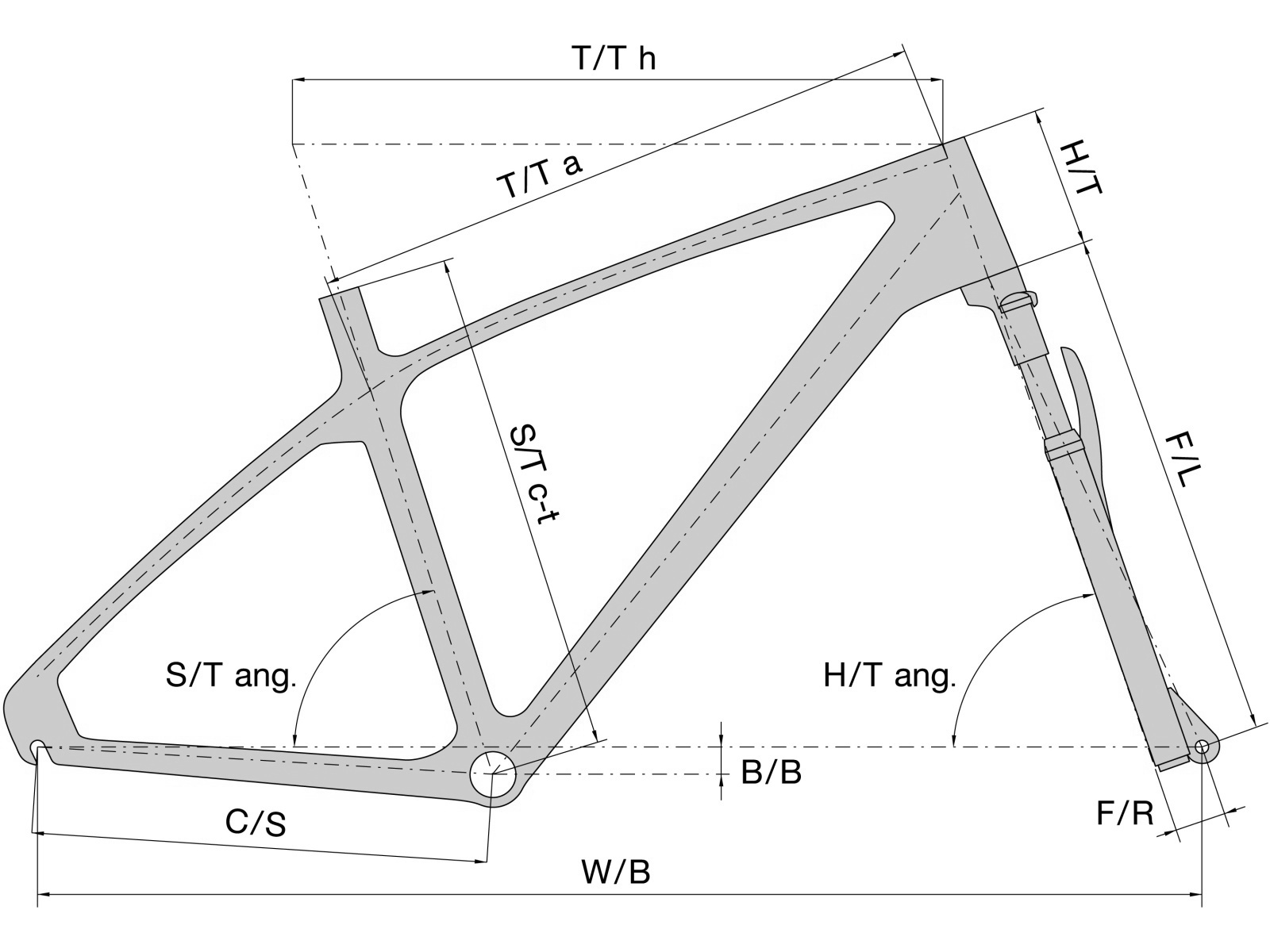

Geometry and sizes

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
