AUTHOR Sector 2015Archivní model 2015

Lightweight carbon frameAir remote lock out fork FOX 32 FloatDisc hydraulic brakes SHIMANO XT

SOLD OUT

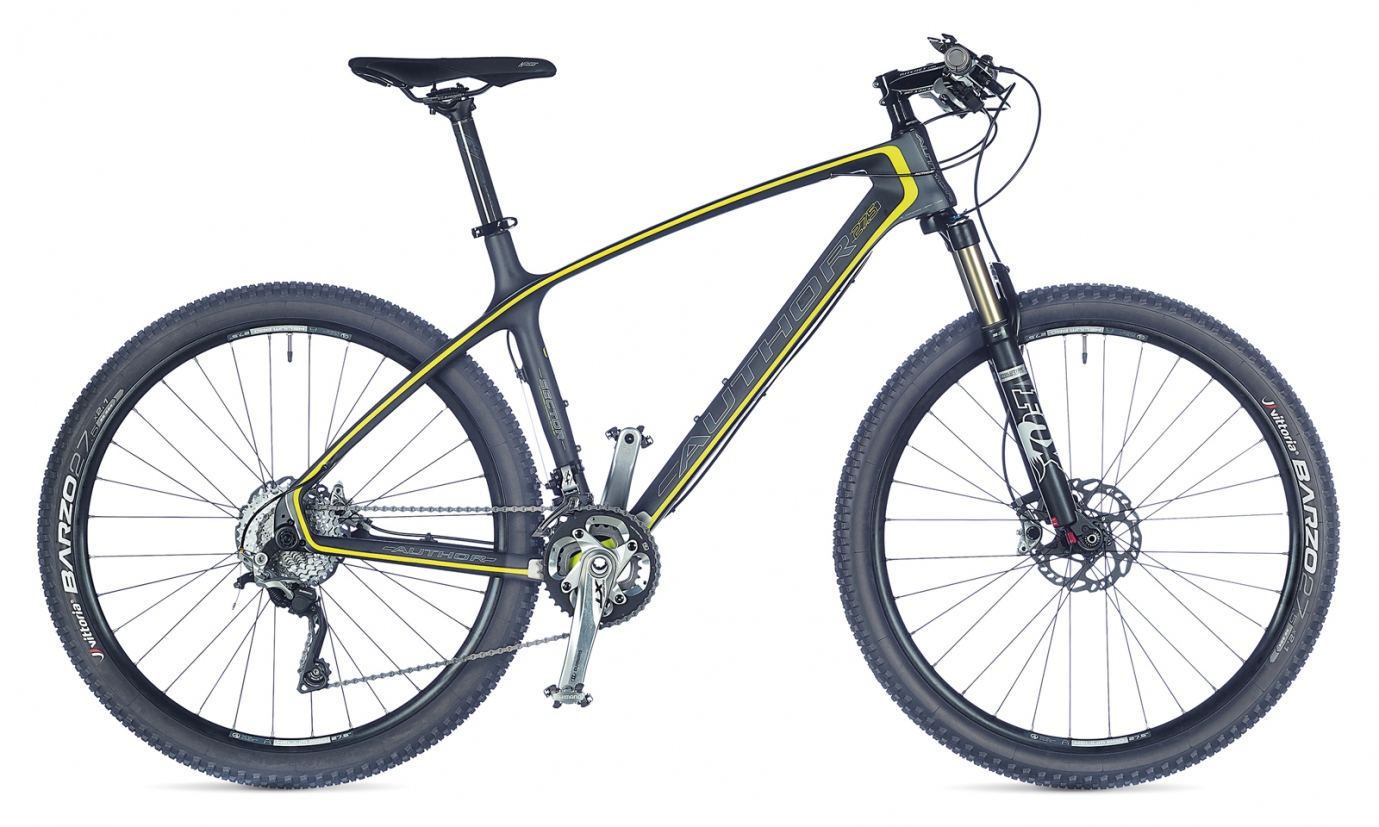

Mountain bike Author SECTOR on hi-tech carbon frame and air, FOX 32 Float fork with lock out unit.

More details about cranks, handlebars and stem sizes are now available in TECHNOLOGIES.

other models

Interested in other model`s year?

2015 2016 2017 2018

Technical specification

Size	16", 17.5", 19", 20.5"
Frame	AUTHOR B carbon monocoque 27.5"
Front fork	FOX 32 Float 27.5 CTD Remote O/C 100 air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Head parts	FSA Orbit 1.5B 1.5" tapered
Chain Wheel	SHIMANO XT 40-28 teeth 170 / 175 mm cranks
BBParts	SHIMANO XT BB unit
Front derailleur	SHIMANO XT (34.9)
Rear derailleur	SHIMANO XT "clutch"
Shifters	SHIMANO XT (20)
Free wheel	SHIMANO M771-10 11-36 (10)
Chain	SHIMANO HG95
Hubs	SHIMANO XT Disc 15 mm thru front axle 142 x 12 mm thru rear axle 32 holes
Brakes	SHIMANO XT disc hydraulic (6" rotors)
Brakes levers	SHIMANO XT

Rims	AUTHOR Helium Pro 27.5 32 holes
Spokes	black stainless steel 2.0 mm triple butted
Tires	VITTORIA Barzo kevlar 27.5" x 2.10"
Pedals	SHIMANO M540 clipless
Handlebar	RITCHEY WCS Flat 0 mm 660 mm
Grips	AUTHOR Pro Lock
Stem	RITCHEY WCS 4-Axis
Seat post	AUTHOR carbon (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	FIZIK Nisene III
Speed	20
Weight	11.1 kg / 19"

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
