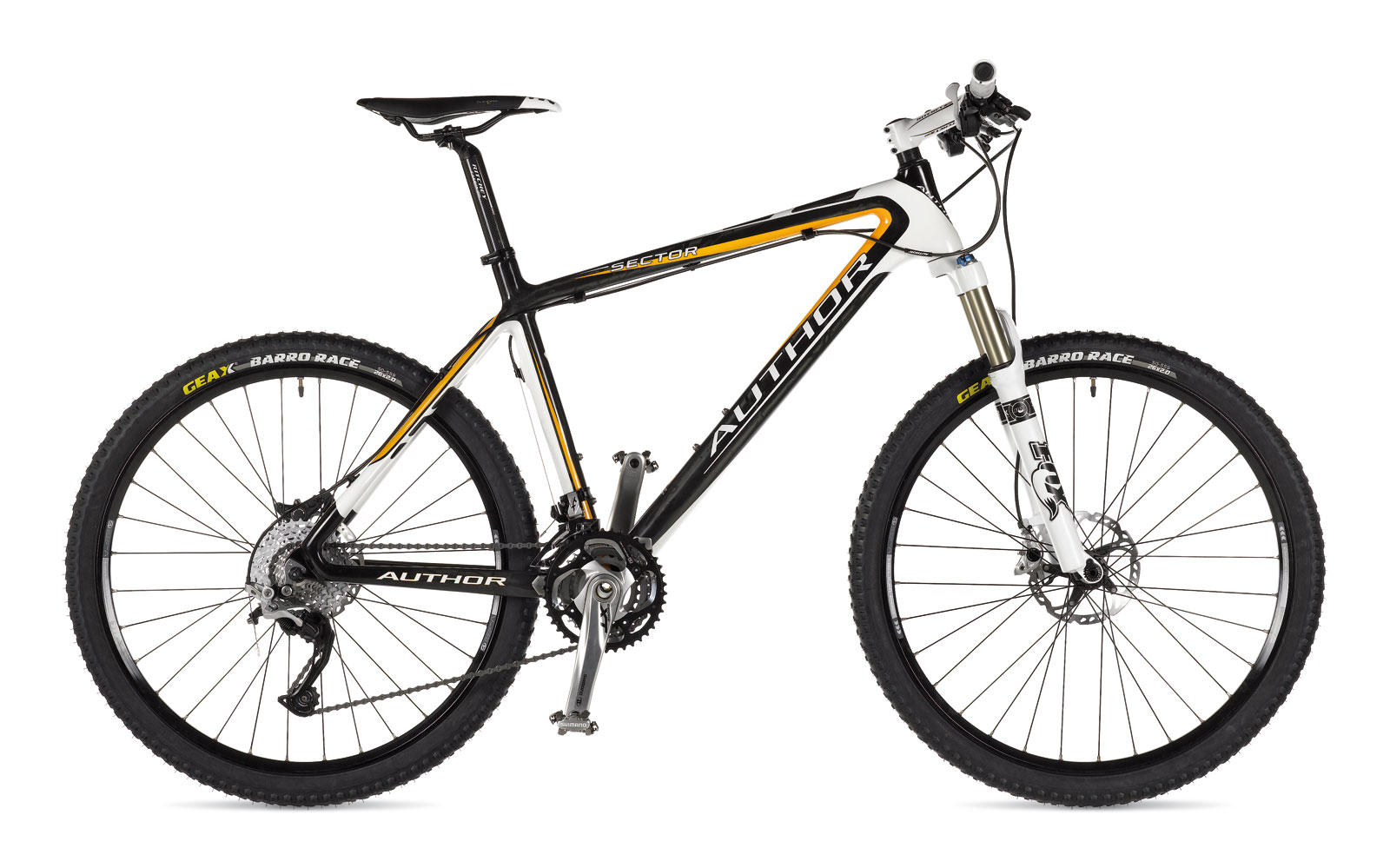

AUTHOR SECTOR 2012
Interested in other model`s year?

Technical specification

Size16", 17.5", 19", 20.5"
FrameAUTHOR carbon monocoque 26"
Front forkFOX 32 Float 100 Fit RL air, lock out 15 mm thru axle 1.5" taper steerer (100 mm)
Head partsFSA Orbit C-40 1.5" taper
Chain WheelSHIMANO XT-10 42-32-24 teeth 170 / 175 mm cranks
BBPartsSHIMANO XT-10 BB unit
Front derailleurSHIMANO XT (34.9)
Rear derailleurSHIMANO XT
ShiftersSHIMANO XT (30)
Free wheelSHIMANO M771-10 11-36 (10)
ChainSHIMANO HG-74
HubsSHIMANO XT Disc 15 mm thru axle 32 holes
BrakesSHIMANO XT disc hydraulic (6" rotors)
Brakes leversSHIMANO XT
RimsAUTHOR Helium Pro 32 holes
Spokesblack stainless steel 2.0 mm triple butted
TiresGEAX Barro Race Kevlar 26" x 2.00"
PedalsSHIMANO M540 clipless
HandlebarRITCHEY Pro 0 mm 580 / 600 mm
GripsAUTHOR GripLock
StemRITCHEY WCS C-260
Seat postRITCHEY Pro Carbon 2B (31.6)
Seat clampAUTHOR (34.9)
SaddleFIZIK Tundra II
Speed30
Weight10,4 Kg / 19"

Geometry and sizes

Size 16" 17,5" 19" 20,5"
Min. figure [cm] 150 162 172 183
Max. figure [cm] 165 175 185 197
S/T c-t [mm] 412 456 486 526
S/T c-c [mm] 0 0 0 0
T/T h [mm] 575 590 605 620
T/T a [mm] 555 567 579 596
H/T [mm] 115 120 130 140
C/S [mm] 420 420 420 420
W/B [mm] 1056 1072 1082 1097
S/T ang. [°] 73 73 73 73
H/T ang. [°] 70 70 70 70
F/L [mm] 465 465 465 465
B/B drop [mm] 30 30 30 30
B/B width [mm] 0 0 0 0
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 38 38 38 38
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Sector 2012

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
