  » Bicycles » gravel » bike models

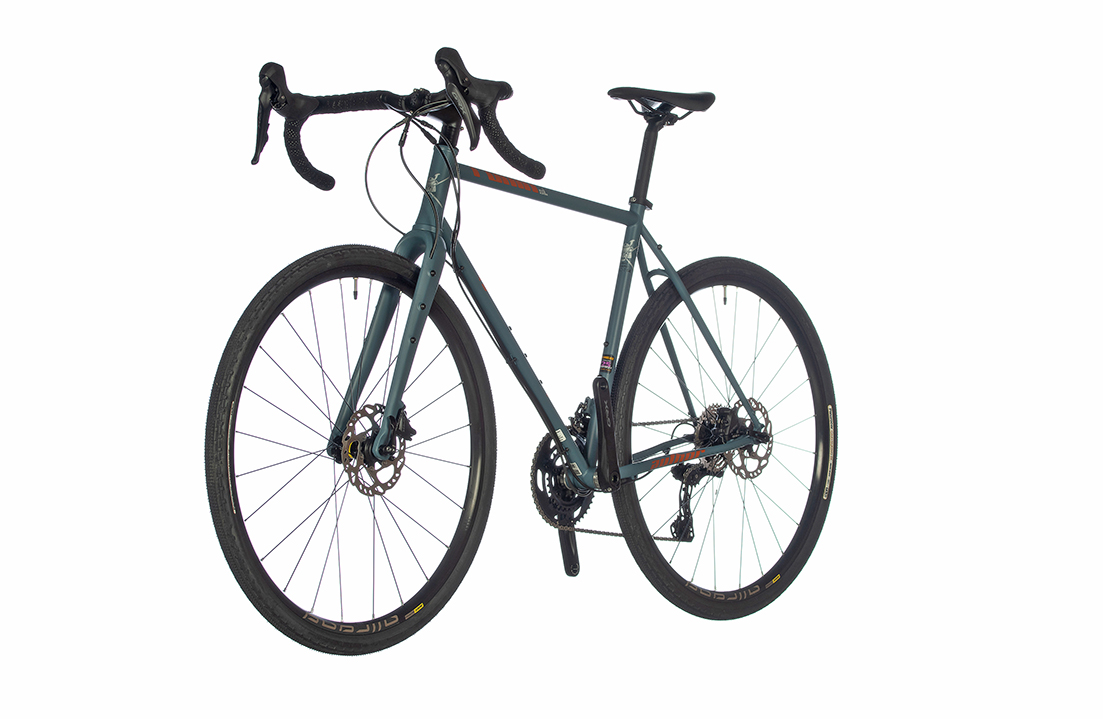

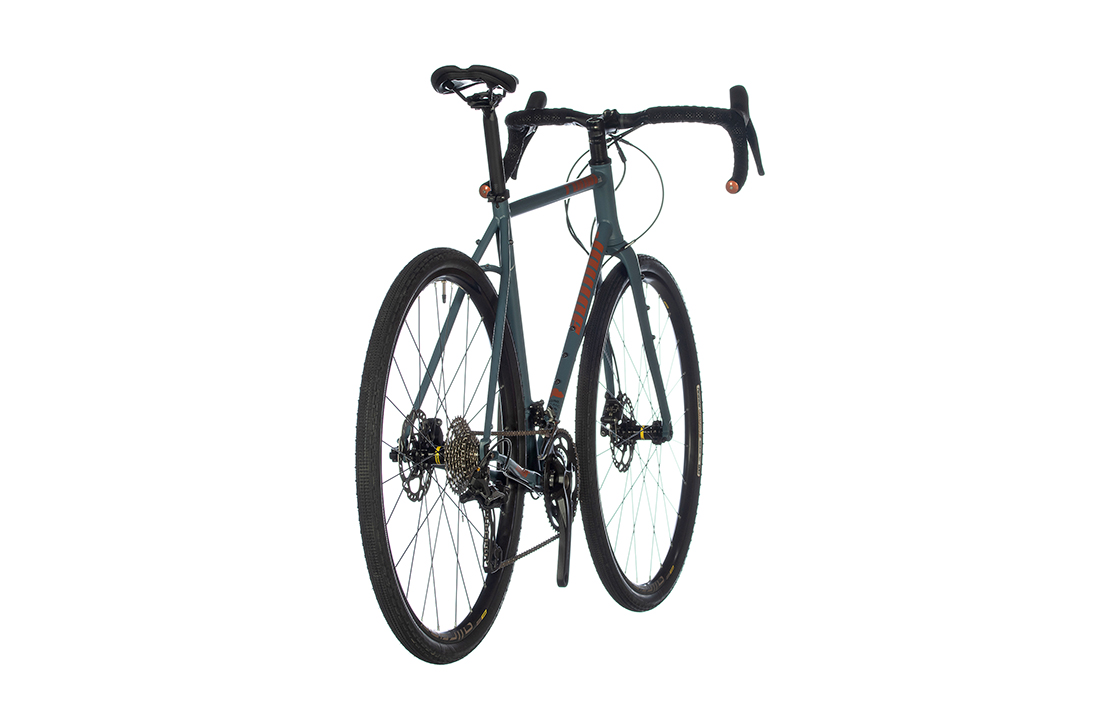

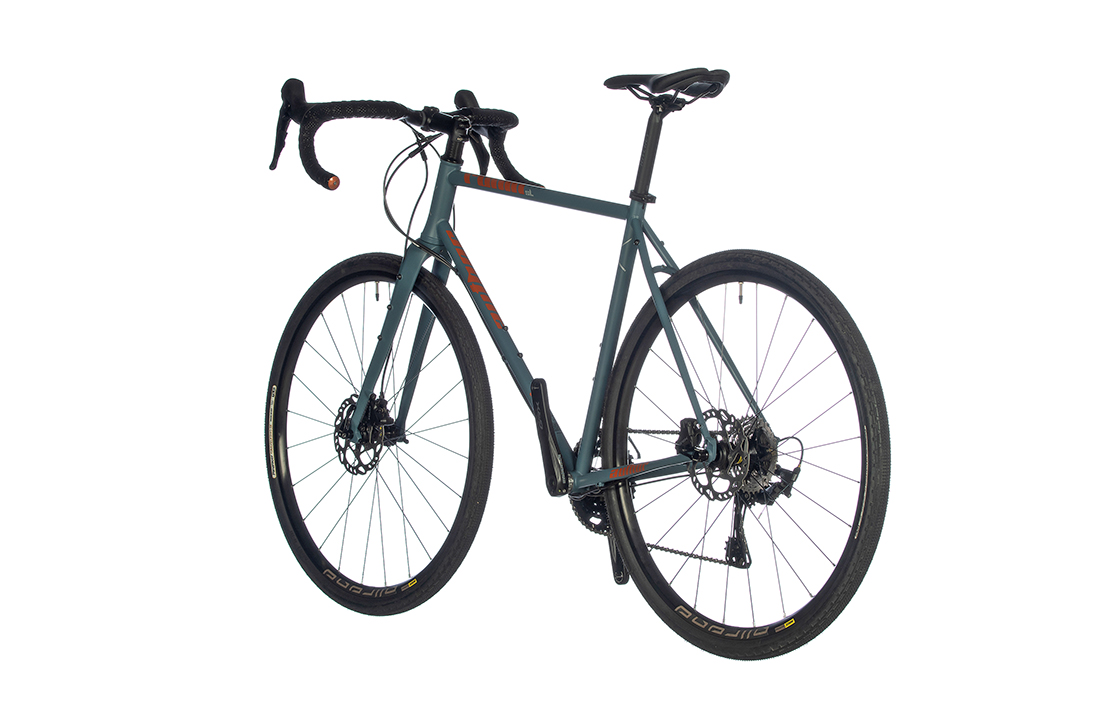

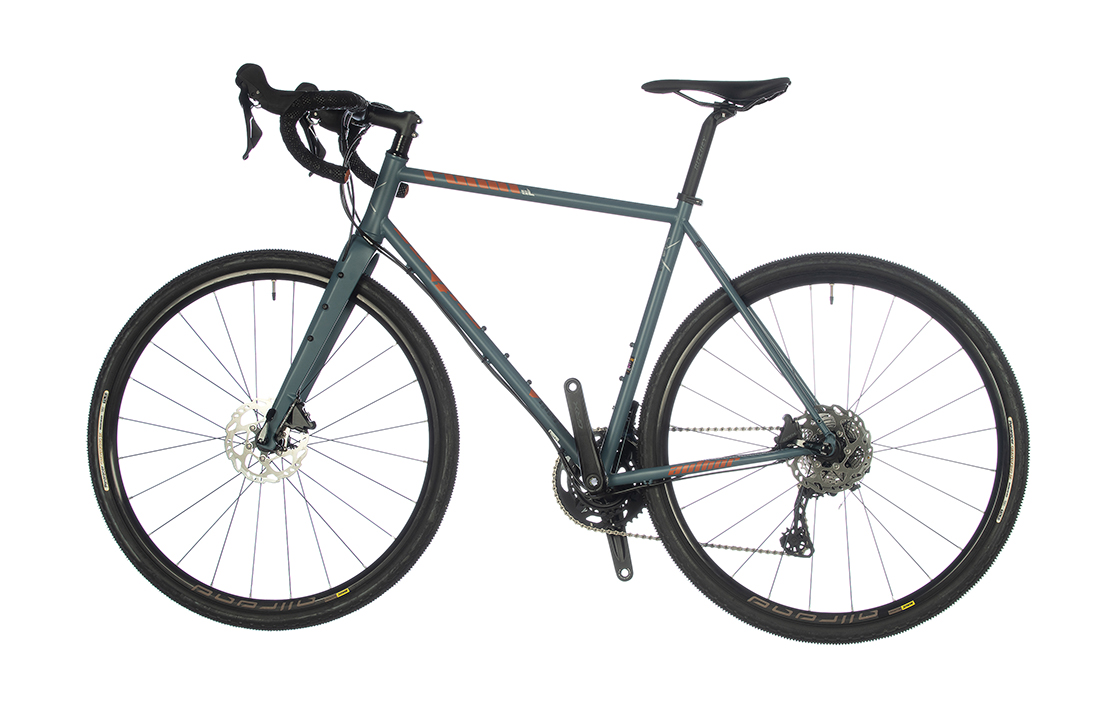

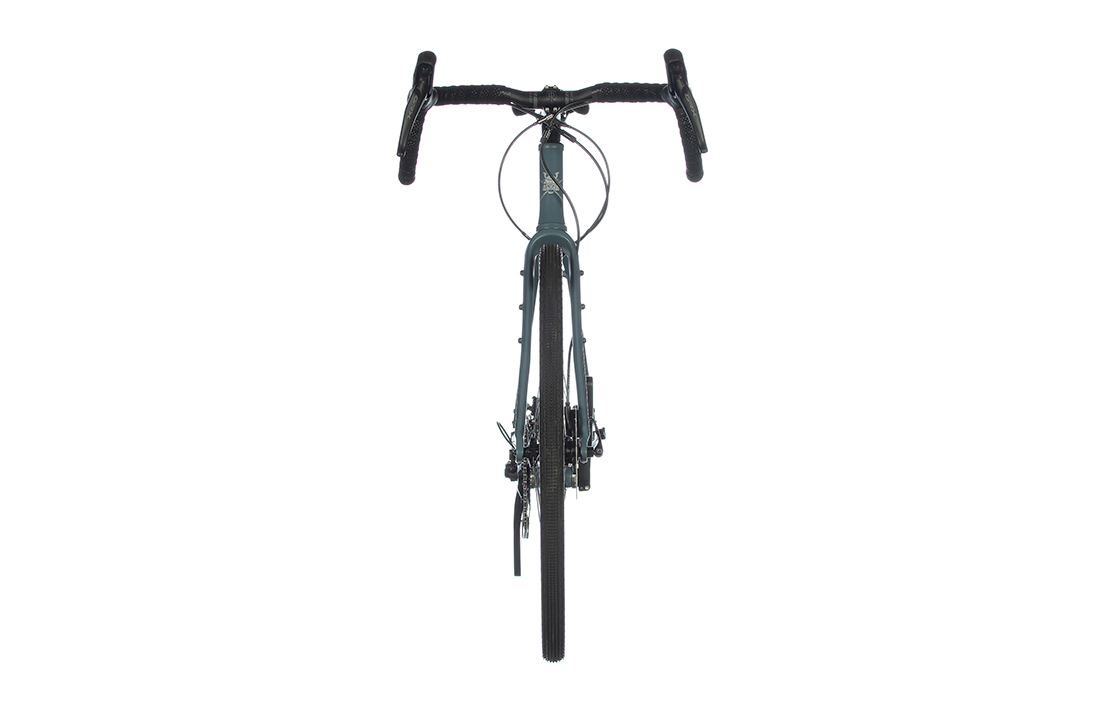

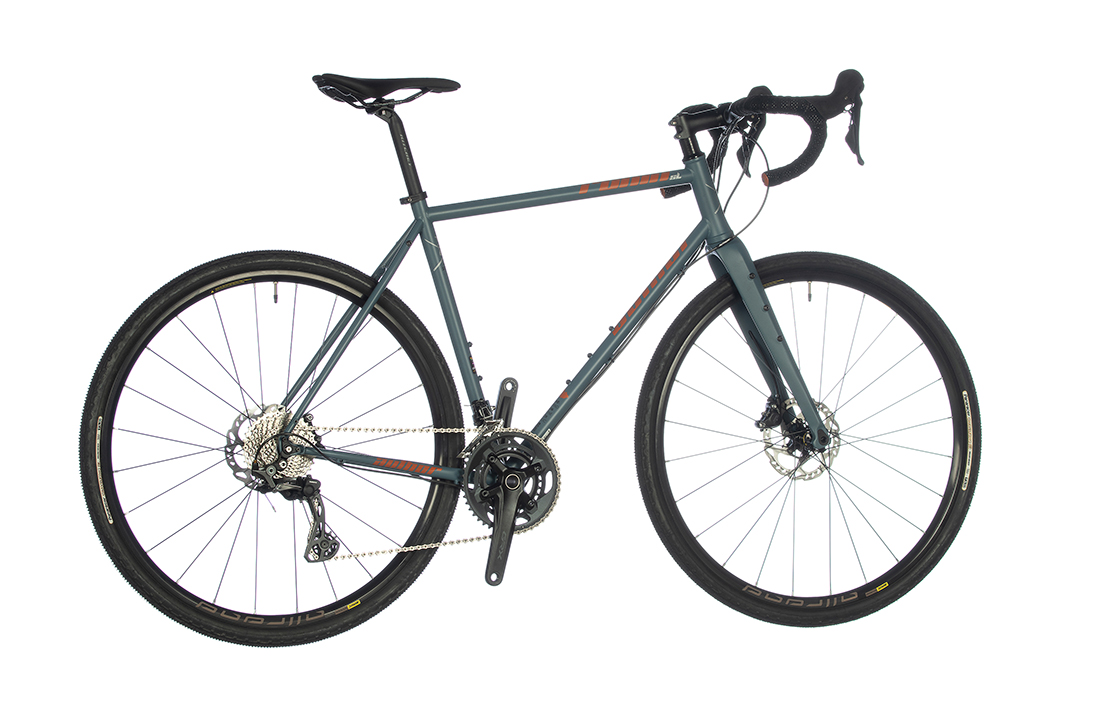

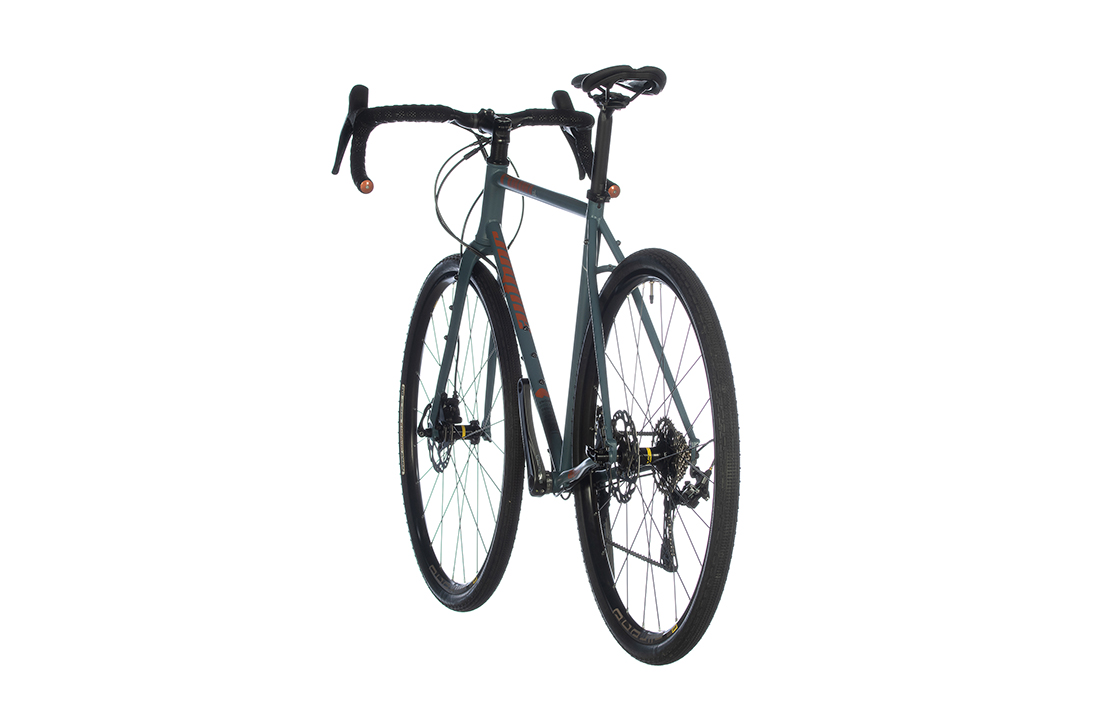

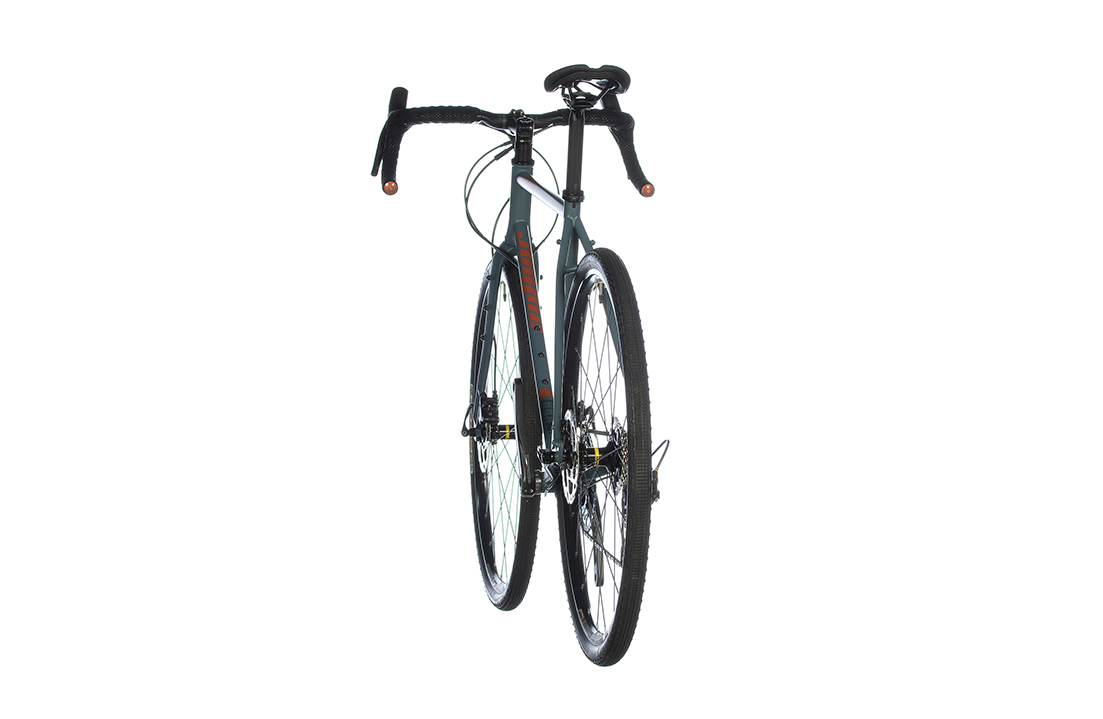

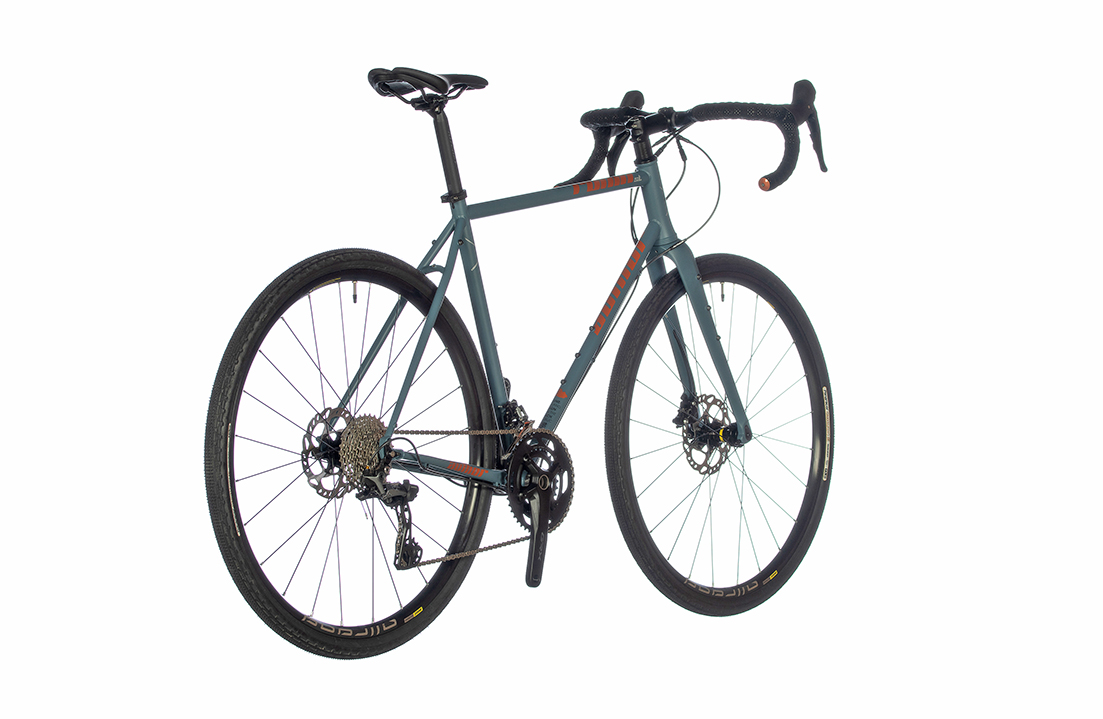

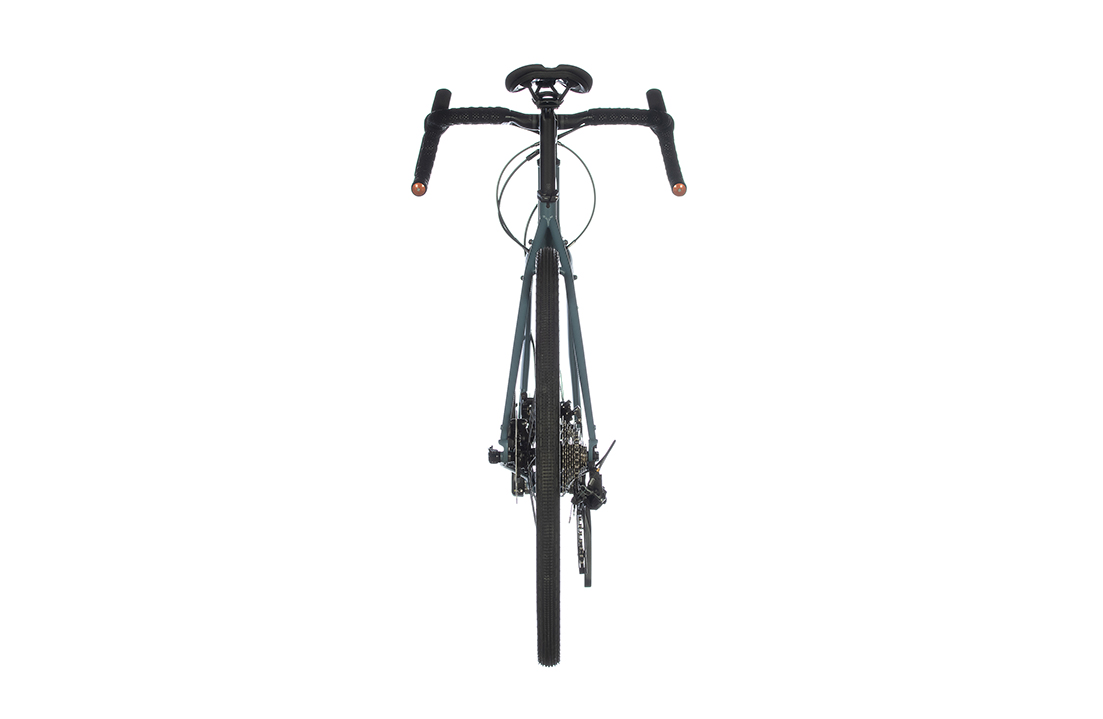

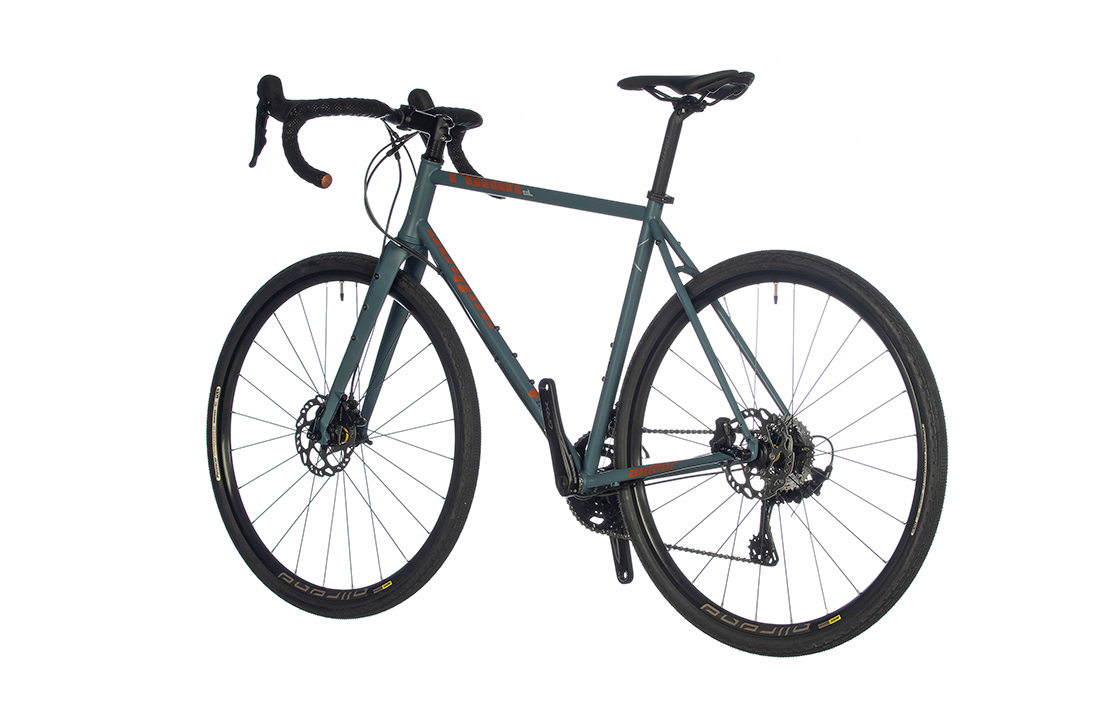

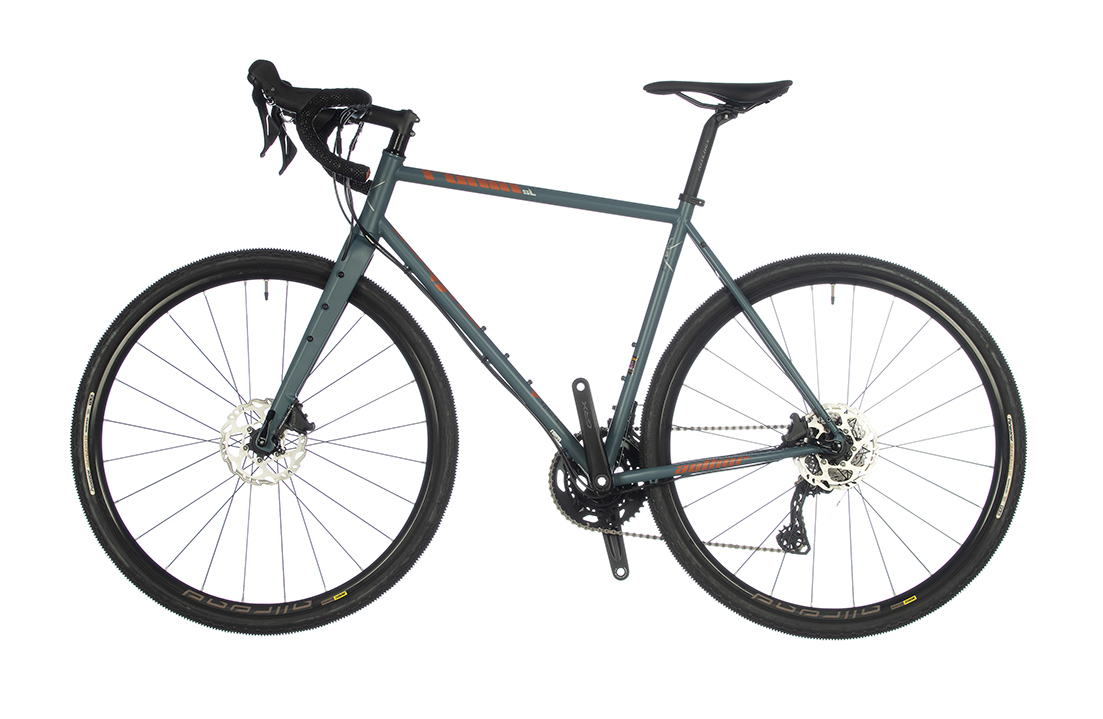

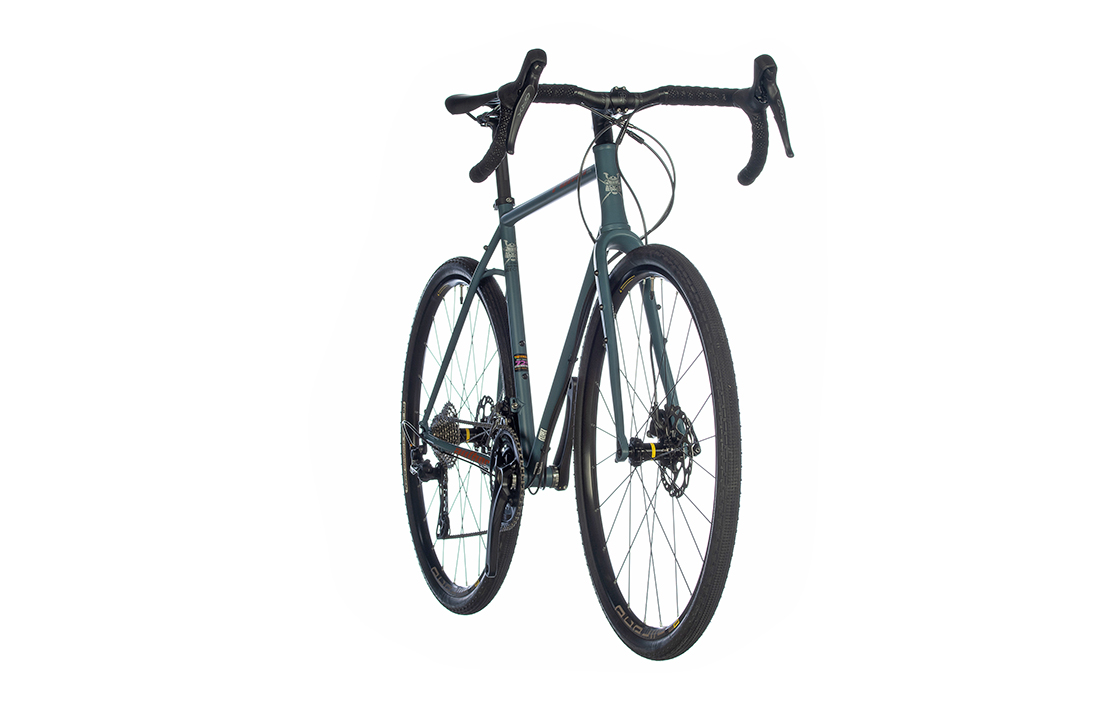

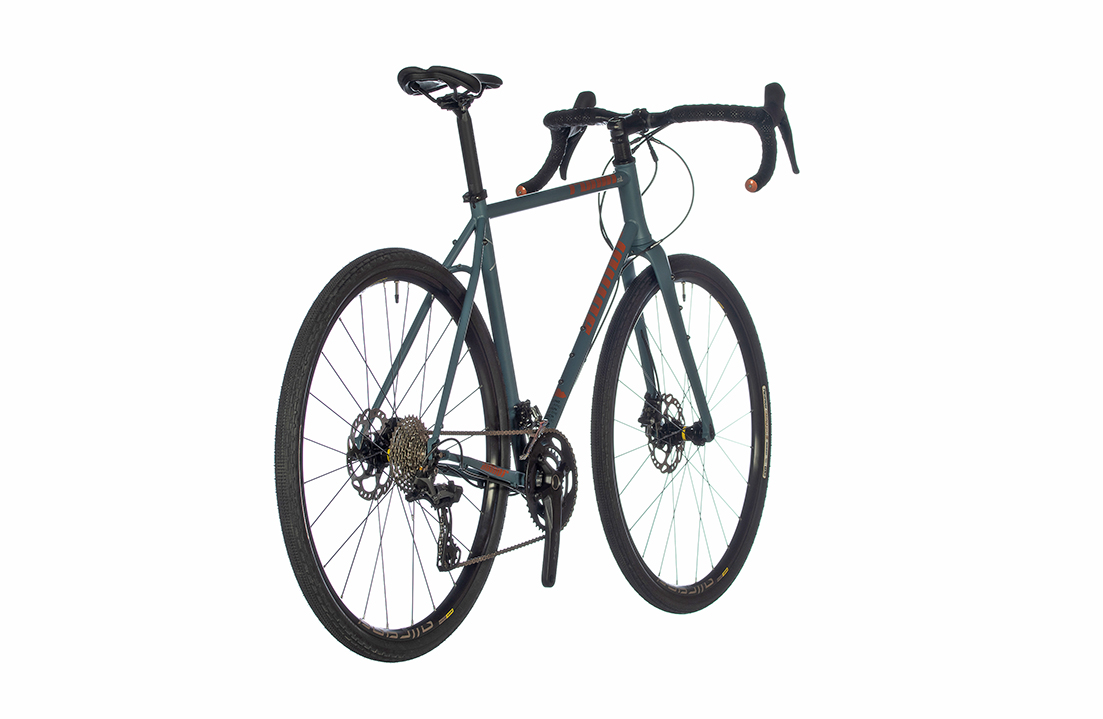

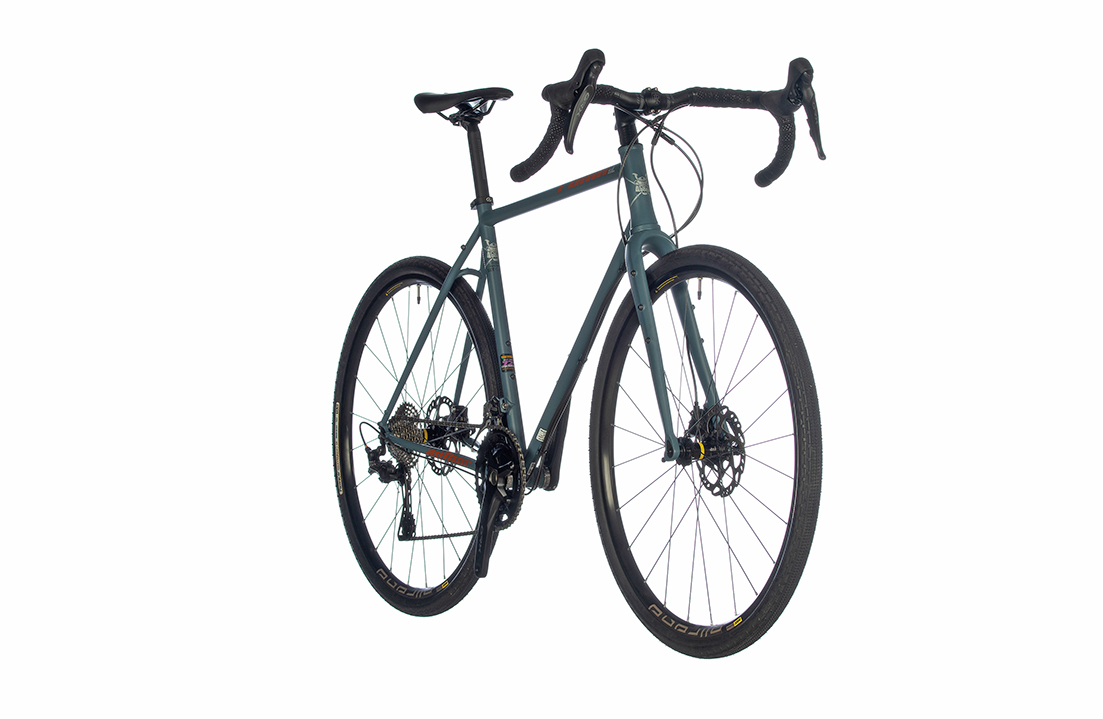

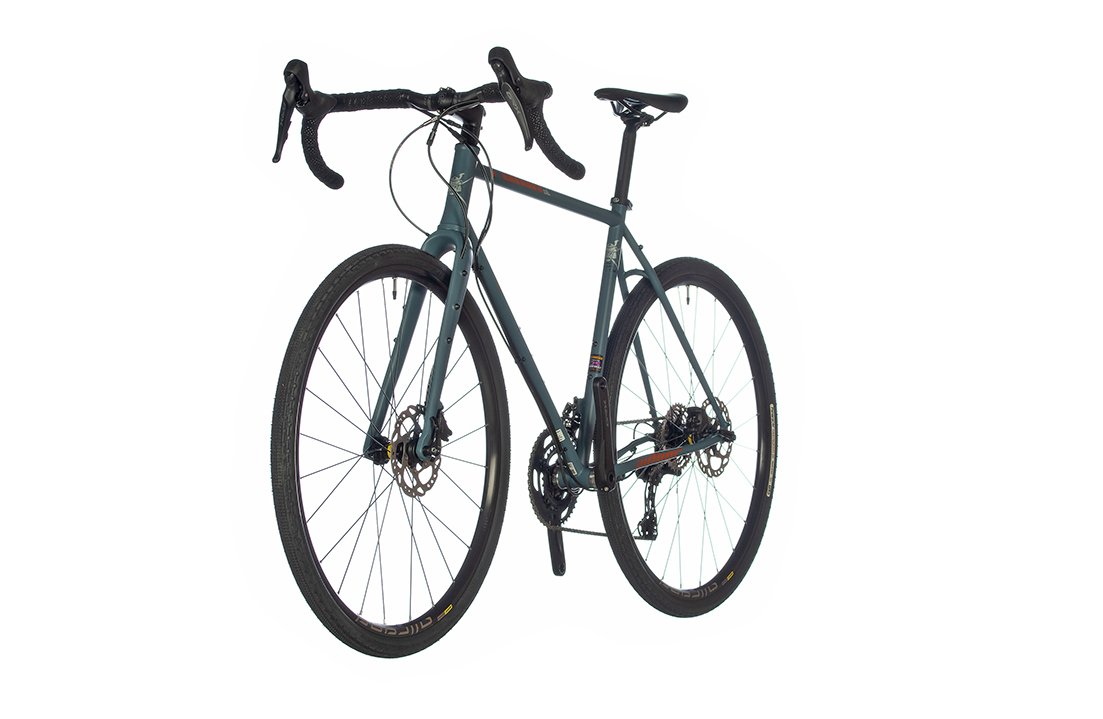

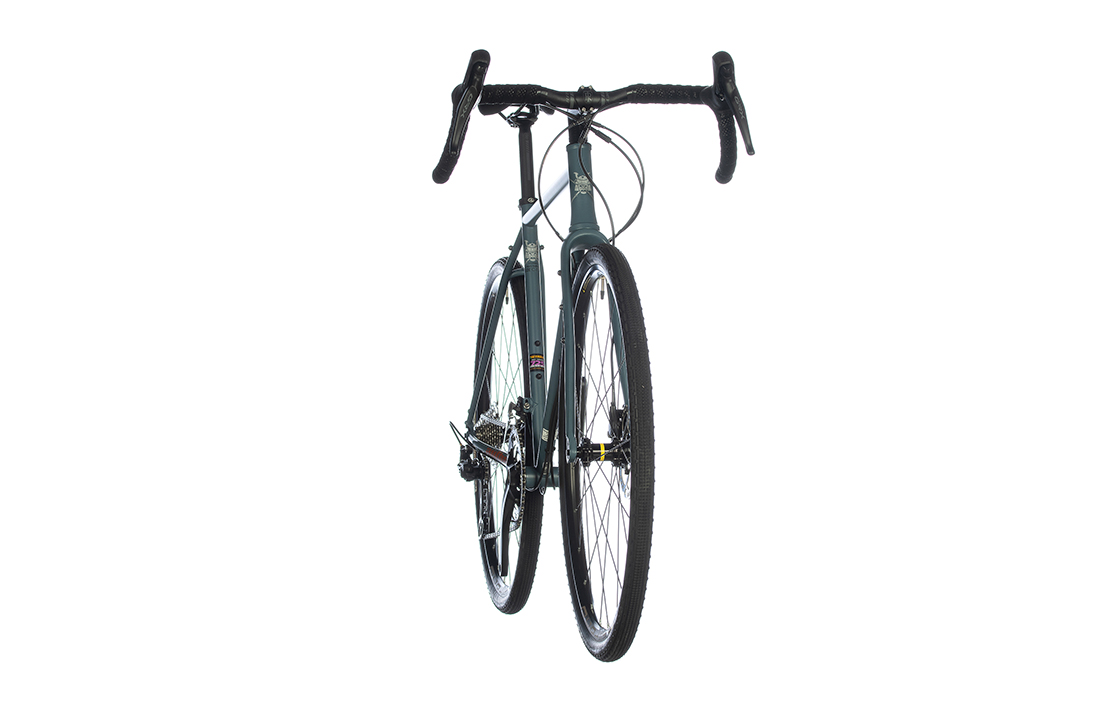

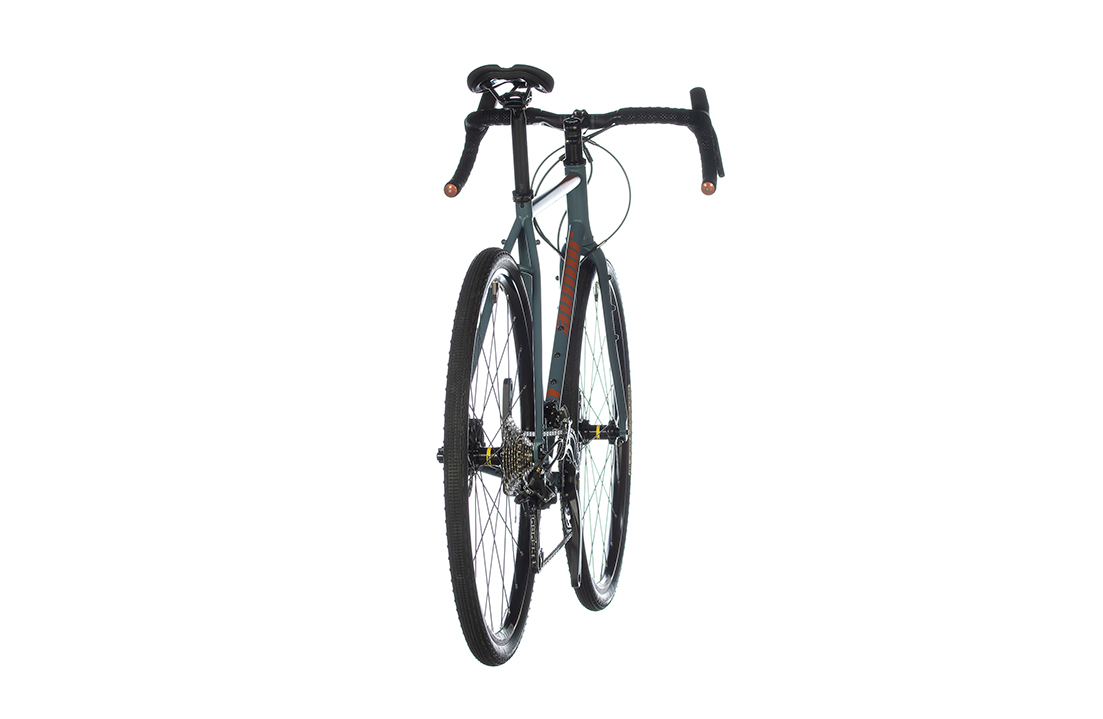

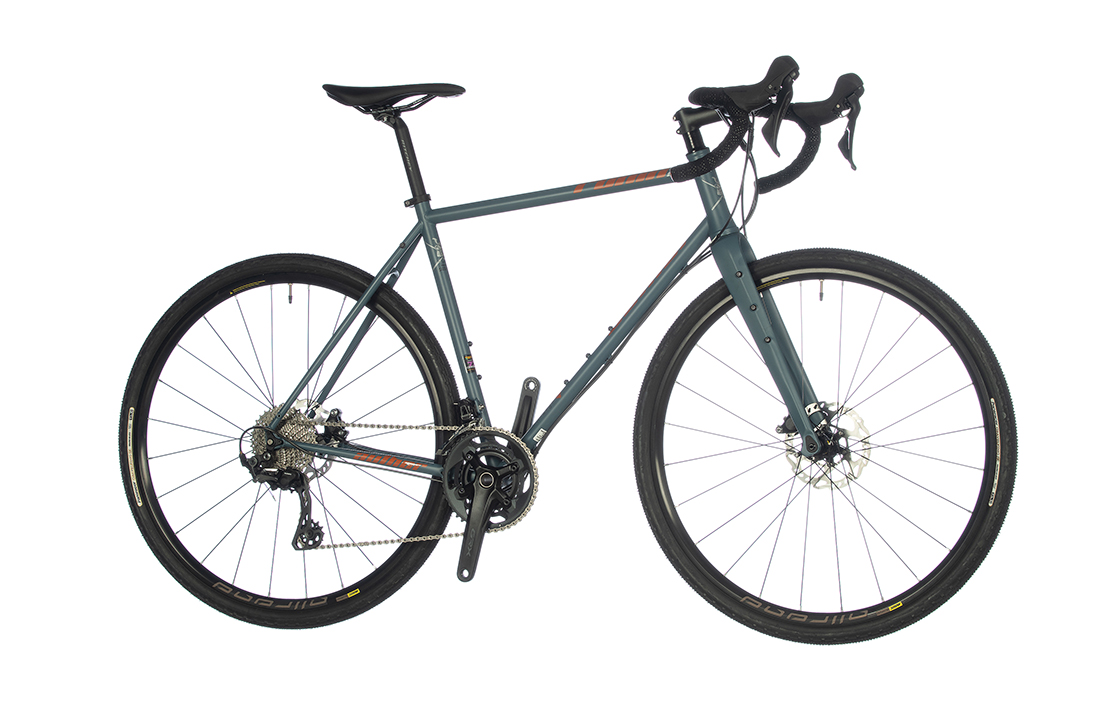

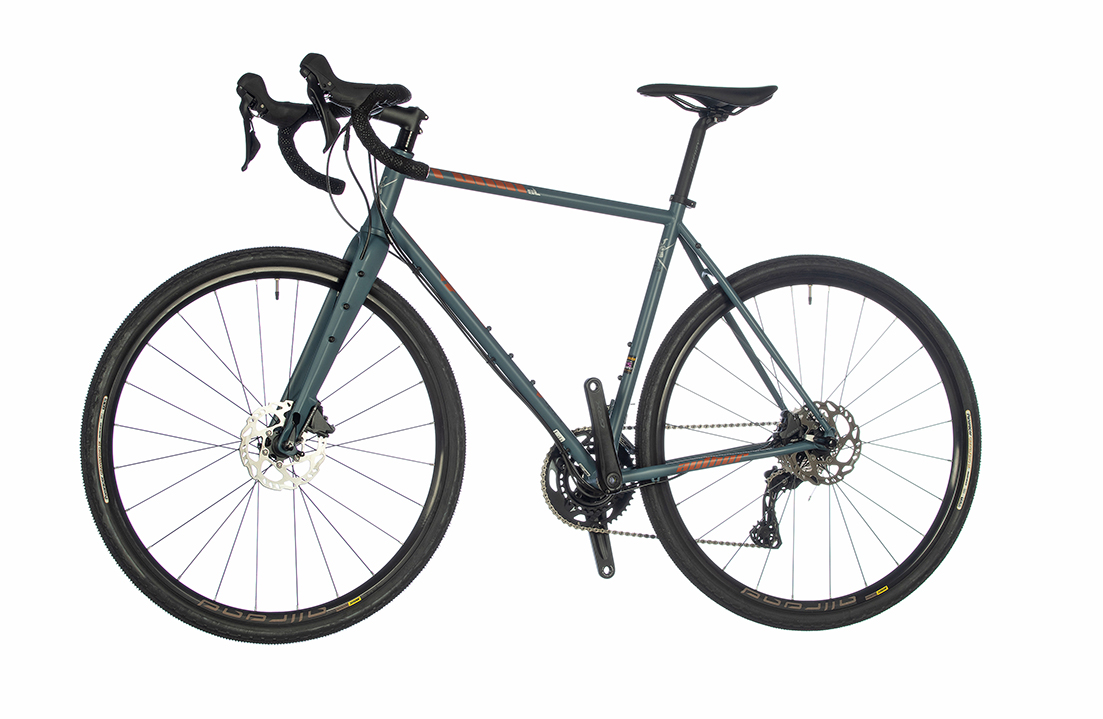

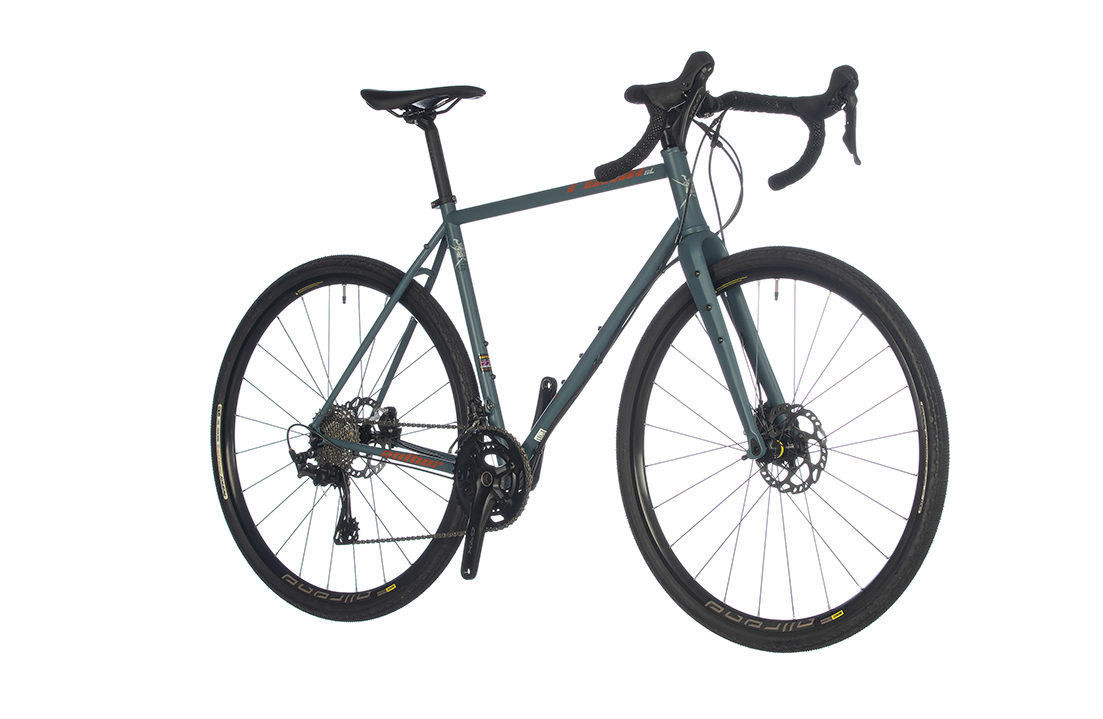

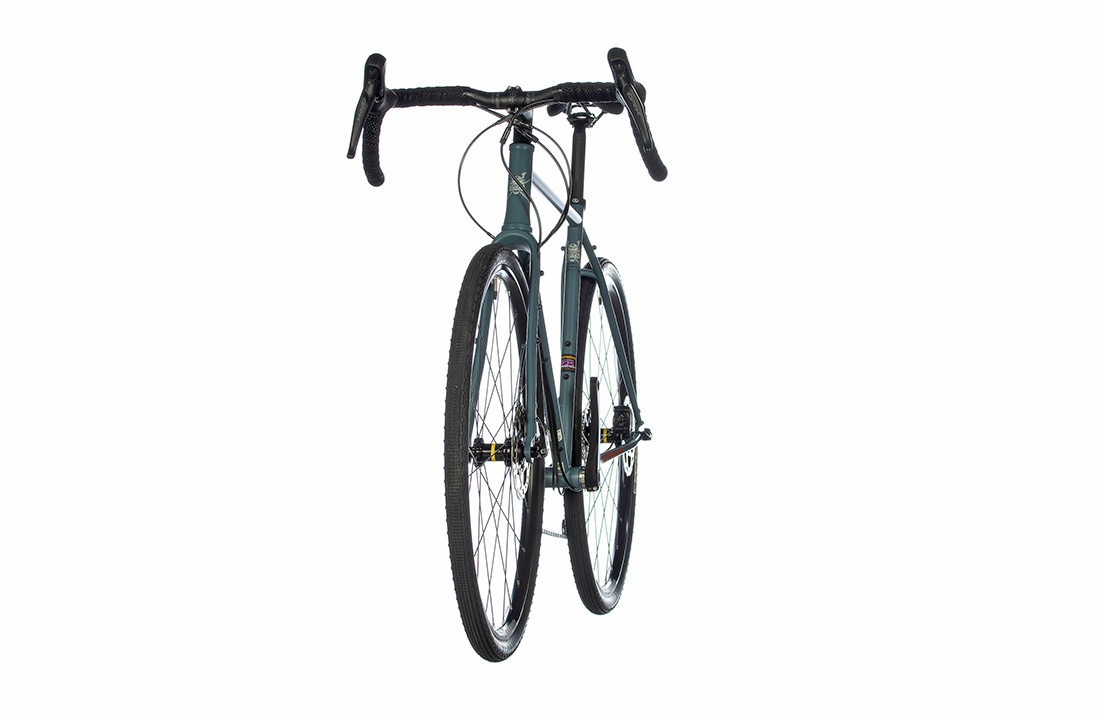

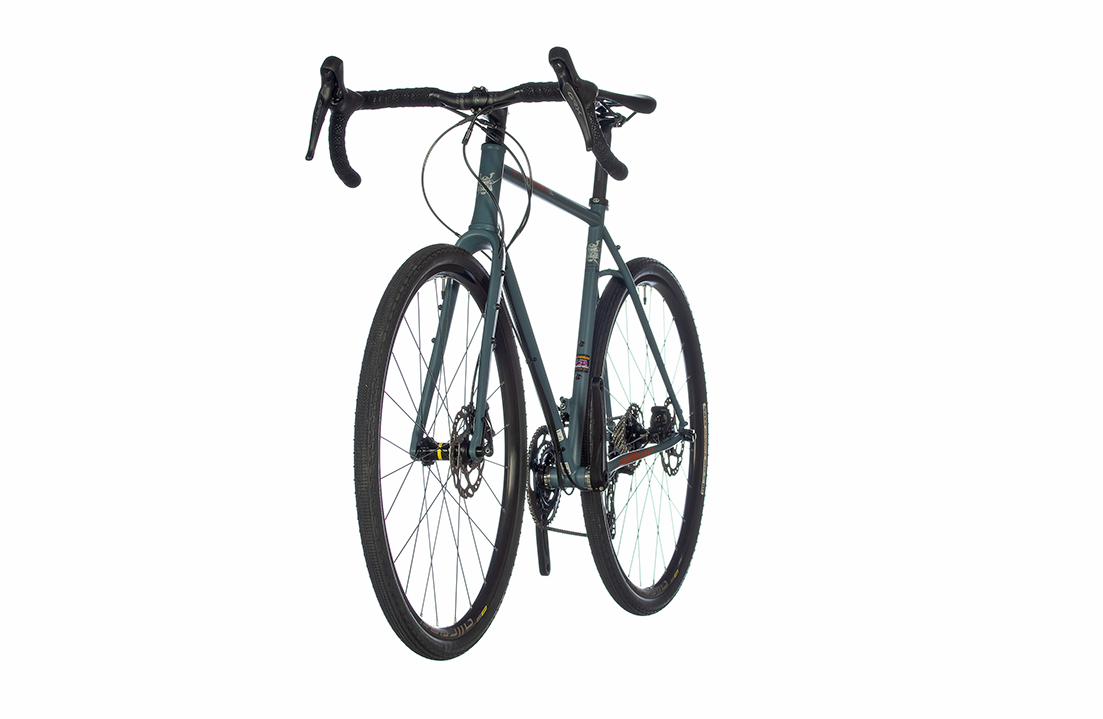

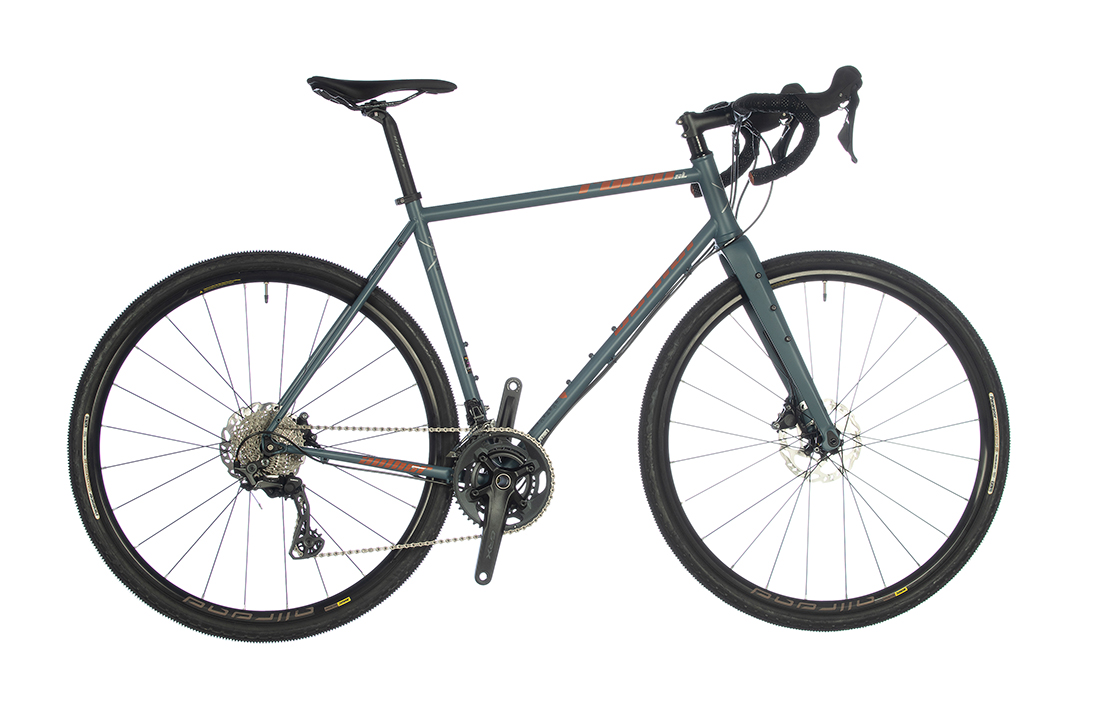

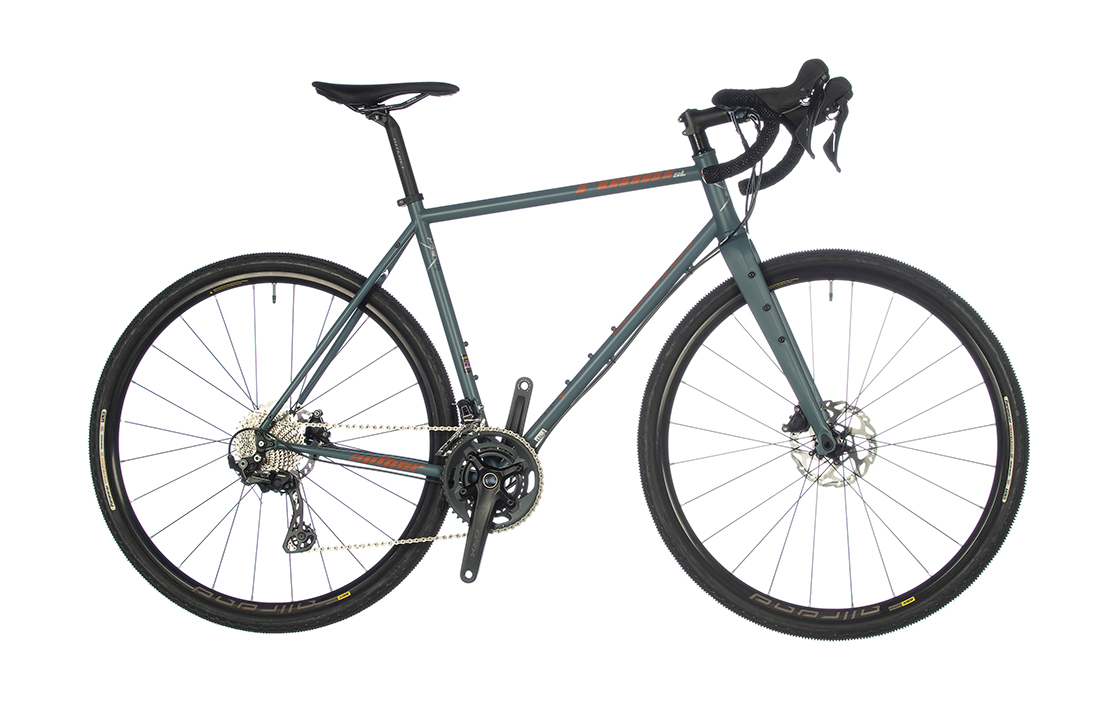

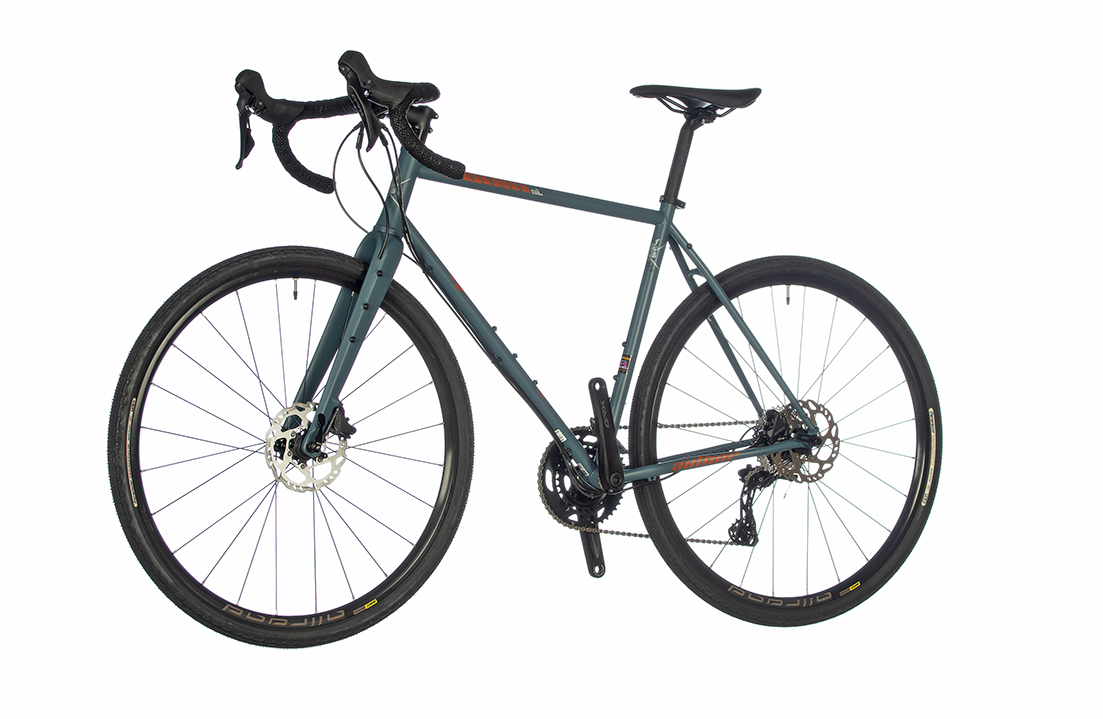

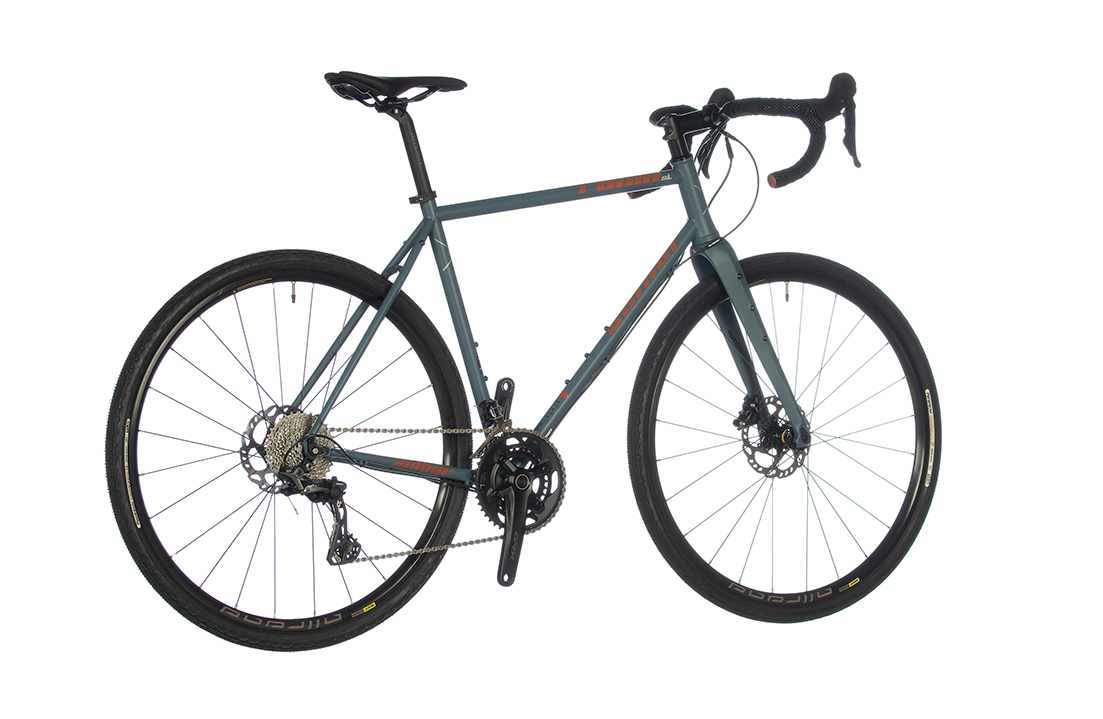

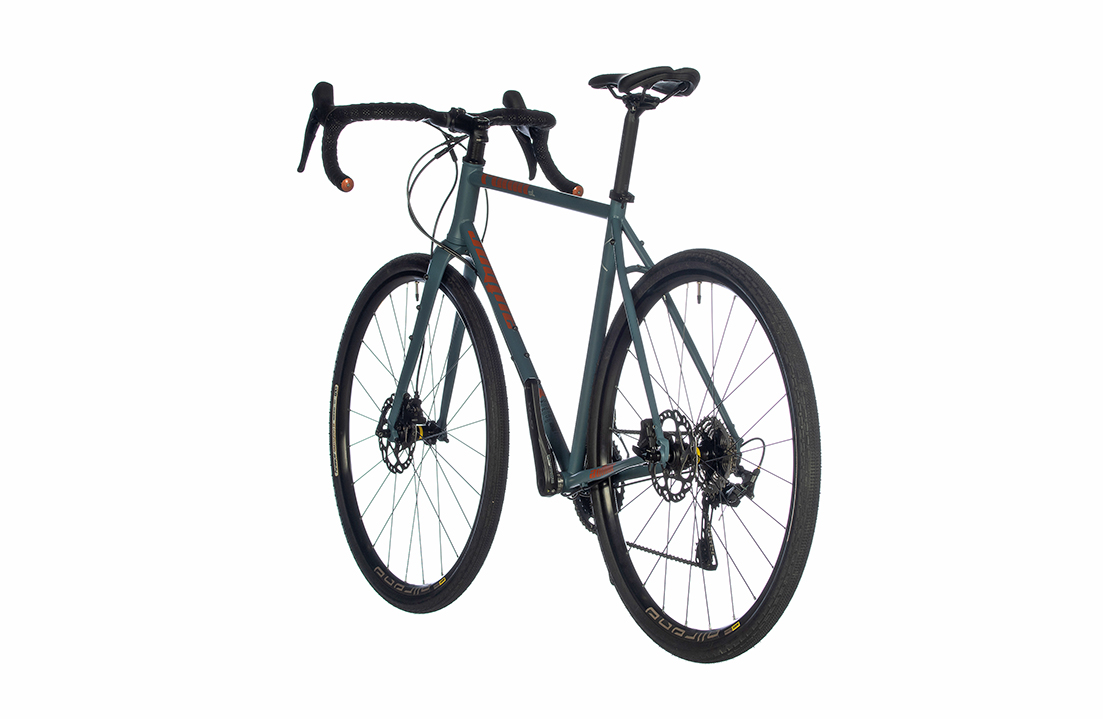

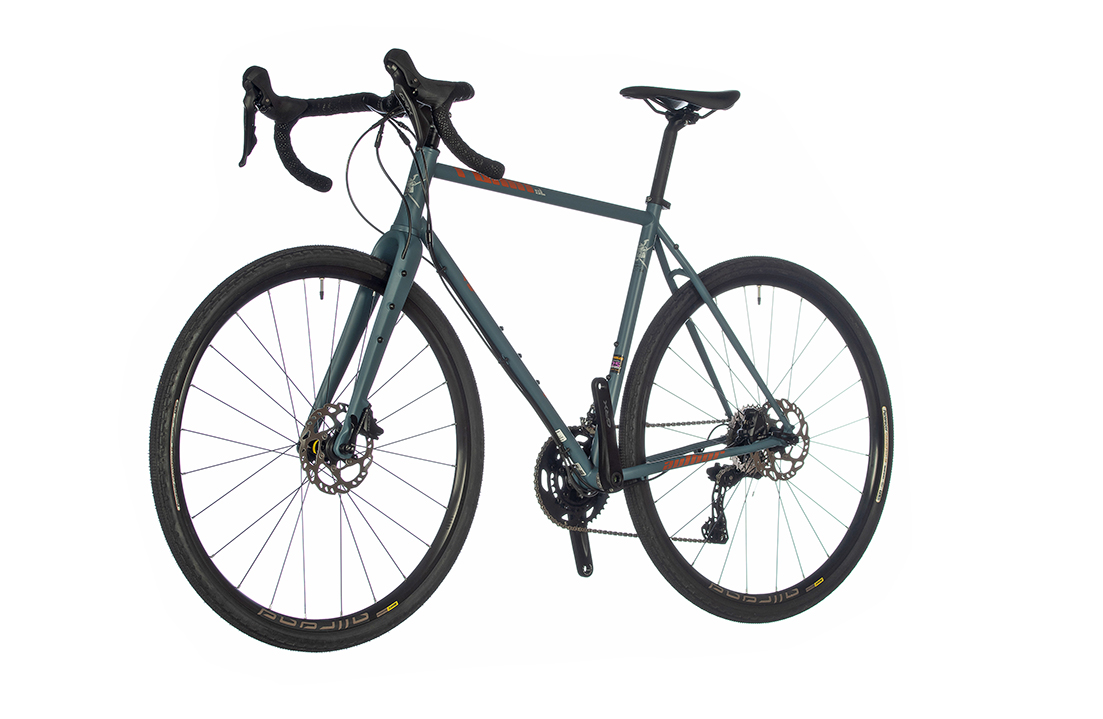

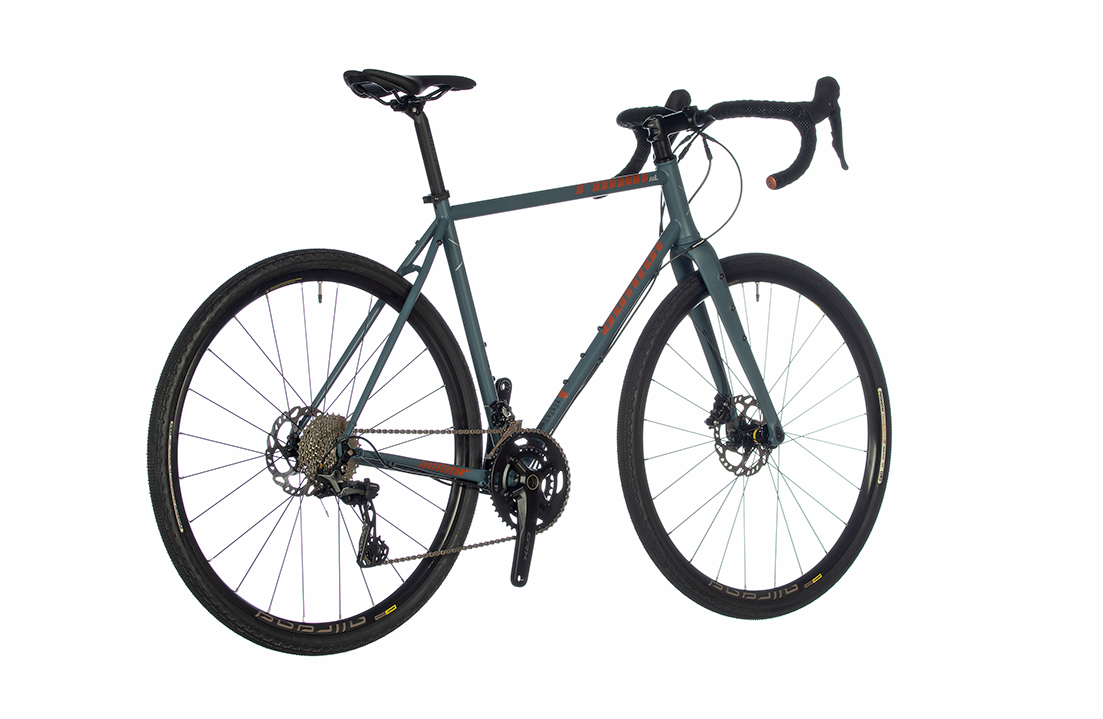

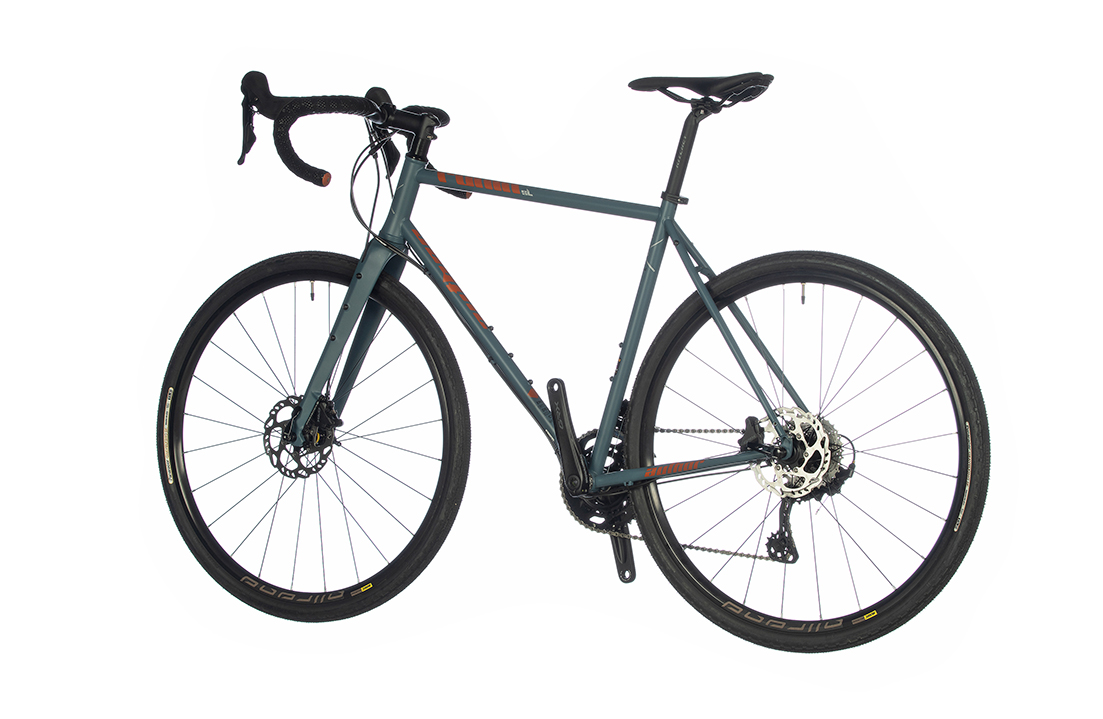

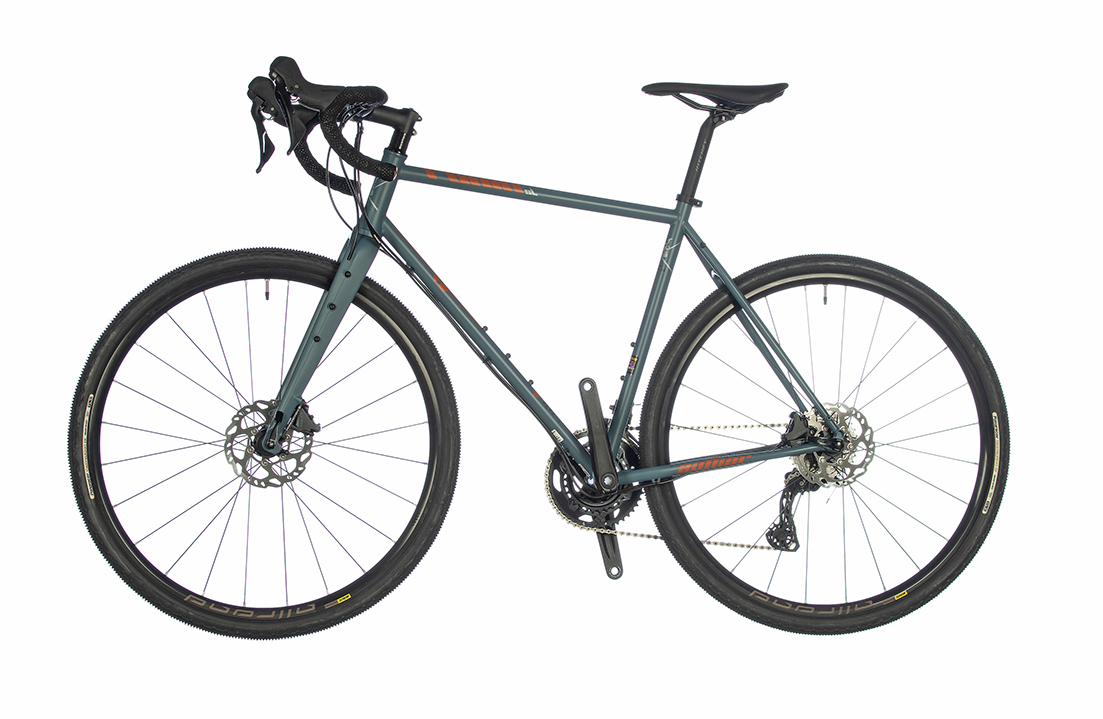

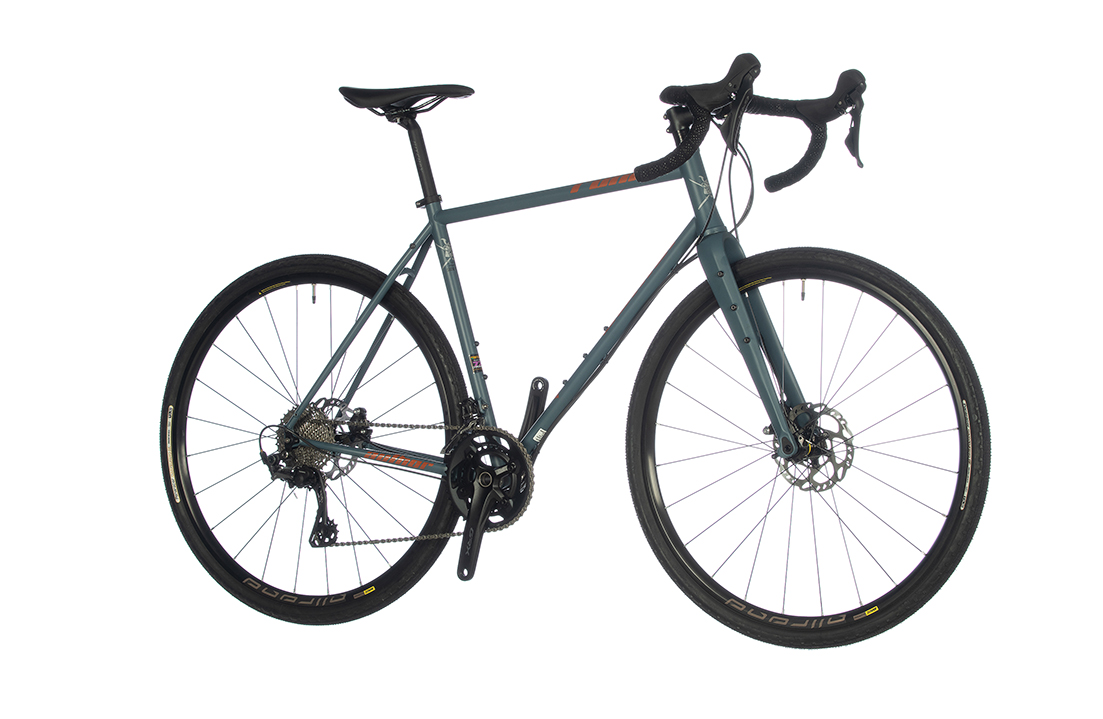

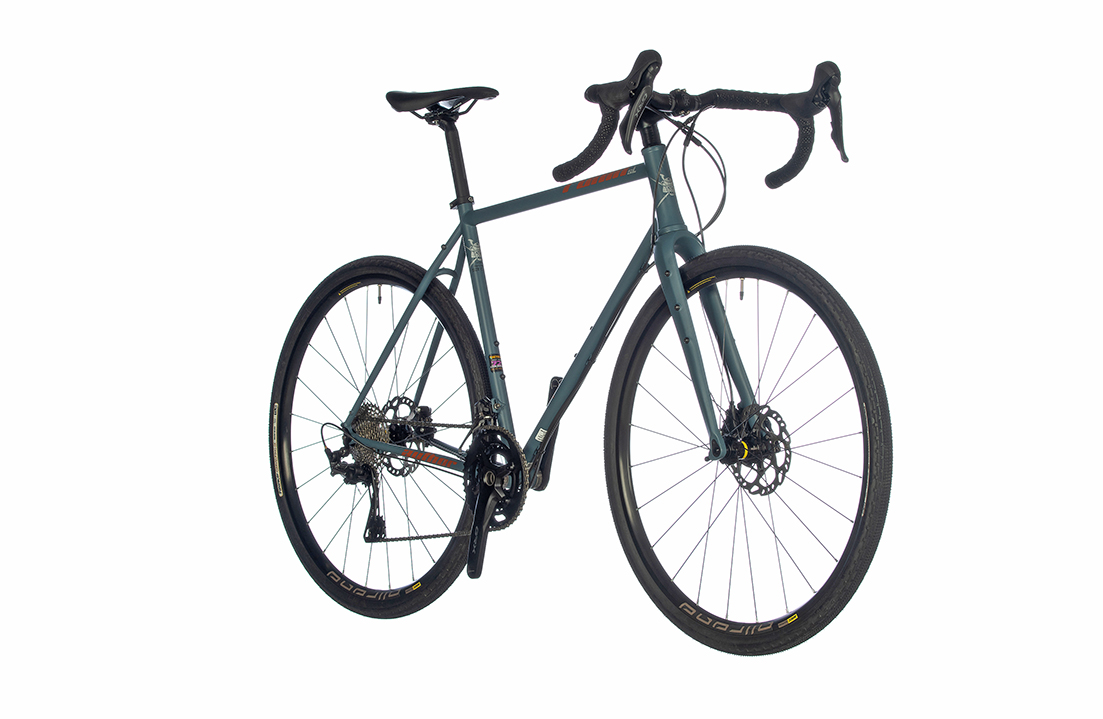

AUTHOR Ronin SL 2021-22Archivní model 2021-22

Colour variants
1
Triple butted cromoly REYNOLDS frameCarbon fork, 12 mm axleSHIMANO GRX 800/600, 22 speed
other models
Interested in other model`s year?

Technical specification

Size500, 520, 540, 560, 580 mm
Frametriple butted cromoly REYNOLDS
Front forkAUTHOR carbon 1.5" tapered
Head partsPRESTINE Integrated 1.5" tapered
Chain WheelSHIMANO GRX 600 46-30 teeth 172.5 / 175 mm cranks
BBPartsSHIMANO BB-RS500 BB unit
Front derailleurSHIMANO GRX 810
Rear derailleurSHIMANO GRX 812
ShiftersSHIMANO GRX 600 (22)
Free wheelSHIMANO HG700-11 11-34 (11)
ChainKMC X11 EL
HubsMAVIC Allroad Disc CL UST wheel set 20 holes 12 × 100 mm thru front axle 12 × 142 mm rear axle
BrakesSHIMANO GRX 400 disc hydraulic (160 mm rotors)
Brakes leversSHIMANO GRX 600
RimsMAVIC Allroad Disc CL UST wheel set 20 holes
SpokesMAVIC
TiresPANARACER Gravel King SK aramid 700 × 38c
HandlebarRITCHEY Road ErgoMax 420 / 440 / 460 mm
TapesAUTHOR microfiber / gel
StemRITCHEY Comp 4-Axis
Seat postRITCHEY Comp (27.2)
Seat clampAUTHOR (29.8)
SaddleAUTHOR Guru CR
Speed22
Weight10,2 kg / 54 cm

Geometry and sizes

Size 500 520 540 560 580
Min. figure [cm] 160 168 176 186 193
Max. figure [cm] 170 178 188 195 205
S/T c-t [mm] 500 520 540 560 580
S/T c-c [mm] 460 480 500 520 540
T/T h [mm] 530 545 560 580 595
T/T a [mm] 517 530 544 562 575
H/T [mm] 120 140 160 180 200
C/S [mm] 425 425 425 425 425
W/B [mm] 1020 1026 1037 1047 1051
S/T ang. [°] 74.5 74 73.5 73 72.5
H/T ang. [°] 70.5 71 71 71.5 72
F/L [mm] 404 404 404 404 404
B/B drop [mm] 70 70 69 68 68
B/B width [mm] 68 68 68 68 68
Reach [mm] 378 382 386 395 397
Stack [mm] 548 569 587 607 628
F/R [mm] 50 50 50 50 50
Handlebars [mm] 0 0 0 0 0
Stem [mm] 0 0 0 0 0
Cranks [mm] 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Ronin SL 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Product options

grey-matt / copper50 = UA#42941802   52 = UA#42941803   54 = UA#42941804   56 = UA#42941805   58 = UA#42941806
