AUTHOR Rival ASL 27,5 2020
AUTHOR Rival ASL 27,5 2020
rivalasl 2020 aut0917 viewde
rivalasl 2020 aut0919 viewde
rivalasl 2020 aut0922 viewde
AUTHOR Rival ASL 27,5 2020AUTHOR Rival ASL 27,5 2020rivalasl 2020 aut0917 viewderivalasl 2020 aut0919 viewderivalasl 2020 aut0922 viewde
Interested in other model`s year?

Technical specification

Size14" 16", 18"

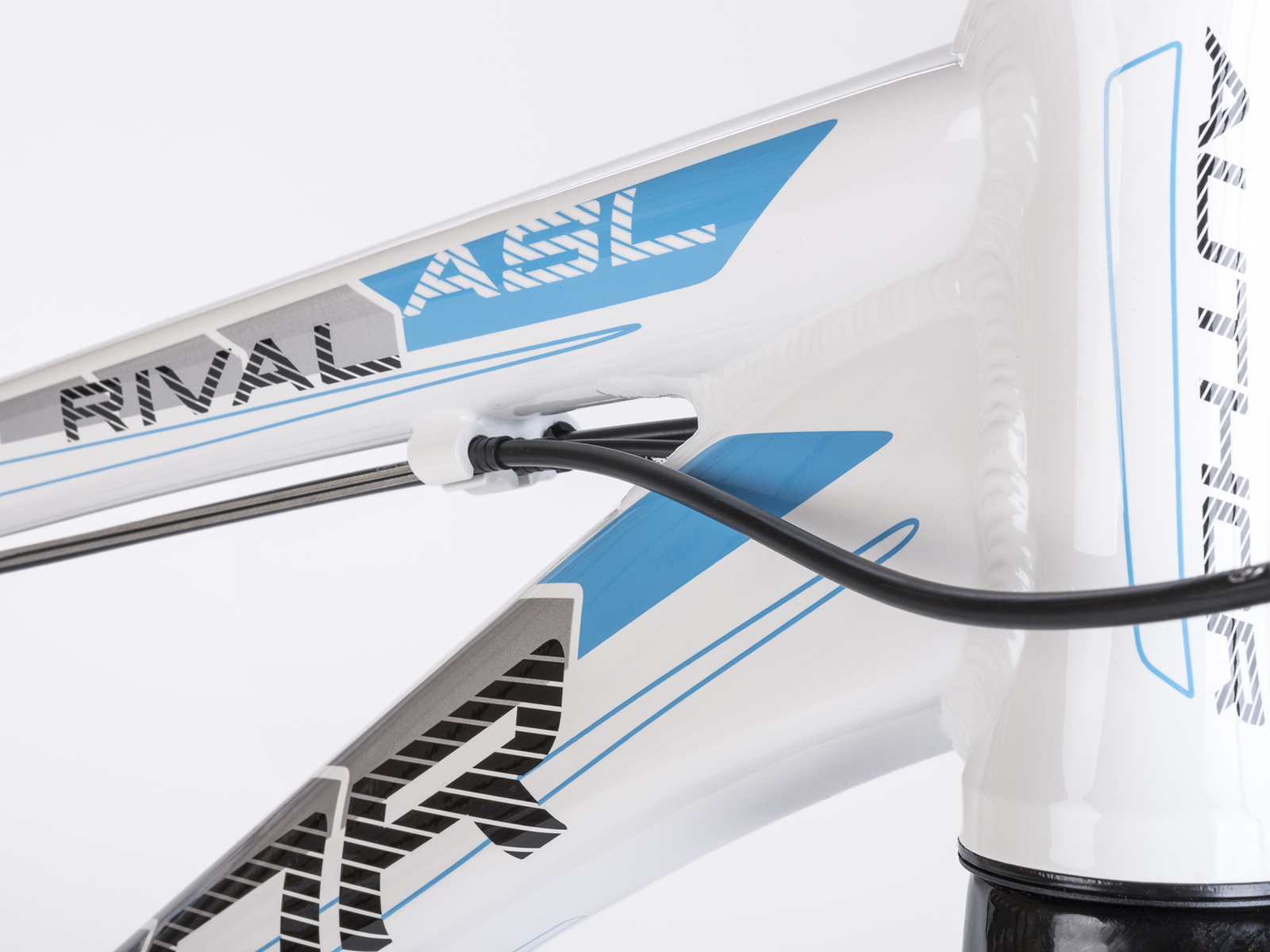

Framealloy 6061 27.5" (ASL)
Front forkRST Gila 27.5 T (100 mm)
Head partsPRESTINE Integrated 1-1/8"
Chain WheelPROWHEEL 42-34-24 teeth 170 mm cranks
BBPartsVP COMP cartridge
Front derailleurSHIMANO TY700 (34.9)
Rear derailleurSHIMANO TX800
ShiftersSHIMANO TX800 (24)
Free wheelSHIMANO HG200-8 12-32 (8)
ChainKMC Z8.1
HubsQUANDO Disc 32 holes

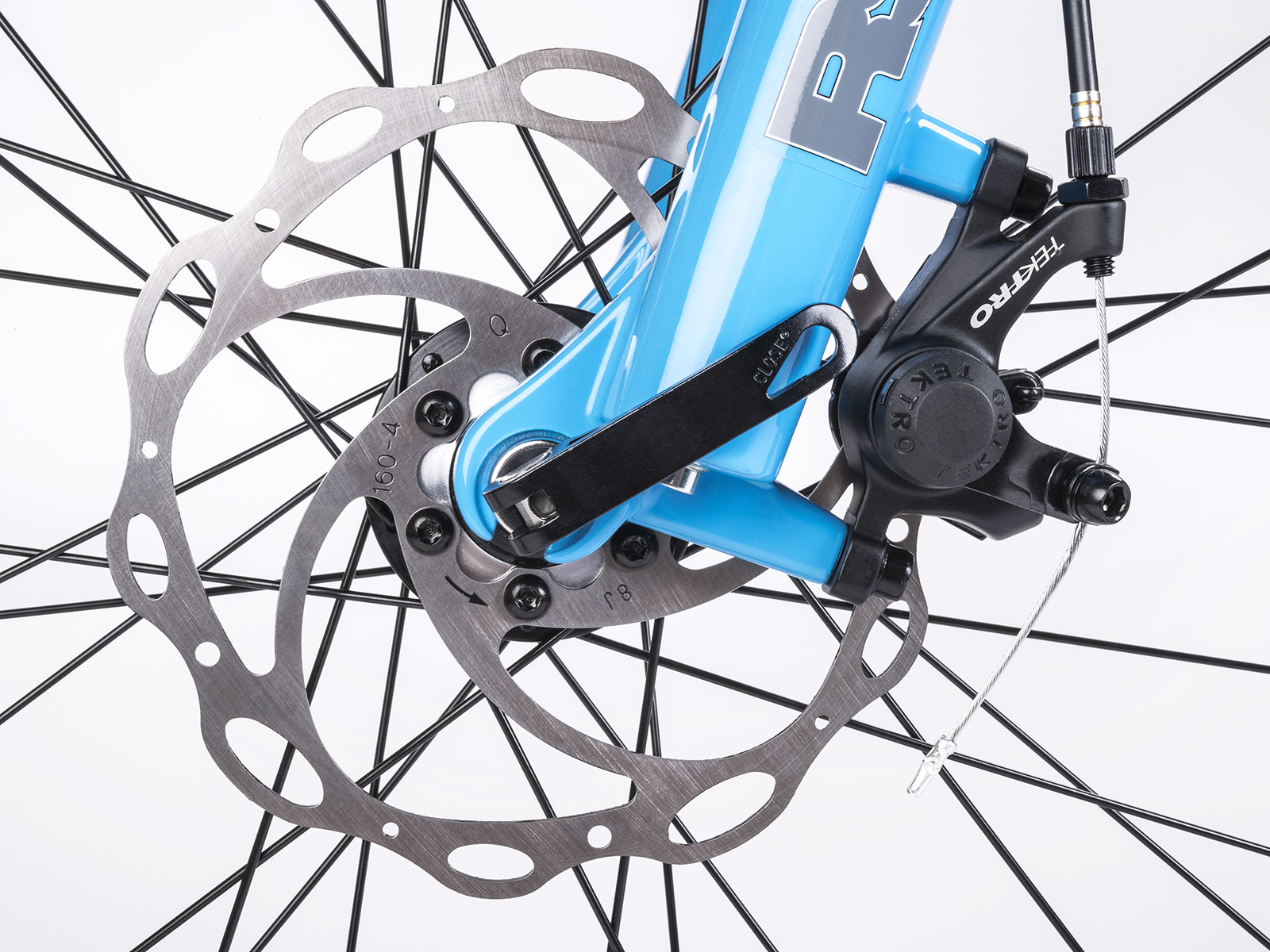

BrakesTEKTRO disc mechanical (6" rotors)
Brakes leversSHIMANO TX800
RimsAUTHOR Xenon 27.5 32 holes
Spokeshi-ten black
TiresAUTHOR Speed Master 27.5" x 2.00"
Pedalsresin
Handlebarhi-ten 20 mm 640 mm
GripsAUTHOR high density foam
StemZOOM alloy
Seat postZOOM alloy (31.6)
Seat clampAUTHOR (34.9)

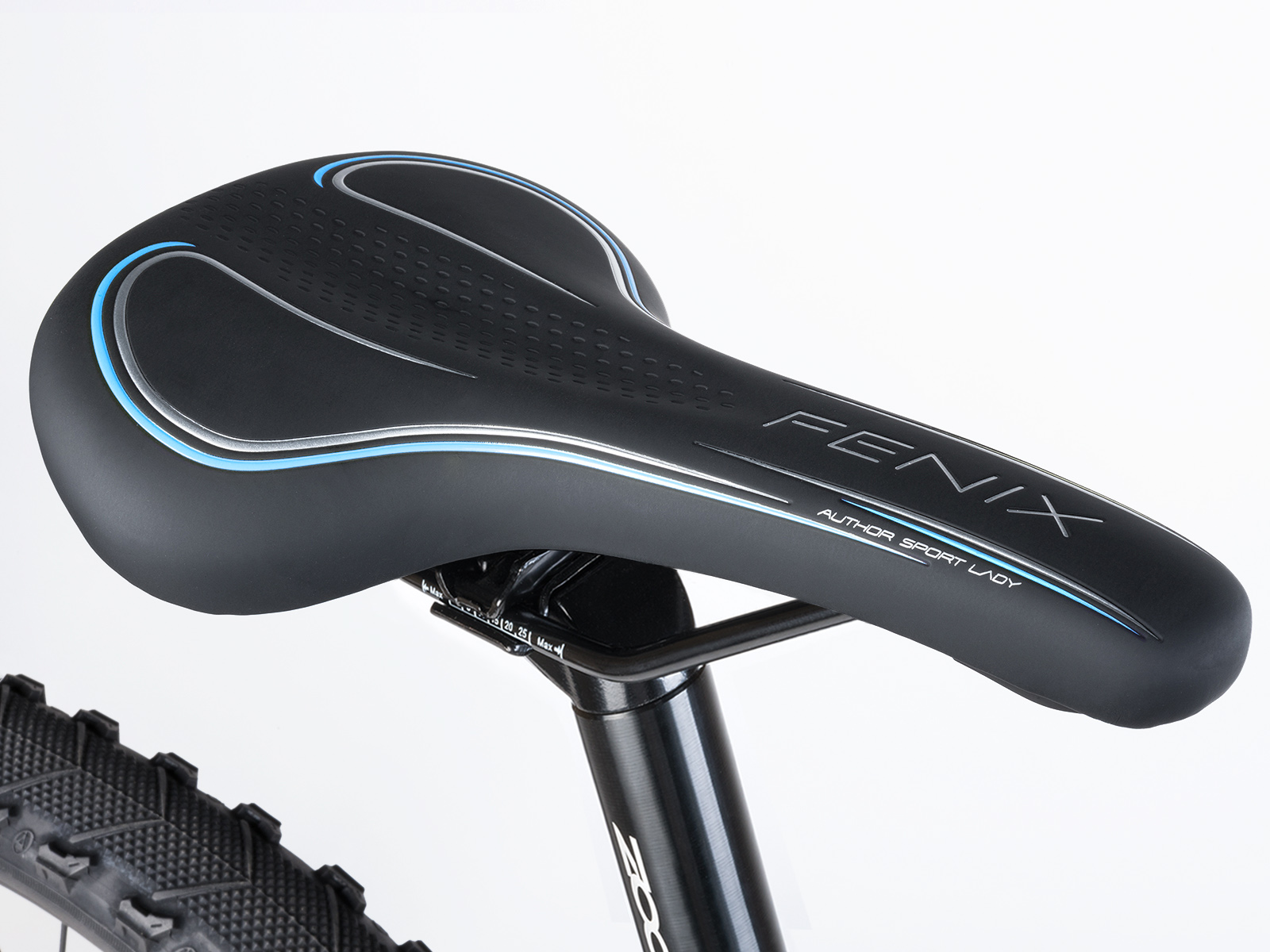

SaddleAUTHOR Fenix
Speed24
Weight14,8 kg /16"

Geometry and sizes

Size 14" 16" 18"
Min. figure [cm] 140 155 170
Max. figure [cm] 158 173 188
S/T c-t [mm] 356 406 457
S/T c-c [mm] 0 0 0
T/T h [mm] 545 560 585
T/T a [mm] 542 545 563
H/T [mm] 110 120 130
C/S [mm] 425 425 425
W/B [mm] 1033 1054 1080
S/T ang. [°] 73 73 73
H/T ang. [°] 70 69.5 69.5
F/L [mm] 495 495 495
B/B drop [mm] 45 45 45
B/B width [mm] 44 44 44
Reach [mm] 361 374 396
Stack [mm] 602 609 619
F/R [mm] 68 68 68
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Rival ASL 27,5 2020

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

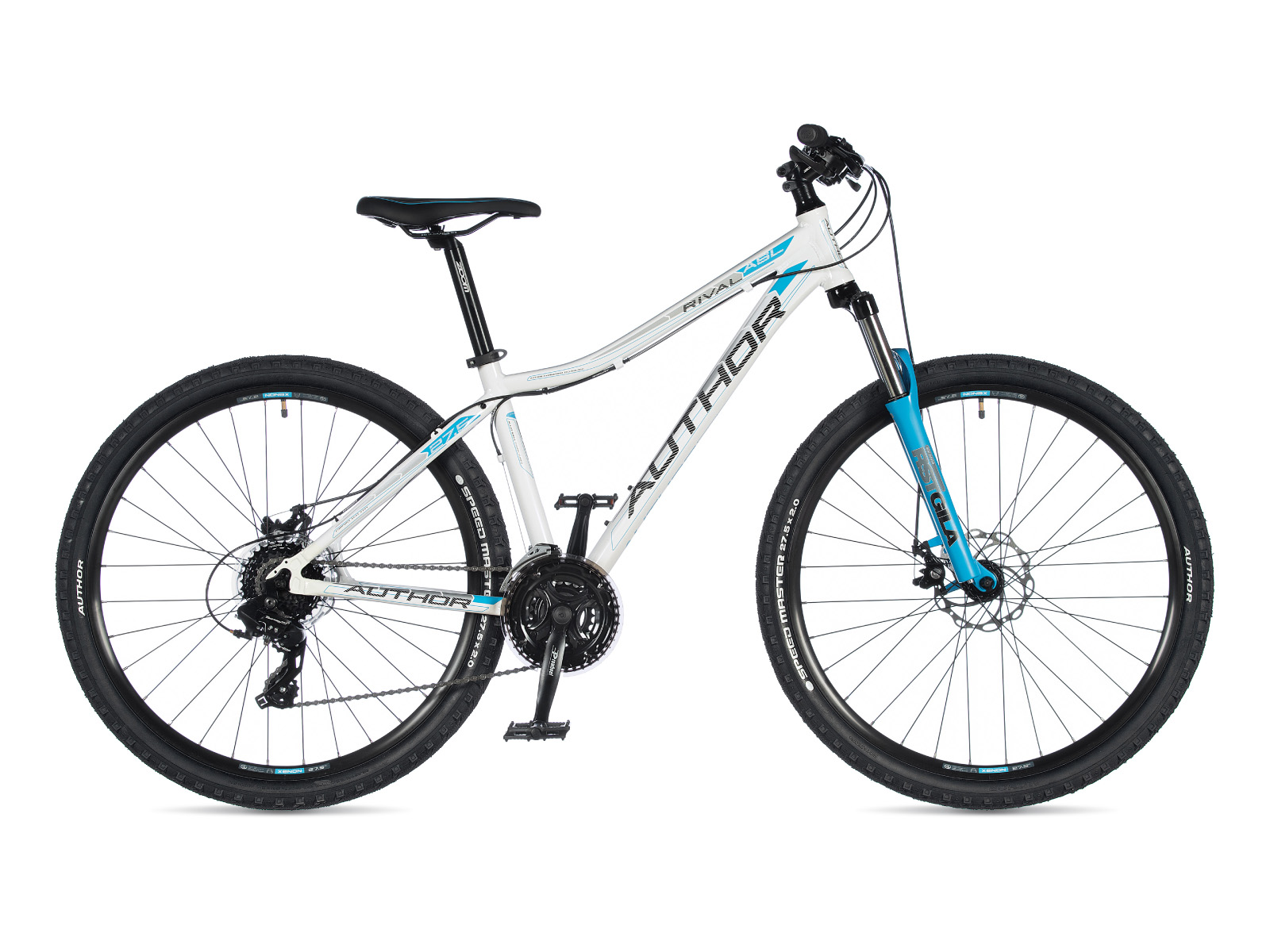

white / blue16" = UA#42922602   18" = UA#42922603

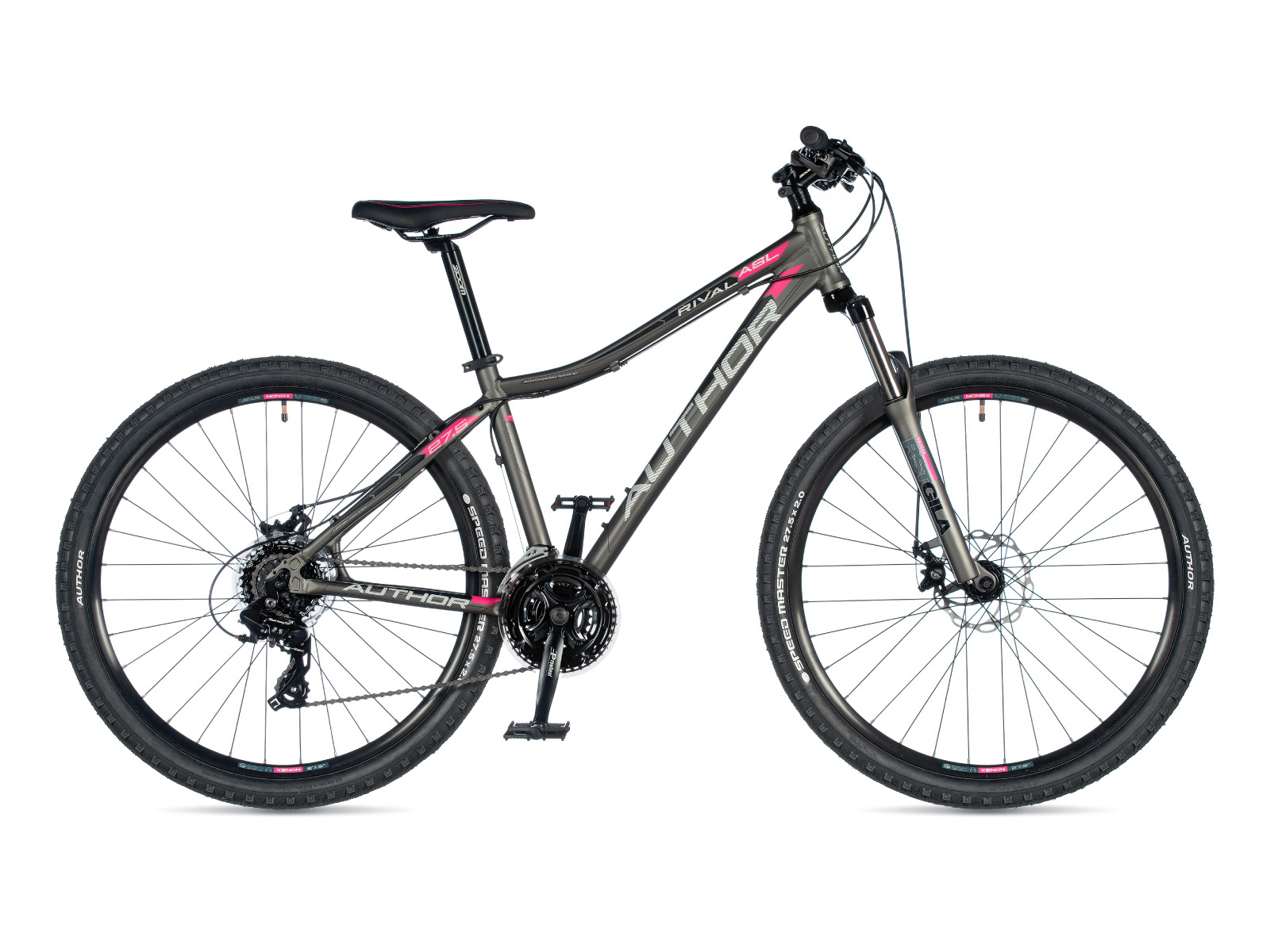

silver-matt / pink14" = UA#42922611   16" = UA#42922612   18" = UA#42922613
