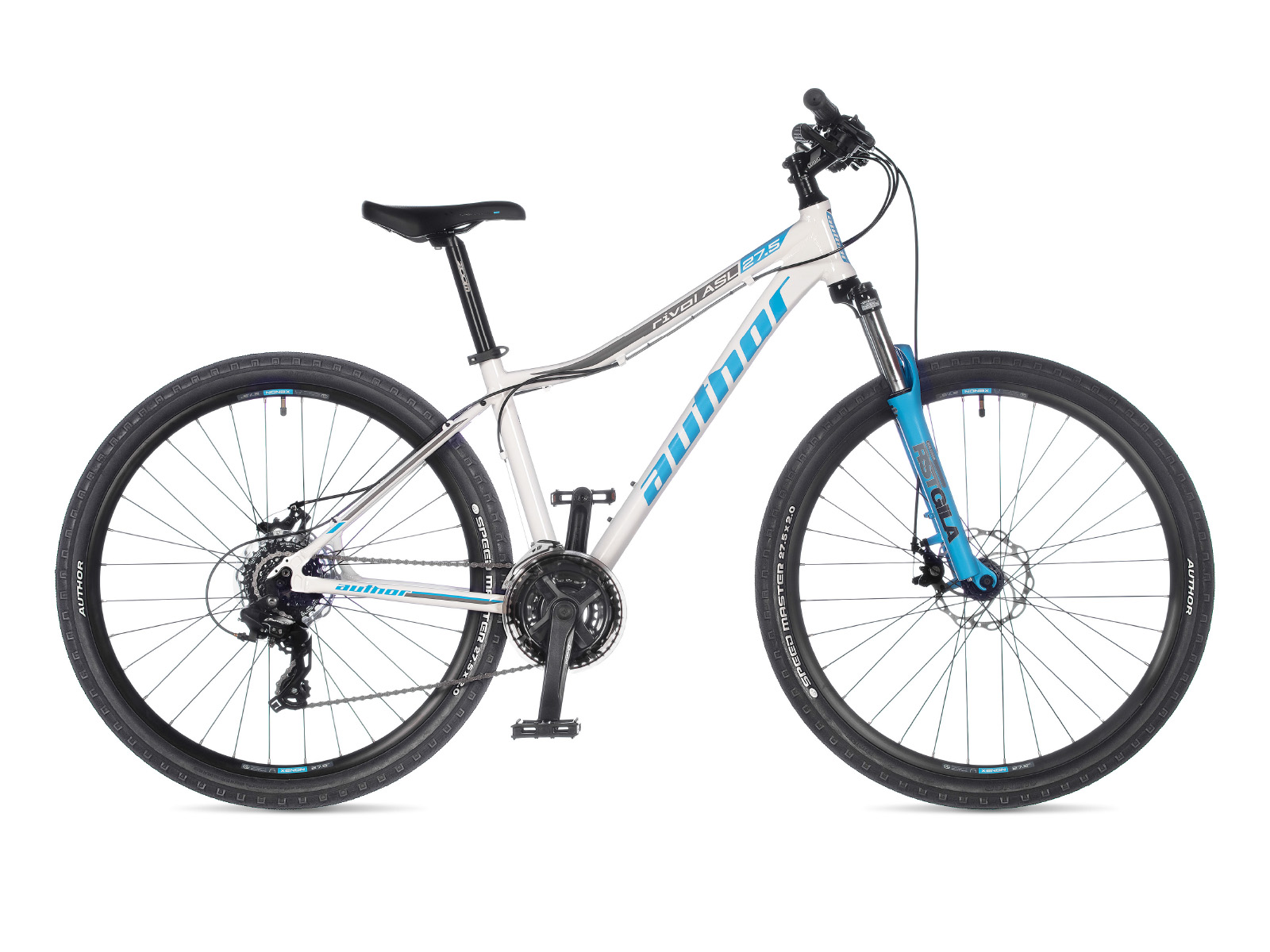

Rival 27,5 ASL 2023-24

Technical specification

Size	14", 16", 18"

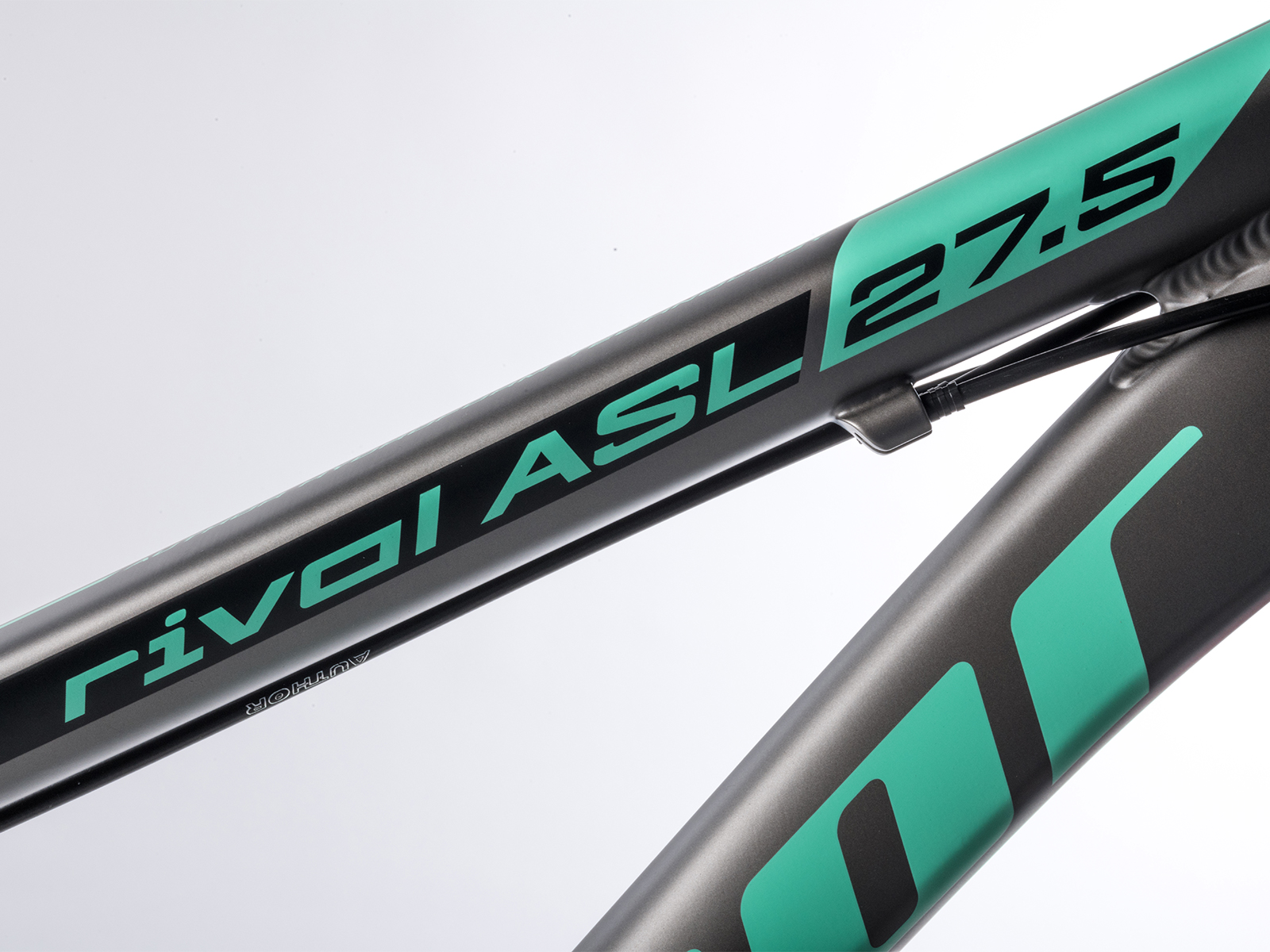

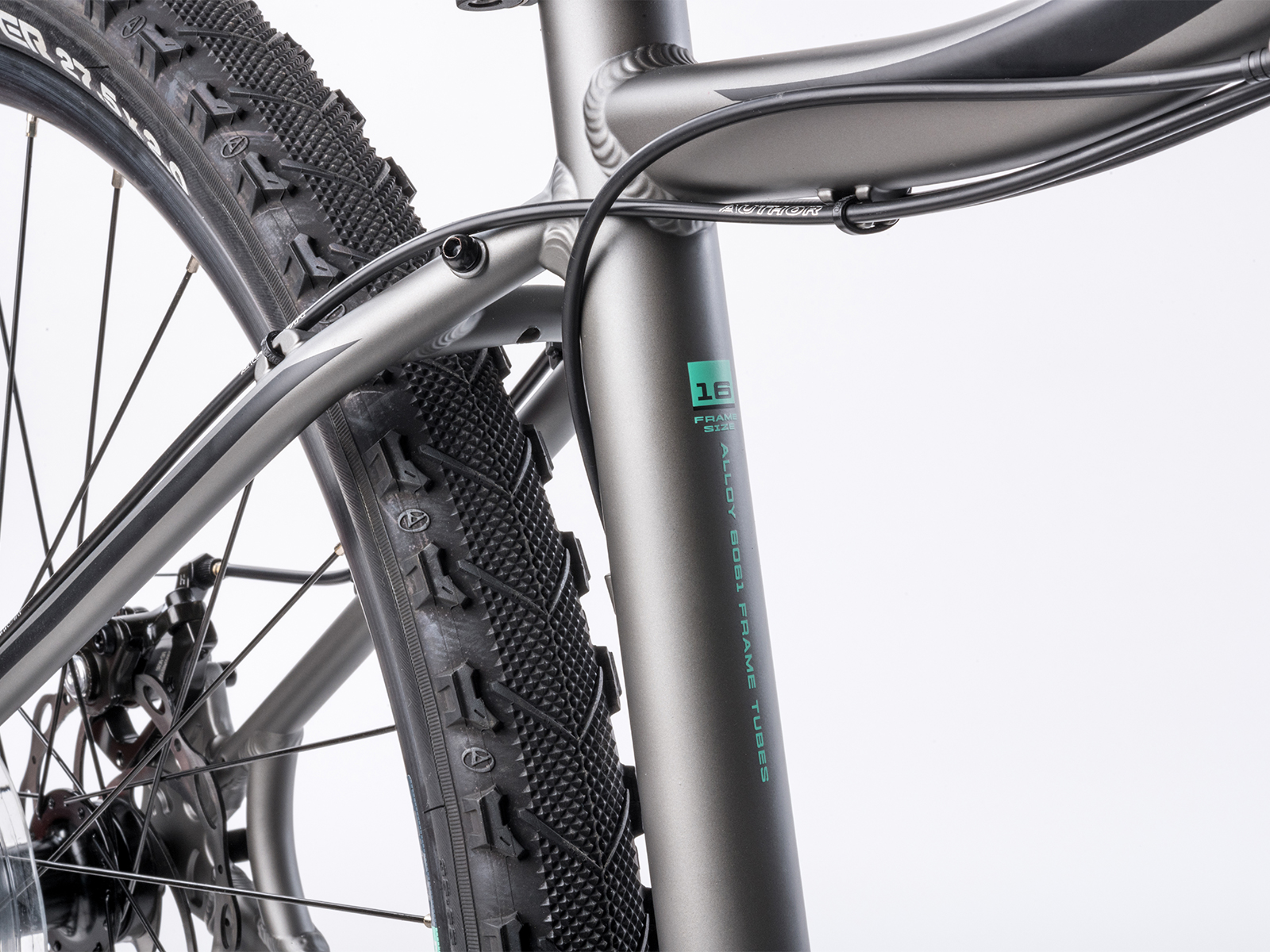

Frame	alloy 6061 27.5" (ASL)
Front fork	RST Gila 27.5 ML, lock out (100 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL, 42-34-24 teeth, 170 mm cranks
BBParts	VP COMP, cartridge
Front derailleur	SHIMANO TY700 (34.9)
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO TX800 (24)
Free wheel	SHIMANO HG200-8, 12-32 (8)
Chain	KMC Z8.3
Hubs	QUANDO Disc, 32 holes

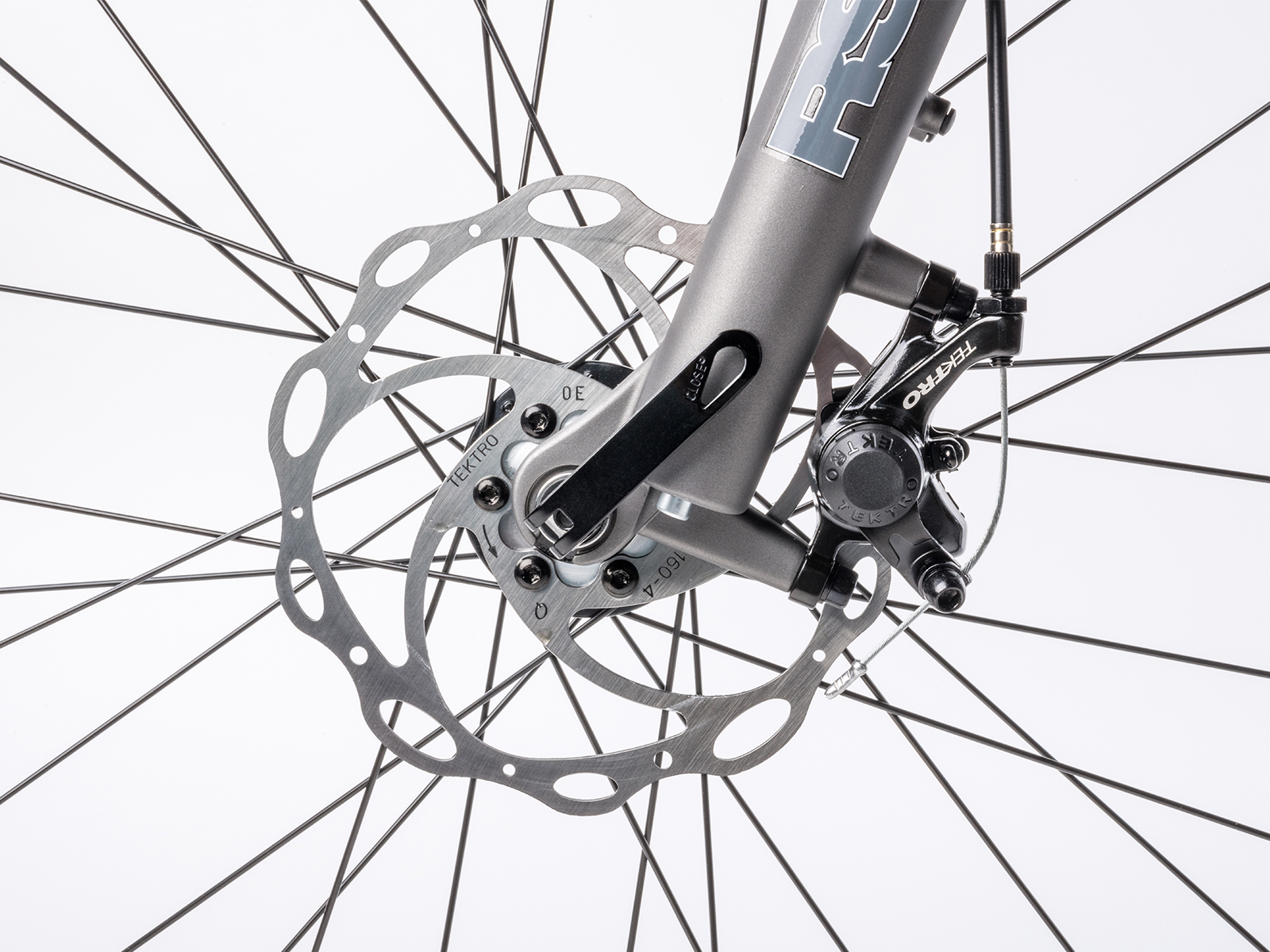

Brakes	TEKTRO disc mechanical (6" rotors)
Brakes levers	SHIMANO TX800

Rims	AUTHOR Xenon 27.5, 32 holes
Spokes	black steel
Tires	AUTHOR Speed Master 27.5" × 2.00"
Pedals	plastic
Handlebar	AUTHOR rise 25 mm, 9°, 640 / 660 mm
Grips	AUTHOR high density foam
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (31.6)
Seat clamp	AUTHOR (34.9)

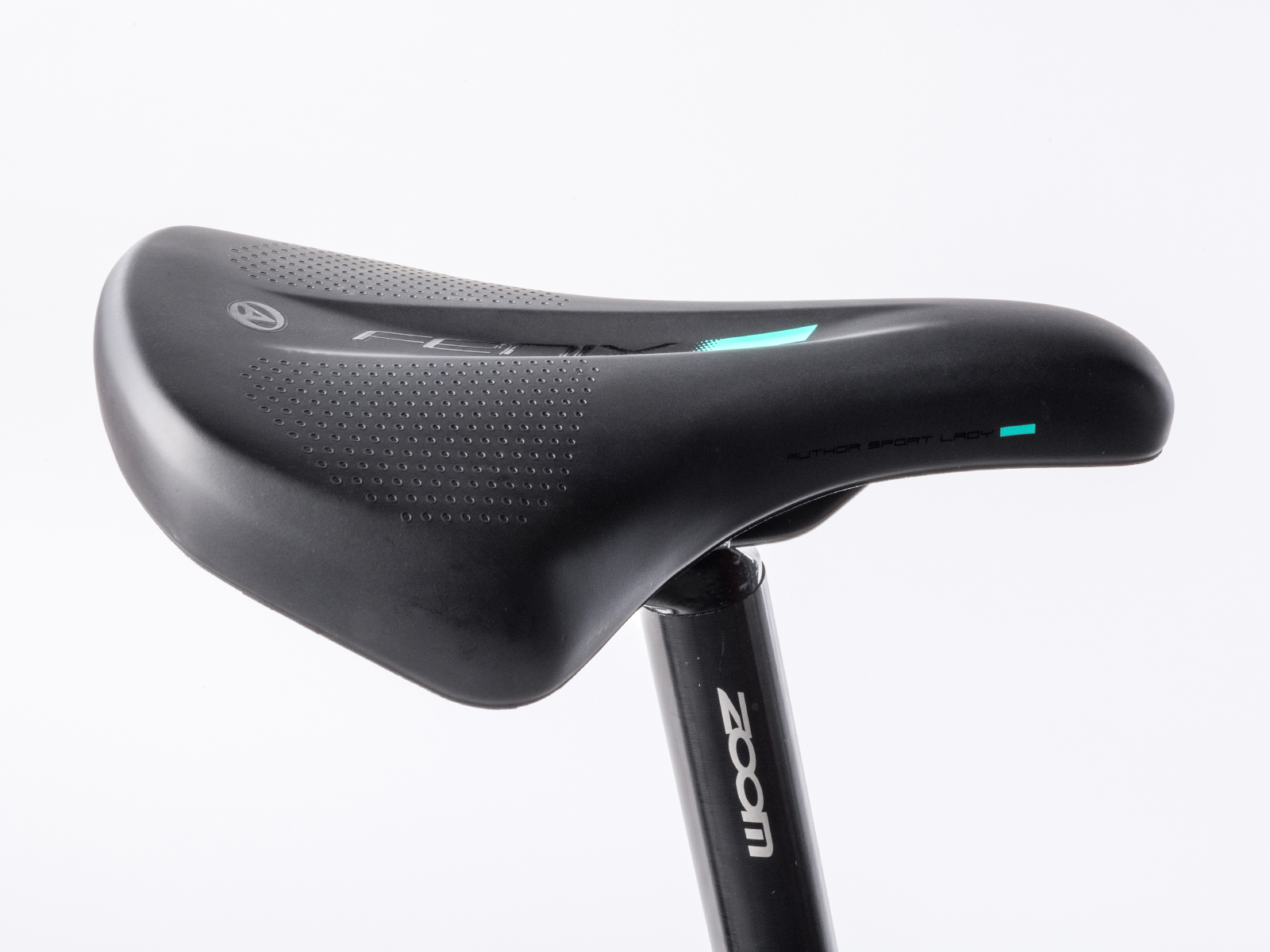

Saddle	AUTHOR Fenix
Speed	24
Weight	14,8 kg / 16"

Geometry and sizes

Size	14"	16"	18"
Min. figure ~~[cm]~~	140	155	168
Max. figure ~~[cm]~~	158	170	185
S/T c-t ~~[mm]~~	356	406	457
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	545	560	585
T/T a ~~[mm]~~	542	546	563
H/T ~~[mm]~~	110	120	130
C/S ~~[mm]~~	435	435	435
W/B ~~[mm]~~	1043	1064	1080
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	70	69.5	69.5
F/L ~~[mm]~~	495	495	495
B/B drop ~~[mm]~~	45	45	45
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	361	374	396
Stack ~~[mm]~~	602	609	619
F/R ~~[mm]~~	44	44	44
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
