AUTHOR Bicycle Quanta 2015
  » Bicycles » mountain bike » mtb 26
  » Bicycles » ladies » mtb 26

AUTHOR Quanta 2015Archivní model 2015

Alloy frame in two coloursRear derailleur SHIMANO AceraAuthor Donna saddle
SOLD OUT

Mountain bike Author QUANTA with strong alloy frame and RST Gila fork with lock out unit.

other models
Interested in other model`s year?

Technical specification

Size16", 18"
Framealloy 6061 26" (L)
Front forkRST Gila 26 T (80 mm)
Head partsPRESTINE 1-1/8"
Chain WheelSUNTOUR XCT-T312 42-32-22 teeth 170 mm cranks
BBPartsSUNTOUR XCT cartridge
Front derailleurSHIMANO M190 (34.9)
Rear derailleurSHIMANO Acera
ShiftersSHIMANO Altus (24)
Free wheelSHIMANO HG31-8 11-32 (8)
ChainKMC Z72
HubsQUANDO 32 holes
BrakesTEKTRO 837
Brakes leversSHIMANO Altus
RimsAUTHOR Xenon 32 holes
Spokessteel
TiresAUTHOR Spanker 26" x 1,95"
PedalsAUTHOR Non Slip resin
HandlebarAUTHOR 25 mm 620 / 640 mm
GripsAUTHOR high density foam
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Donna
Speed24
Weight13.7 kg / 18"

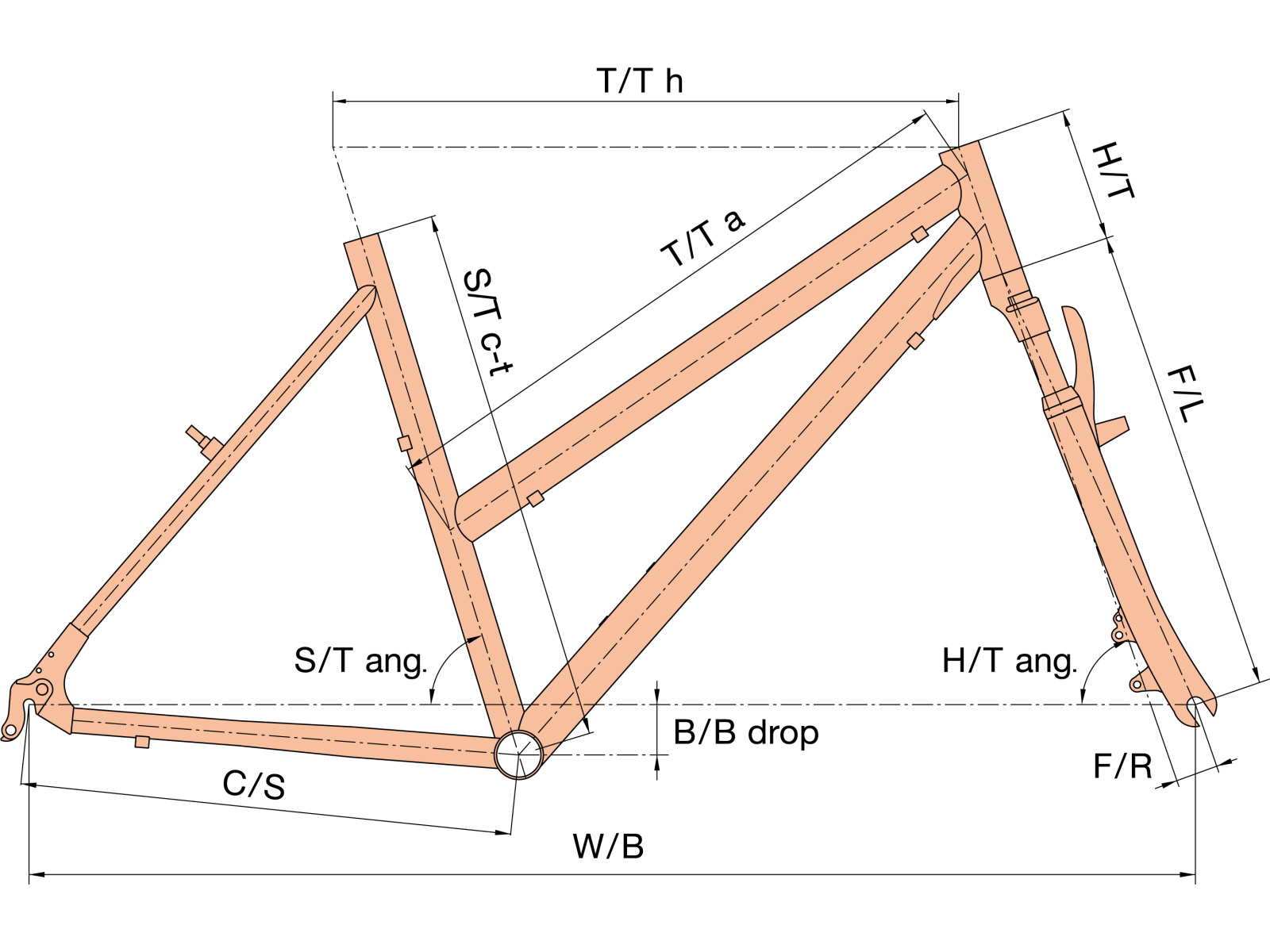

Geometry and sizes

Size 16" 18"
Min. figure [cm] 145 160
Max. figure [cm] 165 180
S/T c-t [mm] 406 457
S/T c-c [mm] 0 0
T/T h [mm] 570 595
T/T a [mm] 580 600
H/T [mm] 120 130
C/S [mm] 420 420
W/B [mm] 1051 1077
S/T ang. [°] 73 73
H/T ang. [°] 70 70
F/L [mm] 460 460
B/B drop [mm] 30 30
B/B width [mm] 68 68
Reach [mm] 0 0
Stack [mm] 0 0
F/R [mm] 38 38
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Quanta 2015

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
