AUTHOR Pegas 27,5 ASL 2023
pegas 27-5 asl foto1 viewde
pegas 27-5 asl foto2 viewde
pegas 27-5 asl foto3 viewde
pegas 27-5 asl foto4 viewde
pegas 27-5 asl foto5 viewde
AUTHOR Pegas 27,5 ASL 2023pegas 27-5 asl foto1 viewdepegas 27-5 asl foto2 viewdepegas 27-5 asl foto3 viewdepegas 27-5 asl foto4 viewdepegas 27-5 asl foto5 viewde
  » Bicycles » ladies » mtb 27.5 ladies
  » Bicycles » mountain bike » mtb 27.5

Pegas 27,5 ASL 2023-24

Colour variants
Alloy ASL frame with Inner Cable RoutingLock out fork RST Blaze 27.5 TnLHydraulic disc brakes TEKTROSHIMANO Alivio components, 18 speedAUTHOR Speed Master 27.5" × 2.00" tiresAUTHOR GripLock foam comfortable ASL gripsAUTHOR Fenix ASL comfortable saddle
other models
Interested in other model`s year?

Technical specification

Size14", 16", 18"

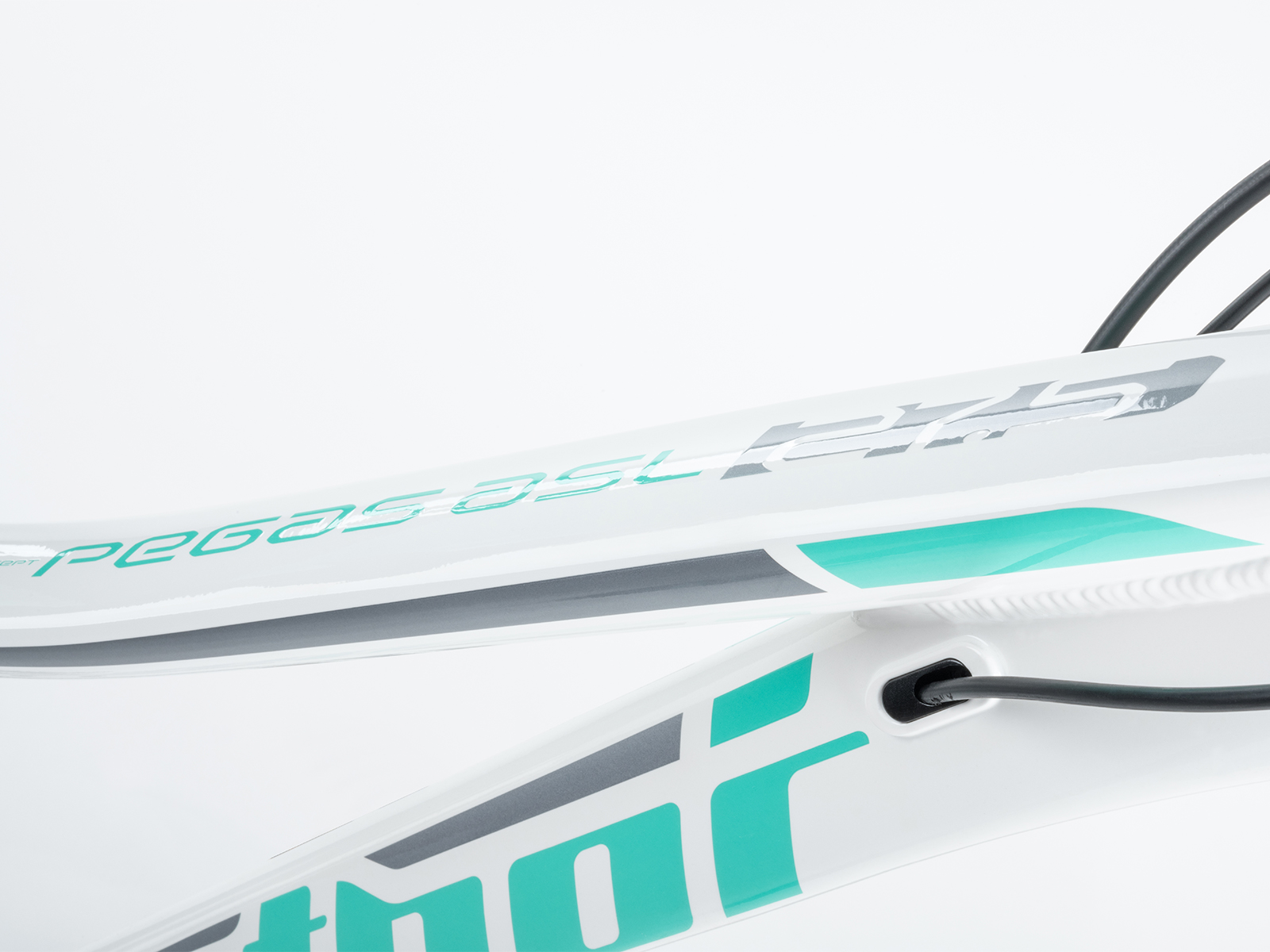

Framehydroformed alloy 6061 27.5" (ASL)
Front forkRST Blaze 27.5 TnL, oil, lock out (100 mm)
Head partsPRESTINE Integrated 1.5" tapered

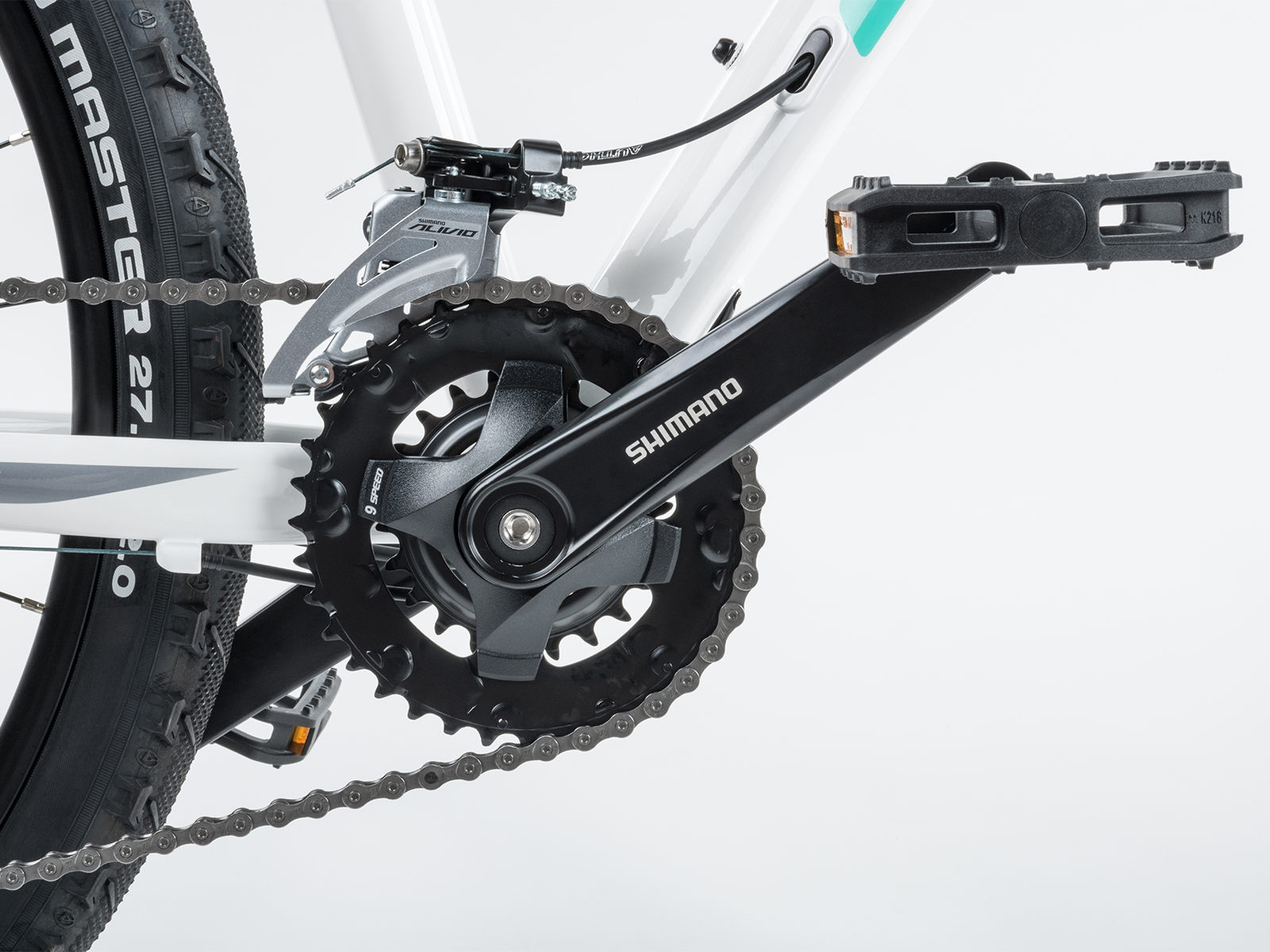

Chain WheelSHIMANO MT210-2, 36-22 teeth, 170 mm cranks
BBPartsSHIMANO BB-UN101, cartridge
Front derailleurSHIMANO Alivio (34.9)

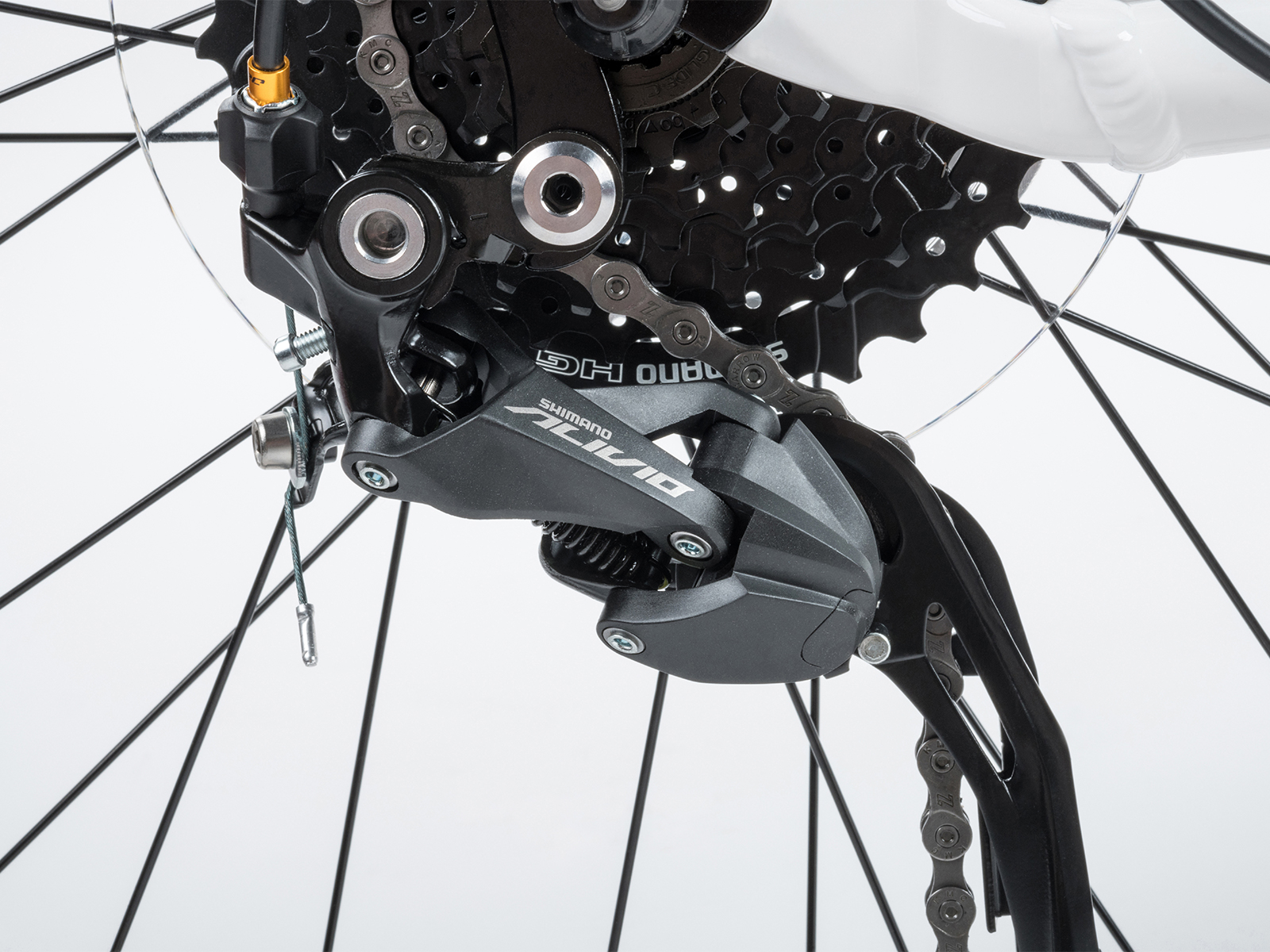

Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Alivio (18)
Free wheelSHIMANO HG200-9, 11-36 (9)
ChainKMC Z9
HubsQUANDO Disc, 32 holes

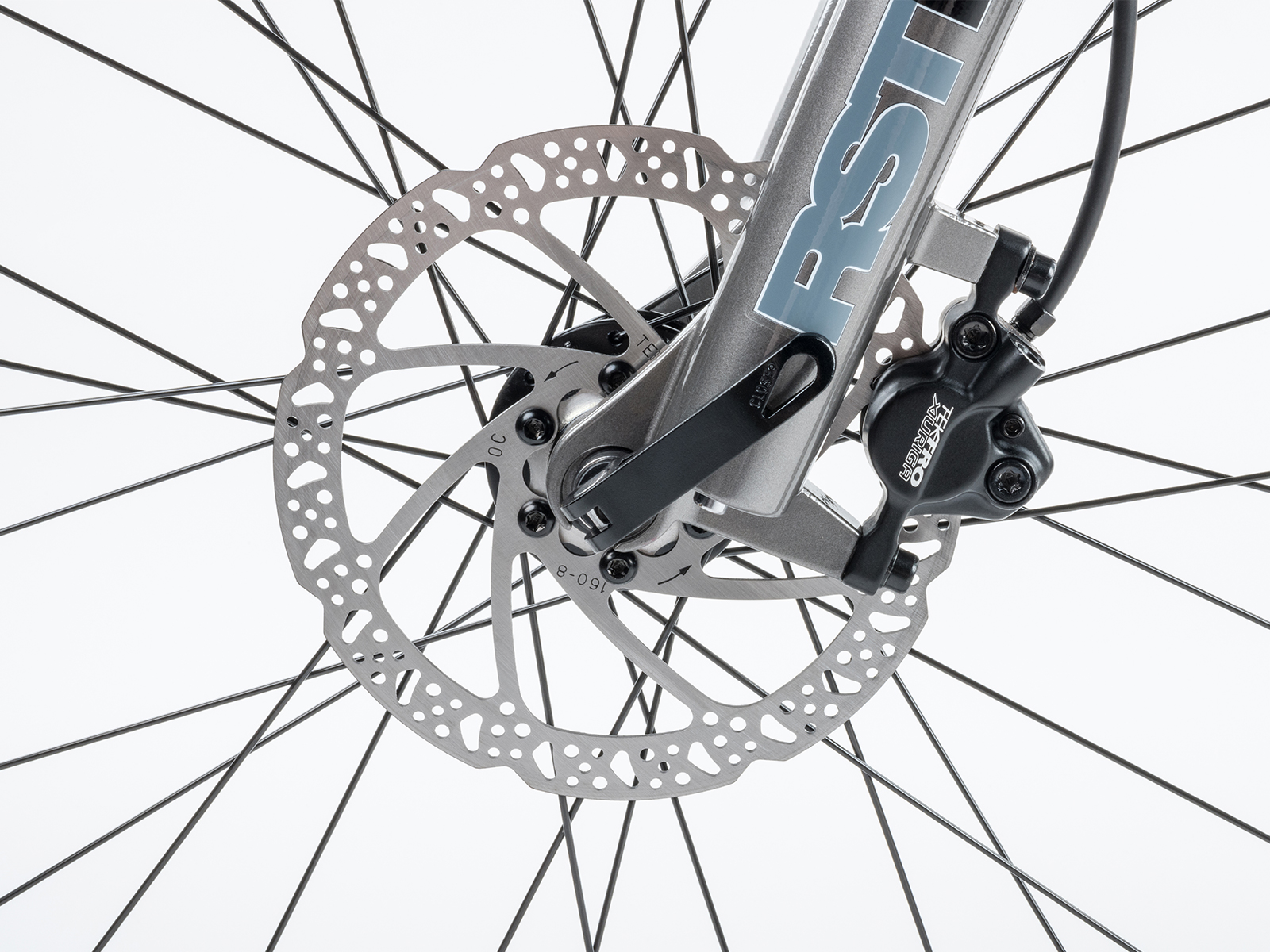

BrakesTEKTRO HD-M280 disc hydraulic (6" rotors)
Brakes leversTEKTRO HD-M280
RimsAUTHOR Xenon TRC 27.5, 32 holes
Spokesblack steel
TiresAUTHOR Speed Master 27.5" × 2.00"
Pedalsplastic
HandlebarAUTHOR rise, 15 mm, 9°, 660 / 680 mm
GripsAUTHOR GripLock foam
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Fenix
Speed18
Weight14,3 kg / 16"

Geometry and sizes

Size 14" 16" 18"
Min. figure [cm] 140 155 168
Max. figure [cm] 158 170 185
S/T c-t [mm] 356 406 457
S/T c-c [mm] 0 0 0
T/T h [mm] 545 560 585
T/T a [mm] 541 545 563
H/T [mm] 110 120 130
C/S [mm] 435 435 435
W/B [mm] 1043 1064 1090
S/T ang. [°] 73 73 73
H/T ang. [°] 70 69.5 69.5
F/L [mm] 495 495 495
B/B drop [mm] 45 45 45
B/B width [mm] 68 68 68
Reach [mm] 362 375 397
Stack [mm] 599 606 615
F/R [mm] 44 44 44
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Pegas 27,5 ASL 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

white / silver / green14" = UA#42945600   16" = UA#42945601   18" = UA#42945602
