AUTHOR Pegas 27,5 2020
AUTHOR Pegas 27,5 2020
pegas 2020 aut0976 viewde
pegas 2020 aut0978 viewde
pegas 2020 aut0979 viewde
pegas 2020 aut0980 viewde
pegas 2020 aut0981 viewde
AUTHOR Pegas 27,5 2020AUTHOR Pegas 27,5 2020pegas 2020 aut0976 viewdepegas 2020 aut0978 viewdepegas 2020 aut0979 viewdepegas 2020 aut0980 viewdepegas 2020 aut0981 viewde
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Pegas 27,5 2020Archivní model 2020

Colour variants
Hydroformed alloy frameLock out fork RST Blaze TnLDisc hydraulic TEKTRO brakes
price 17 590 Kč
SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size17", 19"

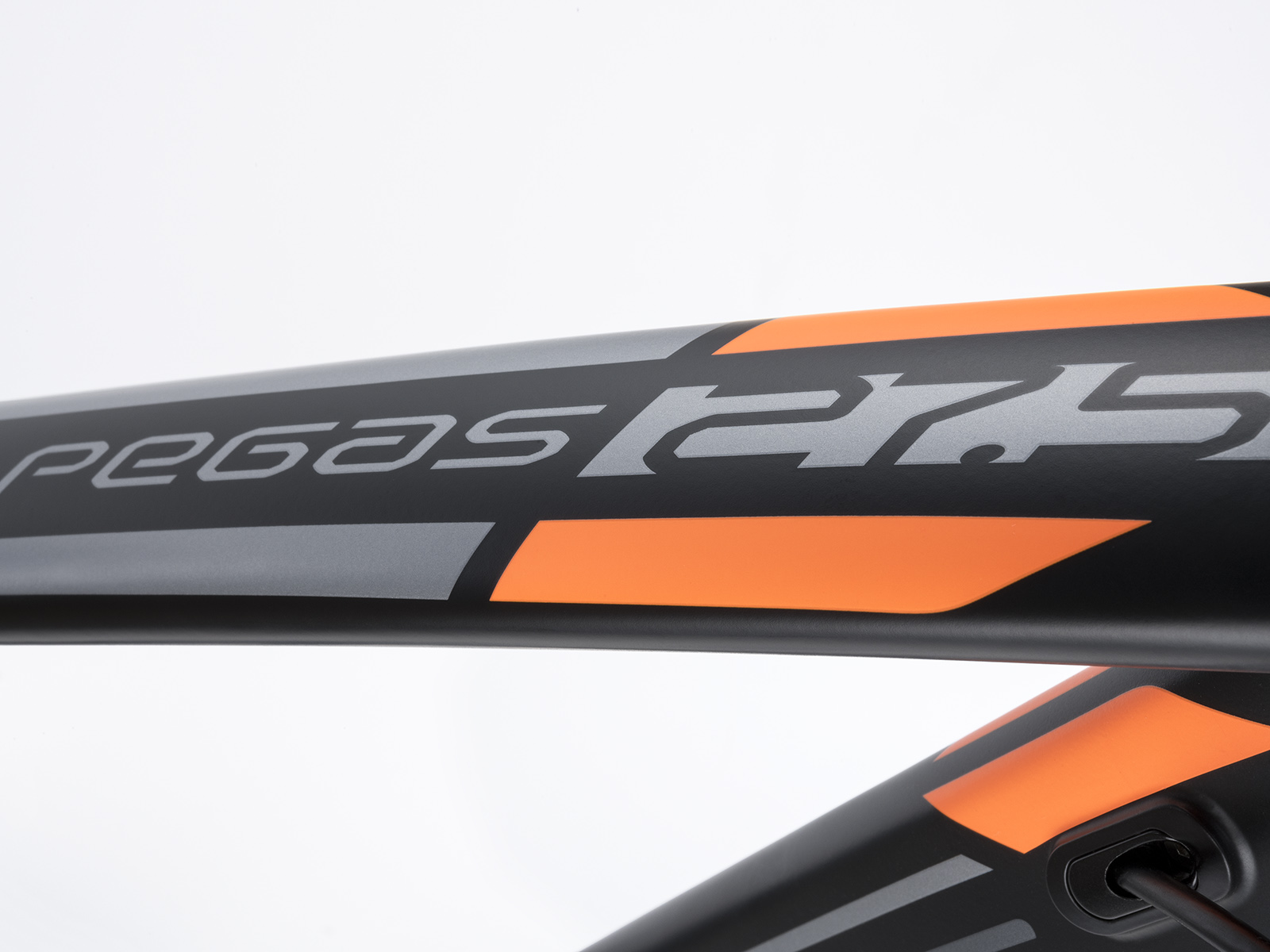

Framehydroformed alloy 6061 27.5"

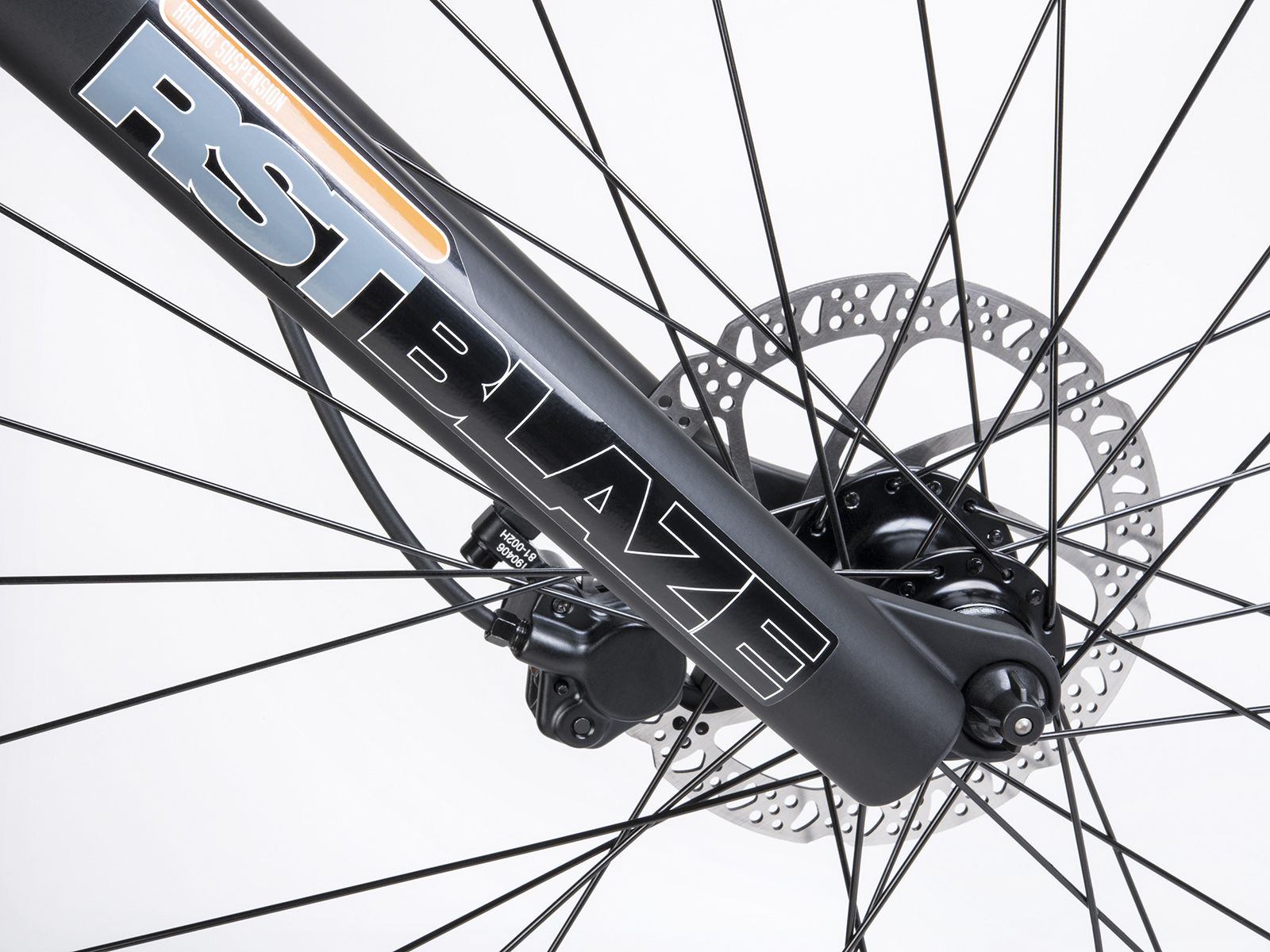

Front forkRST Blaze 27.5 TnL oil, lock out (100 mm)
Head partsAUTHOR Integrated 1.5" tapered
Chain WheelSUNTOUR XCM 40-30-22 teeth 170 / 175 mm cranks
BBPartsSUNTOUR XCT cartridge
Front derailleurSHIMANO Alivio (34.9)
Rear derailleurSHIMANO Acera

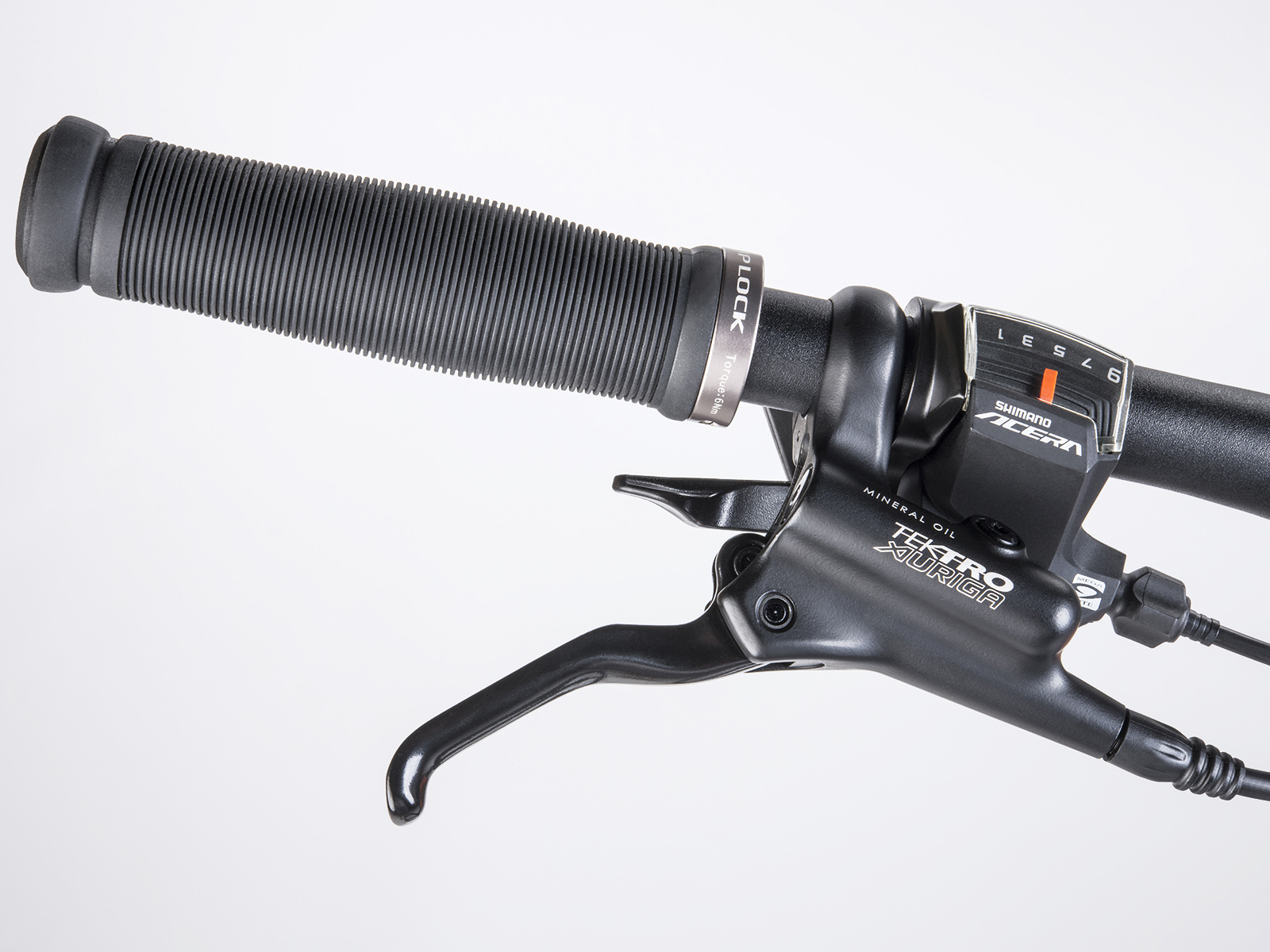

ShiftersSHIMANO Acera (27)
Free wheelSHIMANO HG200-9 11-34 (9)
ChainKMC Z9
HubsQUANDO Disc 32 holes
BrakesTEKTRO Auriga disc hydraulic (6" rotors)
Brakes leversTEKTRO Auriga
RimsAUTHOR Xenon Pro 27.5 32 holes
Spokeshi-ten black
TiresAUTHOR Rocket 27.5" x 2.10"
PedalsAUTHOR alloy
HandlebarAUTHOR 9° 680 / 700 mm

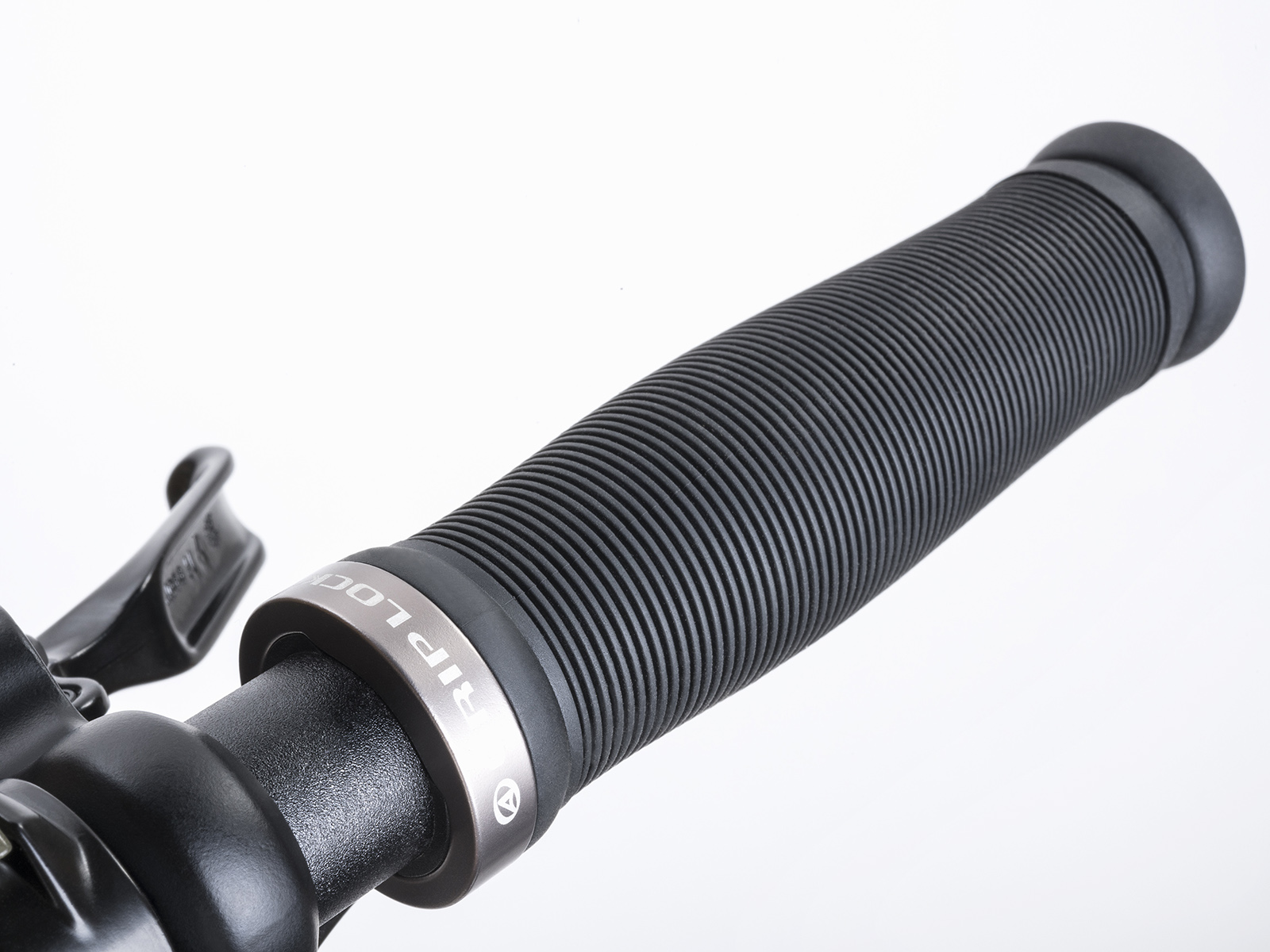

GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)

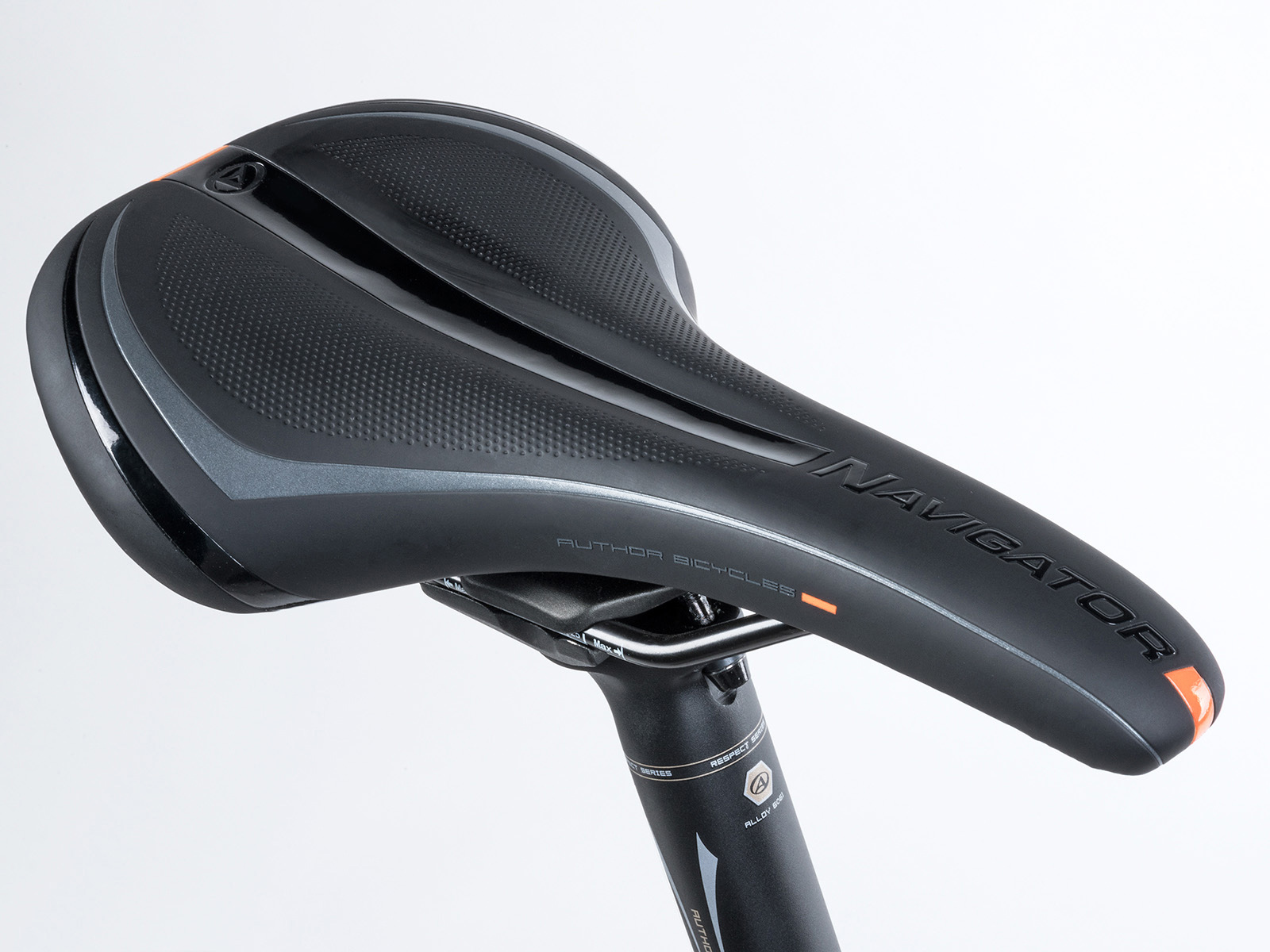

SaddleAUTHOR Navigator
Speed27
Weight14,6 kg /17"

Geometry and sizes

Size 15" 17" 19"
Min. figure [cm] 145 155 170
Max. figure [cm] 158 172 185
S/T c-t [mm] 381 432 483
S/T c-c [mm] 0 0 0
T/T h [mm] 570 590 615
T/T a [mm] 540 554 578
H/T [mm] 115 125 130
C/S [mm] 435 435 435
W/B [mm] 1056 1076 1101
S/T ang. [°] 73 73 73
H/T ang. [°] 69 69 69
F/L [mm] 495 495 495
B/B drop [mm] 35 35 35
B/B width [mm] 44 44 44
Reach [mm] 362 379 402
Stack [mm] 590 599 604
F/R [mm] 68 68 68
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Pegas 27,5 2020

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

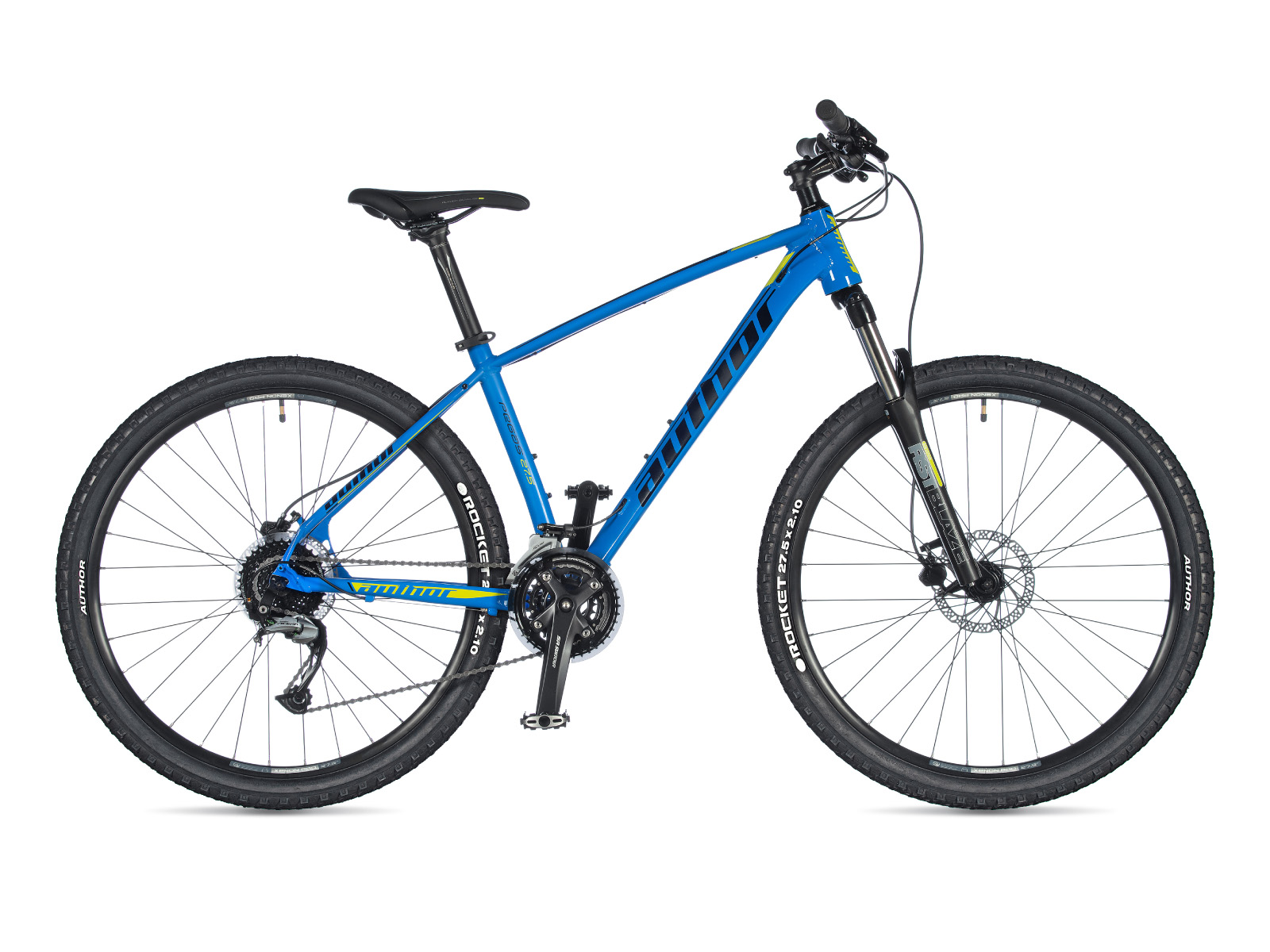

blue / black17" = UA#42923702   19" = UA#42923703

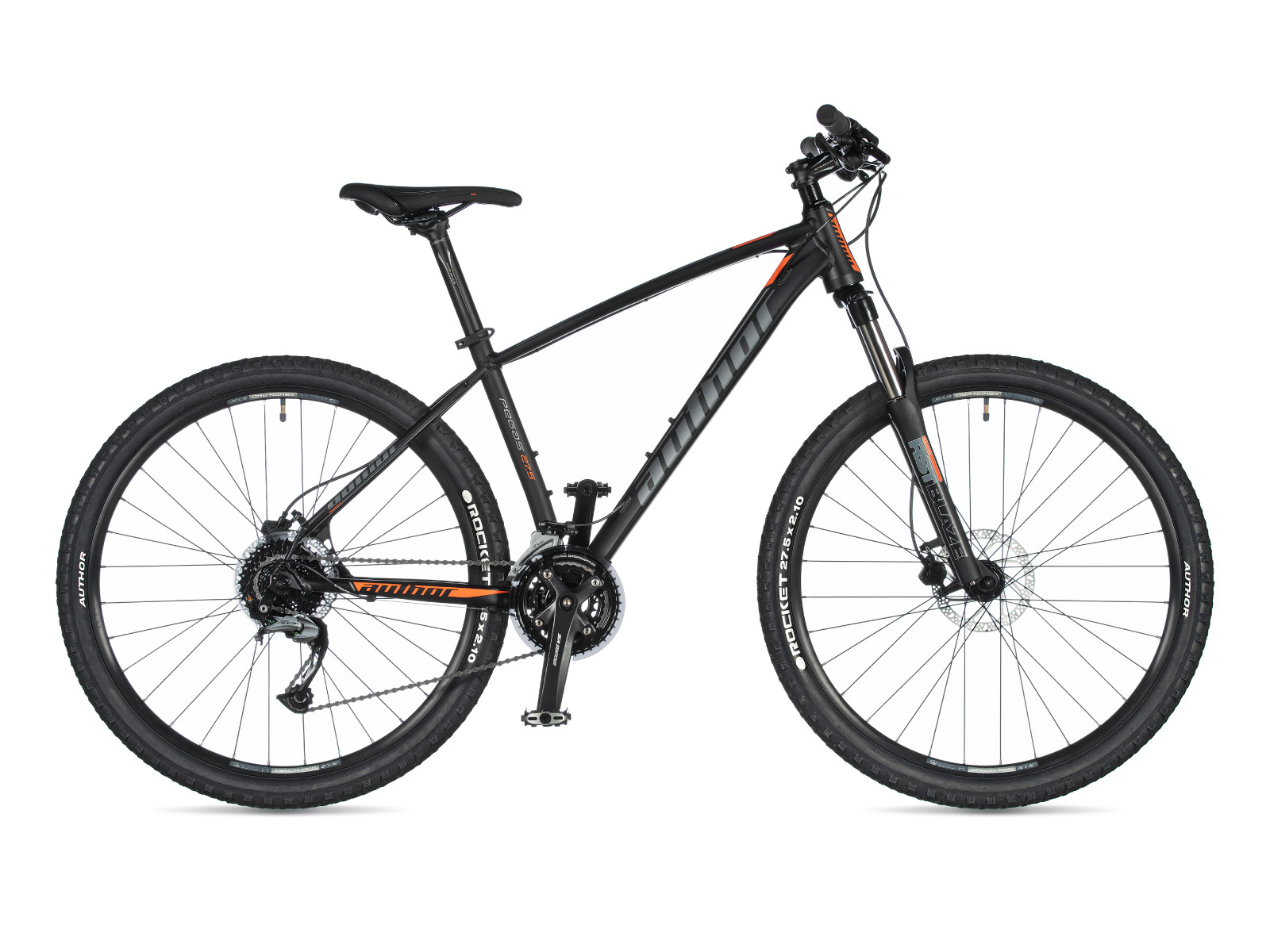

black-matt / orange-neon17" = UA#42923712   19" = UA#42923713
