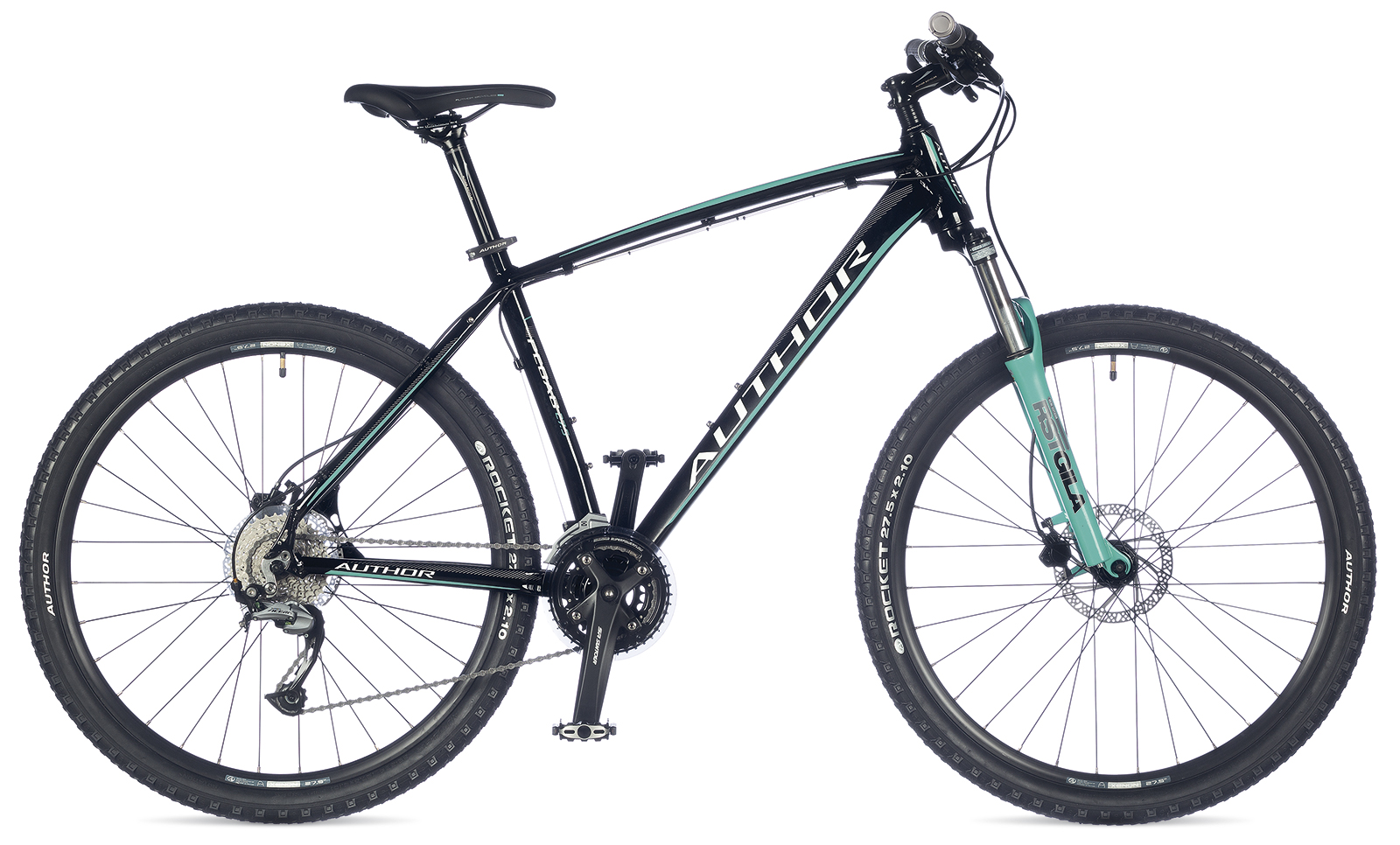

AUTHOR Pegas 2017
AUTHOR Pegas 2017
AUTHOR Pegas 2017AUTHOR Pegas 2017
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Pegas 2017Archivní model 2017

Colour variants
Alloy hydroformed frameSHIMANO Acera groupsetDisc hydraulic TEKTRO brakes
price 16 590 Kč
SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size15", 17", 19", 21"
Framehydroformed alloy 6061 27.5"
Front forkRST Gila 27.5 ML lock out (100 mm)
Head partsAUTHOR Integrated 1.5" tapered
Chain WheelSUNTOUR XCM 40-30-22 teeth 170 / 175 mm cranks
BBPartsSUNTOUR XCT cartridge
Front derailleurSHIMANO Acera (34.9)
Rear derailleurSHIMANO Acera
ShiftersSHIMANO Acera (27)
Free wheelSHIMANO HG300-9 11-34 (9)
ChainKMC Z99
HubsQUANDO Disc 32 holes
BrakesTEKTRO Auriga disc hydraulic (6" rotors)
Brakes leversTEKTRO Auriga
RimsAUTHOR Xenon 27.5 32 holes
Spokesblack steel
TiresAUTHOR Rocket 27.5" x 2.10"
PedalsAUTHOR alloy
HandlebarAUTHOR 9° 660 / 680 mm
GripsAUTHOR high density foam
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Navigator
Speed27
Weight14,5 kg / 19"

Geometry and sizes

Size 15" 17" 19" 21"
Min. figure [cm] 145 155 170 182
Max. figure [cm] 158 172 185 200
S/T c-t [mm] 381 432 483 533
S/T c-c [mm] 0 0 0 0
T/T h [mm] 570 590 615 635
T/T a [mm] 540 554 578 602
H/T [mm] 115 125 130 140
C/S [mm] 435 435 435 435
W/B [mm] 1056 1076 1101 1121
S/T ang. [°] 73 73 73 73
H/T ang. [°] 69 69 69 69
F/L [mm] 495 495 495 495
B/B drop [mm] 35 35 35 35
B/B width [mm] 68 68 68 68
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 44 44 44 44
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Pegas 2017

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
