AUTHOR Patriot Evo 2016Archivní model 2016

~~Colour variants~~

Original alloy frame platformAir lock out fork RST Rogue AirRear air shock ROCK SHOX Monarch 160mm rear travel

special price 39 990 Kč

original price ~~65 990 Kč~~ SOLD OUT

Interested in other model`s year?

2015 2016 2017 2018

Technical specification

Size	S, M, L, XL
Frame	double butted alloy 6061 27.5"
Shocker	air shocker ROCK SHOX Monarch RL HV 216 / 63 mm (rear travel 160 mm)
Front fork	RST Rogue Air air, lock out 15 mm thru axle 1.5" tapered steerer (160 mm)
Head parts	PRESTINE Integrated 1.5" tapered
Chain Wheel	SHIMANO Deore 36-22 teeth 170 / 175 mm cranks
BBParts	SHIMANO Deore BB unit
Front derailleur	SHIMANO Deore (direct mount)
Rear derailleur	SHIMANO XT "clutch"
Shifters	SHIMANO Deore (20)
Free wheel	SHIMANO HG50-10 11-36 (10)
Chain	KMC X10
Hubs	AUTHOR Helium 15 / Krypton 12 15 x 100 mm front thru axle 12 x 142 mm rear thru axle 32 holes
Brakes	TRP Slate 4 disc hydraulic (7" rotors)

Brakes levers	TRP Slate 4
Rims	SPANK Oozy Trail 295 Bead Bite 32 holes
Spokes	black stainless steel 2.0 mm
Tires	MAXXIS High Roller II kevlar 27.5" x 2.30"/ Ardent kevlar 27.5" x 2.25" tubeless ready
Pedals	HT-PA01
Handlebar	SPANK Oozy Trail 15 mm 760 mm
Grips	AG Lab GripLock
Stem	AG Lab alloy
Seat post	KIND SHOCK LEVi remote control adjustable (30.9)
Seat clamp	AG Lab (34.9)
Saddle	AUTHOR Patriot
Speed	20
Weight	14,8 kg / M (tubeless)

maxmin

~~215 cm~~

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

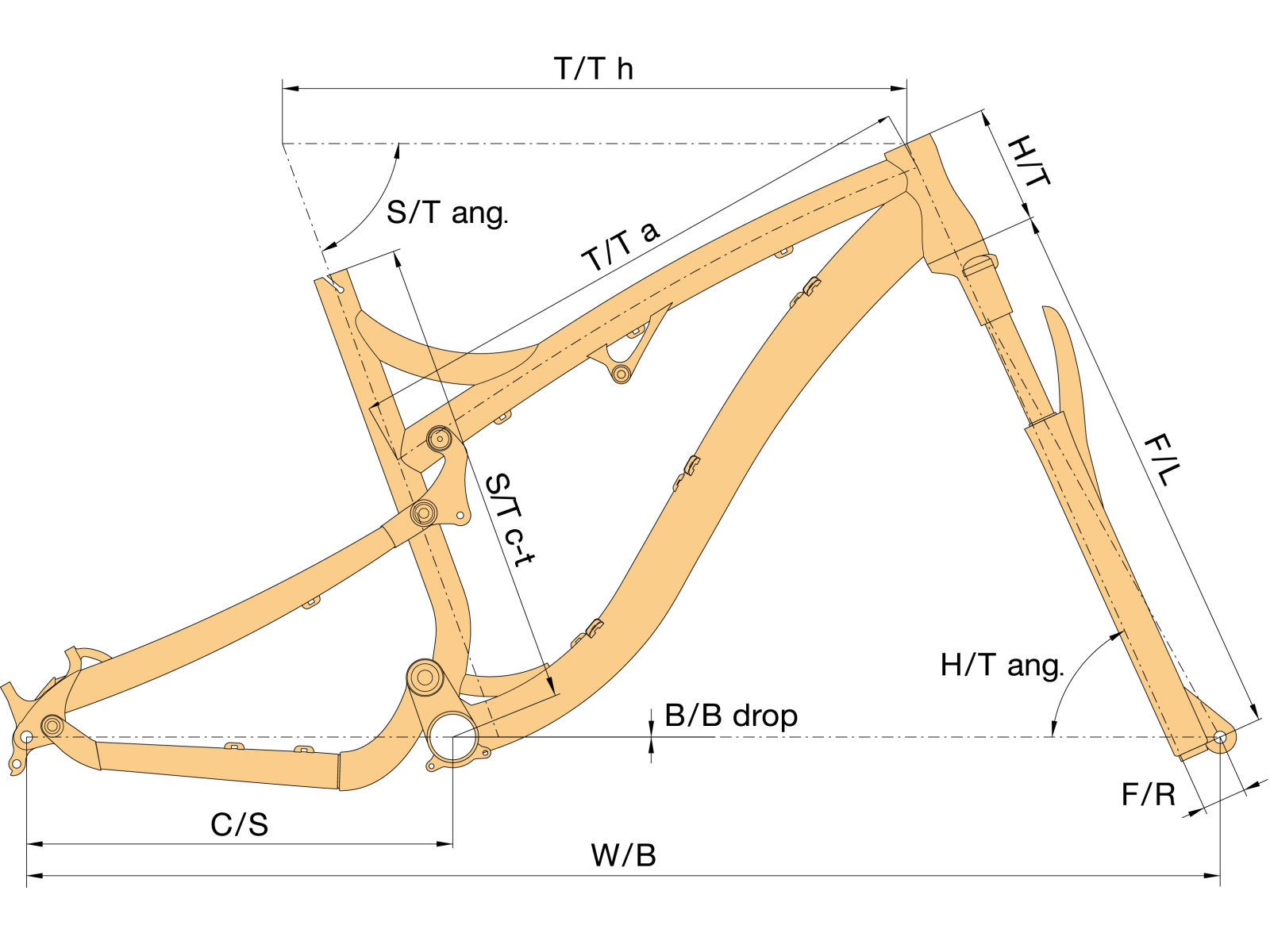

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

black-matt / red

S = UA#42870501 M = UA#42870502 L = UA#42870503 XL = UA#42870504
