AUTHOR Patriot Evo 2015Archivní model 2015

Original alloy frame platformAir lock out fork RST Rogue AirRear air shock ROCK SHOX Monarch

SOLD OUT

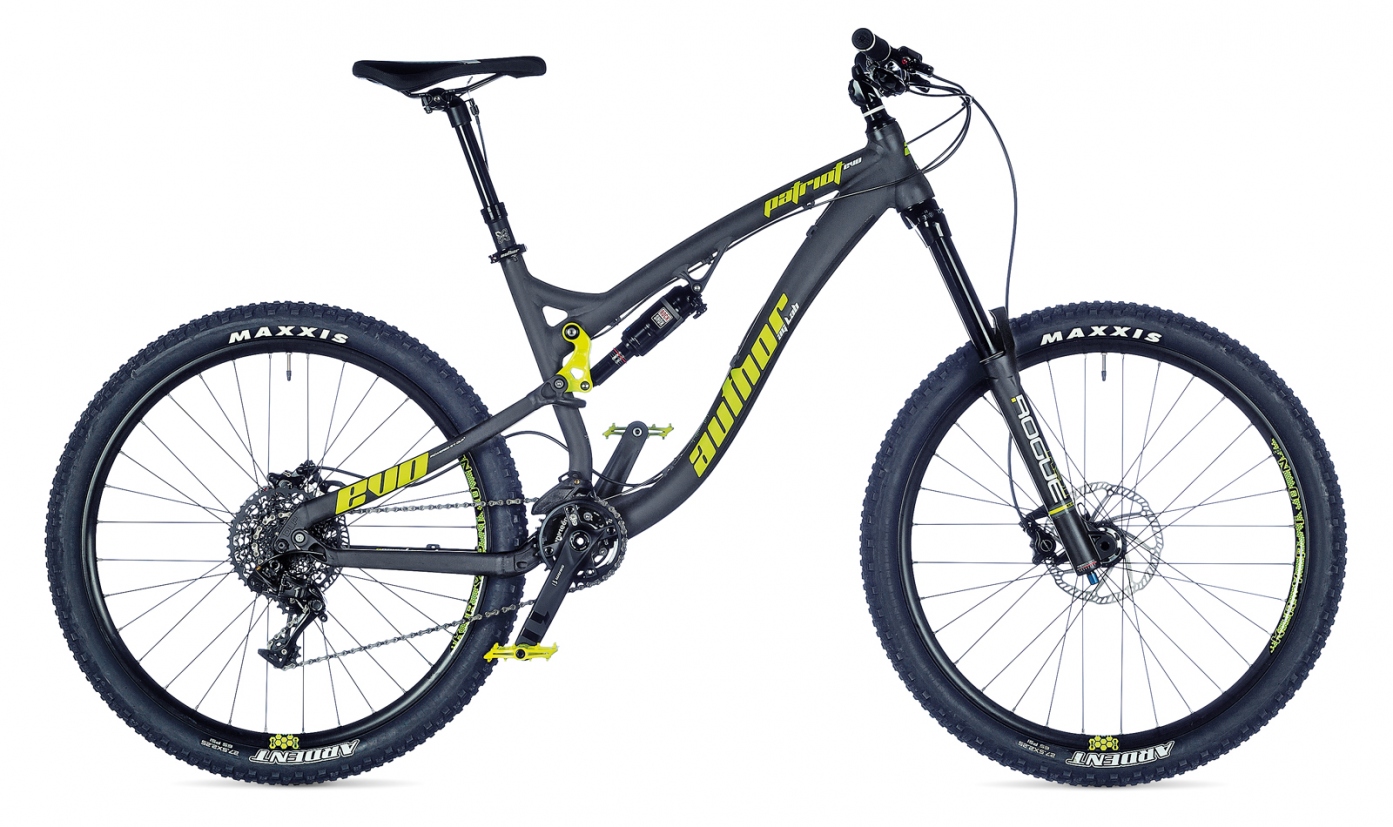

Full suspension bike Author PATRIOT EVO with double butted alloy frame, lock out RST Rogue Air fork and original DLP system.

Patriot EVO is a great entry level enduro bike for those who like to climb the hill and on the way down enjoys the hardest trail. We maintained a very low price tag, even though that on the bike can be found for example, eleven-speed shifting and cranks Sram X1. About 160 mm travel takes care the fork RST Rogue and shock Rock Shox Monarch RT3 High Volume DeBan Air, which are a well-matched pair. Adjustable seat post with remote control and Maxxis tires must not be missing.

Interested in other model`s year?

2015 2016 2017 2018

Technical specification

Size	S, M, L, XL
Frame	double butted alloy 6061 27.5"
Shocker	air shock ROCK SHOX Monarch RT3 HV DB 216 / 63 mm (rear travel 160 mm)
Front fork	RST Rogue Air air, lock out 15 mm thru axle 1.5" tapered steerer (160 mm)
Head parts	PRESTINE Integrated 1.5" tapered
Chain Wheel	SRAM X1-1000 32 teeth 170 / 175 mm cranks
BBParts	SRAM BB30 PF
Front derailleur	E13 chain guide
Rear derailleur	SRAM X1
Shifters	SRAM X1 Trigger (11)
Free wheel	SRAM XG-1180 10-42 (11)
Chain	SRAM PC-X1
Hubs	AG Lab Disc 15 mm front thru axle 142 x 12 mm rear thru axle 32 holes
Brakes	TEKTRO Orion disc hydraulic (7" rotors)

Brakes levers	TEKTRO Orion
Rims	AG Lab Krypton Pro 27.5 32 holes
Spokes	black stainless steel 2.0 mm butted
Tires	MAXXIS Ardent kevlar 27.5" x 2.25"
Pedals	HT-PA12
Handlebar	AG Lab alloy 15 mm 750 mm
Grips	AG Lab GripLock
Stem	AG Lab alloy
Seat post	PROMAX remote control adjustable (30.9)
Seat clamp	AG Lab (34.9)
Saddle	AG Lab Throne Trail
Speed	11
Weight	14,7 kg / M

Geometry and sizes

Size	S	M	L	XL
Min. figure ~~[cm]~~	155	170	180	200
Max. figure ~~[cm]~~	170	185	200	215
S/T c-t ~~[mm]~~	381	432	483	533
S/T c-c ~~[mm]~~	0	0	0	0
T/T h ~~[mm]~~	590	610	630	645
T/T a ~~[mm]~~	565	585	600	615
H/T ~~[mm]~~	110	120	120	130
C/S ~~[mm]~~	430	430	430	430
W/B ~~[mm]~~	1160	1180	1200	1215
S/T ang. ~~[°]~~	74	74	74	74
H/T ang. ~~[°]~~	66	66	66	66
F/L ~~[mm]~~	550	550	550	550
B/B drop ~~[mm]~~	0	0	0	0
B/B width ~~[mm]~~	73	73	73	73
Reach ~~[mm]~~	0	0	0	0
Stack ~~[mm]~~	0	0	0	0
F/R ~~[mm]~~	42	42	42	42
Handlebars ~~[mm]~~	0	0	0	0
Stem ~~[mm]~~	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
