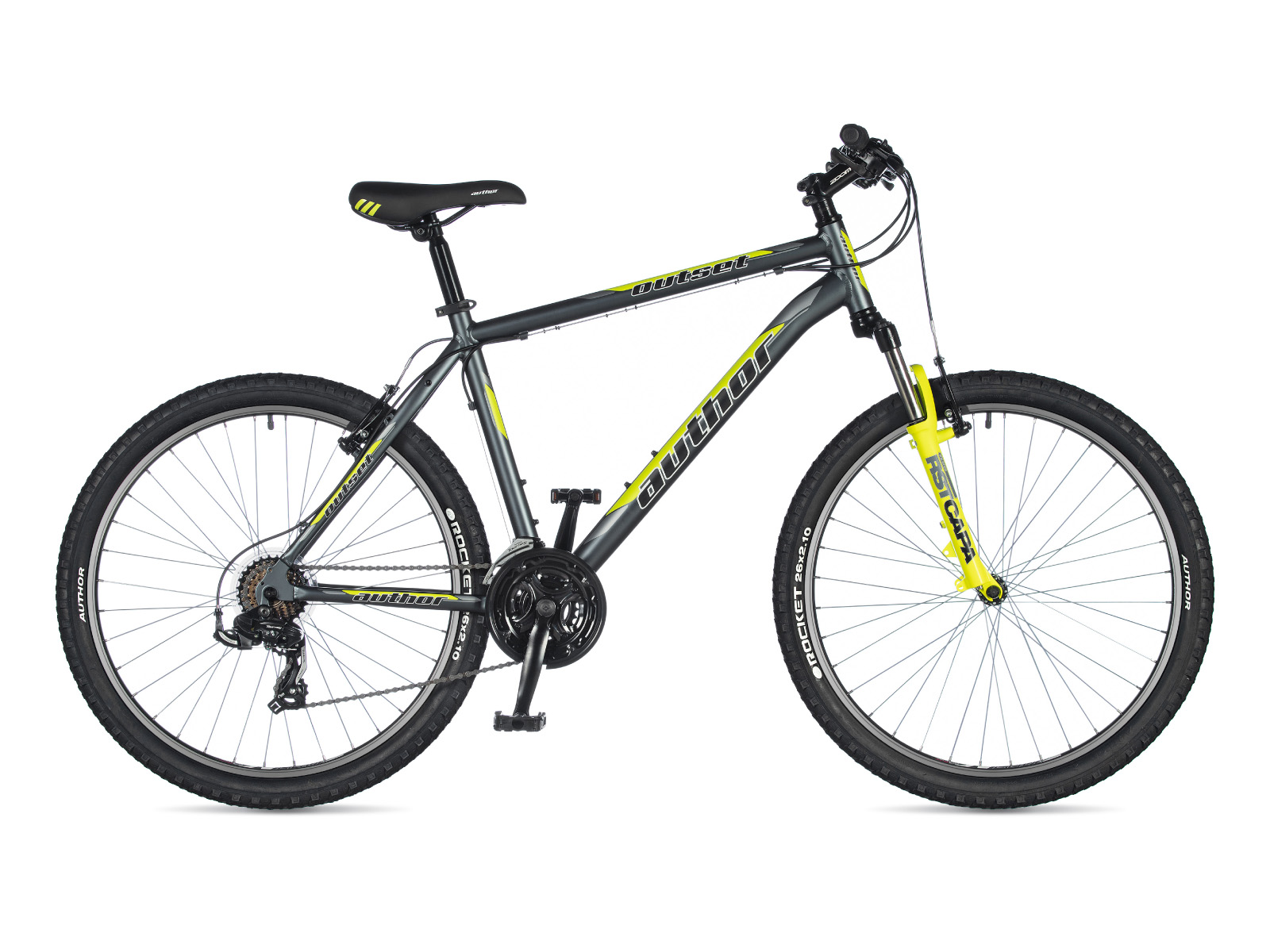

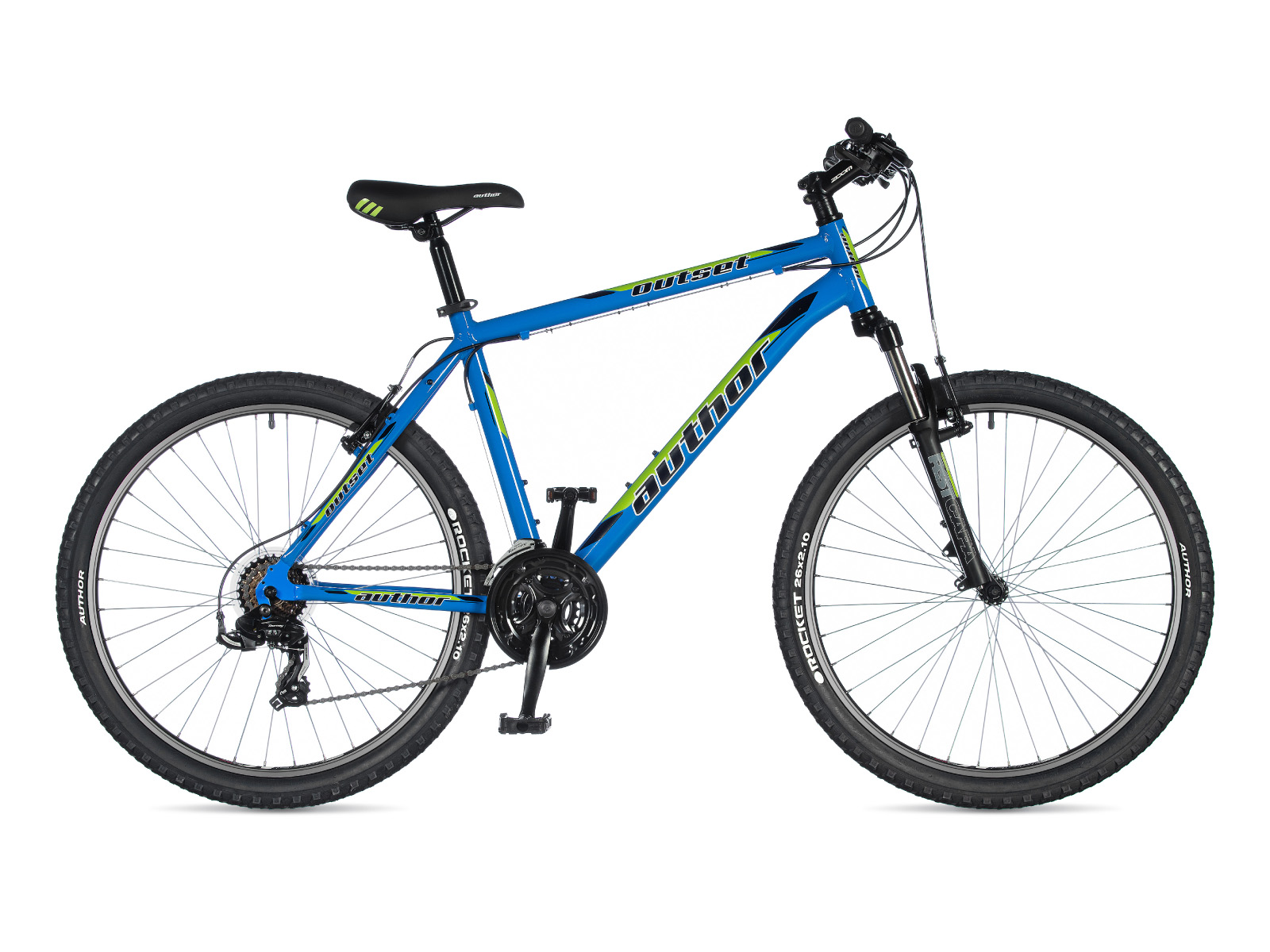

AUTHOR Outset 26 2020

Technical specification

Geometry and sizes

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

additional accessories

1/2

AKS-06S CKick Stand Author for direct frame fixation. Adjustable for size 14"- 29", Material AL6061-T6 / ... more »

AKS-09A CKick Stand Author for direct frame fixation. Adjustable for size 24"- 29", Material AL6061-T6. ... more »

1/3

ACR-16-AluA tough rear rack AUTHOR ACR-16-Alu. Equipped with adjustable legs to fit most 24” to 29” wheel ... more »

ACR-20N-AluCarrier Author Expedition for extreme load and conditions, made from AL6061 tubes d.10mm - light wei ... more »

ACR-25-AluCarrier Author Expedition, material AL6061, universal adjustable fixation, adjustable stays, max. lo ... more »

AXP-04Modern plastic mudguards suitable for "V" brakes, for sizes 24"-27,5" with universal attachment. Th ... more »

AUTHOR Outset 26 2020Archivní model 2020
