  » Bicycles » mountain bike » mtb 26

AUTHOR Outset 2016Archivní model 2016

Colour variants
Alloy frameSHIMANO components setZOOM suspension fork
special price 6 990 Kč
original price  8 990 Kč SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size15", 17", 19", 21"

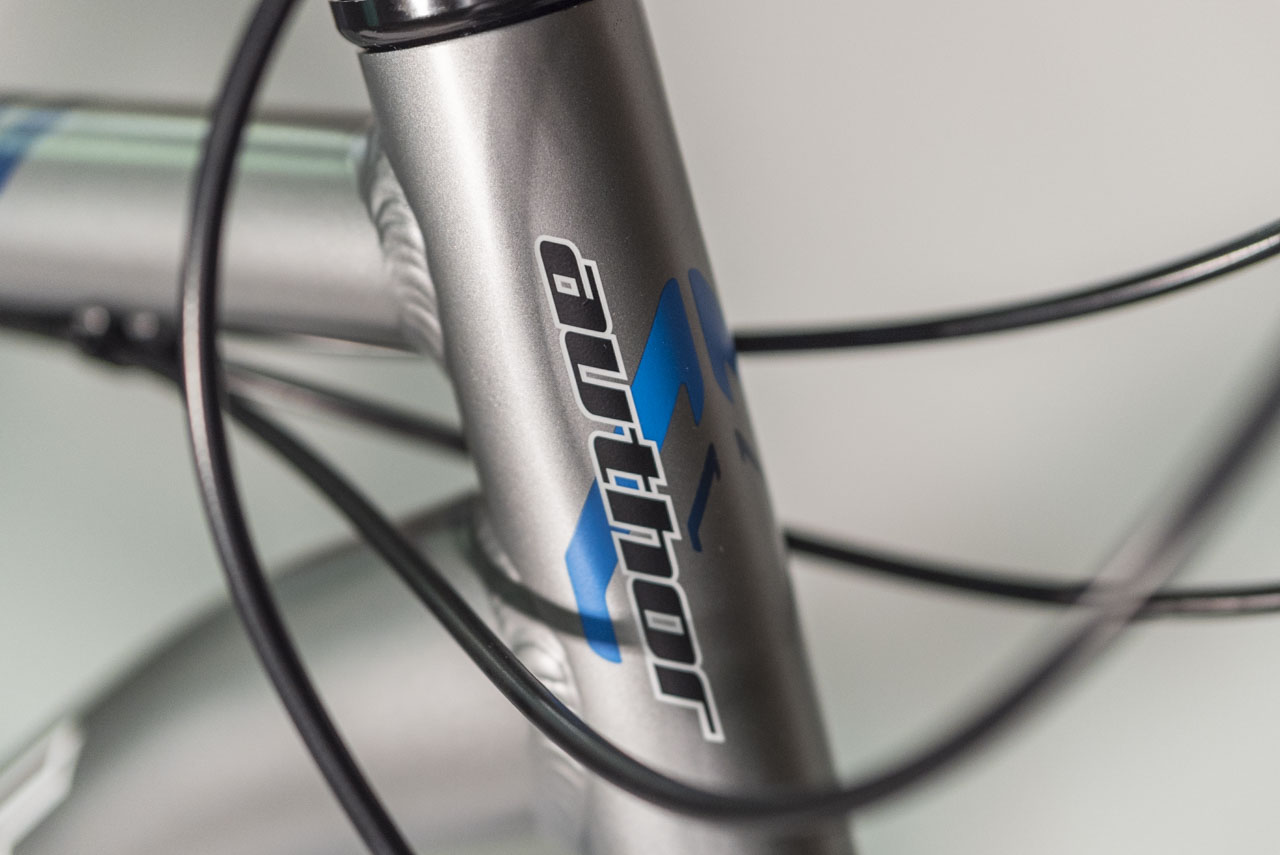

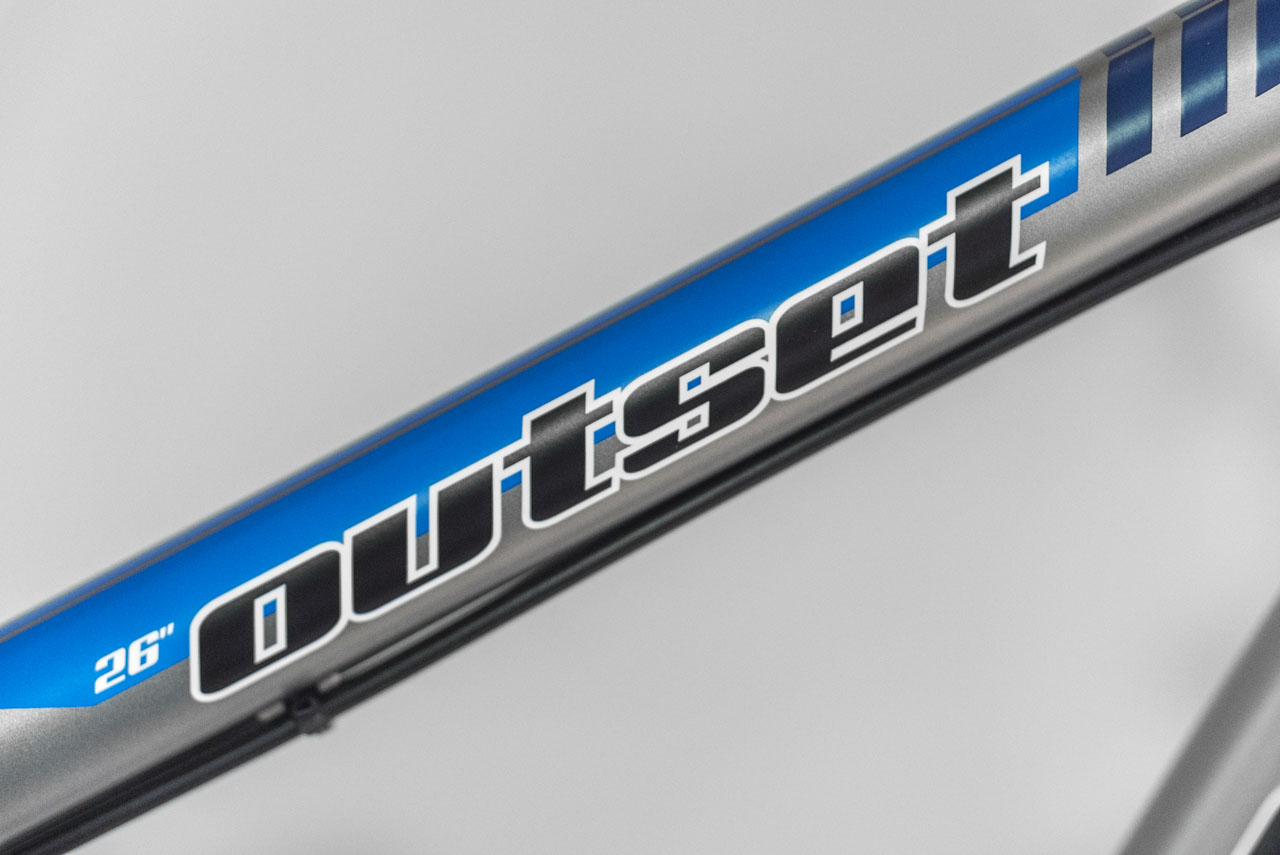

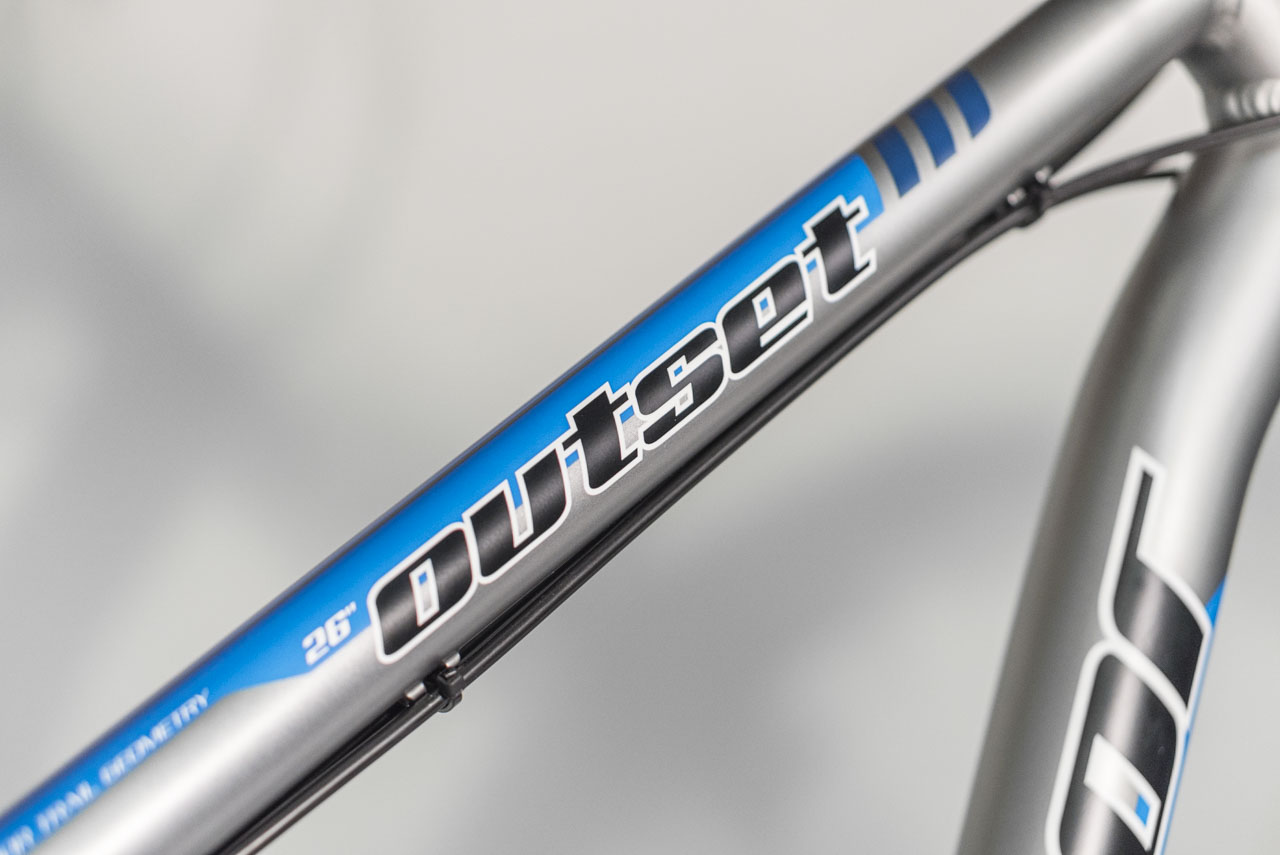

Framealloy 6061 26"
Front forkZOOM (60 mm)
Head partsPRESTINE 1-1/8"
Chain WheelPROWHEEL 42-34-24 teeth 170 mm cranks
BBPartsVP COMP cartridge

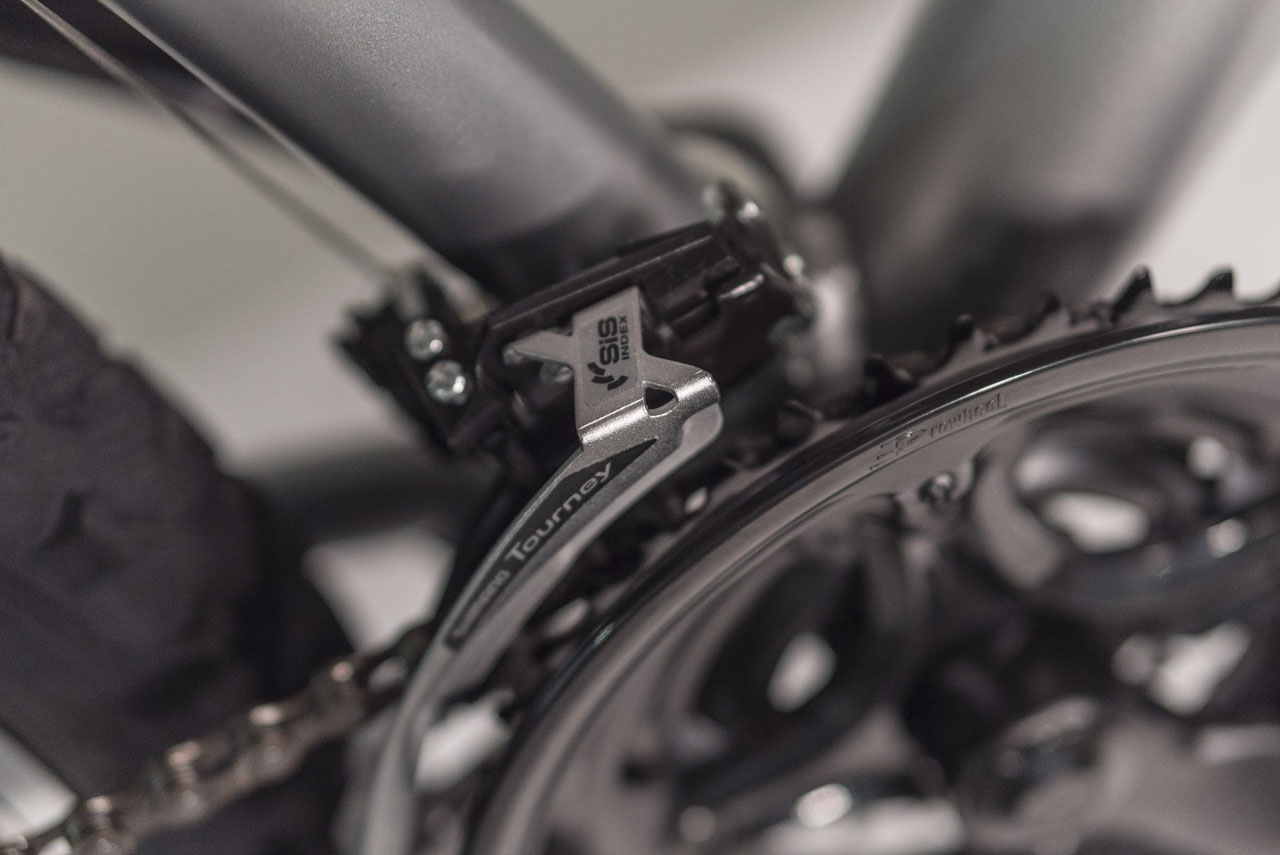

Front derailleurSHIMANO TX50 (34.9)

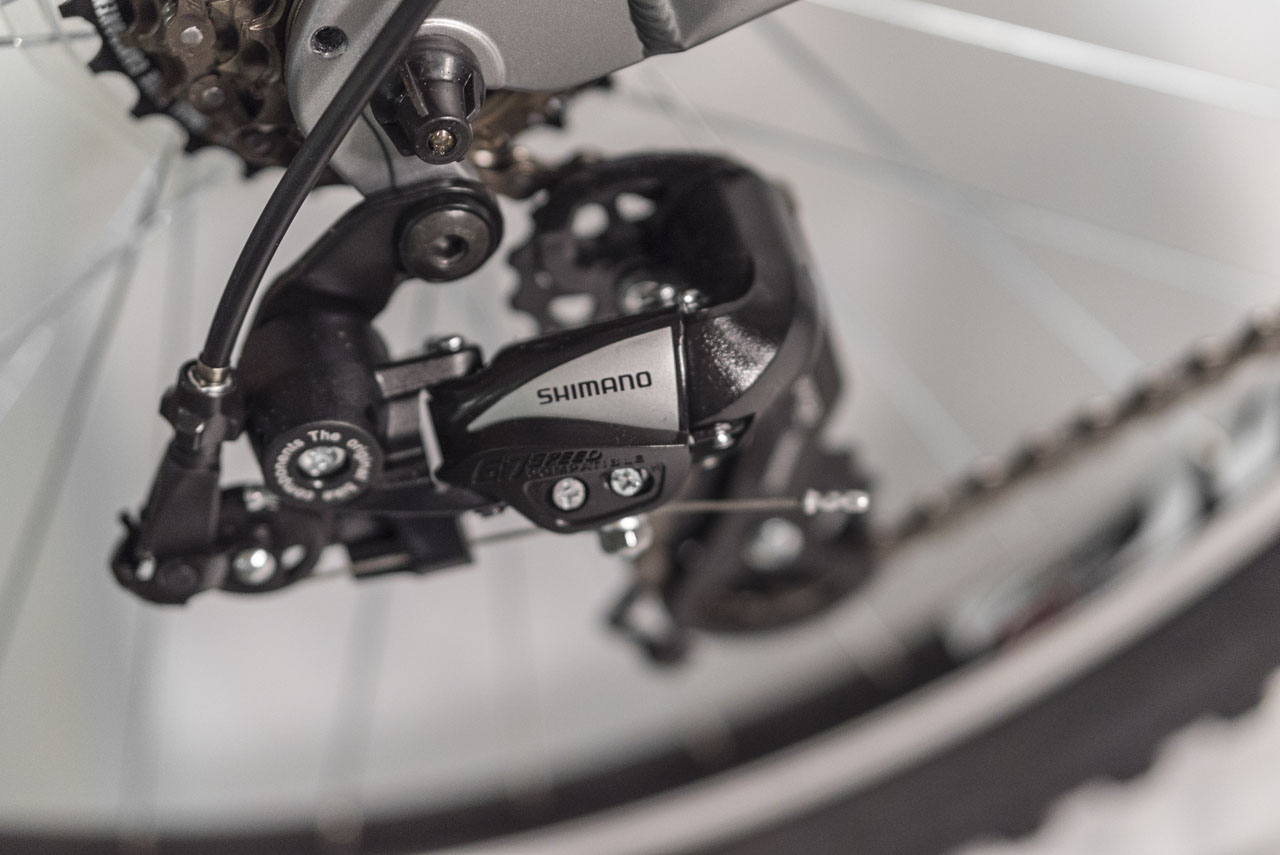

Rear derailleurSHIMANO TX55

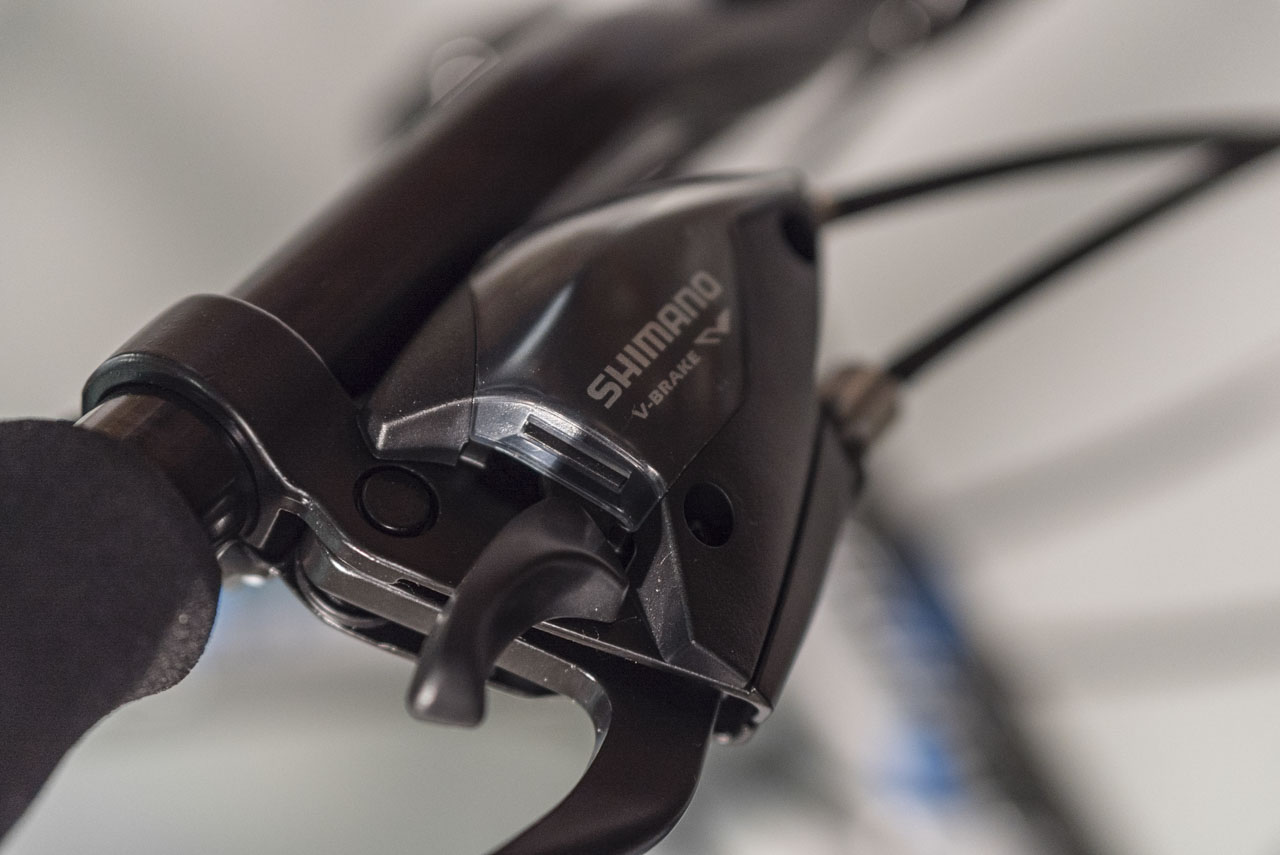

ShiftersSHIMANO Altus (21)
Free wheelSHIMANO MF-TZ21 14-28 (7)
ChainKMC Z51
HubsQUANDO 36 holes

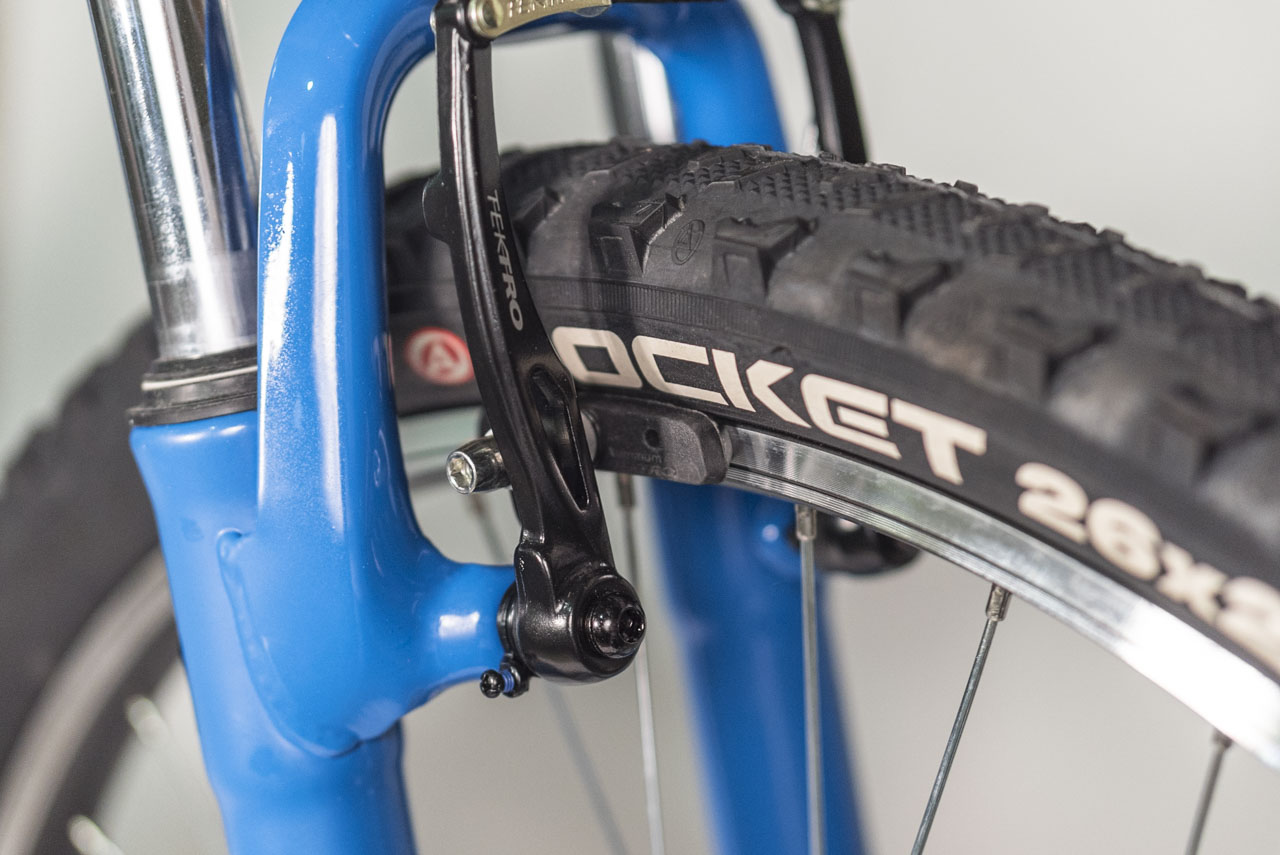

BrakesTEKTRO 837

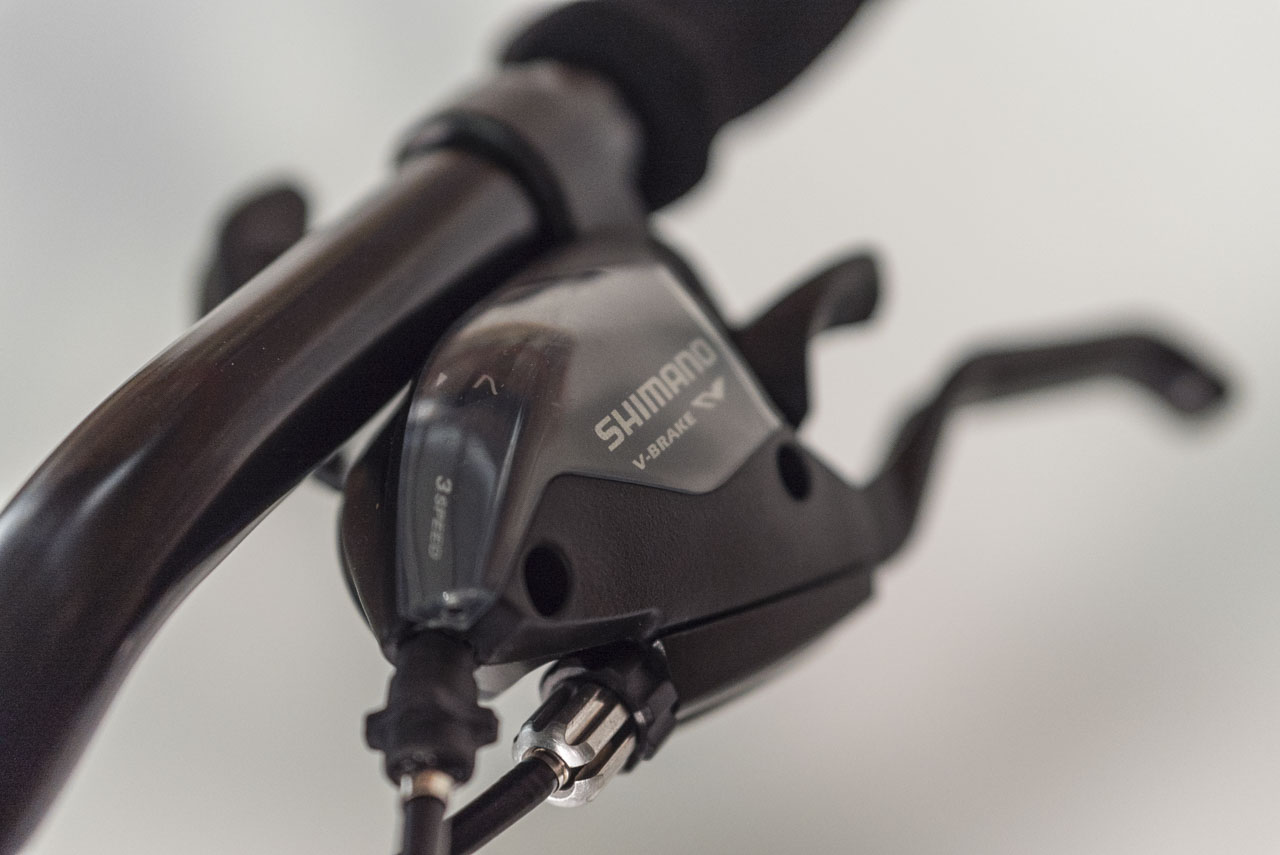

Brakes leversSHIMANO ST-EF51
Rimsalloy 36 holes
Spokessteel
TiresAUTHOR Rocket 26" x 2.10"
Pedalsresin
Handlebarsteel 20 mm 640 mm
GripsAUTHOR high density foam

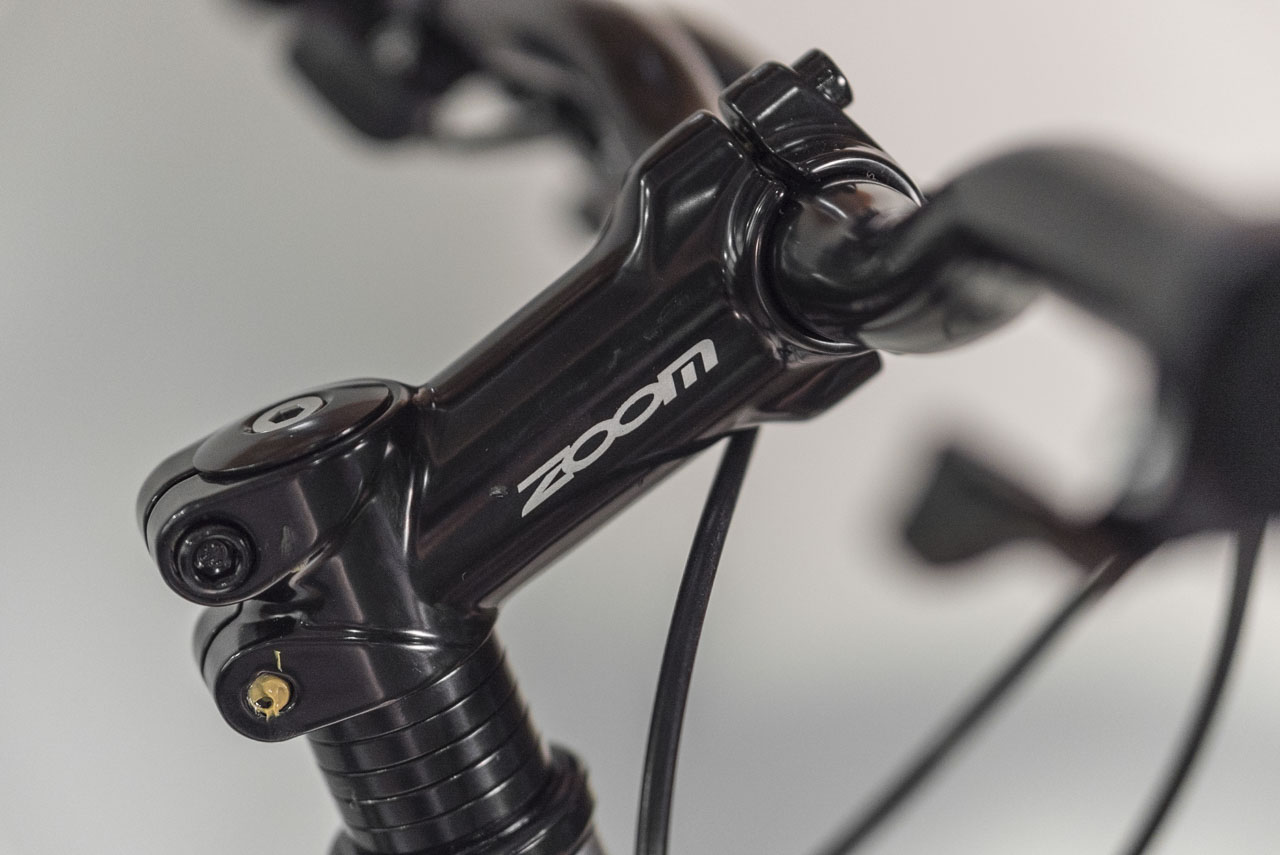

StemZOOM alloy
Seat poststeel (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR
Speed21
Weight14.6 kg / 19"

Geometry and sizes

Size 15" 17" 19" 21"
Min. figure [cm] 145 155 170 182
Max. figure [cm] 158 172 185 195
S/T c-t [mm] 381 432 483 533
S/T c-c [mm] 0 0 0 0
T/T h [mm] 560 585 610 635
T/T a [mm] 541 561 587 618
H/T [mm] 130 135 140 145
C/S [mm] 420 420 420 420
W/B [mm] 1045 1068 1094 1119
S/T ang. [°] 73 73 73 73
H/T ang. [°] 69.5 69.5 69.5 69.5
F/L [mm] 456 456 456 456
B/B drop [mm] 25 25 25 25
B/B width [mm] 68 68 68 68
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 33 33 33 33
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Outset 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

green / black15" = UA#42862101   17" = UA#42862102   19" = UA#42862103   21" = UA#42862104

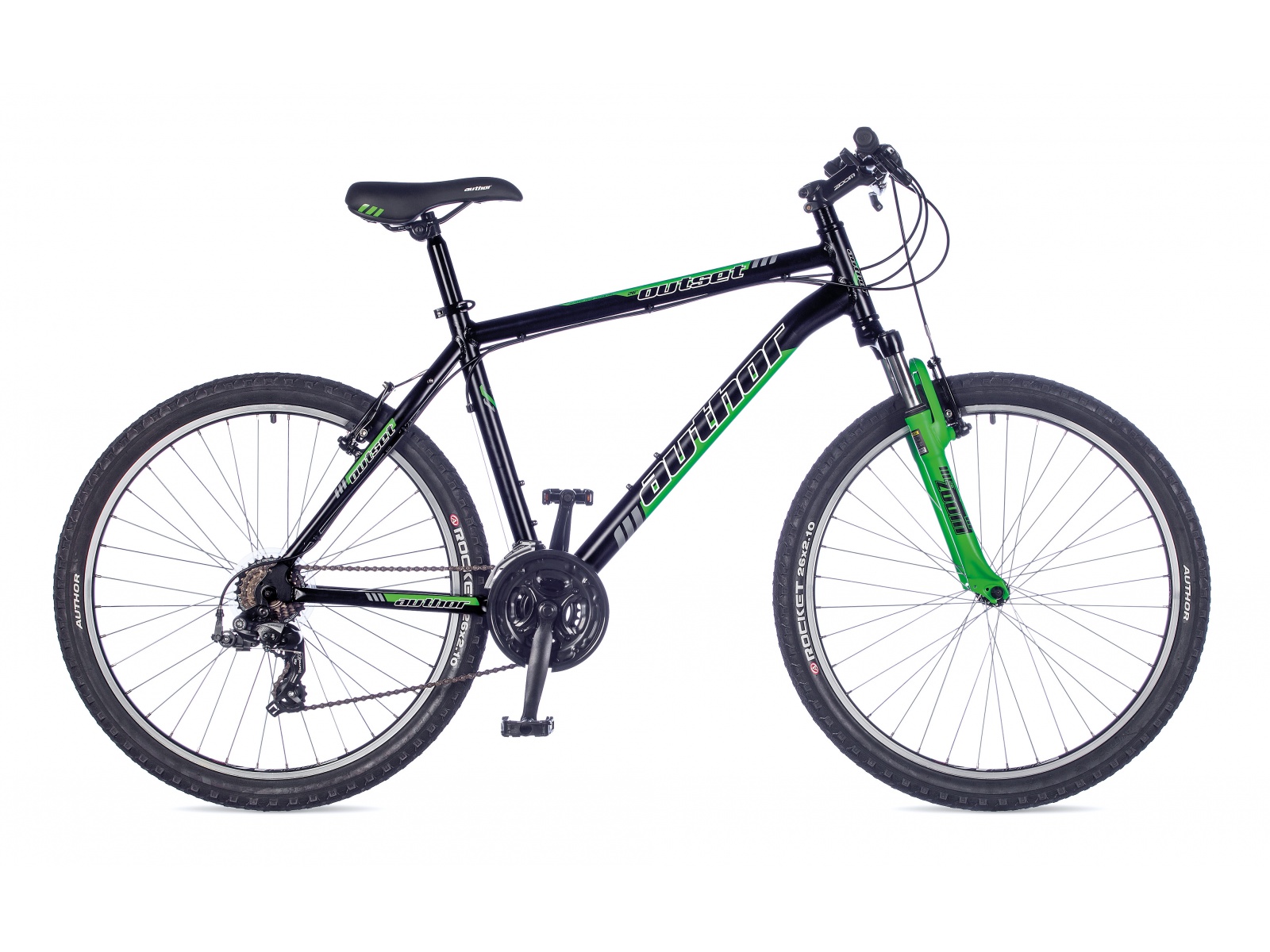

black-matt / green15" = UA#42862111   17" = UA#42862112   19" = UA#42862113   21" = UA#42862114
silver-matt / blue15" = UA#42862121   17" = UA#42862122   19" = UA#42862123   21" = UA#42862124
