AUTHOR Ninja FR 2016Archivní model 2016

Colour variants
Original alloy frame platformRST Stitch Super forkX-FUSION Vector shocker
special price 33 990 Kč
original price  44 990 Kč SOLD OUT
Full-suspension bike Author NINJA FR with alloy frame, RST fork and original DLP system. About 26" should not be forgotten and certainly not by freeride bikes. This segment should be all about bike playfulness and universality, which can handle challenging terrain, but also playful trails. 180 mm travel will not limit you even on the way down the most demanding trail with big drops, but you will be also able to climb every single hill on your own. Components have been proved on the previous model, thats why even for the 2016 are Maxxis tires, RST fork and Sram shifting not missing. New are four piston brakes from TRP.
Interested in other model`s year?

Technical specification

SizeS, M, L
Framealloy 6061 26"
Shockerspring shocker X-FUSION Vector R 222 / 70 mm (rear travel 180 mm)
Front forkRST Storm Super oil 20 mm thru axle 1.5" tapered steerer (180 mm)
Head partsPRESTINE F9B 1.5" tapered
Chain WheelTRUVATIV Hussefelt 1.0 34 teeth 170 mm cranks
BBPartsTRUVATIV Howitzer
Front derailleurE13 chain guide
Rear derailleurSRAM X7
ShiftersSRAM X5 Trigger (9)
Free wheelSRAM PG-950 11-32 (9)
ChainKMC X9
HubsAG Lab Disc 20 mm front thru axle 142 x 12 mm rear thru axle 32 holes
BrakesTRP Slate 4 disc hydraulic (8" / 7" rotors)
Brakes leversTRP Slate 4
RimsAG Lab Reverse 32 holes
Spokesblack stainless steel butted front 1.8 / 2.0 mm rear 2.0 / 2.3 mm
TiresMAXXIS High Roller II 26" x 2.40"
PedalsAG Lab platform alloy replaceble pins
HandlebarAG Lab alloy 30 mm 780 mm
GripsAG Lab GripLock
StemAG Lab alloy
Seat postAG Lab alloy (30.9)
Seat clampAG Lab (34.9)
SaddleAG Lab Throne DH / FR
Speed9
Weight18.6 kg / M

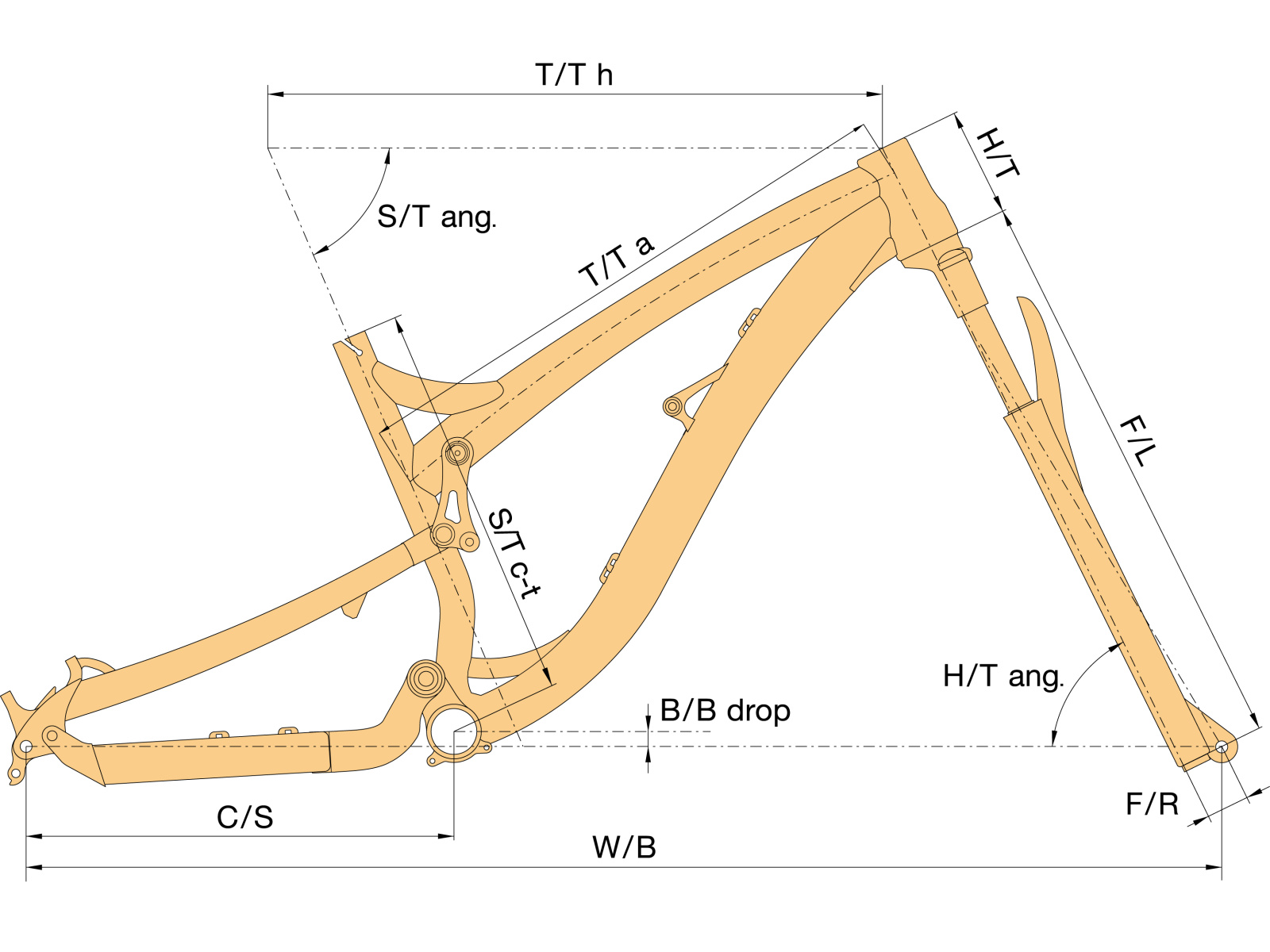

Geometry and sizes

Size S M L
Min. figure [cm] 155 170 180
Max. figure [cm] 175 185 205
S/T c-t [mm] 380 410 435
S/T c-c [mm] 0 0 0
T/T h [mm] 560 580 600
T/T a [mm] 568 583 605
H/T [mm] 120 120 125
C/S [mm] 430 430 430
W/B [mm] 1160 1180 1200
S/T ang. [°] 73.5 73.5 73.5
H/T ang. [°] 66 66 66
F/L [mm] 560 560 560
B/B drop [mm] -25 -25 -25
B/B width [mm] 73 73 73
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 43 43 43
Handlebars [mm] 780 780 780
Stem [mm] 50 50 50
Cranks [mm] 170 170 170
maxmin
205 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Ninja FR 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

green / blackS = UA#42870701   M = UA#42870702   L = UA#42870703
