AUTHOR Bicycle Ninja FR 2015
AUTHOR Bicycle Ninja FR 2015
  » Bicycles » mountain bike

AUTHOR Ninja FR 2015Archivní model 2015

1
Original alloy frame platformRST Stitch Super forkXFUSION Vector shock
SOLD OUT

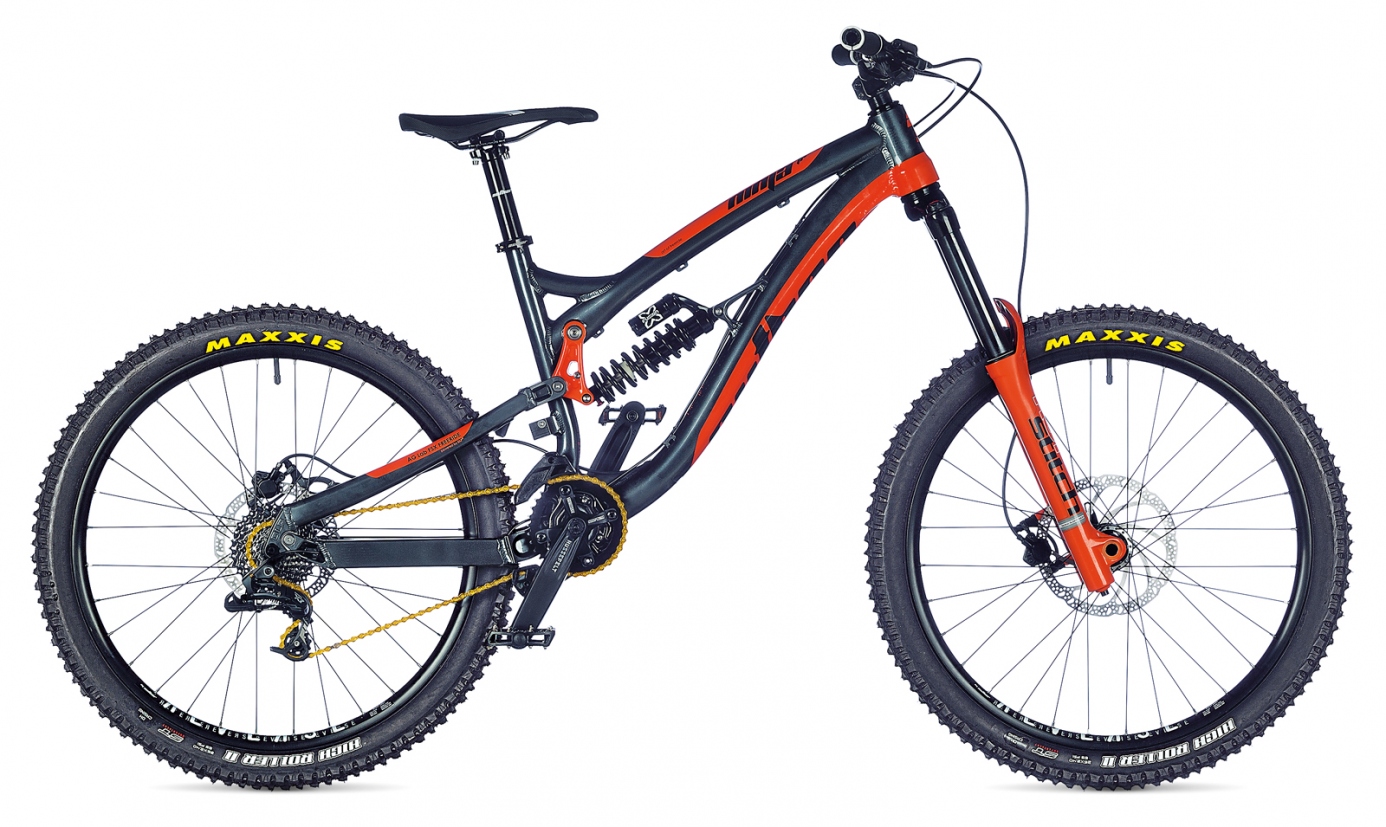

Full suspension bike Author NINJA FR with strong alloy frame and RST Stitch Super suspension fork.

  • 26" alloy suspension freeride frame
  • X-FUSION VECTOR R shocker, 180mm travel
  • RST STITCH SUPER fork
  • TEKTRO AURIGA hydraulic disc brakes
  • Components SRAM X7/ X5
  • MAXXIS HIGH ROLLER II 26"x 2.40" tires
  • New AG Lab handlebars, 800mm
  • 9 speed
Interested in other model`s year?

Technical specification

SizeS, M, L
Framealloy 6061 26"
Shockerspring shock X-FUSION Vector R 222 / 70 mm (rear travel 180 mm)
Front forkRST Stitch Super oil 20 mm thru axle 1.5" tapered steerer (180 mm)
Head partsPRESTINE F9B 1.5" tapered
Chain WheelTRUVATIV Hussefelt 1.0 34 teeth 170 mm cranks
BBPartsTRUVATIV Howitzer
Front derailleurE13 chain guide
Rear derailleurSRAM X7
ShiftersSRAM X5 Trigger (9)
Free wheelSRAM PG-950 11-32 (9)
ChainKMC X9 gold
HubsAG Lab Disc 20 mm front thru axle 142 x 12 mm rear thru axle 32 holes
BrakesTEKTRO Auriga disc hydraulic (8" / 7" rotors)
Brakes leversTEKTRO Auriga
RimsAG Lab Reverse 32 holes
Spokesblack stainless steel 2.0 mm butted
TiresMAXXIS High Roller II 26" x 2.40"
PedalsAG Lab platform alloy replaceble pins
HandlebarAG Lab alloy 15 mm 800 mm
GripsAG Lab GripLock
StemAG alloy
Seat postAG Lab alloy (30.9)
Seat clampAG Lab (34.9)
SaddleAG Lab Throne DH / FR
Speed9
Weight18.6 kg / M

Geometry and sizes

Size S M L
Min. figure [cm] 155 170 180
Max. figure [cm] 175 185 205
S/T c-t [mm] 380 410 435
S/T c-c [mm] 0 0 0
T/T h [mm] 560 580 600
T/T a [mm] 568 583 605
H/T [mm] 120 120 125
C/S [mm] 430 430 430
W/B [mm] 1160 1180 1200
S/T ang. [°] 73.5 73.5 73.5
H/T ang. [°] 66 66 66
F/L [mm] 560 560 560
B/B drop [mm] -25 -25 -25
B/B width [mm] 73 73 73
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 43 43 43
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Ninja FR 2015

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
