AUTHOR Ninja DHT 2018
AUTHOR Ninja DHT 2018ninja dh team matte black 17 viewdeninja dh team matte black 32 viewdeninja dh team matte black 31 viewdeninja dh team matte black 30 viewdeninja dh team matte black 29 viewdeninja dh team matte black 28 viewdeninja dh team matte black 27 viewdeninja dh team matte black 25 viewdeninja dh team matte black 24 viewdeninja dh team matte black 23 viewdeninja dh team matte black 22 viewdeninja dh team matte black 21 viewdeninja dh team matte black 20 viewdeninja dh team matte black 19 viewdeninja dh team matte black 18 viewdeninja dh team matte black 01 viewdeninja dh team matte black 16 viewdeninja dh team matte black 15 viewdeninja dh team matte black 14 viewdeninja dh team matte black 13 viewdeninja dh team matte black 12 viewdeninja dh team matte black 11 viewdeninja dh team matte black 10 viewdeninja dh team matte black 08 viewdeninja dh team matte black 07 viewdeninja dh team matte black 06 viewdeninja dh team matte black 05 viewdeninja dh team matte black 04 viewdeninja dh team matte black 03 viewdeninja dh team matte black 02 viewde

AUTHOR Ninja DHT 2018Archivní model 2018

Colour variants
Alloy frameFOX 40-K Float 27.5 Kashima air forkAir shocker FOX Float X2 F-2 Kashima
special price 69 990 Kč
original price  115 990 Kč SOLD OUT
Interested in other model`s year?

Technical specification

SizeS, M, L
Framealloy 6061 27.5"
Shockerair shocker FOX Float X2 F-2 Kashima 240 / 76 mm (rear travel 200 mm)
Front forkFOX 40-K Float 27.5 Kashima air 20 mm thru axle 1.5" tapered steerer (200 mm)
Head partsPRESTINE 1.5" tapered
Chain WheelE13 LG1+ Race 36 teeth 165 mm cranks
BBPartsE13 LG1+ Race BB30 PF
Front derailleurE13 chain guide
Rear derailleurSHIMANO Saint
ShiftersSHIMANO Saint (10)
Free wheelSHIMANO 5700 11-25 (10)
ChainKMC DLC black
HubsAUTHOR Argon 20 / Argon 12 20 mm front thru axle 12 x 157 mm rear thru axle 32 holes
BrakesSHIMANO Saint disc hydraulic (8" rotors)
Brakes leversSHIMANO Saint
RimsSPANK Spike Race 33 Bead Bite 32 holes
Spokesblack stainless steel butted front 1.8 / 2.0 mm rear 2.0 / 2.3 mm
TiresMAXXIS Griffin kevlar 27.5" x 2.40"
PedalsHT platform replaceable pins
HandlebarSPANK 800 Race Vibrocore 15 / 30 mm 800 mm
GripsAG Lab GripLock
StemSPANK Spike 25 / 30 DM
Seat postAG Lab alloy (30.9)
Seat clampAG Lab (34.9)
SaddleAUTHOR Genius CR
Speed10
Weight16,7 kg / M

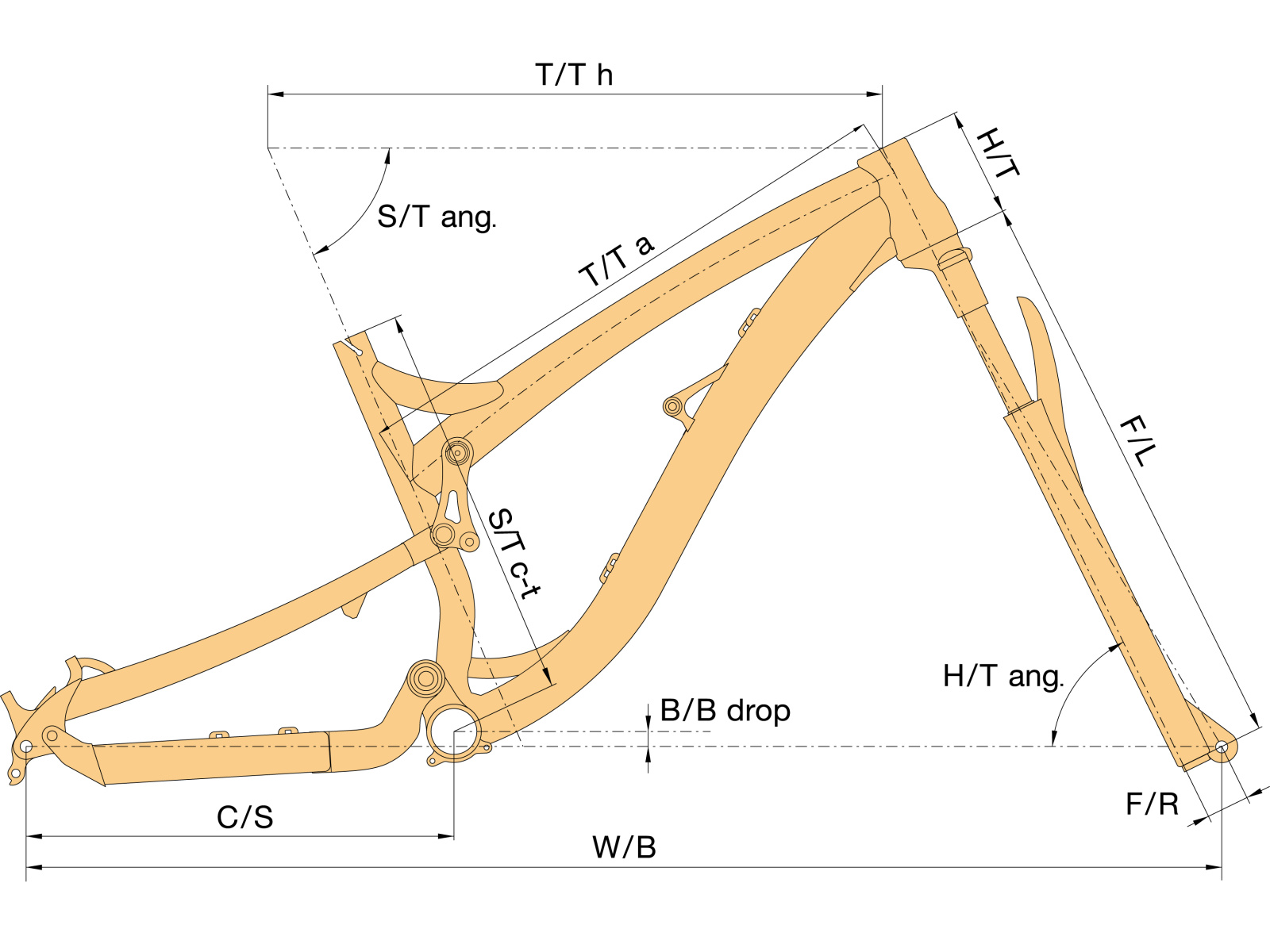

Geometry and sizes

Size S M L
Min. figure [cm] 155 170 180
Max. figure [cm] 175 185 205
S/T c-t [mm] 395 410 420
S/T c-c [mm] 0 0 0
T/T h [mm] 590 610 625
T/T a [mm] 560 577 590
H/T [mm] 120 120 120
C/S [mm] 445 445 445
W/B [mm] 1190 1210 1228
S/T ang. [°] 67 67 67
H/T ang. [°] 64 64 64
F/L [mm] 581 581 581
B/B drop [mm] -5 -5 -5
B/B width [mm] 83 83 83
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 48 48 48
Handlebars [mm] 660 660 640
Stem [mm] 70 80 60
Cranks [mm] 170 170 170
maxmin
205 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Ninja DHT 2018

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

black-mattM = UA#42901102   L = UA#42901103
