AUTHOR Bicycle Ninja DHT 2016
AUTHOR Bicycle Ninja DHT 2016ninja dh team14 viewdeninja dh team26 viewdeninja dh team25 viewdeninja dh team24 viewdeninja dh team23 viewdeninja dh team22 viewdeninja dh team21 viewdeninja dh team20 viewdeninja dh team19 viewdeninja dh team18 viewdeninja dh team17 viewdeninja dh team16 viewdeninja dh team15 viewdeninja dh team01 viewdeninja dh team13 viewdeninja dh team12 viewdeninja dh team11 viewdeninja dh team10 viewdeninja dh team09 viewdeninja dh team08 viewdeninja dh team07 viewdeninja dh team06 viewdeninja dh team05 viewdeninja dh team04 viewdeninja dh team03 viewdeninja dh team02 viewde

AUTHOR Ninja DHT 2016Archivní model 2016

Colour variants
Original alloy frame platformAir suspension fork ROCK SHOX Boxxer WCRear air shock ROCK SHOX Vivid Air
special price 39 990 Kč
original price  103 990 Kč SOLD OUT
Interested in other model`s year?

Technical specification

SizeS, M, L
Framealloy 6061 27.5"
Shockerair shock ROCK SHOX Vivid Air R2C 240 / 76 mm (rear travel 200 mm)
Front forkROCK SHOX Boxxer WC 27 air 20 mm thru axle (200 mm)
Head partsPRESTINE Integrated 1-1/8"
Chain WheelE13 LG1 Race 36 teeth 165 mm cranks
BBPartsE13 LG1 Race BB30 PF
Front derailleurE13 chain guide
Rear derailleurSRAM XO-DH
ShiftersSRAM XO Trigger (7)
Free wheelSRAM XG-795 10-24 (7)
ChainKMC DLC black
HubsSPANK Spike Race 28 DH 27.5 20 mm front thru axle 157 x 12 mm rear thru axle 32 holes
BrakesAVID Guide RS disc hydraulic (8" / 7" rotors)
Brakes leversAVID Guide RS
Rimswheel set SPANK Spike Race 28 DH 27.5 32 holes
SpokesSPANK Spike Race 28 DH 27.5
TiresMAXXIS High Roller kevlar 27.5" x 2.40" UST
PedalsHT-PA12A
HandlebarSPANK 800 Race 15 mm 800 mm S 30 mm 800 mm M, L
GripsAG Lab GripLock
StemSPANK Spike Director
Seat postAG Lab alloy (30.9)
Seat clampAG Lab (34.9)
SaddleAG Lab Throne DH / FR CR
Speed7
Weight16.0 kg / M

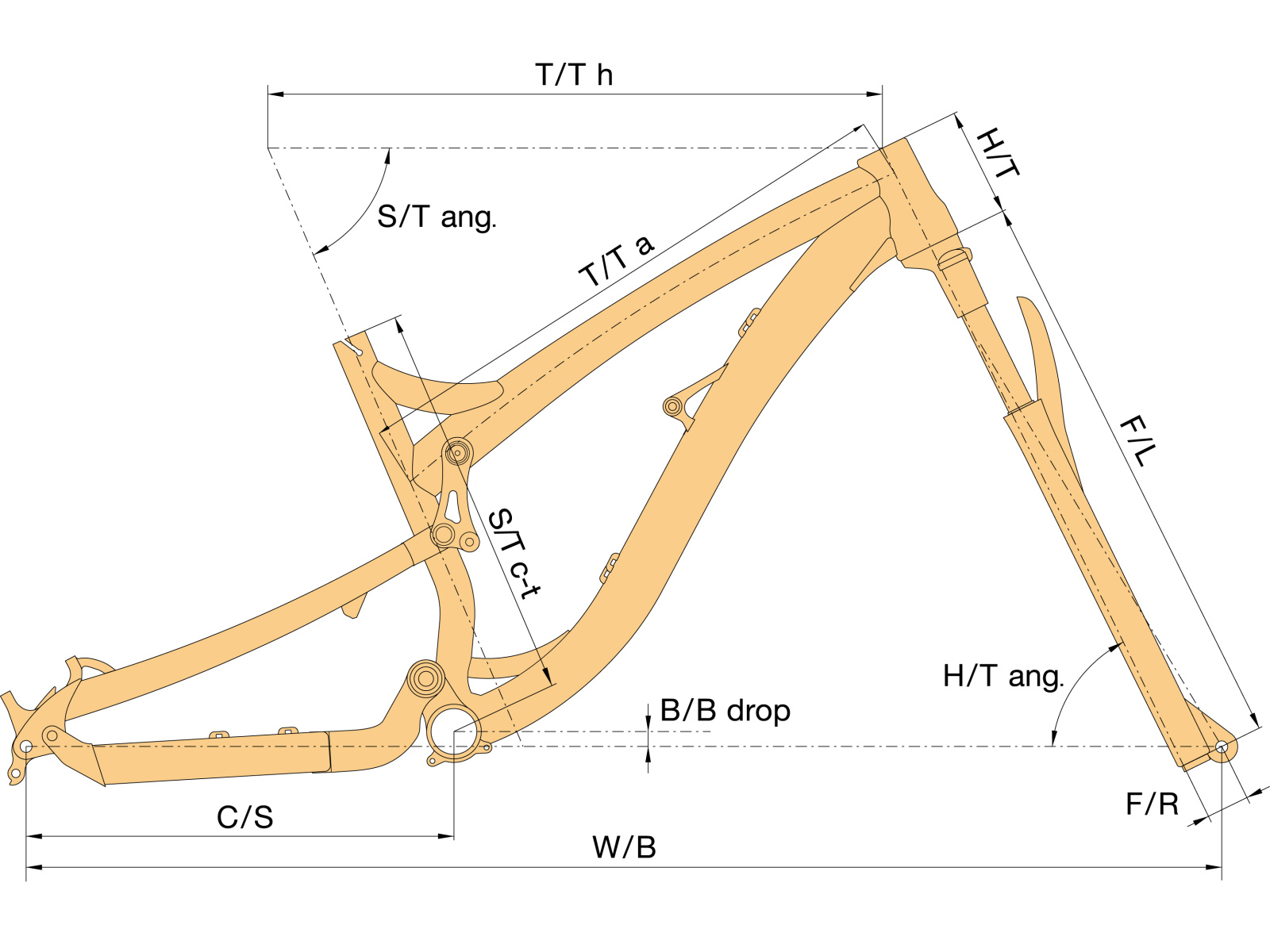

Geometry and sizes

Size S M L
Min. figure [cm] 155 170 180
Max. figure [cm] 175 185 205
S/T c-t [mm] 395 410 420
S/T c-c [mm] 0 0 0
T/T h [mm] 590 610 625
T/T a [mm] 560 580 590
H/T [mm] 120 120 120
C/S [mm] 445 445 445
W/B [mm] 1190 1210 1225
S/T ang. [°] 67 67 67
H/T ang. [°] 64 64 64
F/L [mm] 581 581 581
B/B drop [mm] -5 -5 -5
B/B width [mm] 83 83 83
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 48 48 48
Handlebars [mm] 800 800 800
Stem [mm] 25 25 25
Cranks [mm] 165 165 165
maxmin
205 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Ninja DHT 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

black-mattS = UA#42870901   M = UA#42870902   L = UA#42870903
