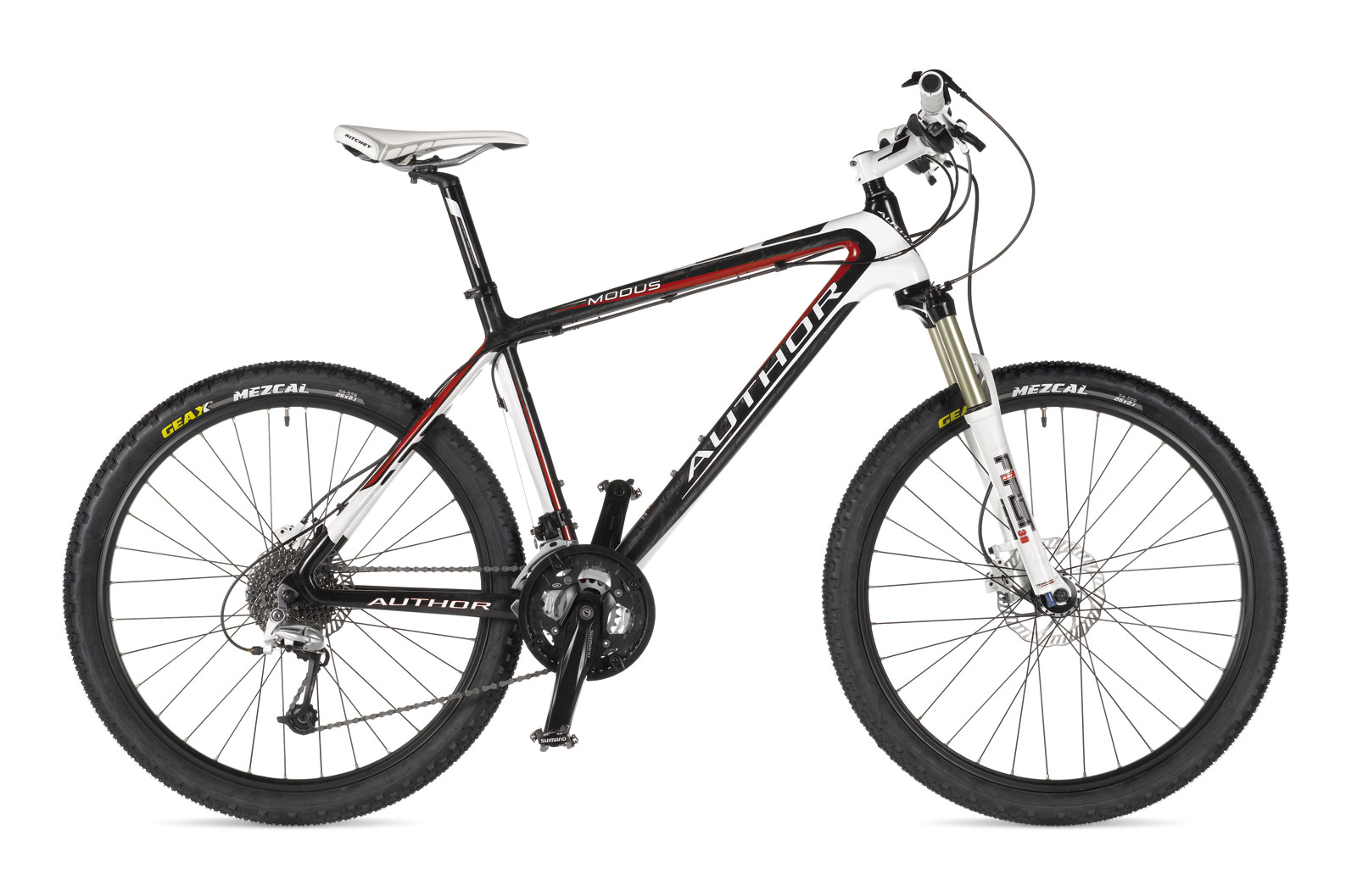

AUTHOR Modus 2012Archivní model 2012

SOLD OUT

other models

Interested in other model`s year?

2008 2009 2010 2011 2012 2013 2014

Technical specification

Size	16", 17.5", 19", 20.5"
Frame	AUTHOR carbon monocoque 26"
Front fork	RST F1RST Air SRL air, remote lock out 1.5" taper steerer (100 mm)
Head parts	FSA Orbit C-40 1.5" taper
Chain Wheel	SHIMANO M431 44-32-22 teeth 170 / 175 mm cranks
BBParts	SHIMANO ES-25 Octalink
Front derailleur	SHIMANO Alivio (34.9)
Rear derailleur	SHIMANO Deore
Shifters	SHIMANO Deore (27)
Free wheel	SHIMANO HG-50-9 11-34 (9)
Chain	SHIMANO HG-53
Hubs	AUTHOR Xenon Disc 32 holes
Brakes	TEKTRO Draco WH disc hydraulic (6" rotors)
Brakes levers	TEKTRO Draco WH

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
