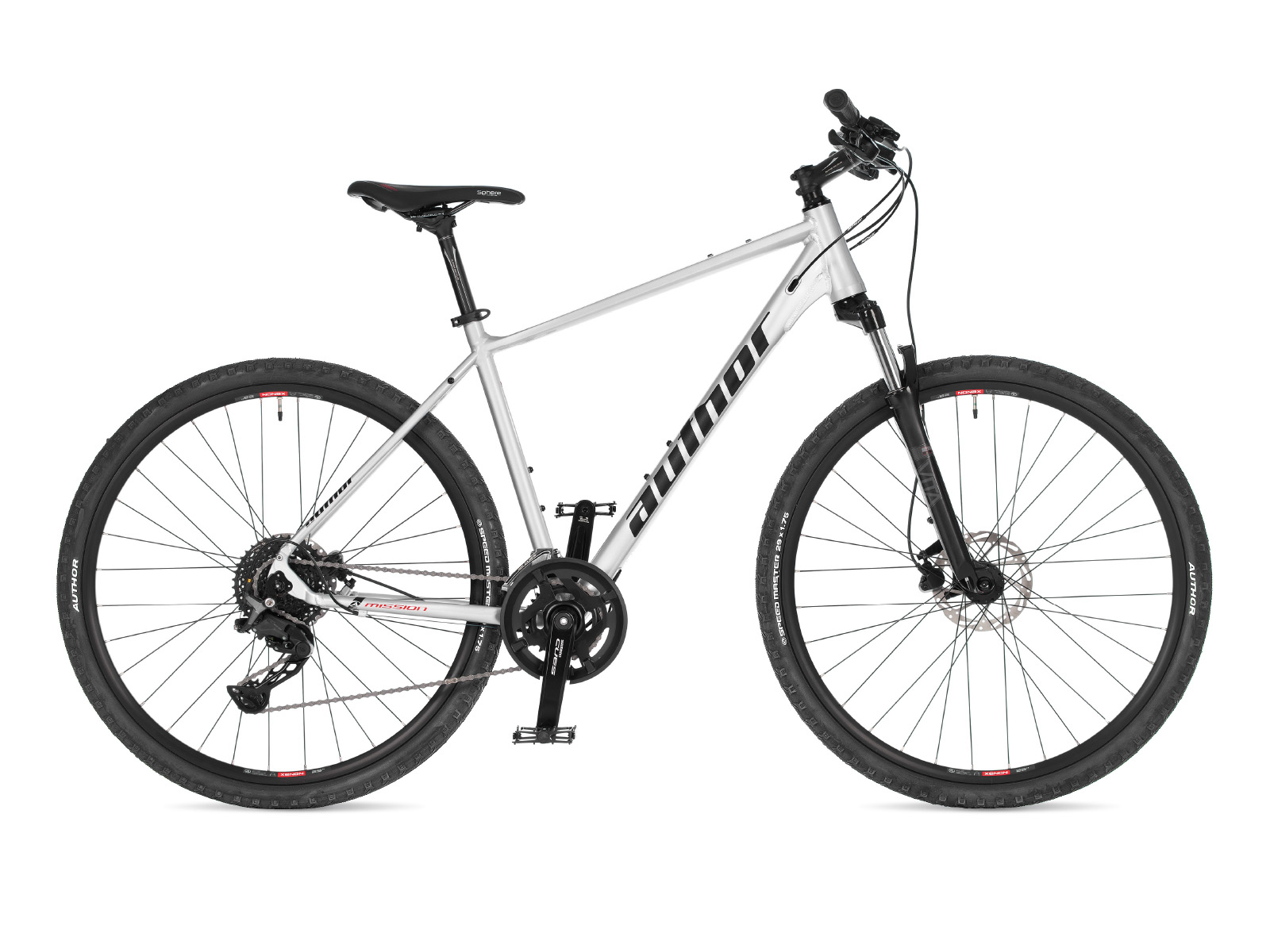

Mission 2025

~~Colour variants~~

Tripple butted alloy frameRST Vita TnL fork, Lock outSHIMANO CUES components, 20 speedHydraulic disc brakes TEKTROAUTHOR Speed Master 29" × 1.75" tiresAUTHOR Microtech ErgoGrip comfortable gripsAUTHOR Sphere Gel saddle

~~Buy now~~price 24 990 Kč

# 16"# 18"# 20"# 22"# black # red # silver

other models

Interested in other model`s year?

2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021-22 2023-24 2025

Technical specification

Size	16", 18", 20", 22"
Frame	triple butted alloy 6061 29"
Front fork	RST Vita TnL, oil, lock out (80 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	SHIMANO Cues 4000, 46-30 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-MT500, BB unit
Front derailleur	SHIMANO Cues 6000 (31.8)
Rear derailleur	SHIMANO Cues 6000
Shifters	SHIMANO Cues 6000 (20)
Free wheel	SHIMANO CS-LG300-10, 11-39 (10)
Chain	KMC XGlide
Hubs	AUTHOR Radon, 32 holes
Brakes	TEKTRO HD-M280, disc hydraulic (6" rotors)

Brakes levers	TEKTRO HD-M280
Rims	AUTHOR Xenon 29, 32 holes
Spokes	black stainless steel 2.0 mm
Tires	AUTHOR Speed Master, 29" × 1.75"
Pedals	AUTHOR alloy
Handlebar	AUTHOR alloy, 15 mm, 660 / 680 / 700 mm
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR Sphere Gel
Speed	20

Geometry and sizes

Size	16"	18"	20"	22"
Min. figure ~~[cm]~~	150	165	175	185
Max. figure ~~[cm]~~	168	178	188	200
S/T c-t ~~[mm]~~	406	457	508	559
S/T c-c ~~[mm]~~	0	0	0	0
T/T h ~~[mm]~~	560	580	600	620
T/T a ~~[mm]~~	552	563	577	594
H/T ~~[mm]~~	110	130	150	170
C/S ~~[mm]~~	450	450	450	450
W/B ~~[mm]~~	1055	1076	1097	1117
S/T ang. ~~[°]~~	73	73	73	73
H/T ang. ~~[°]~~	71	71	71	71
F/L ~~[mm]~~	490	490	490	490
B/B drop ~~[mm]~~	60	60	60	60
B/B width ~~[mm]~~	68	68	68	68
Reach ~~[mm]~~	373	387	402	416
Stack ~~[mm]~~	611	630	649	668
F/R ~~[mm]~~	44	44	44	44
Handlebars ~~[mm]~~	0	0	0	0
Stem ~~[mm]~~	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

silver / black / red

16" = UA#42959701 18" = UA#42959702 20" = UA#42959703 22" = UA#42959704
