AUTHOR MELODY 2012
  » Bicycles » junior » junior 20

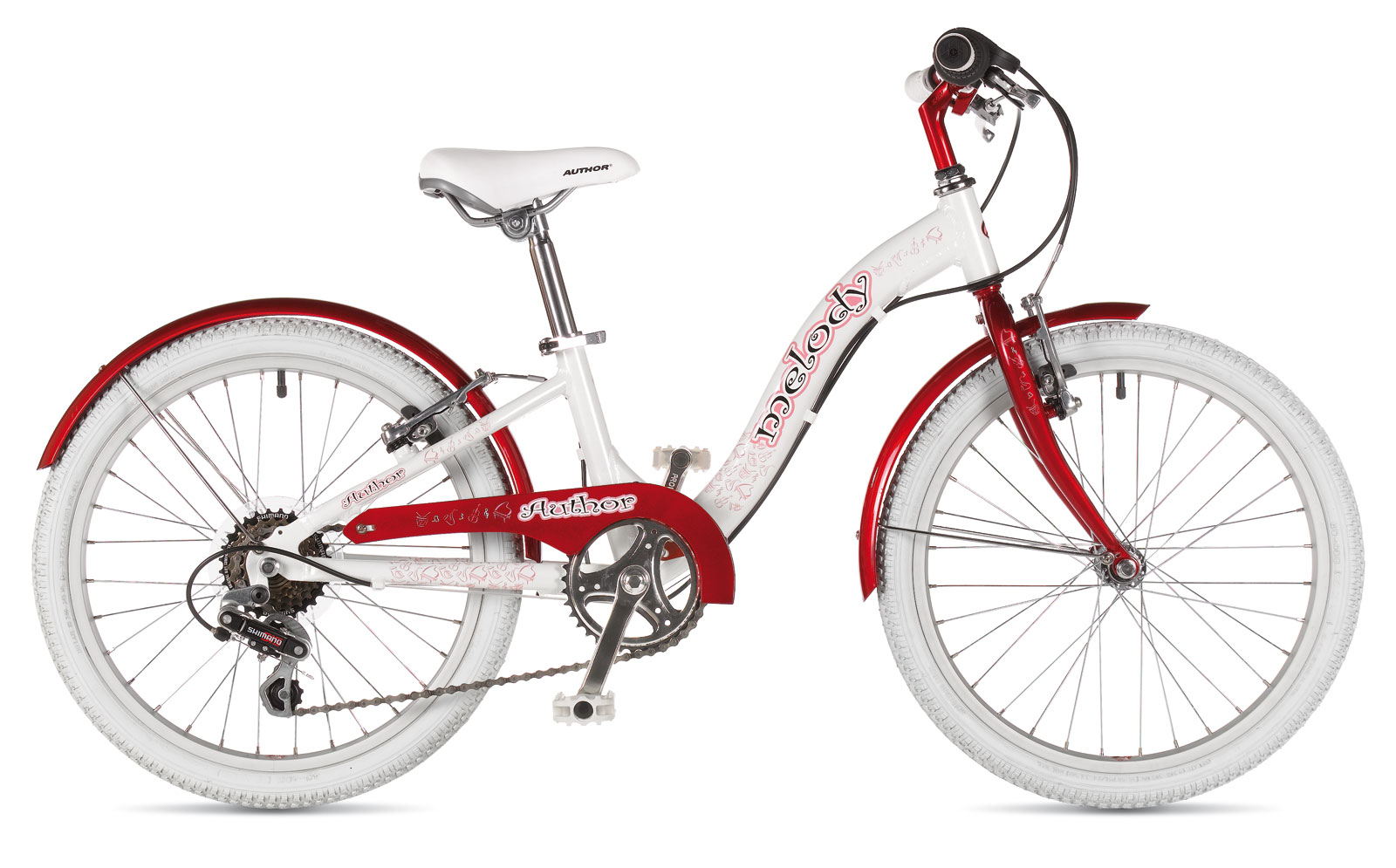

AUTHOR Melody 2012Archivní model 2012

SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size10"
Framealloy 7005 (L)
Front forkhi-ten
Head partsVP COMP. 1"
Chain WheelPROWHEEL 36 teeth 127 mm cranks
BBPartsVP COMP.
Rear derailleurSHIMANO TY18
ShiftersSHIMANO Revoshift (6)
Free wheelSHIMANO MF-TZ20 14-28 (6)
ChainKMC Z33
Hubssteel 32 holes
BrakesTEKTRO 855AL
Brakes leversTEKTRO plastic / alloy
Rimsalloy 32 holes
Spokessteel
Tires20" x 1.50"
Pedalsresin
HandlebarKALIN steel 20 mm 540 mm
GripsAUTHOR kratton rubber
StemKALIN steel
Seat postKALIN steel (26.8)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Melody
Speed6
Weight10,3 Kg / 10"

Geometry and sizes

Size 10"
Min. figure [cm] 115
Max. figure [cm] 135
S/T c-t [mm] 254
S/T c-c [mm] 0
T/T h [mm] 444
T/T a [mm] 420
H/T [mm] 90
C/S [mm] 360
W/B [mm] 855
S/T ang. [°] 73
H/T ang. [°] 72
F/L [mm] 316
B/B drop [mm] 10
B/B width [mm] 0
Reach [mm] 0
Stack [mm] 0
F/R [mm] 45
Handlebars [mm] 0
Stem [mm] 0
Cranks [mm] 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Melody 2012

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
