Record 20 2026

Technical specification

Size	10"
Frame	alloy 20"
Front fork	alloy 20"
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL, 36 teeth, 127 mm cranks
BBParts	VP COMP
Rear derailleur	SHIMANO TY300
Shifters	SHIMANO Revoshift (7)
Free wheel	SHIMANO CS-HG200-7, 12-32 teeth (7)
Chain	KMC Z7
Hubs	QUANDO, 20 holes
Brakes	TEKTRO V
Brakes levers	TEKTRO

Rims	alloy, 20 holes
Spokes	black stainless steel 1.8 mm
Tires	KENDA Small Block Eight, aramid, 20" x 1.50"
Pedals	plastic
Handlebar	combo alloy, rise 20 mm, 540 mm
Grips/Bar tapes	AUTHOR kratton rubber
Stem	combo alloy
Seat post	alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR Pilot
Speed	7
Weight	8,3 kg / 10"

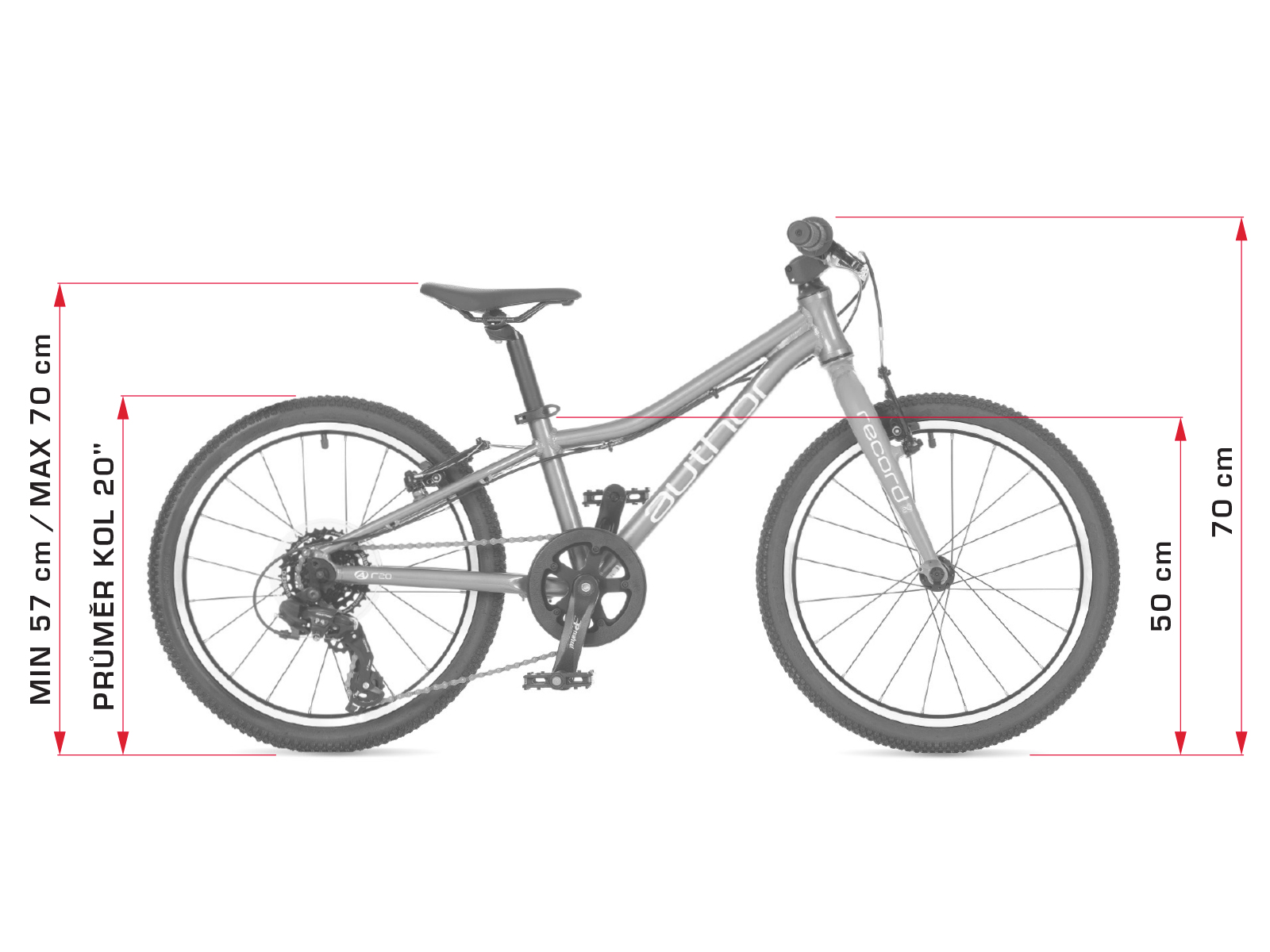

Geometry and sizes

Size	10"
Min. figure ~~[cm]~~	115
Max. figure ~~[cm]~~	135
S/T c-t ~~[mm]~~	254
S/T c-c ~~[mm]~~	0
T/T h ~~[mm]~~	430
T/T a ~~[mm]~~	0
H/T ~~[mm]~~	90
C/S ~~[mm]~~	360
W/B ~~[mm]~~	850
S/T ang. ~~[°]~~	73.5
H/T ang. ~~[°]~~	71
F/L ~~[mm]~~	321
B/B drop ~~[mm]~~	15
B/B width ~~[mm]~~	68
Reach ~~[mm]~~	314
Stack ~~[mm]~~	396
F/R ~~[mm]~~	28
Handlebars ~~[mm]~~	0
Stem ~~[mm]~~	0
Cranks ~~[mm]~~	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		10"	20 stores				42963401
	▪ Bike Servis FRODL		in stock	buy now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ Cyklotech Jana Hlaváčová		in stock	buy now	Karviná - Mizerov	774 544 311, info@cyklotech.cz	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	▪ VISO BIKE		in stock	buy now	Kostelec nad Orlicí	494 321 123, info@visobike.cz	map
	▪ bikee.cz		in stock	buy now	Kutná Hora	327 513 119, cyklo@autocombi.cz	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Cyklo sport Stratílek		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		in stock	buy now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	775 657 711, viavelo@viavelo.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	⟲ In other stores		in 2 days				dealers
		10"	17 stores				42963411
	▪ Bike Servis FRODL		in stock	buy now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklotech Jana Hlaváčová		in stock	buy now	Karviná - Mizerov	774 544 311, info@cyklotech.cz	map
	▪ VISO BIKE		in stock	buy now	Kostelec nad Orlicí	494 321 123, info@visobike.cz	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		in stock	buy now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	775 657 711, viavelo@viavelo.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ ValmezBike		in stock	buy now	Valašské Meziříčí	734 393 565, prodejna@valmezbike.cz	map
	⟲ In other stores		in 2 days				dealers
		10"	18 stores				42963421
	▪ Bike Servis FRODL		in stock	buy now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklotech Jana Hlaváčová		in stock	buy now	Karviná - Mizerov	774 544 311, info@cyklotech.cz	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	▪ bikee.cz		in stock	buy now	Kutná Hora	327 513 119, cyklo@autocombi.cz	map
	▪ Cyklosport Kerda		order	order now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Cyklo sport Stratílek		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	775 657 711, viavelo@viavelo.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ ValmezBike		in stock	buy now	Valašské Meziříčí	734 393 565, prodejna@valmezbike.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

additional accessories

150 Kč ~~175 Kč~~ ABC-55 clampBottle cage with handlebar clamp (22,2 - 25,4mm). Weight 50g. Recommended bottle AB-ScrewOn 0,65l. more »

160 KčJunior clampAuthor Junior bottle cage. Handlebar clamp 22,2 - 25,4 mm. more »

1/2

150 Kč ~~175 Kč~~ AKS-16A C X9!Kick Stand Author for direct frame fixation. Adjustable for size 16"- 20". Material AL6061-T6 / ... more »

1/2

225 KčJunior 16The AUTHOR Junior is a mudguard set with standard protection. The mudguard can be easily removed a ... more »

1/2

160 KčJunior 20 X25The Junior is a mudguard set with standard protection. The mudguard can be easily removed and stor ... more »

	silver / pink	10" = UA#42963401
	silver / black / red	10" = UA#42963411
	black / orange	10" = UA#42963421
